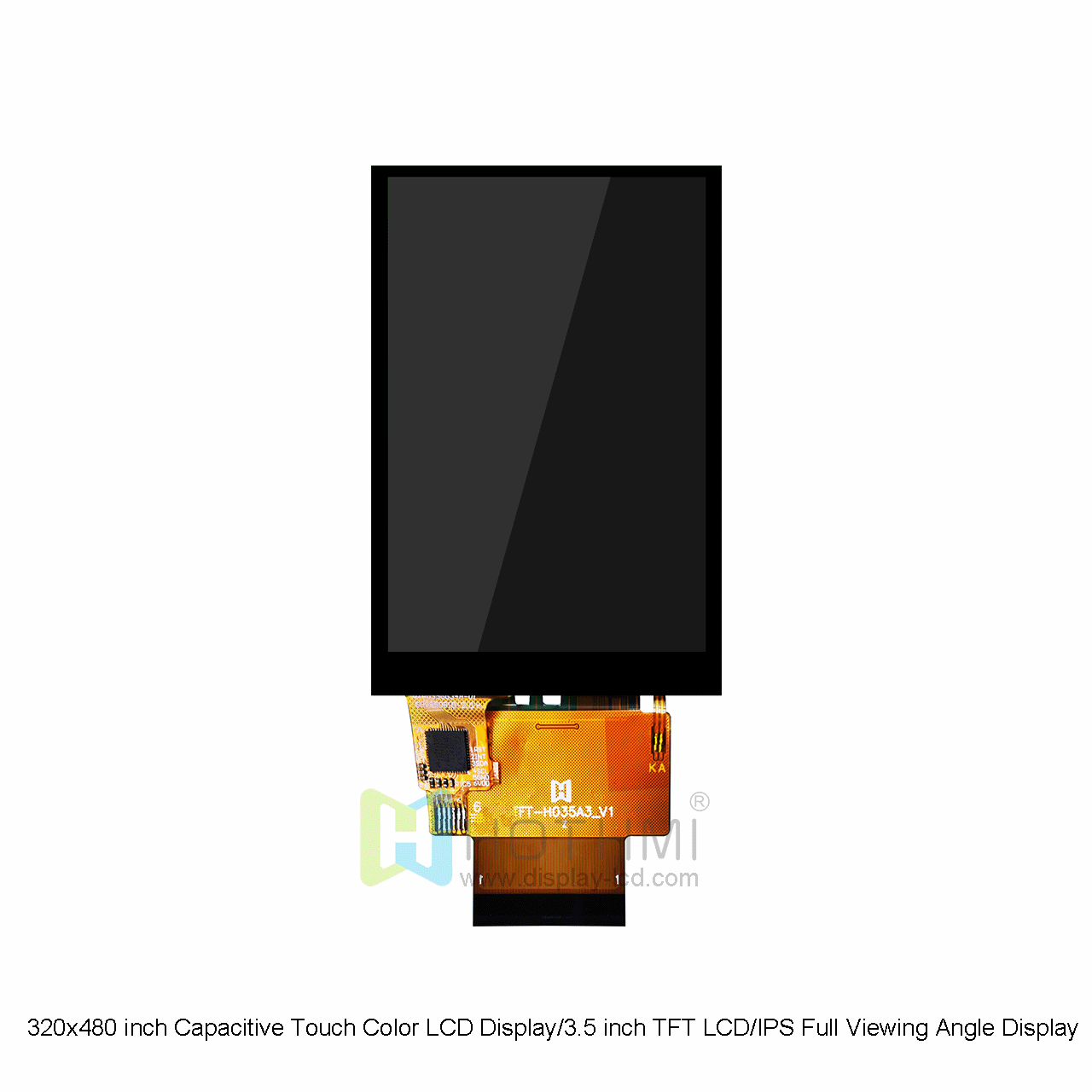

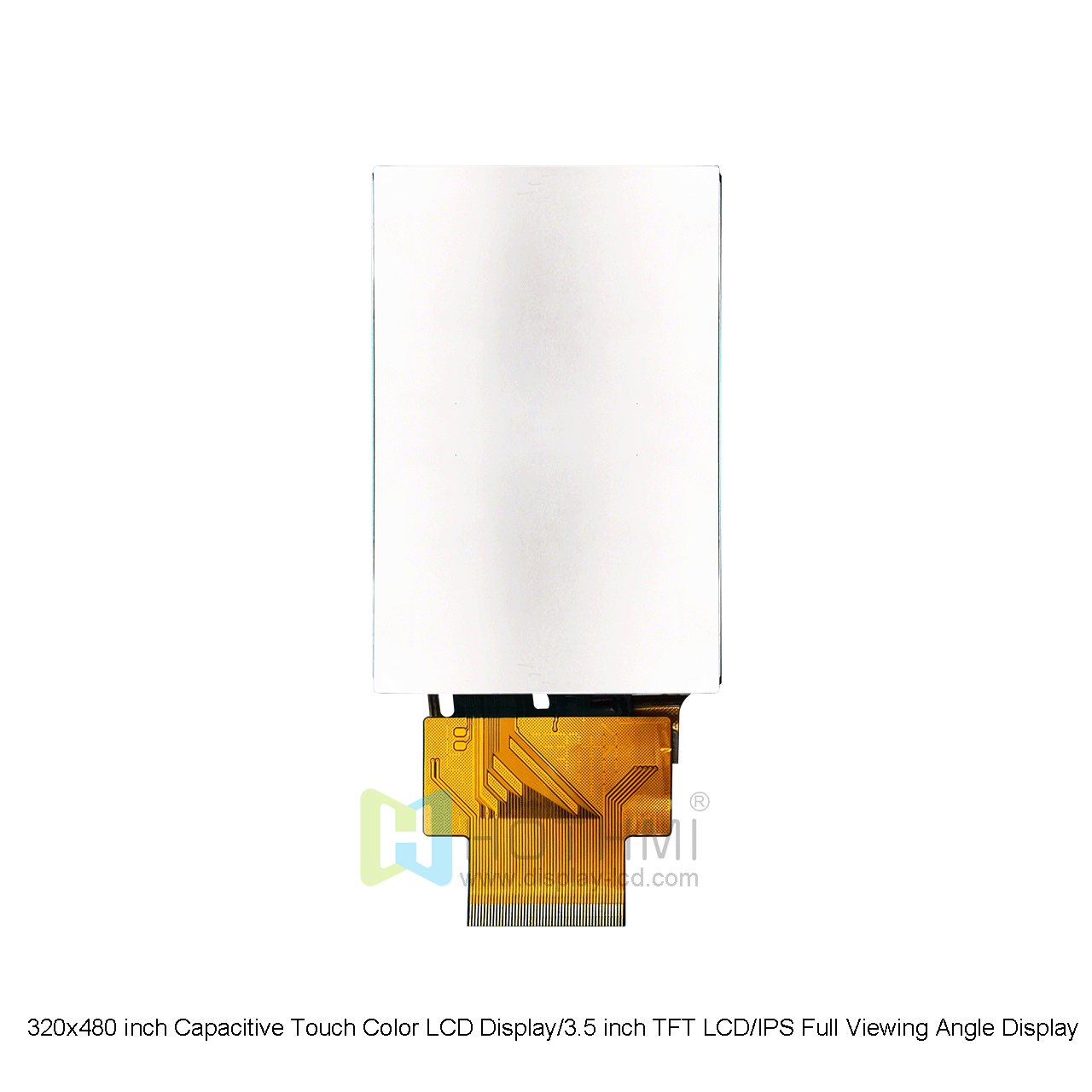

3.5-inch 320x480 full-color IPS display/TFT LCD with capacitive touch/plug-in FPC/multiple interface compatible/ST7796S controller

3.5-inch 320x480 full-color IPS display/TFT LCD with capacitive touch/plug-in FPC/multiple interface compatible/ST7796S controller

▶ Model: TFT-H035A3HVIST4C50

▶ Type: TFT display
▶ Display pixels: 320x480

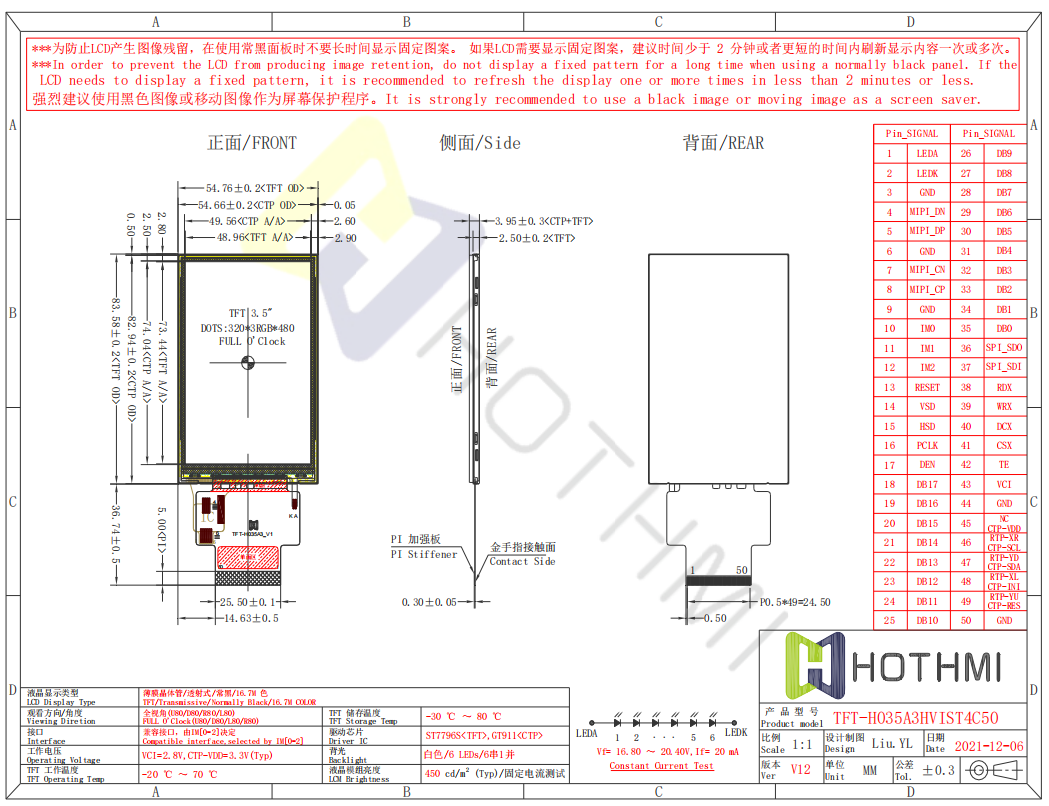

▶ Dimensions (mm): 54.76x83.58x3.95
▶ Display inches: 3.5"
▶ AA size (mm): 48.96x73.44
▶ Application: handheld devices
▶ Viewing angle: IPS full viewing angle
▶ Backlight/brightness: 450cd/m2
▶ Pin: FPC-50 pin
▶ Interface mode: compatible with multiple interfaces
▶ Special instructions: anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Supply voltage: 3.3V
▶ Driver IC: ST7796S

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
TFT to HI adapter board

Product Description
Specification
Attributes

3.5-inch 320x480 full-color IPS display/TFT LCD with capacitive touch/plug-in FPC/multiple interface compatible/ST7796S controller
This TFT-H035A3HVIST4C50 3.5-inch TFT display is very powerful. It has a brightness of 450 nits, a contrast ratio of 800:1, 320x480 pixels, and detailed images are clear and sharp. Powered by a 3.3V power supply, it provides amazing clarity, excellent color reproduction, better image consistency, and high contrast at all viewing angles due to the built-in IPS technology. Compatible with multiple interfaces, you can choose SPI, MCU, SPI+RGB interface. This interface configuration makes this display compatible with various Arduino models and other similar circuit boards, allowing seamless integration with Arduino projects. This display also has a 50-pin FPC, 0.5mm pitch connection method, and is powered by an ST7796S controller. This model is equipped with a highly sensitive capacitive touch function, with a high appearance and good quality.

All our displays are RoHS compliant and adhere to strict environmental and safety standards.

Product highlights: wide temperature (operating temperature -20 ℃ ~ 70 ℃), IPS full viewing angle, with capacitive touch function, compact and lightweight

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H035A3HVIST4C50
Diagonal size	3.5”	Inch
Resolution	320x480	Dot
Dimensions	54.76x83.58x3.95	mm
Active area (AA)	48.96x73.44	mm
LCD type	TFT LCD Display	mm
Display viewing angle	Full View(U80/D80/R80/L80)
Aspect ratio	2:3
Backlight type	LED white
TFT driver IC	ST7796S
Brightness	450	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
