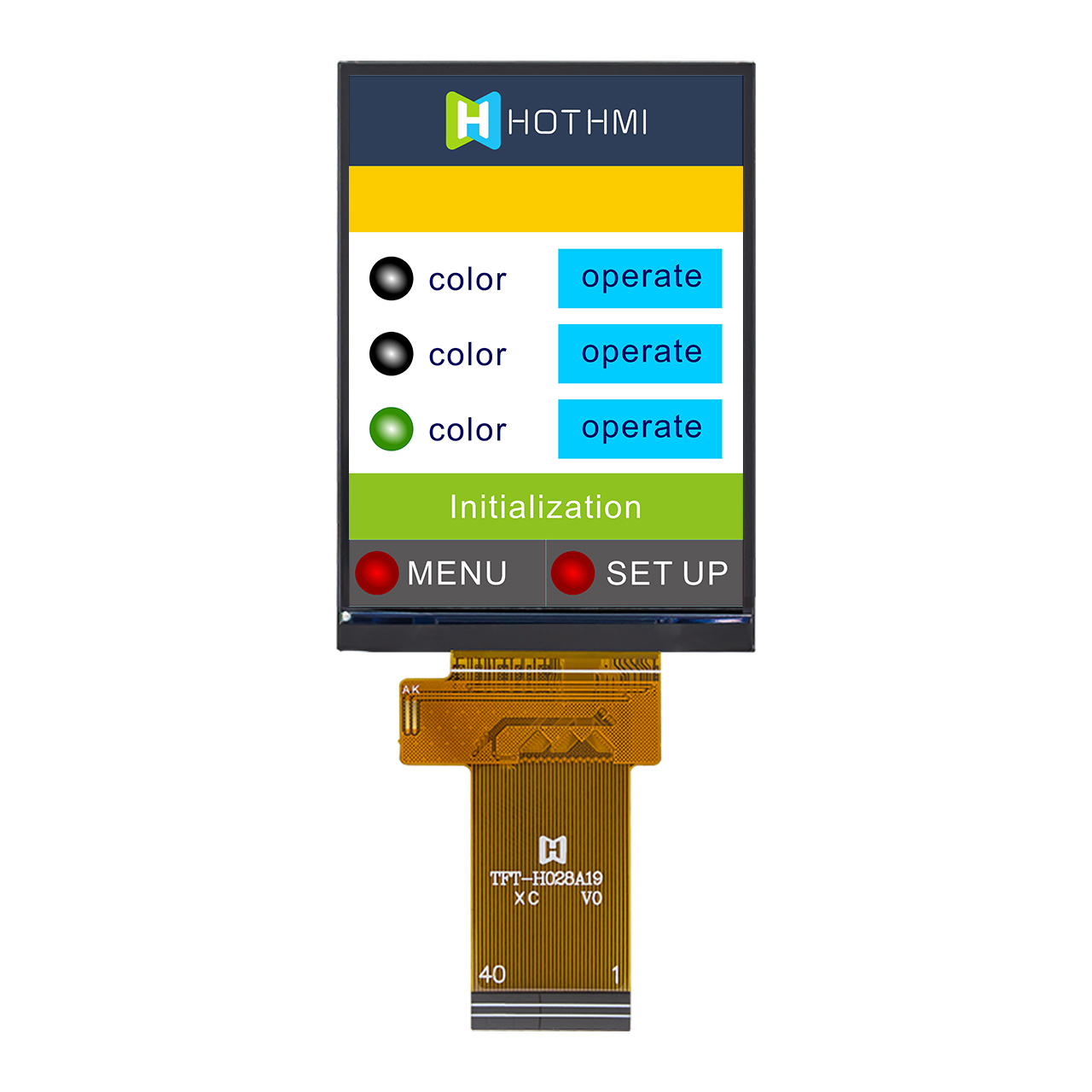

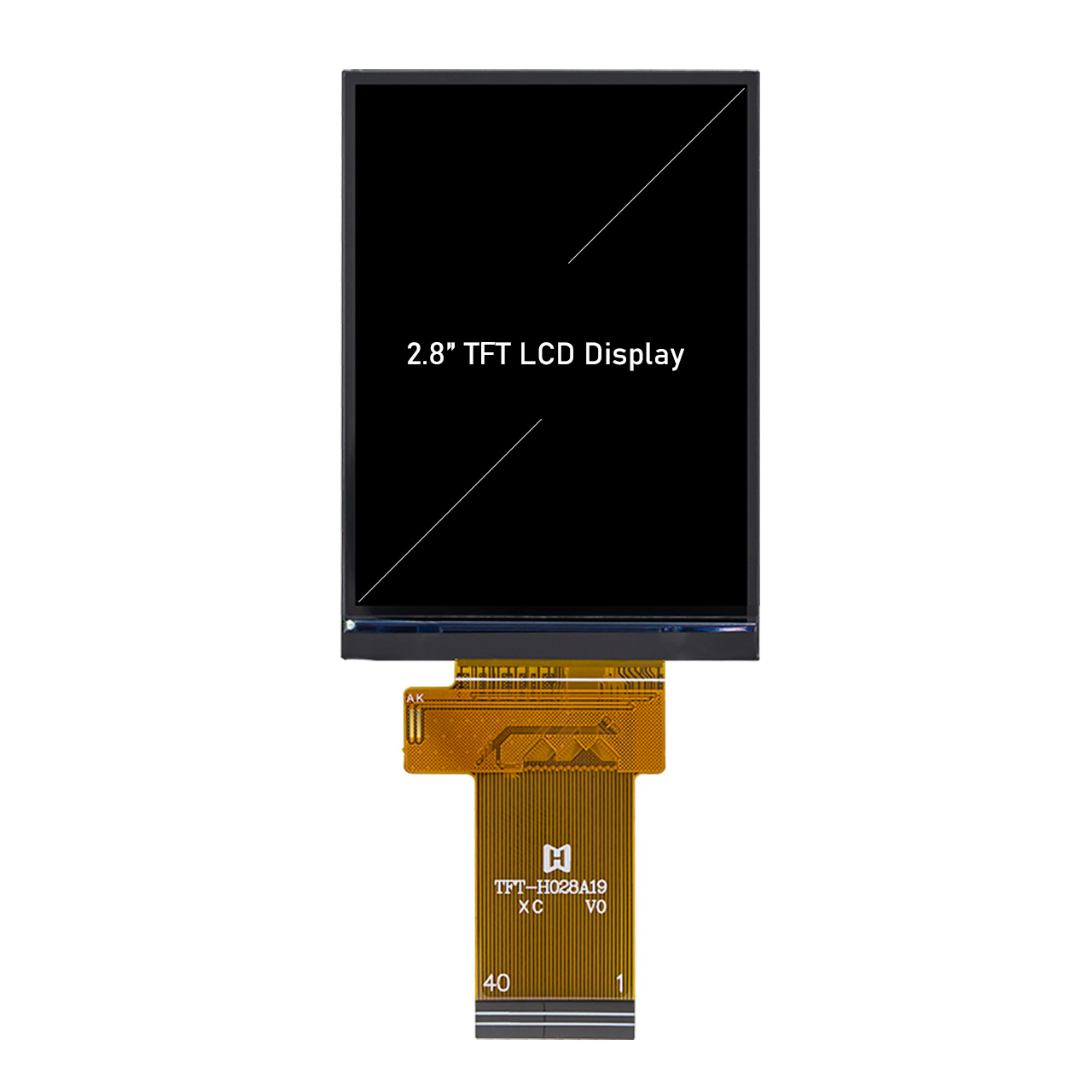

2.8 inch TFT LCD Screen | 480x640 RGB Interface

2.8 inch TFT LCD Screen | 480x640 RGB Interface | ST7701S Controller

▶ Model: TFT-H028A19VGIST5N40

▶ Type: 2.8 inch TFT LCD Screen
▶ Display pixels: 480x640
▶ Dimensions (mm): 46.1x65.15x1.51
▶ Effective size (mm): 43.2x57.90
▶ Display inches: 2.8"
▶ Application: Handheld devices, home appliances
▶ Viewing angle: full viewing angle
▶ Brightness: 500cd/m2
▶ Pin: FPC-40PIN
▶ Interface: RGB
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 3.3V
▶ Driver chip: ST7701S

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

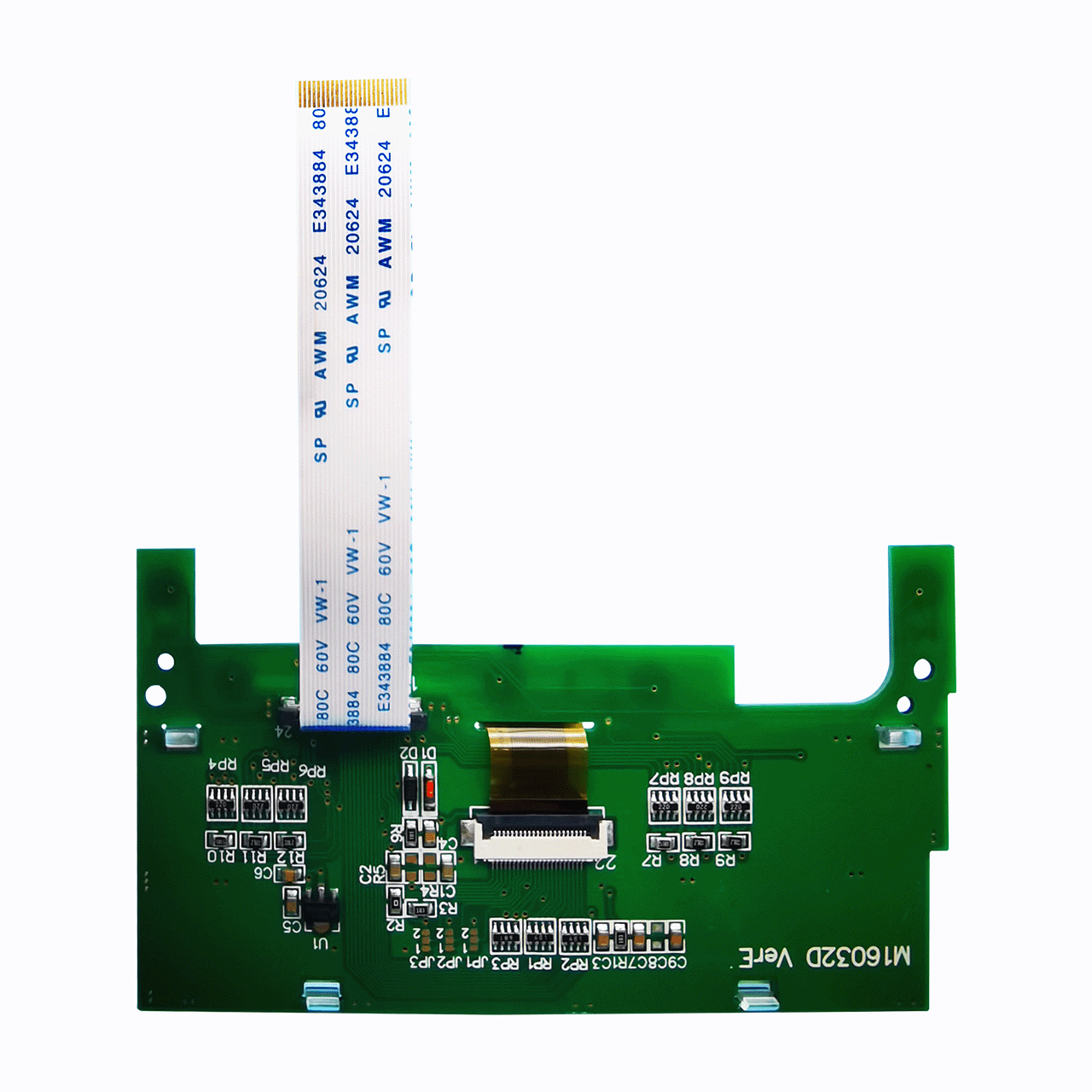

JX Demo Board-RGB Specified Model Main Control Board
ESP32-S3 main control board / RGB designated display
EZUI-H Main Control Board-RGB/MCU (Universal for 800*480 and below)
USB data cable T-port charging data cable/serial screen/adapter board
Full-function test development PCB-Bluetooth-WIFI-UART-CAN-LVGL-RS485

Product Description
Customized Services
Attributes

2.8 inch TFT LCD Screen | 480x640 RGB Interface TFT Panel | ST7701S
TFT-H028A19VG1ST5N40 is a 2.8 inch TFT LCD Screen with RGB+SPI dual interface design, 480x640 resolution pixels. Its core driver chip is ST7701S, with an operating voltage range of 3.0V~3.6V .It is equipped with a non-touch screen version, and the backlight adopts constant current drive , with a typical brightness of 500 cd/m², which meets the needs of various indoor and outdoor scenes.In terms of interface, this 2.8 inch TFT LCD Screen provides 40-pin RGB parallel bus and SPI serial communication options, This module is suitable for industrial control, medical equipment, portable terminals and other fields, taking into account high performance and reliability.

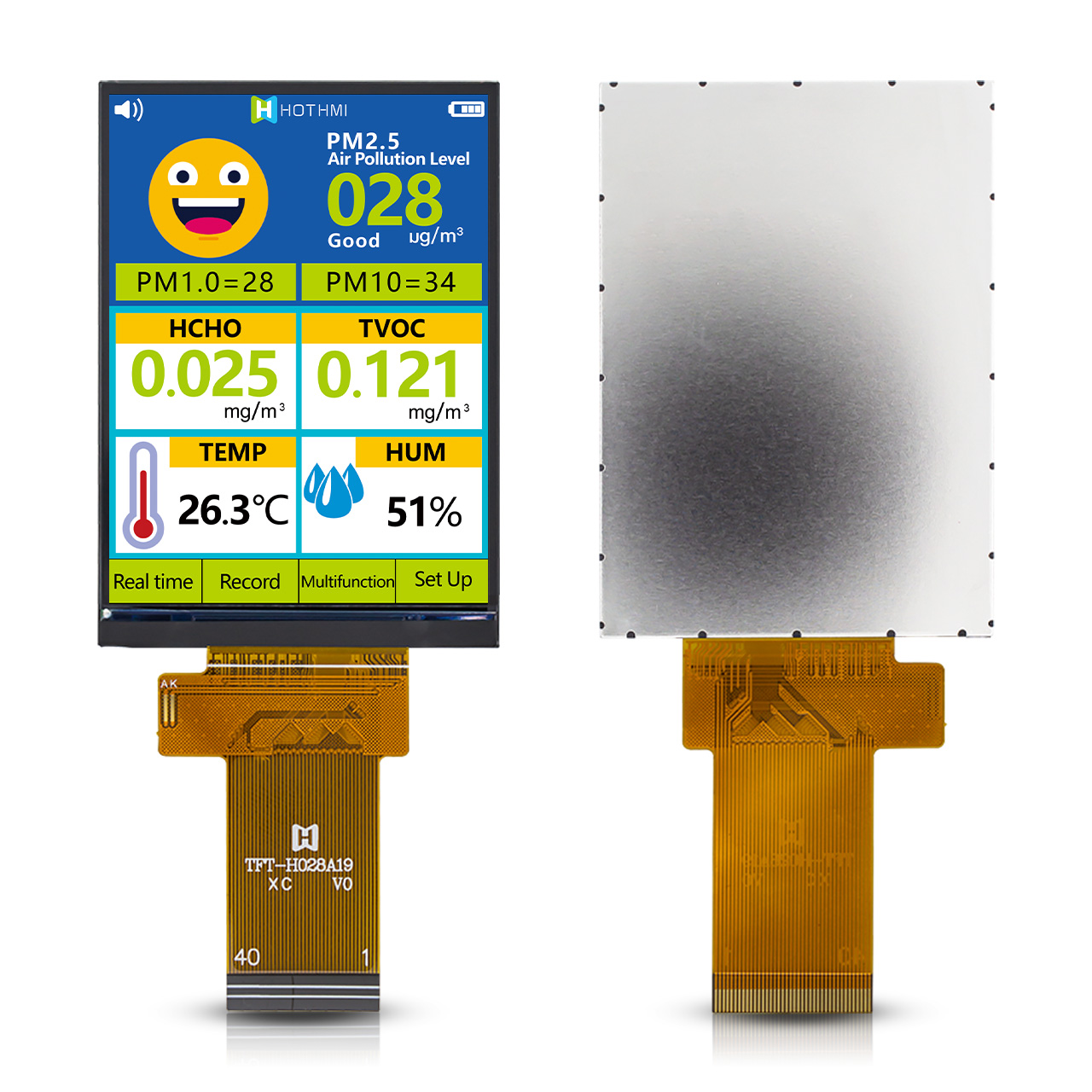

This 2.8 inch TFT LCD Screen product can be used in handheld devices, household appliances and other products, with moderate size and wide application range. This product has an RGB interface and the same size. Users can also choose the MIPI interface model. The same series of products TFT-H028B23VGIST5G30 also has models with resistive touch function TFT-H028A17QVTST2R37, and TFT-H028C2QVTST4C45 with capacitive touch function, 2.8-inch round display TFT-H028A21ZHIST3N40.

Datasheet for Touch Panel,Controller↓

Name	Date	Size
TFT-H028A19 VGIST5N40	April 04, 2025	1.09MB

Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.Optional surface treatment: AF (anti-fingerprint oil) / AG (anti-glare) / AR (anti-reflection).

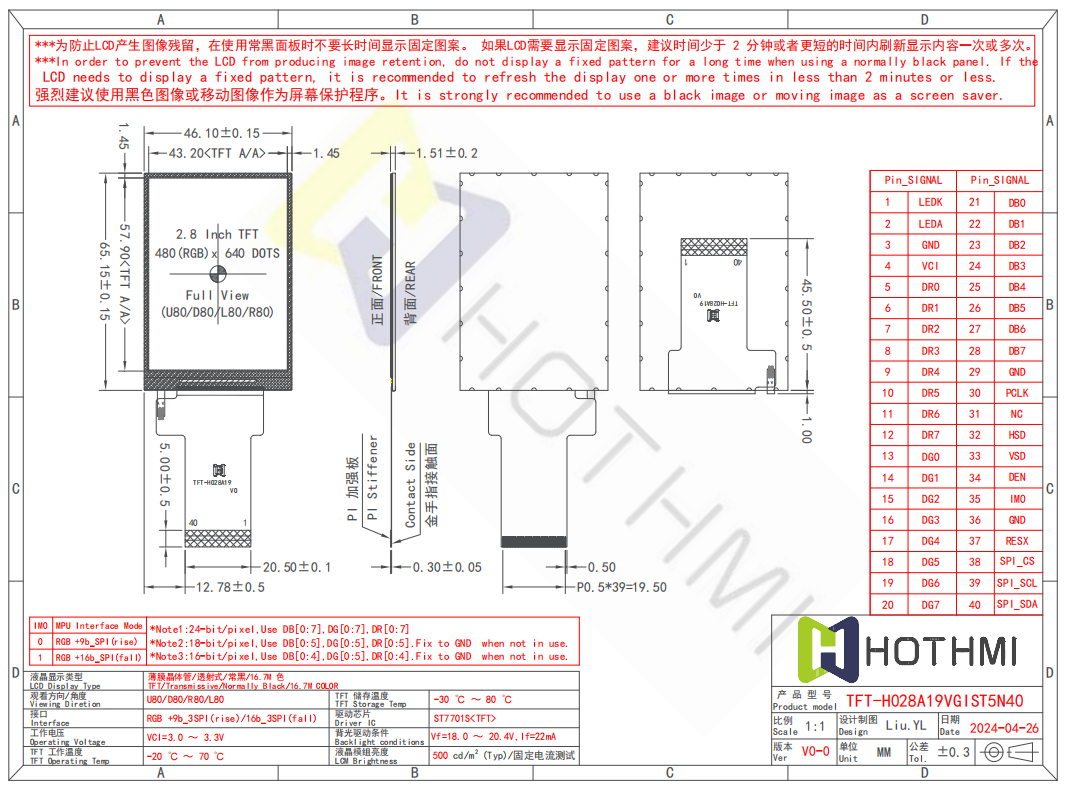

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H028A19 VGIST5N40
Diagonal size	2.8”	Inch
Resolution	480x640	Dot
Dimensions	46.1x65.15x1.51	mm
Active area (AA)	43.2x57.90	mm
LCD type	2.4 inch TFT LCD display	mm
Display viewing angle	Full View
Aspect ratio	2:3
Backlight type	LED white
TFT driver IC	ST7701S
Brightness	500	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
