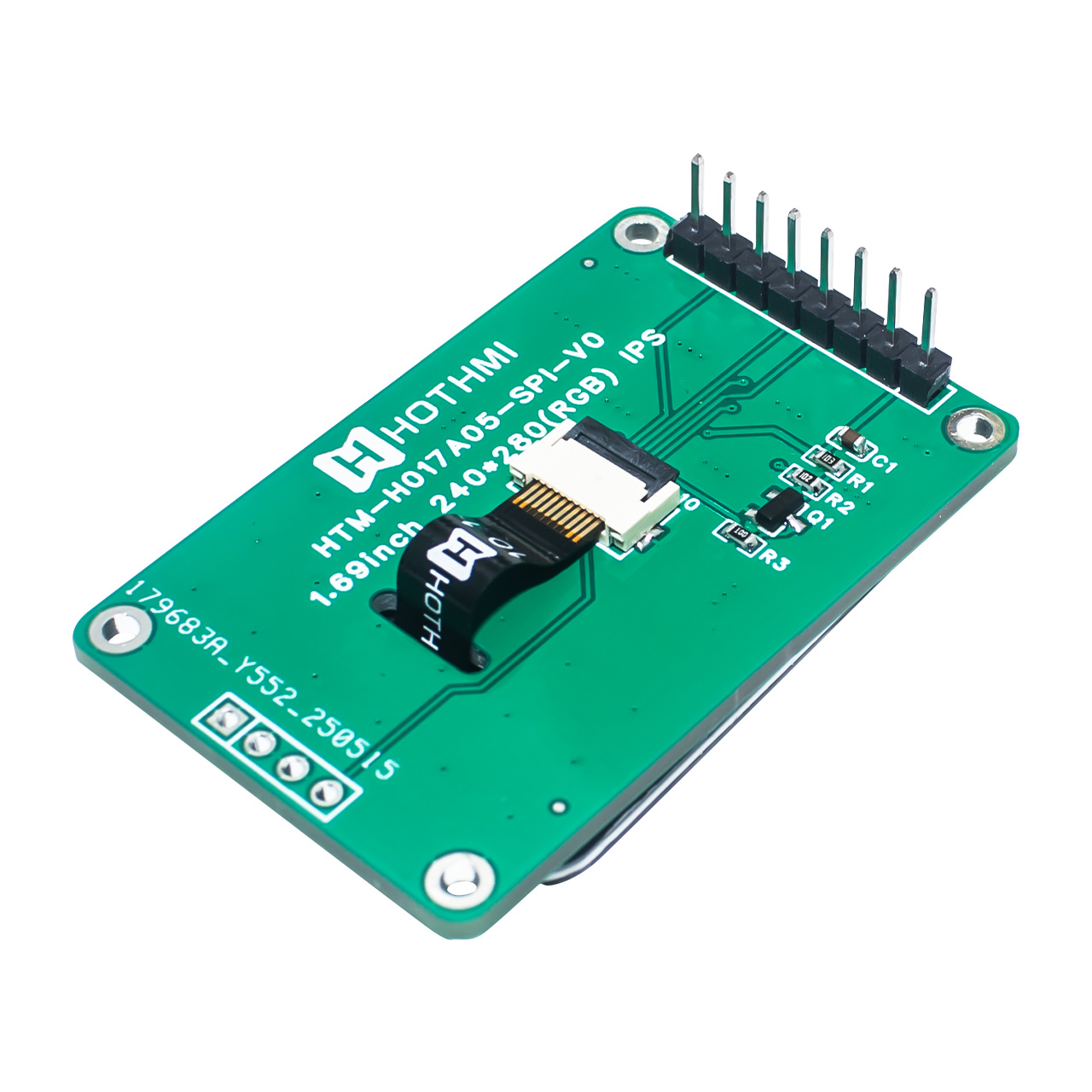

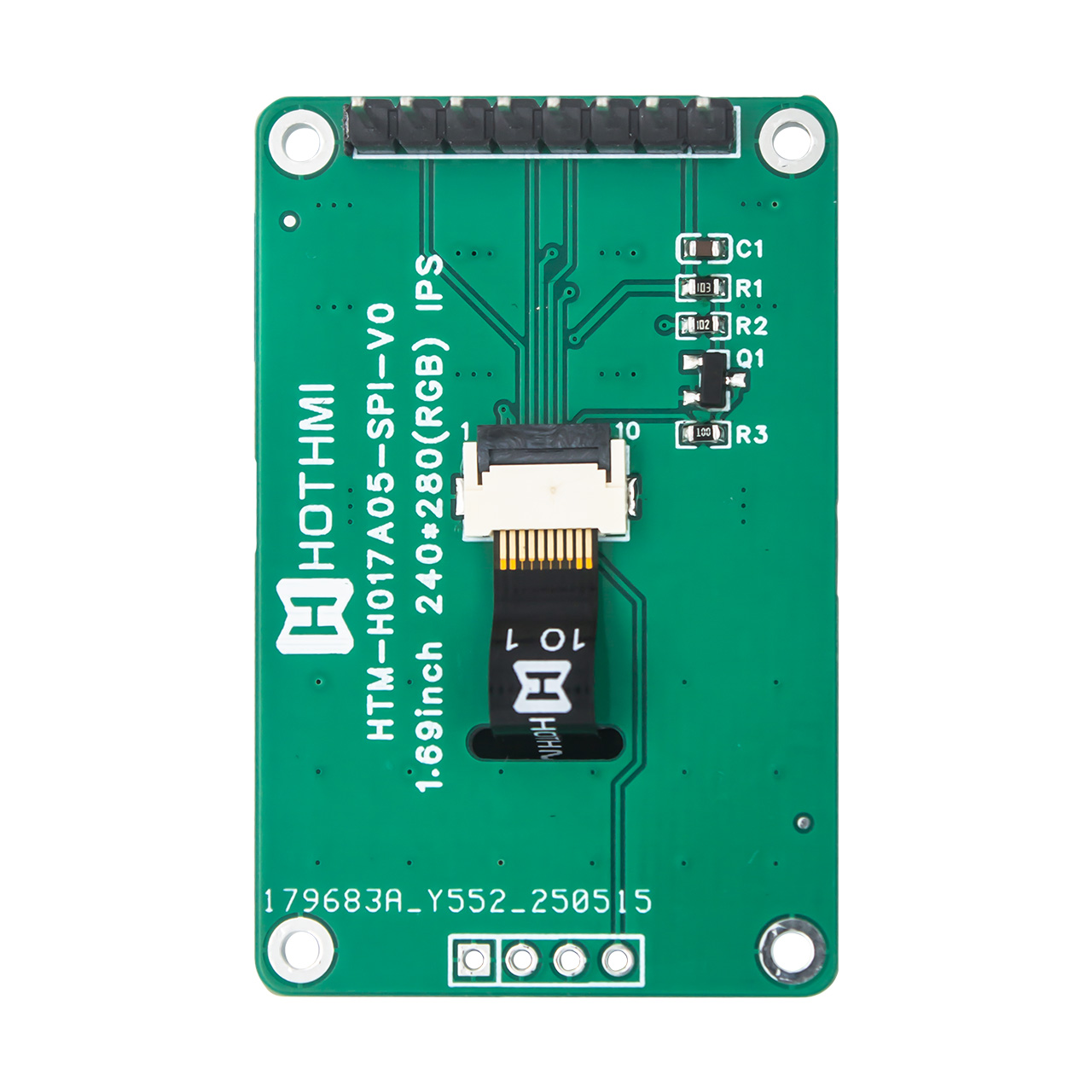

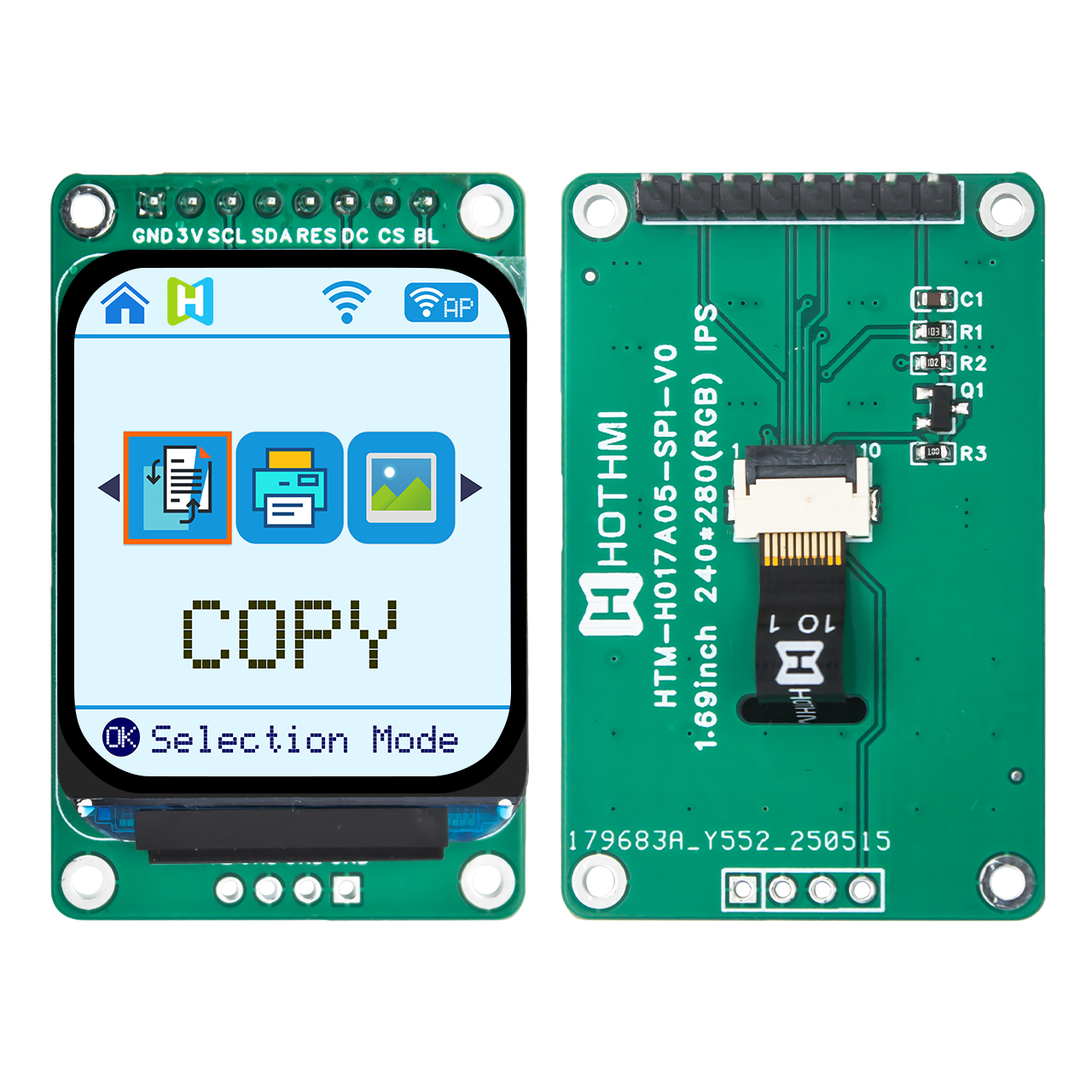

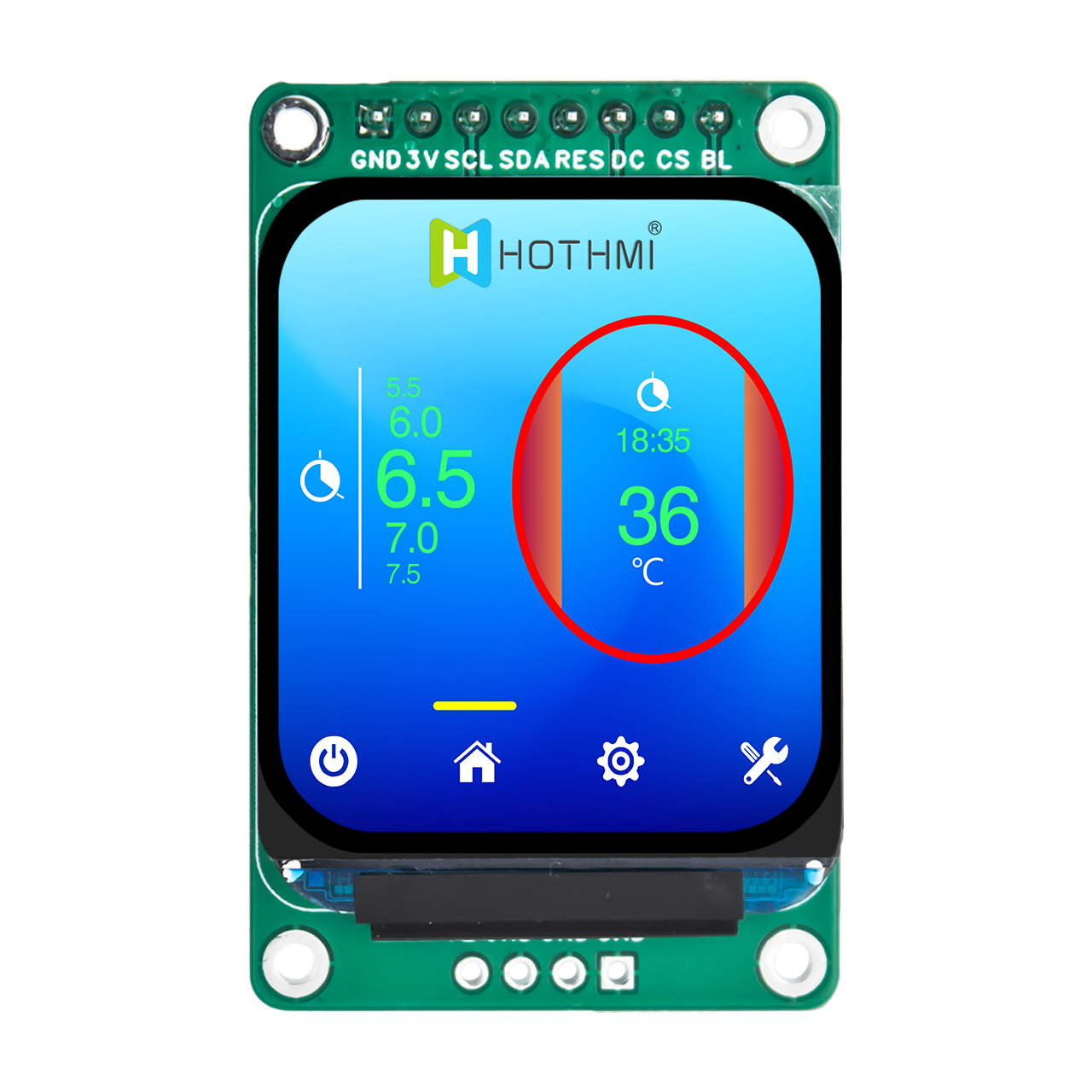

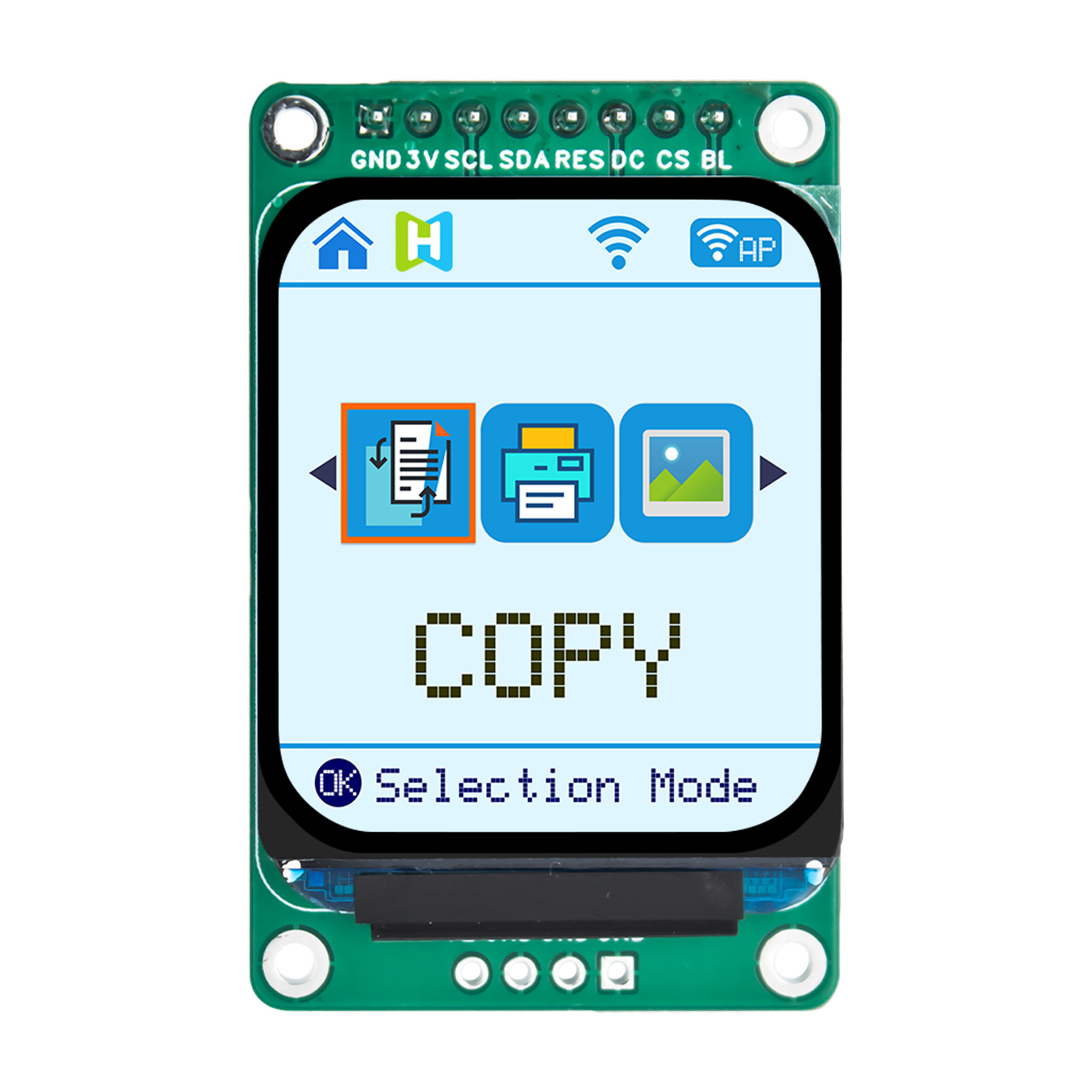

1.7 Inch 240x280 TFT LCD Module with ST7789 for Arduino

1.7 Inch 240x280 TFT LCD Module with ST7789 for Arduino

▶ Model: HTM-H017A05-SPI-V0

▶ Type: 1.7 Inch 240x280 TFT LCD Module
▶ Display pixels: 240x280
▶ Overall dimensions (mm): 31.0x48x1.6
▶ Effective size (mm): 27.97x32.63
▶ Display inches: 1.7"
▶ Application: Microcontroller/Arduino
▶ Viewing angle: IPS full viewing angle
▶ Brightness: 500cd/M²
▶ PIN:8 PIN
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 3.3V
▶ Driver chip:ST7789

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Product Description
Specification
Attributes

HTM-H017A05-SPI-V0 | 1.7 inch 240x280 TFT LCD Display Modules, ST7789 Controller SPI interface display screen, IPS full view sunlight visibility
This 1.7-inch 240x280 TFT LCD display module is a product that combines multiple advantages.

High definition display with vibrant colors
The 1.7 inch 240x280 TFT LCD Display Modules adopts a 1.7 inch TFT LCD screen with a resolution of up to 240 × 3RGB × 280, which can present delicate and clear images. The NTSC color gamut reaches 58%, with rich color expression. Whether it is dynamic images or static graphics, it can present vivid visual effects. Whether it's the UI interface of a smartwatch, the readings of a portable instrument, or the monitoring information of industrial equipment, this screen can accurately reproduce and enhance the user's visual experience.

Widely applicable scenarios
Smart wearable devices, such as smartwatches and health monitoring wristbands, feature high-definition displays with low power consumption to extend battery life.
Industrial control: suitable for HMI human-machine interface, resistant to high and low temperatures, and adaptable to harsh environments.
Medical equipment: Accurate color representation ensures clear and readable medical data.
Portable instruments: such as testing instruments and handheld terminals, perfectly combining lightweight size with high resolution.

This 1.7 inch 240x280 TFT LCD Display Modules provides reliable visual solutions for various smart devices with its excellent display performance, stable performance, and flexible adaptability. Whether it's enhancing product competitiveness or optimizing user experience, it's your ideal choice.

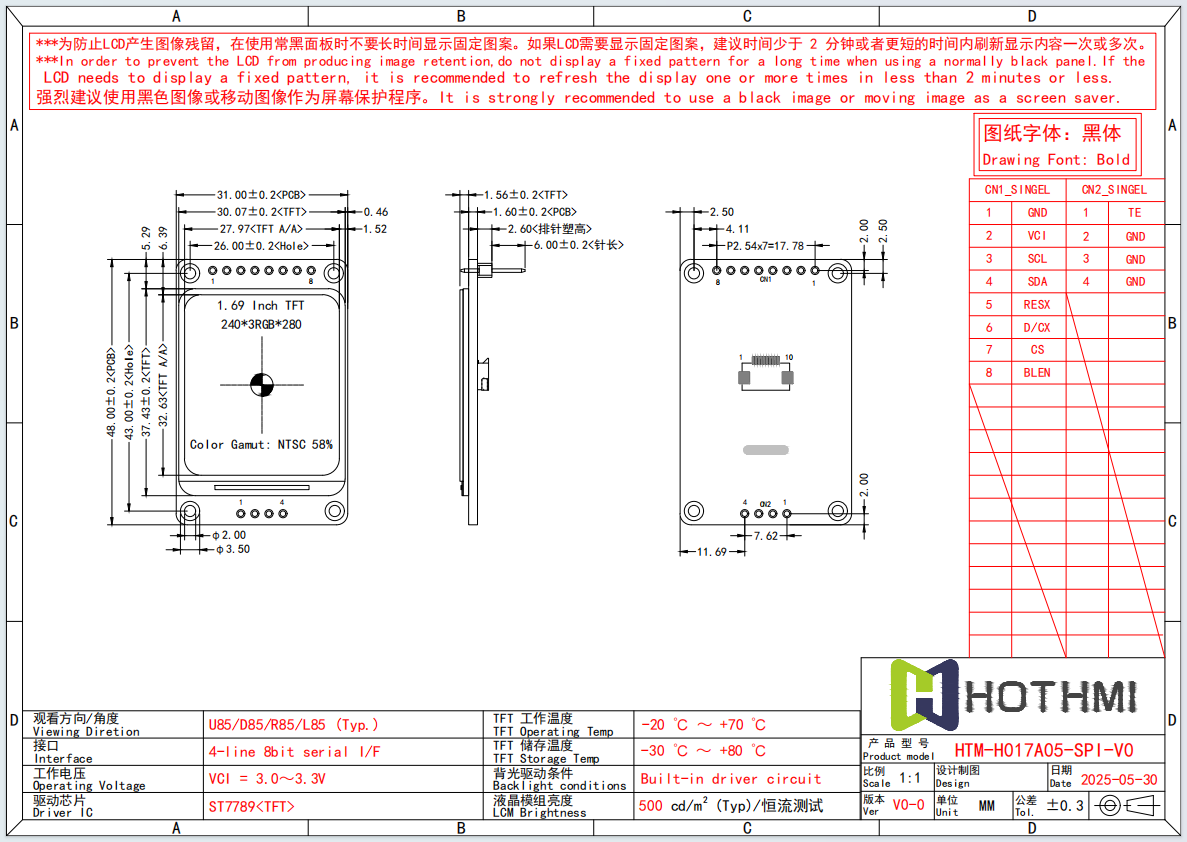

Datasheet for Touch Panel,Controller↓

Name	Date	Size
HTM-H017A05-SPI-V0	June 06, 2025	92.98KB

Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	HTM-H017A05-SPI-V0
Diagonal size	1.7”	Inch
Resolution	240x280	Dot
Dimensions	31.0x48x1.6	mm
Active area (AA)	27.97x32.63	mm
LCD type	1.7” TFT Module	mm
Display viewing angle	Full View
Aspect ratio	2:3
Backlight type	LED white
TFT driver IC	ST7789
Brightness	500cd/m2	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
