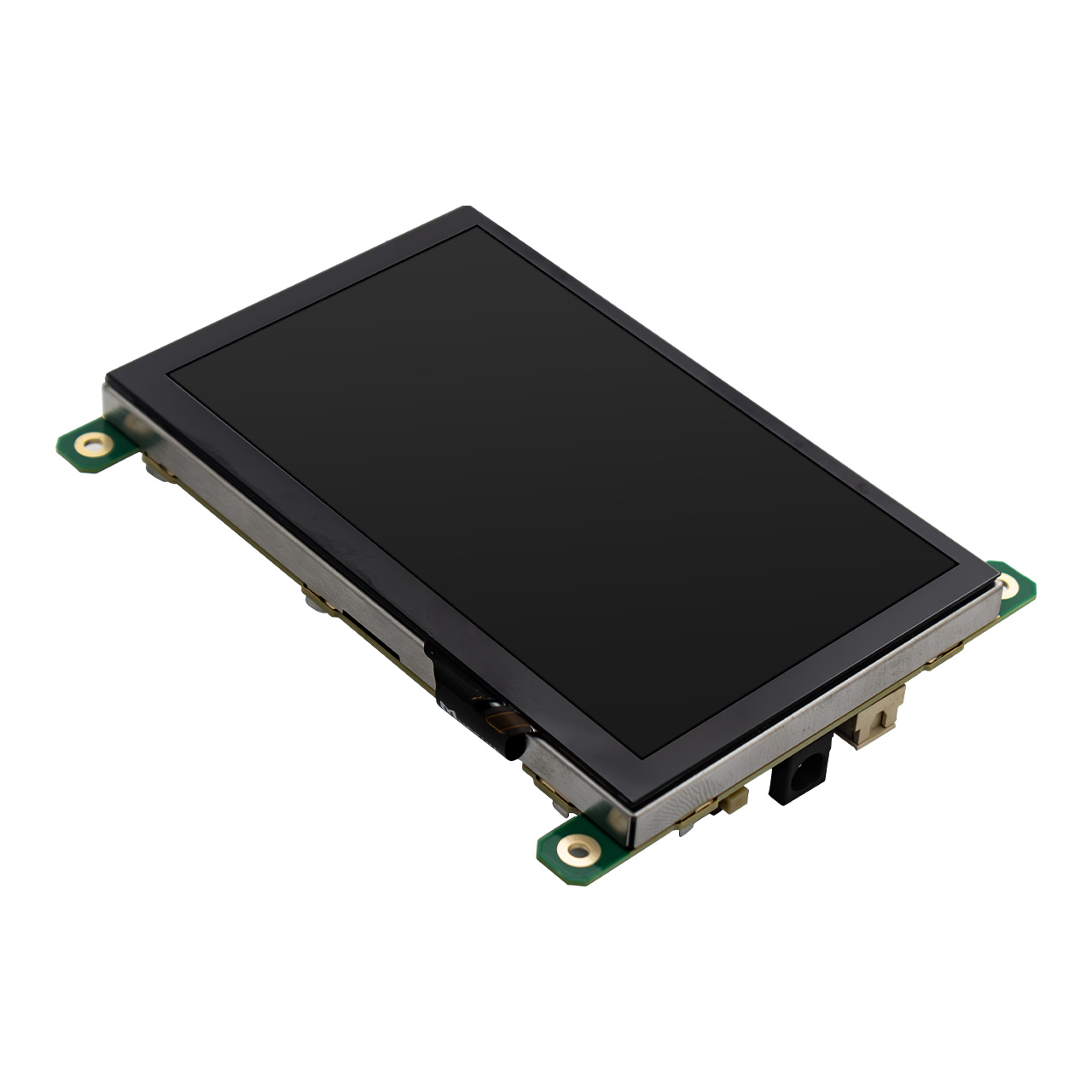

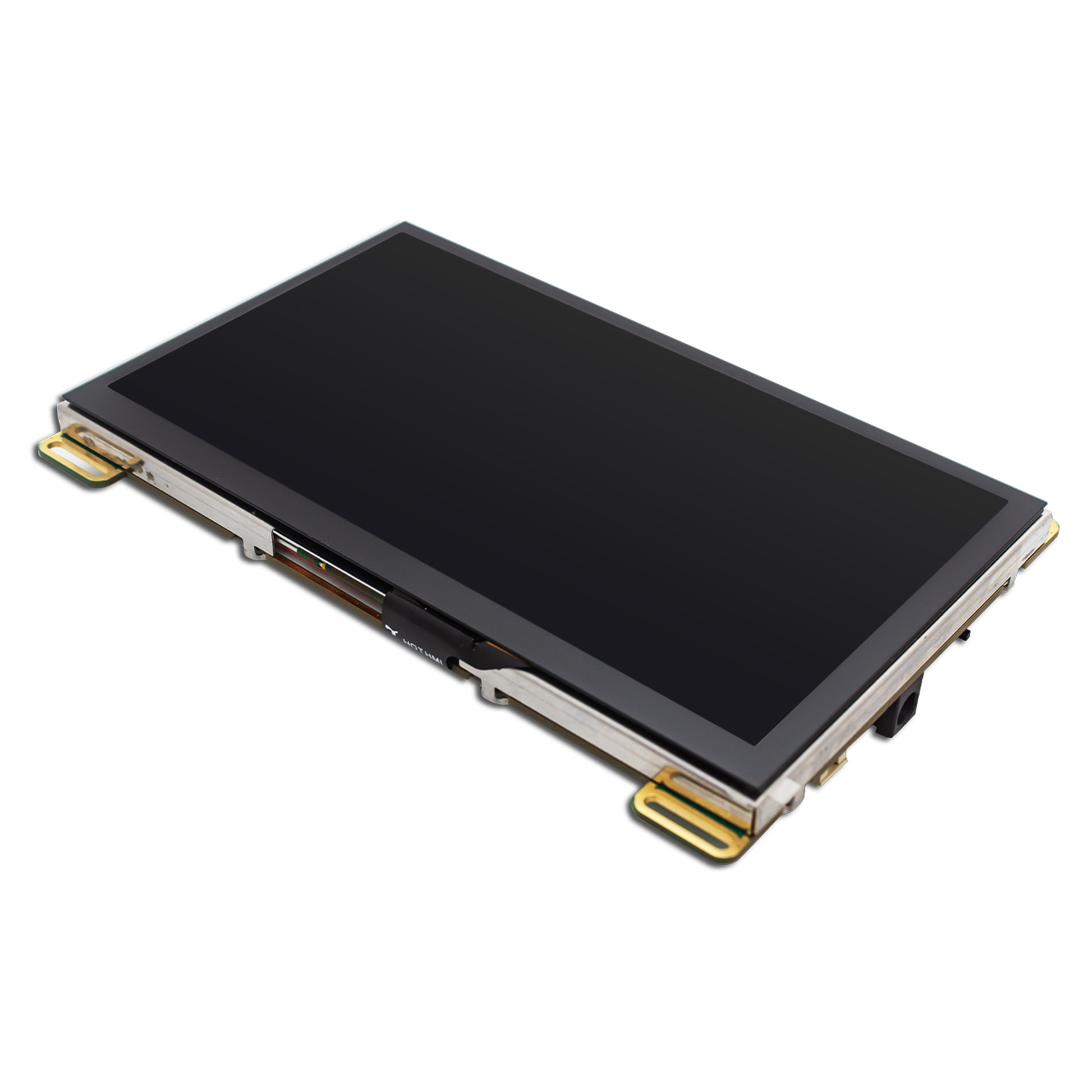

Smart Display

The STM32 series of smart displays deeply integrate STMicroelectronics' high-performance microcontrollers and advanced display technologies to create an excellent user experience. It is equipped with powerful cores such as ARM Cortex-M4/M7, with a main frequency of up to 480MHz, which can easily handle complex UI and multi-tasking. The innovative low-power design integrates dynamic voltage regulation and multi-level sleep mode to significantly extend the battery life of portable devices. Built-in hardware graphics accelerators such as Chrom-ART can efficiently achieve 2D rendering, layer blending and anti-aliasing effects, greatly releasing CPU resources.

Highly integrated design single chip integrates LTDC/DSI display interface, touch controller and QSPI/SDRAM storage interface, greatly simplifying peripheral circuits. The development stage relies on the STM32Cube ecosystem, and through the TouchGFX visualization tool and CubeMX configuration platform, drag-and-drop UI development and rapid bottom-level deployment are realized, greatly shortening the R&D cycle. The product has both industrial-grade reliability (-40°C~105°C wide temperature operation, strong EMC anti-interference) and rich scalability (support CAN/USB/Ethernet), and can calmly cope with harsh environments. The full range of models covers the market from entry-level to high-end, achieving a precise balance between performance and cost in the fields of consumer electronics, industrial HMI, etc., and is widely used in high-interaction scenarios such as home appliance control panels, medical equipment interfaces, and smart home central controls.
