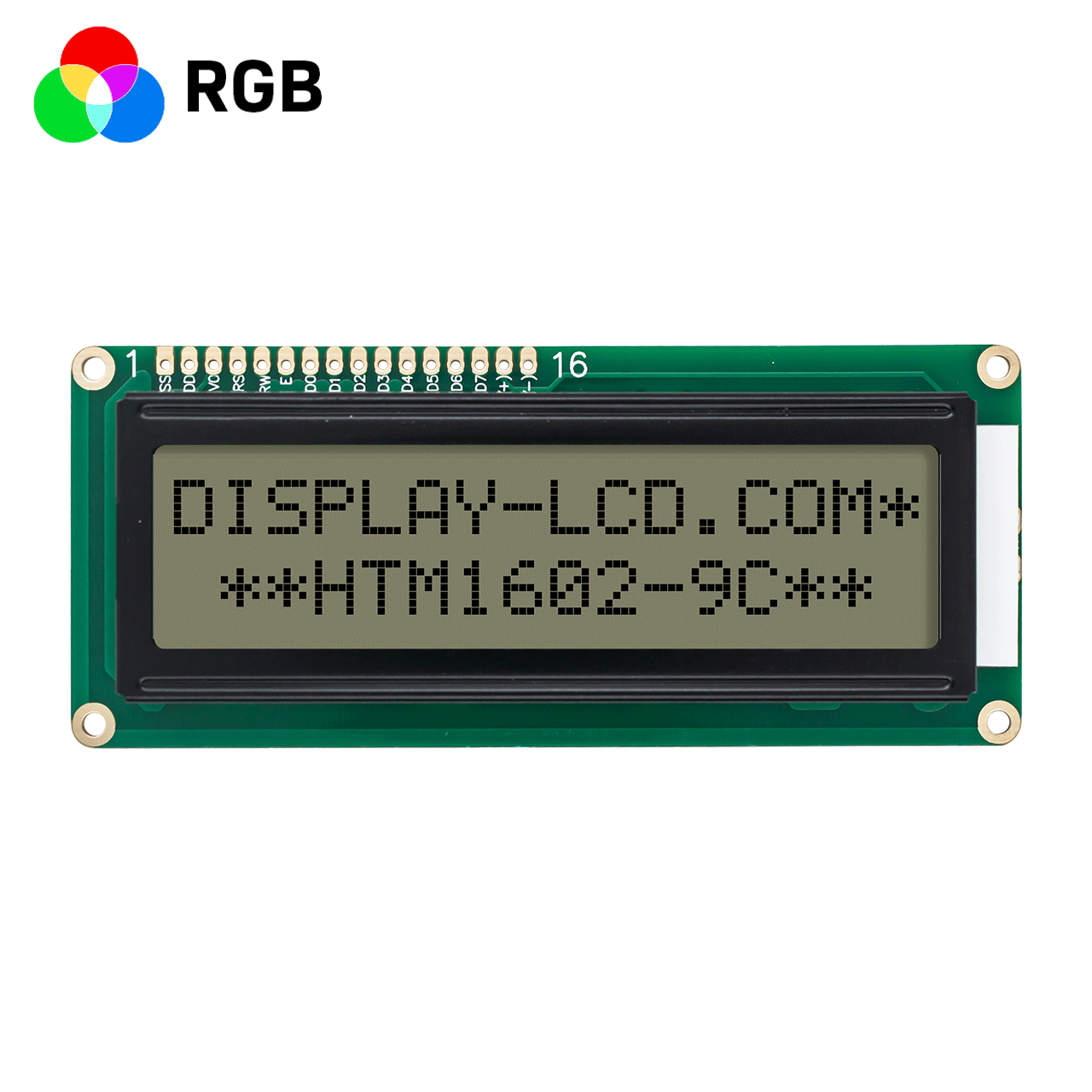

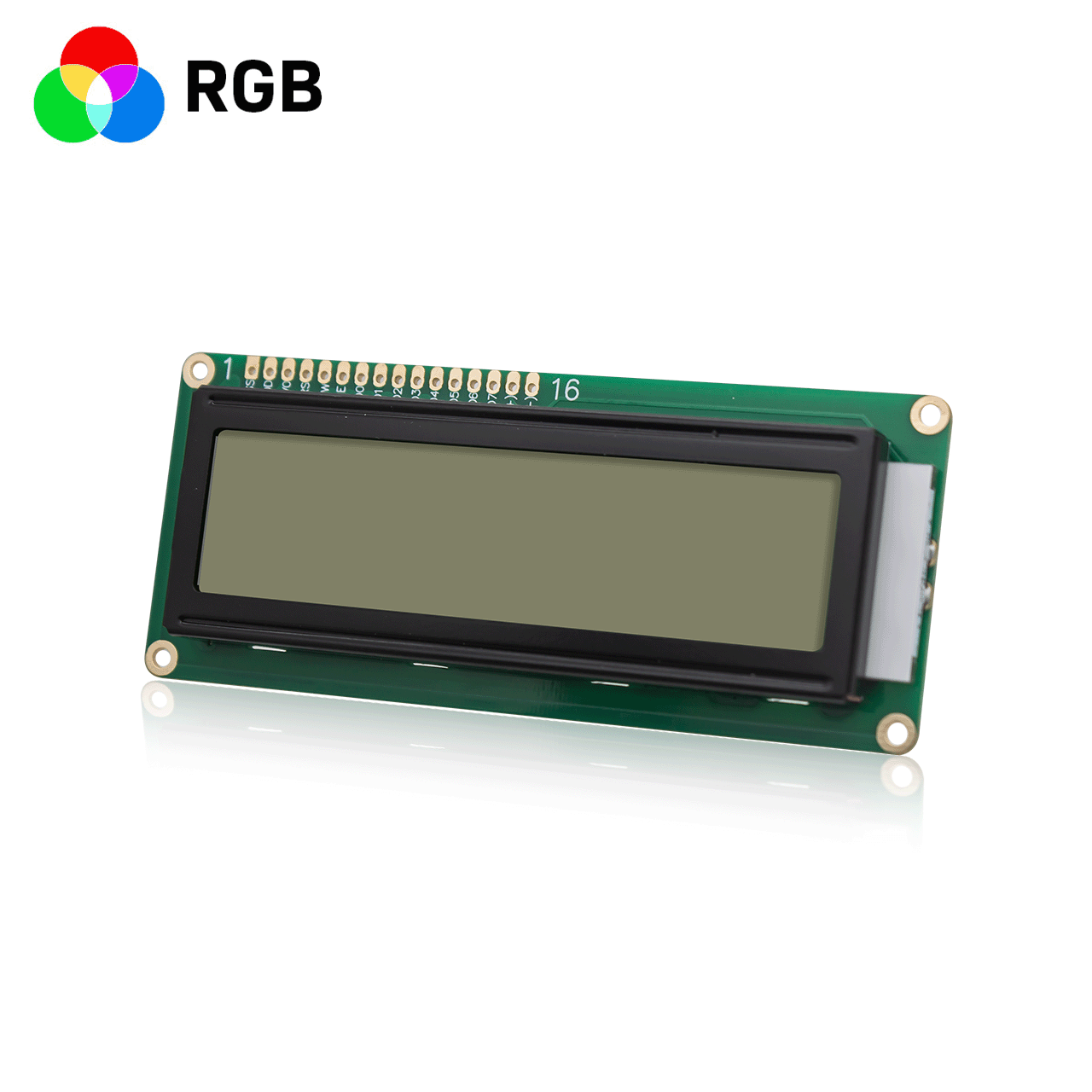

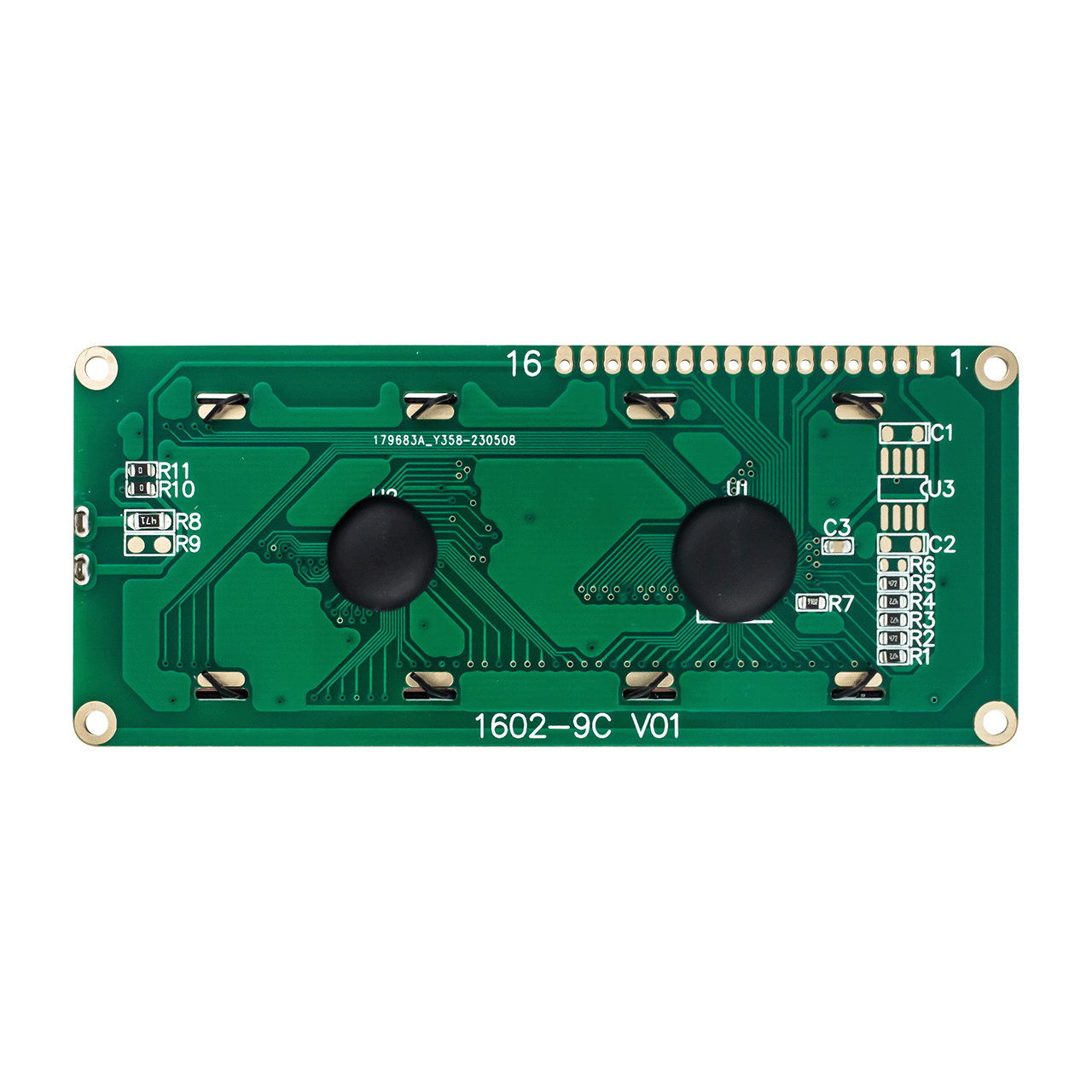

2X16 Character LCD Module Display | FSTN+ with RGB Backlight-Arduino

2X16 Character LCD Module Display | FSTN+ with RGB Backlight-Arduino

▶ Model: HTM-1602-9C-35S-A5P

▶ Type: Standard COB character LCD module
▶ Display content: 16x2 characters
▶ Overall dimensions (mm): 100X42X13
▶ VA size (mm): 80X20.5
▶ AA size (mm): 76.37x16.02
▶ Point spacing mm: 0.83x0.98
▶ Product application: Instrumentation
▶ Viewing angle: 12H
▶ Backlight type or: red/green/blue
▶ Number of PINs: 16PIN
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 5.0v
▶ Driver chip: ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

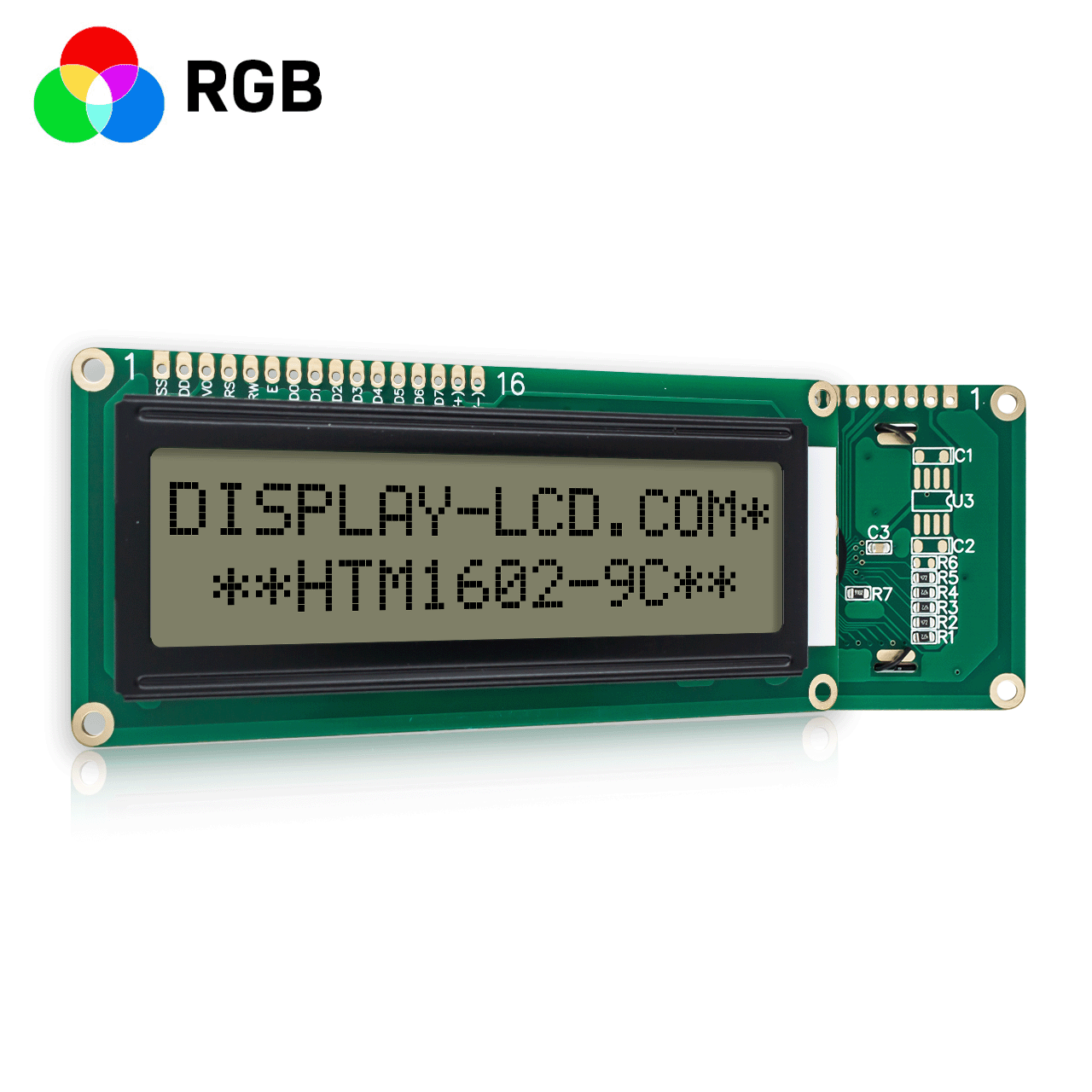

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

HTM1602-9C-35S-A5P | 2x16 Character Display | Transflective LCD | RGB LED Backlight | FSTN (+) Positive Display

The HOTHMI 2x16 LCD display can display up to 32 characters, divided into two lines, each displaying 16 dark pixel characters on a light gray background. The RGB display screen has three built-in backlight colors in each display screen, allowing you to choose from red, green, or blue backlight colors. You can also mix the intensity of these colors to create new custom colors.

This reflective LCD display ensures excellent visibility in ambient or low light conditions through built-in LED backlighting. It has a wide operating temperature range of -20 to 70 degrees Celsius. The optimal view for this Arduino compatible HTM1602-9C-35S-A5P monitor is 12:00. The monitor operates at a 5V power supply voltage and complies with RoHS standards.

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

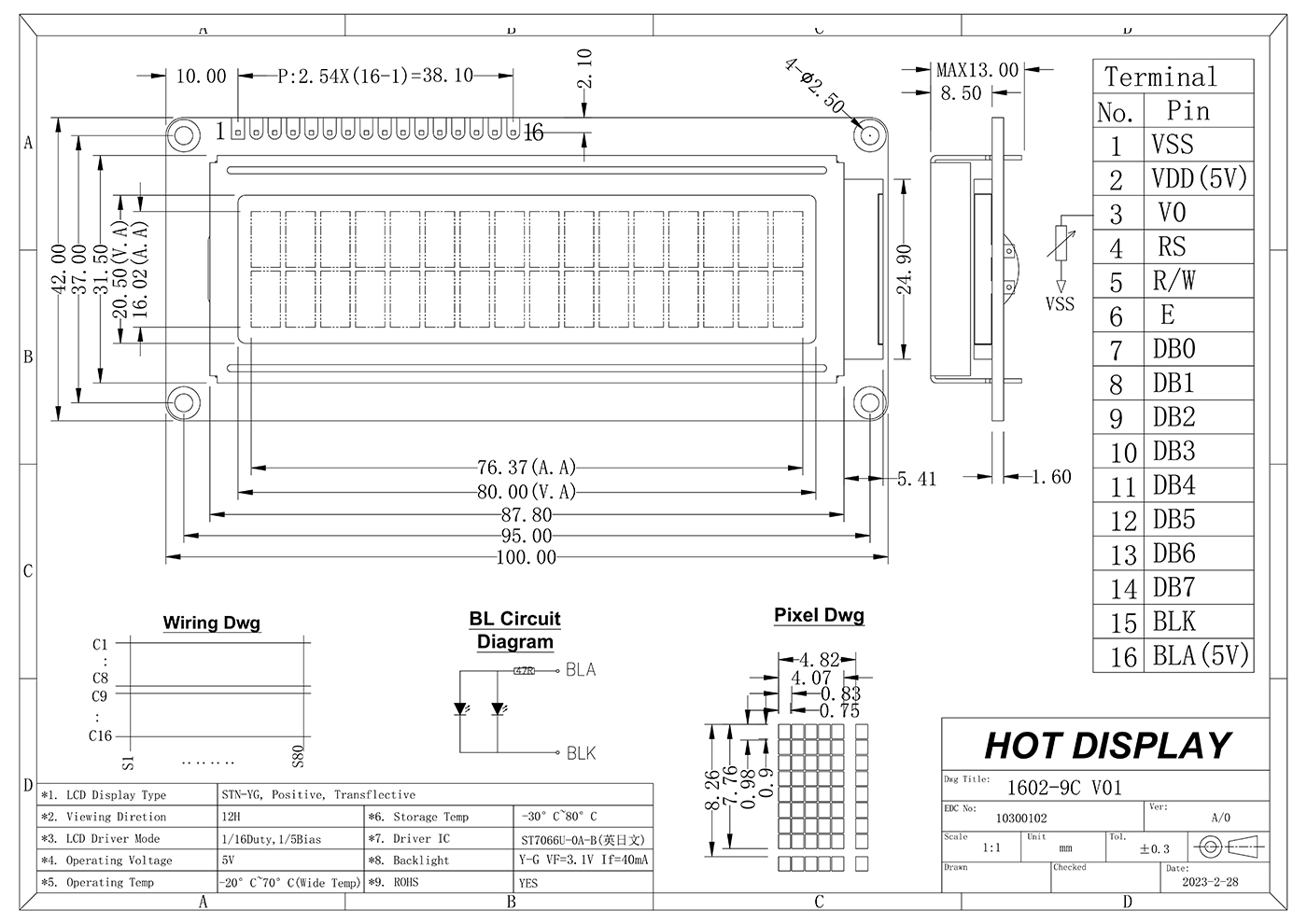

project	Parameter Description	unit
model	HTM-1602-9C-35S-A5P
Character display line	16x2 characters	dots
Module Size	100X42X13.0	mm
VA size	80.0 (W) x 20.5 (H)	mm
Effective (AA) area	76.37x16.02	mm
Point (Pixel) Size	0.75 x 0.90mm	mm
Pixel spacing	0.83 x 0.98	mm
IC drive	ST7066U driver
supply voltage	5V	V
Backlight	RGB backlight
mode	FSTN+Positive
Drive mode	1/16 duty cycle
type	Character LCD module
characteristic	Semi transparent reflective polarizer
