1.1 inch TFT LCD Display Screen | 135x240 SPI TFT Display | ST7789H2

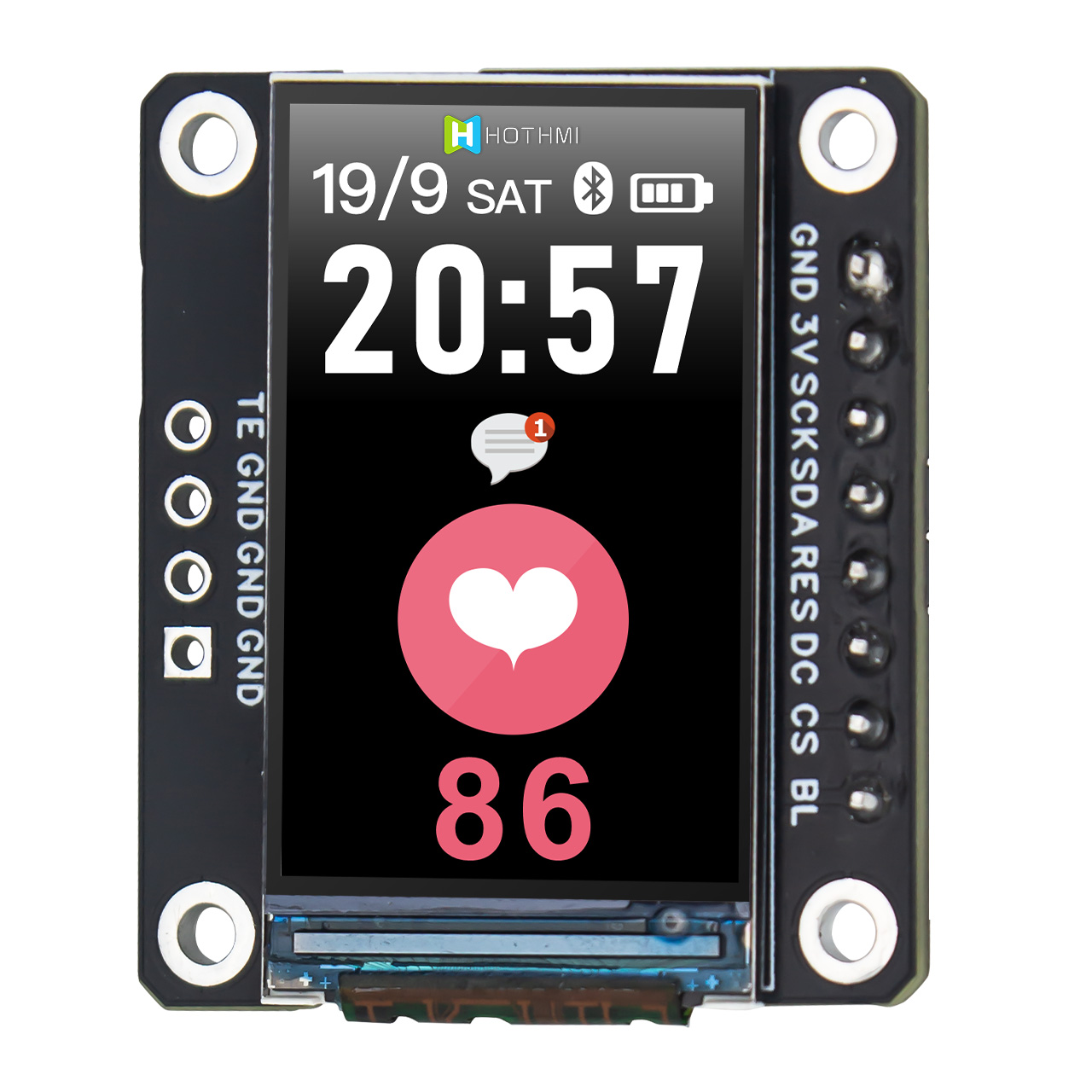

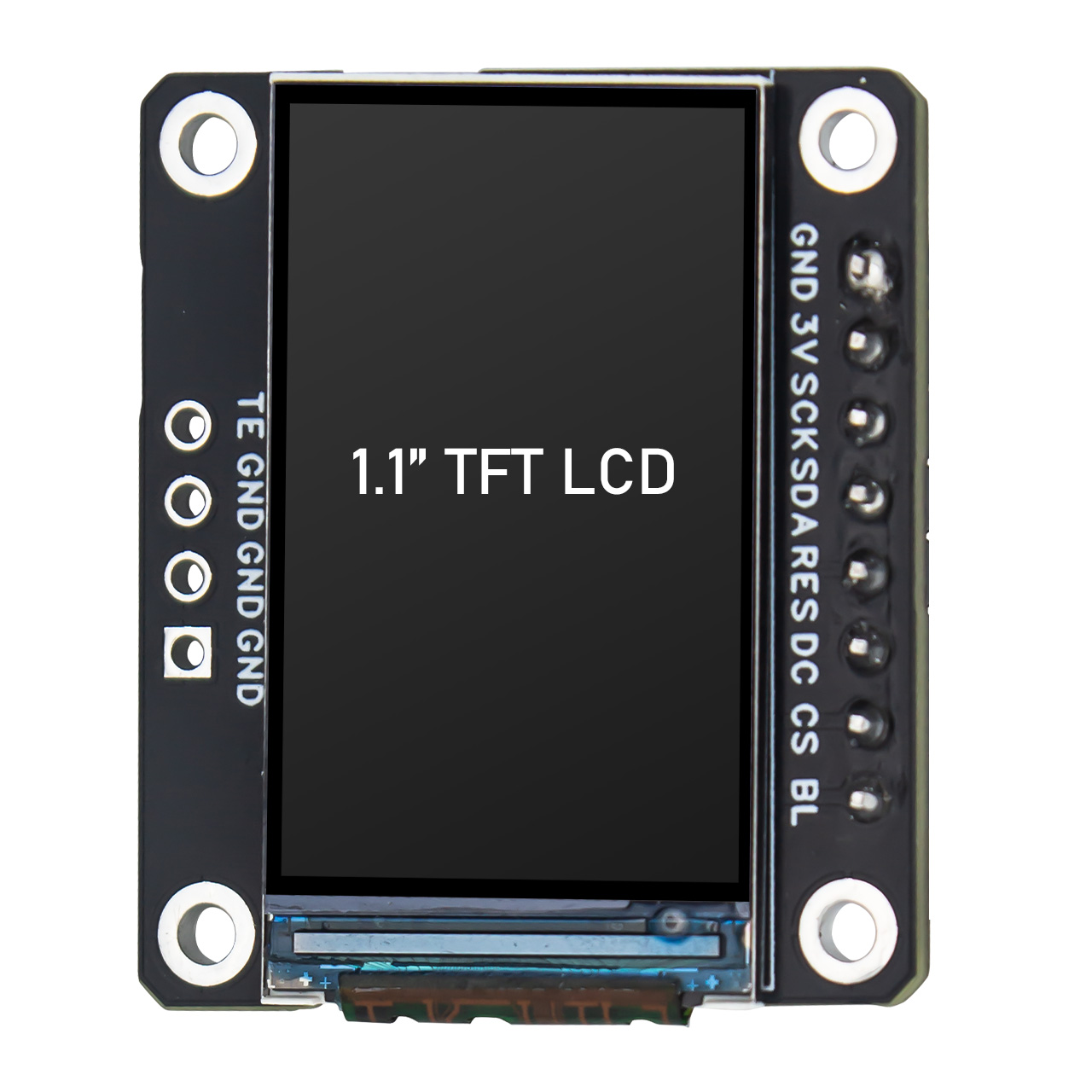

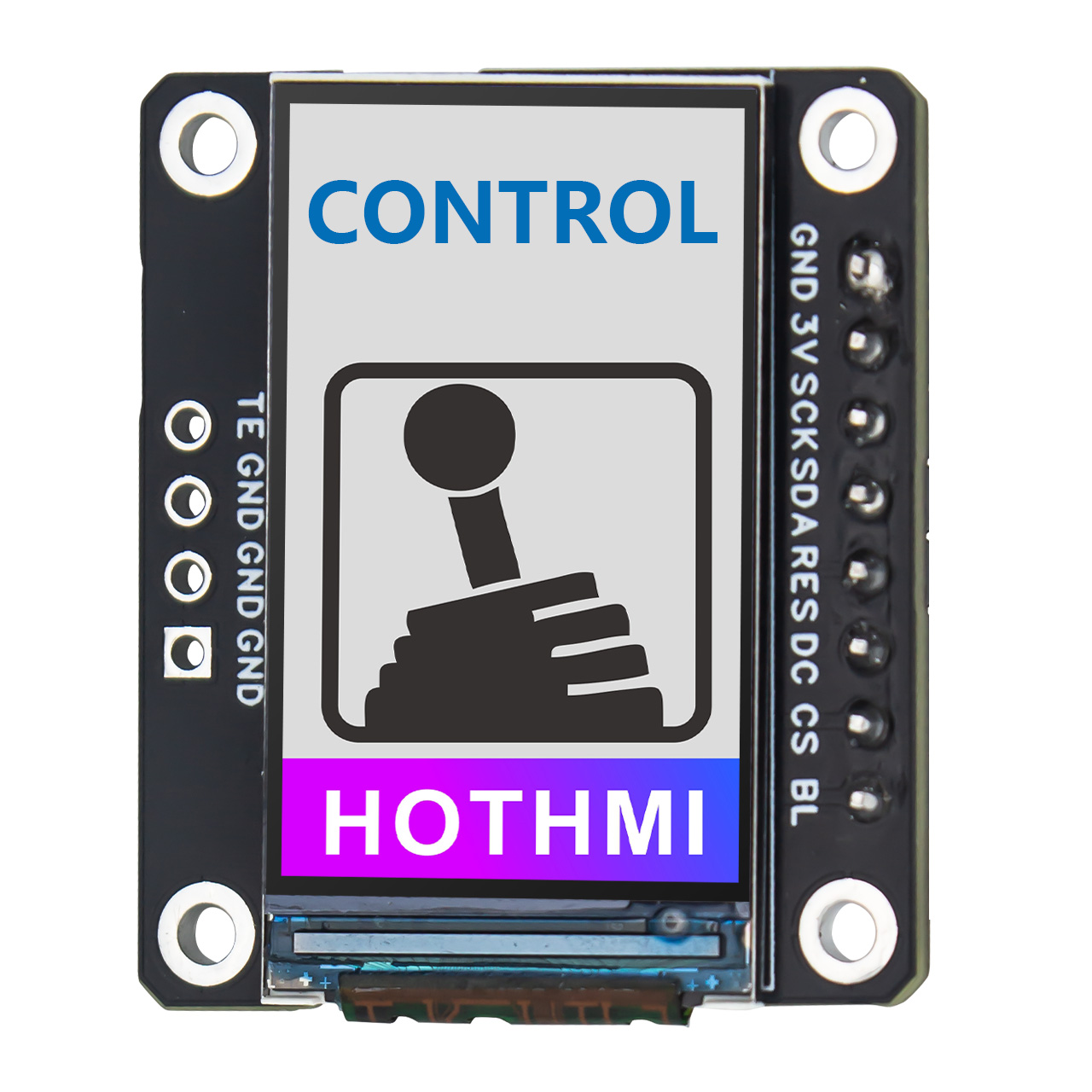

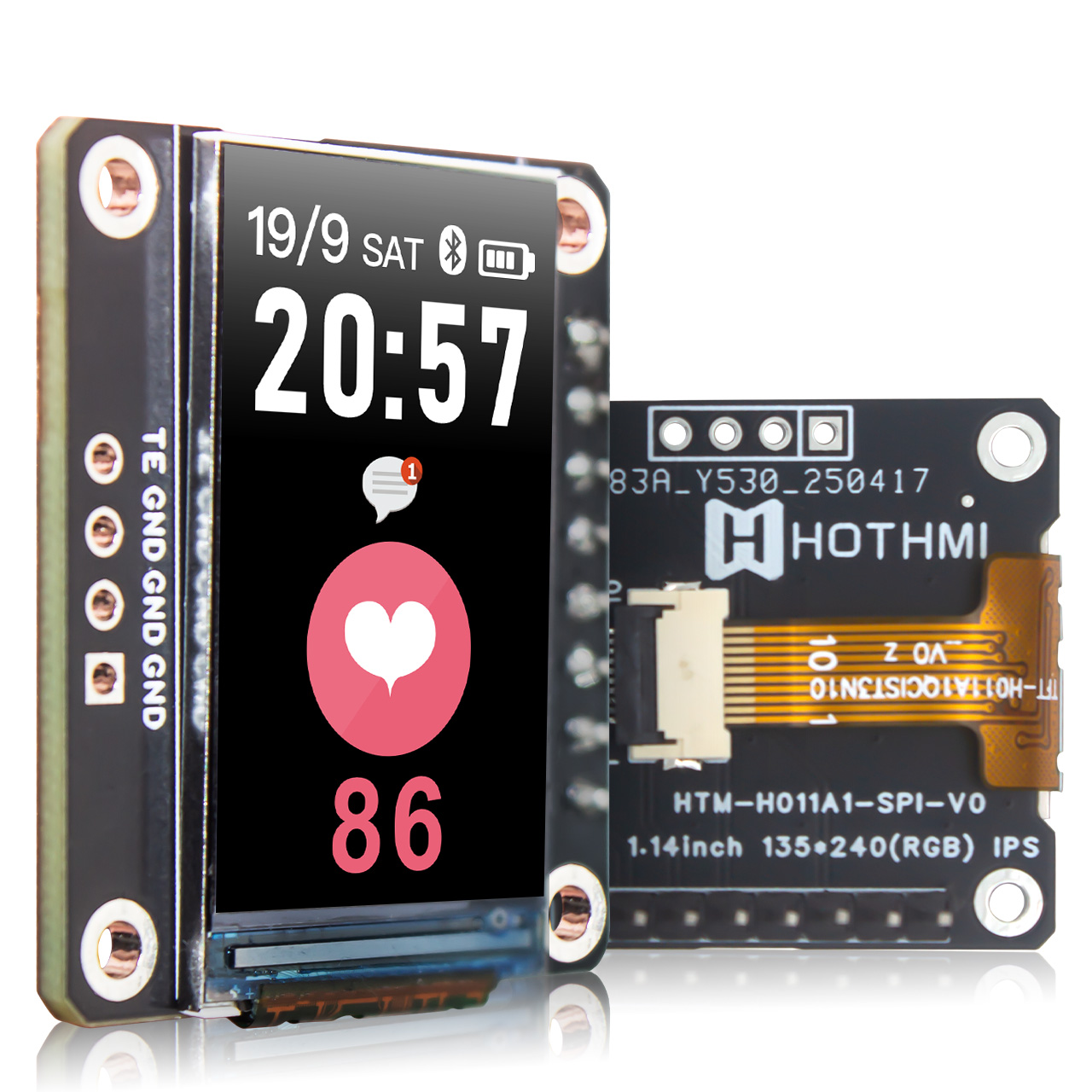

In the pursuit of high-definition and reliable display solutions, the 1.1 inch TFT LCD display module HTM-H011A1-SPI-V0 LCD display module stands out with its excellent performance and innovative design. This 1.1-inch transmissive normally black TFT screen, with a resolution of up to 135×3RGB×240 pixels, brings users a delicate and vivid visual experience. Its core driver chip ST7789H2 and SPI-4L interface design, with a driver board. Ensure fast response and low power consumption, and have a wide range of compatibility, can be easily integrated into industrial control, portable devices, medical instruments and other scenarios.

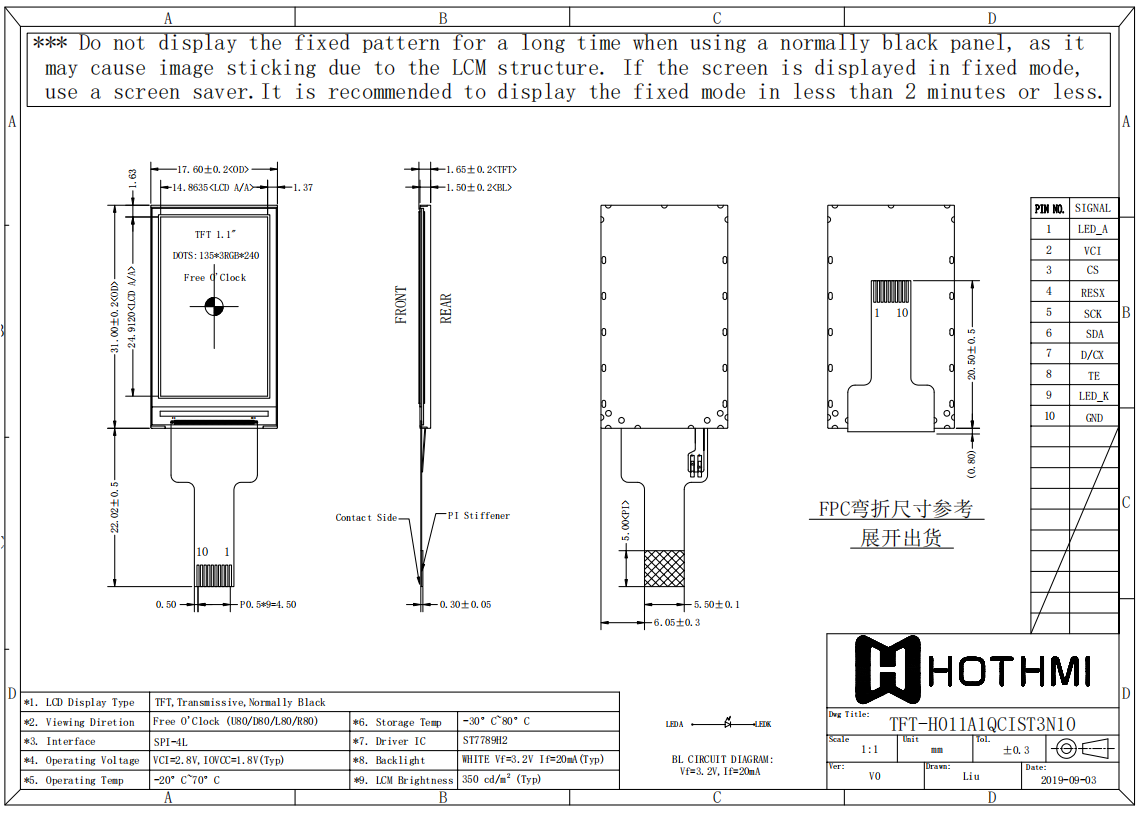

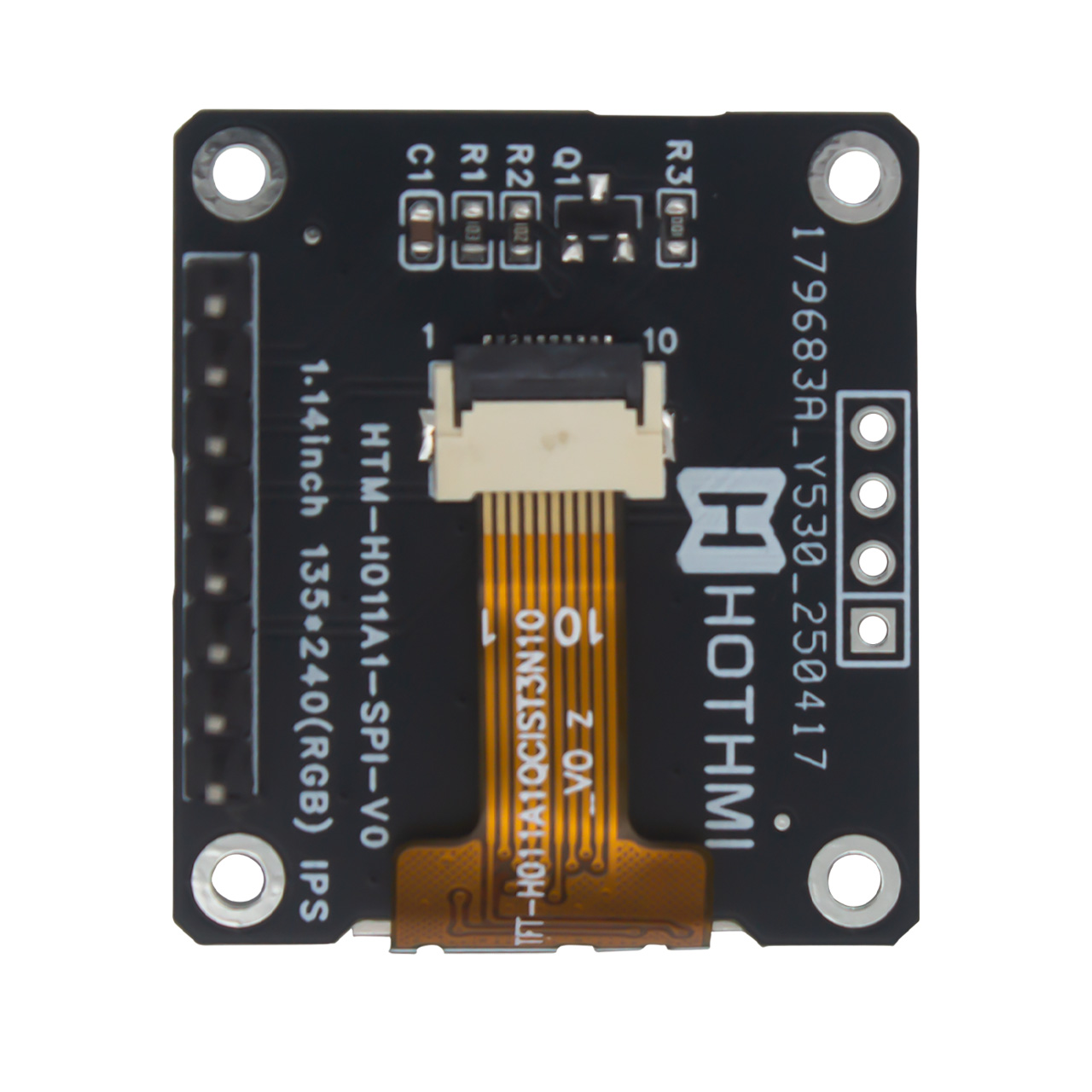

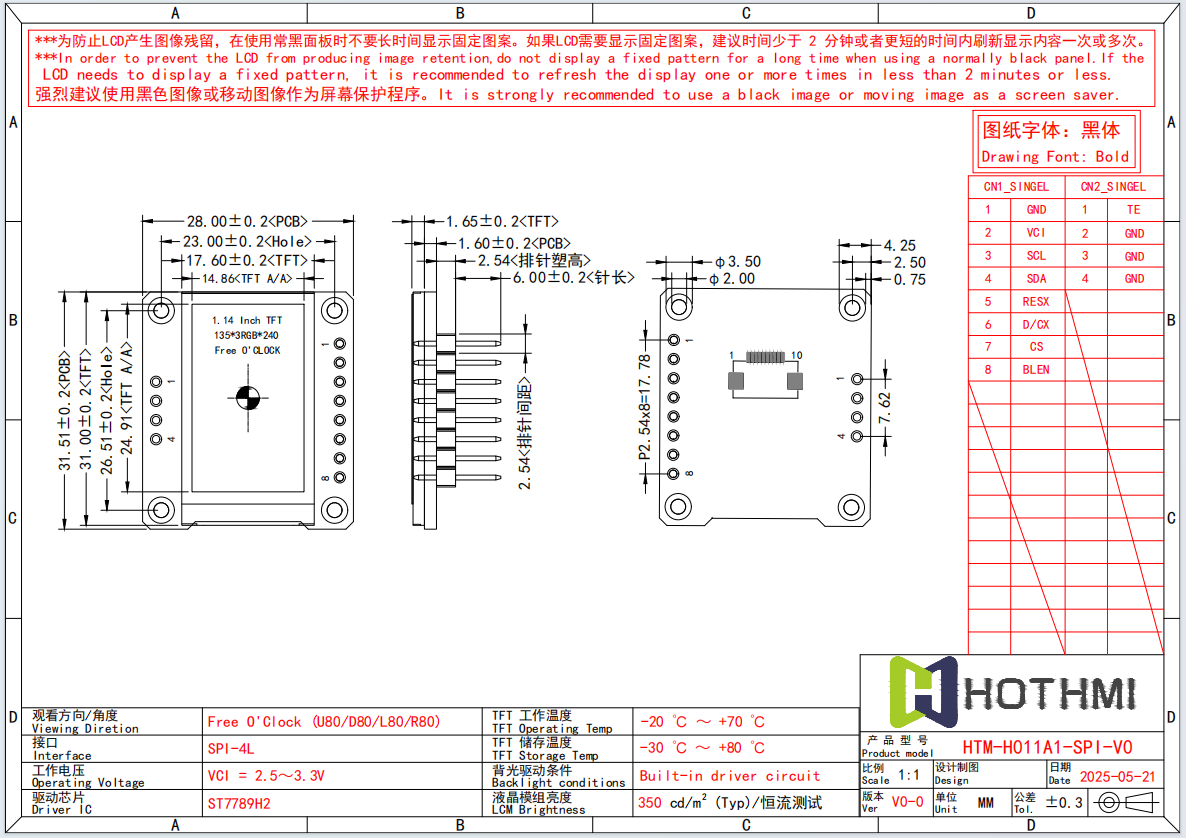

This 1.1 inch TFT LCD display module adopts Free O'Clock flexible layout (U80/D80/L80/R80), the cover module perfectly combines the display TFT-H011A1QCIST3N10 with SPI and the driver board, which is simple and efficient for users to use. At the same time, for the same series of displays, we also provide TFT-H011A1QCIFT5N15 with a 15-PIN MIPI interface, which supports multi-directional installation to meet compact space and customization needs. The backlight system has a brightness of up to 350 cd/m², combined with a wide operating temperature range (-20°C to 70°C), it can operate stably even in harsh environments. The built-in screen protection function and intelligent protection mechanism effectively avoid the problem of afterimage caused by long-term fixed screen and extend the service life of the screen.
In terms of technical details, the 2.8V main voltage and 1.8V I/O voltage design further optimizes energy consumption, and the LED backlight achieves efficient light emission. High-brightness display is achieved at a typical value of 3.2V/20mA, taking into account brightness and energy saving. The module structure is precise and the dimensional tolerance is strictly controlled within ±0.2mm. Equipped with PI reinforcement board and FPC flexible circuit to ensure mechanical strength and signal transmission stability. Whether it is the high-frequency refresh demand of industrial instrument panels or the thin and light design of consumer electronics, 1.1 inch TFT LCD display module empowers your products with professional quality, bringing clear visual experience and lasting reliability.
