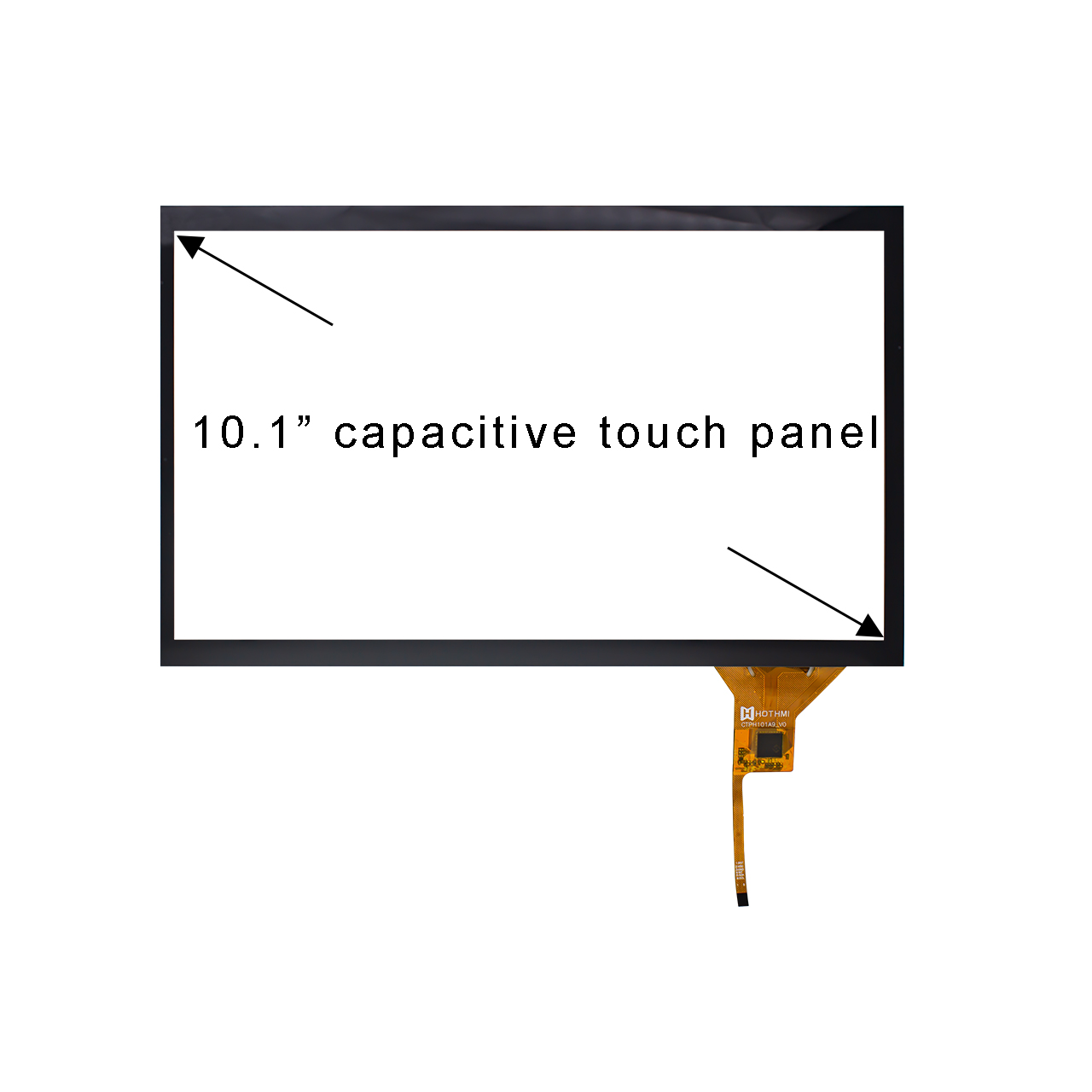

10.1" Capacitive Touchscreen With HY4635-N068 Controller

10.1" Capacitive Touchscreen With HY4635-N068 Controller

▶ Model: CTP-H101A9

▶ Type: 10.1-inch capacitive touch panel

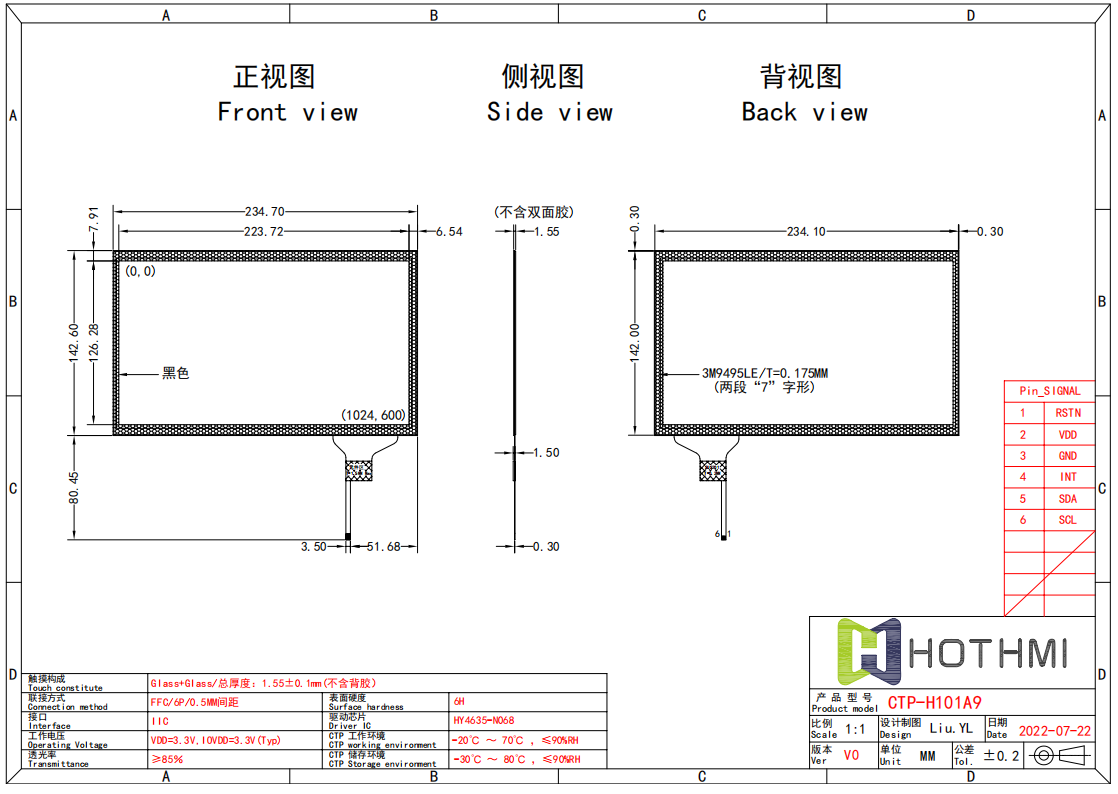

▶ Viewport dimensions (mm): 223.72 x 126.28

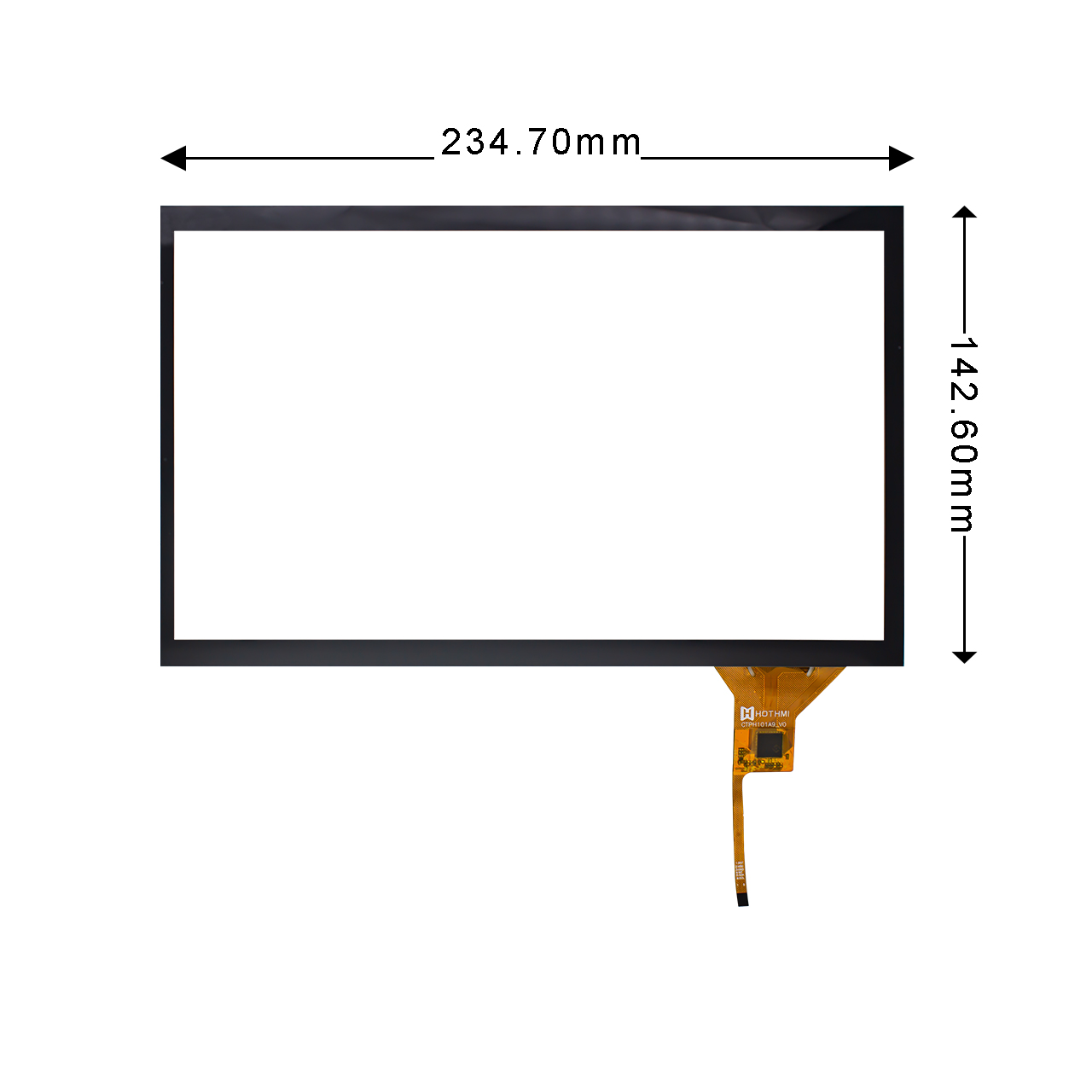

▶ External dimensions (mm): 234.7 x 142.6 x 1.55
▶ Diagonal dimensions: 7.0 inches
▶ Touch points: 5-point touch
▶ Controller chip: HY4635-N068
▶ Interface: I2C
▶ Connection type: 6-pin FPC connector
▶ Process structure: G+G
▶ Cover shape: 1:1 cover
▶ Hardness: 6H
▶ Light transmittance: ≥85%

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

No Back Next

Product Description
Customized Services
Attributes

10.1-inch Capacitive Touch Panel | HY4635-N068 Chip | I2C CTP | 6-pin FFC
This 10.1-inch capacitive touchscreen, the CTP-H101A9, redefines the boundaries of human-computer interaction with its groundbreaking design. The ultra-thin panel, like an invisible technological skin covering the surface of the device, boasts industrial-grade reliability within its extreme thinness. Its unique lamination process eliminates traditional double-sided tape, achieving a seamless fit and bringing the displayed content to life with a high light transmittance of ≥85%, making every frame at 1024×600 resolution pop.

Powered by the HY4635-N068 controller chip, this capacitive touch panel achieves submillimeter tracking accuracy, even with fast swipes or complex gestures. The minimalist black-framed design boasts a wide operating temperature range of -20°C to 70°C, maintaining consistent touch accuracy even in extreme operating conditions, from -30°C to 80°C. This touch panel includes an FFC cable, and its I2C communication interface makes it highly compatible with displays.

This touch panel is compatible with the high-brightness TFT LCD: TFT-H101A9WSIFTKN40. When the touch panel and display are seamlessly combined, they create a TFT display with touchscreen functionality: TFT-H101A9WSIFTKC40.

Customized material: Customized touch cover of various materials: such as tempered glass (up to 7H), acrylic material, etc.

Customized special-shaped contour: Support special-shaped cutting/opening/edging (2.5D, 3D)/transmittance.

Cover color and logo silk screen customization: Supports silk screen printing in different colors (usually black or white); supports silk screen printing of logos in multiple colors.

Customized cover thickness: 0.55/0.7/1.0/1.1/1.8/2.0/3.0/4.0/5.0/6.0/8.0/10.0(mm)，etc.

Customized different transmittance: High light transmission efficiency, which directly affects the visual effect of the touch screen.

Opening service: Through holes with a diameter of ≤10mm can be opened.

Cover surface treatment: Optional touch screen surface treatment methods are available: AG anti-glare/AR anti-reflection/AF anti-fingerprint.
