0.85 inch 128x128 resolution TFT/0.85 inch mini color display/IPS viewing angle/4-wire SPI/GC9107

0.85 inch 128x128 resolution TFT/0.85 inch mini color display/IPS viewing angle/4-wire SPI/GC9107

▶ Model: TFT-H085W01QQIGC2N12

▶ Type: TFT LCD
▶ Display content: 128X128
▶ Display inches: 0.85"
▶ Dimensions (mm):17.58X20.82 x 1.46
▶ AA size (mm):15.2064x15.2064
▶ Product applications: handheld devices, small speakers, small home appliances
▶ Viewing angle: IPS full viewing angle
▶ Backlight type or brightness: white backlight
▶ Connection method PIN number: 12pin
▶ Interface method: SPI
▶ Special instructions: without touch screen
▶ Operating temperature: -20~70℃
▶ Supply voltage: +3.3 V
▶ Driver chip: GC9107

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
EZUI-H Main Control Board-RGB/MCU (Universal for 800*480 and below)

Product Description
Specification
Attributes

0.85 inch 128x128 resolution TFT/0.85 inch mini color display/IPS viewing angle/4-wire SPI/GC9107

This TFT-H085W01QQIGC2N12 is a 128x128 dot 0.85 inch color TFT LCD module display with GC9107 controller, excellent display quality, full viewing angle, easy to be controlled by MCU such as 8051, PIC, AVR, ARDUINO ARM and Raspberry PI. It can be used in any embedded system, industrial equipment, security and handheld devices that need to display with high quality and color images. It supports 4-wire serial spi interface. With optional fpc zif connector, easy to assemble or disassemble.

Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

Touchscreen add-ons: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H085W01QQIGC2N12
Diagonal size	0.85”	Inch
Resolution	128(H)RGB x 128(V)	Dot

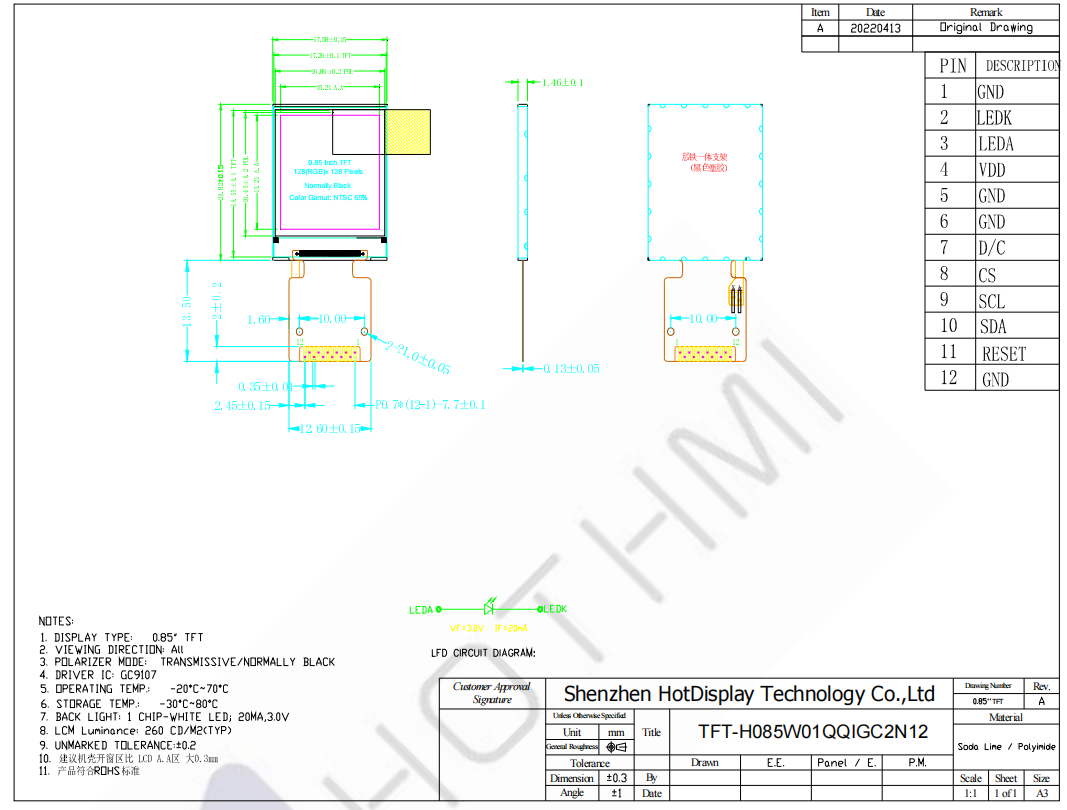

Dimensions	17.58X20.82 x 1.46	mm
Active area (AA)	15.2064(H) x 15.2064 (V) mm	mm
LCD type	TFT LCD Display	mm
Display viewing angle	IPS Full View
Aspect ratio	1:1.1
Backlight type	1 white LED
TFT driver IC	GC9107
Brightness	1 white LED	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
