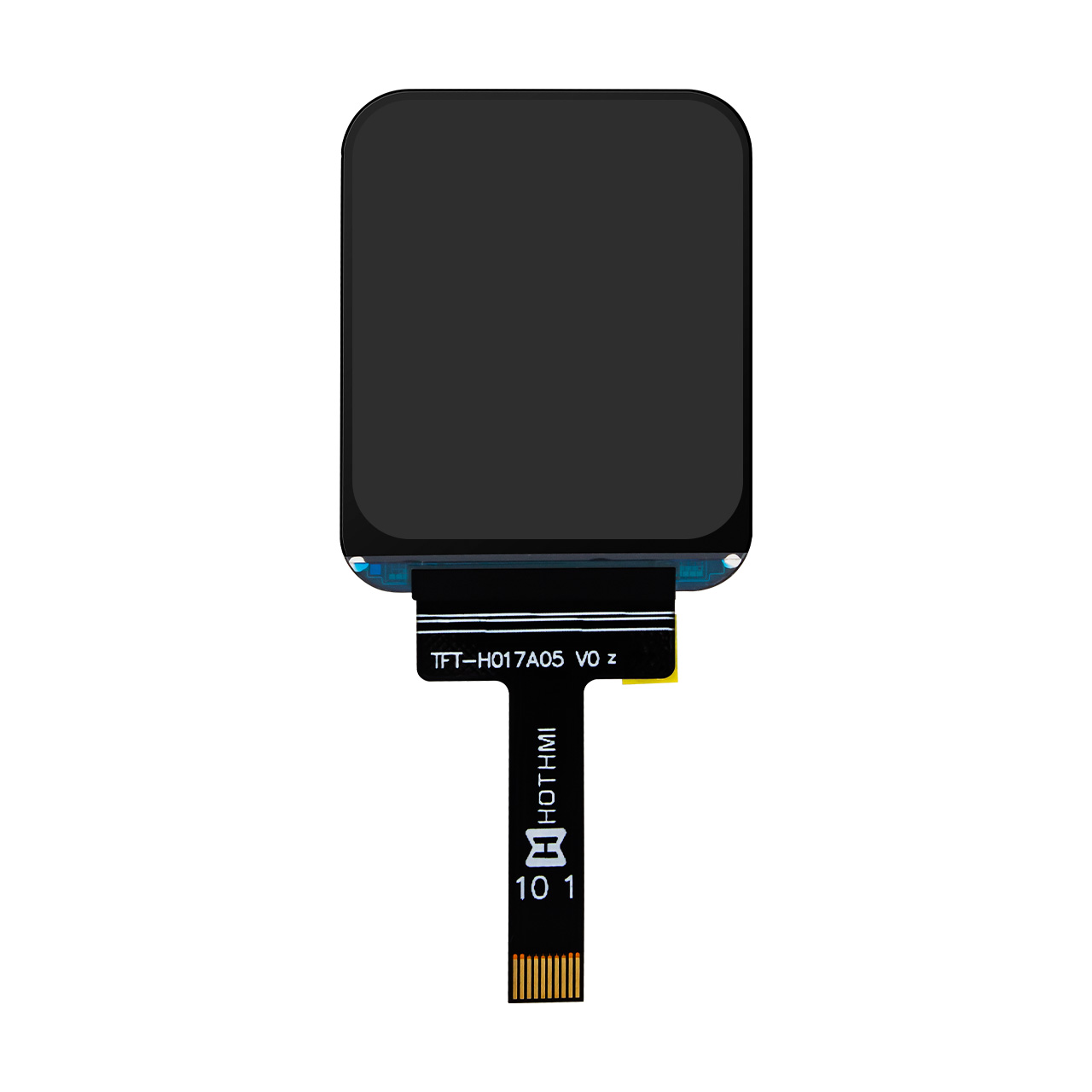

1.7"TFT LCD Screen | 240x280 IPS TFT Panel

1.7"TFT LCD Screen | 240x280 IPS TFT Panel | ST7789 driver chip

▶ Model: TFT-H017A05QVIST5N10

▶ Type: 1.7"TFT LCD Screen
▶ Display pixels: 240x280
▶ Dimensions (mm): 30.07x37.43x1.56
▶ Display inches: 1.7"
▶ Effective size (mm): 27.97x32.63
▶ Application: Handheld devices, home appliances
▶ Viewing angle: full viewing angle
▶ Brightness: 500cd/m2
▶ Pin: FPC-10PIN
▶ Interface: SPI
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 3.3V
▶ Driver chip: ST7789

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

No Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
TFT to HI adapter board

Product Description
Specification
Attributes

1.7"TFT LCD Screen | 240x280 IPS TFT Panel | ST7789 driver chip

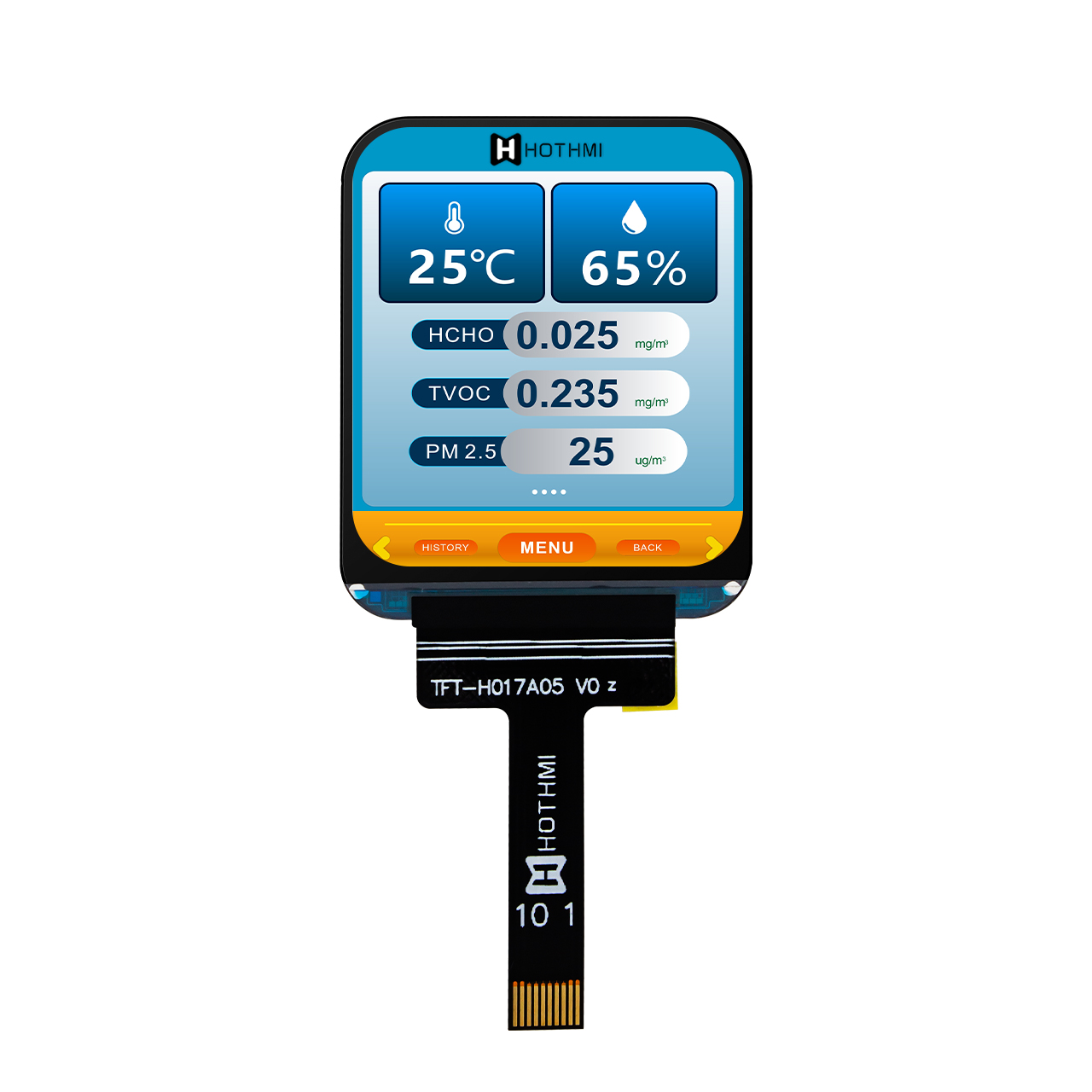

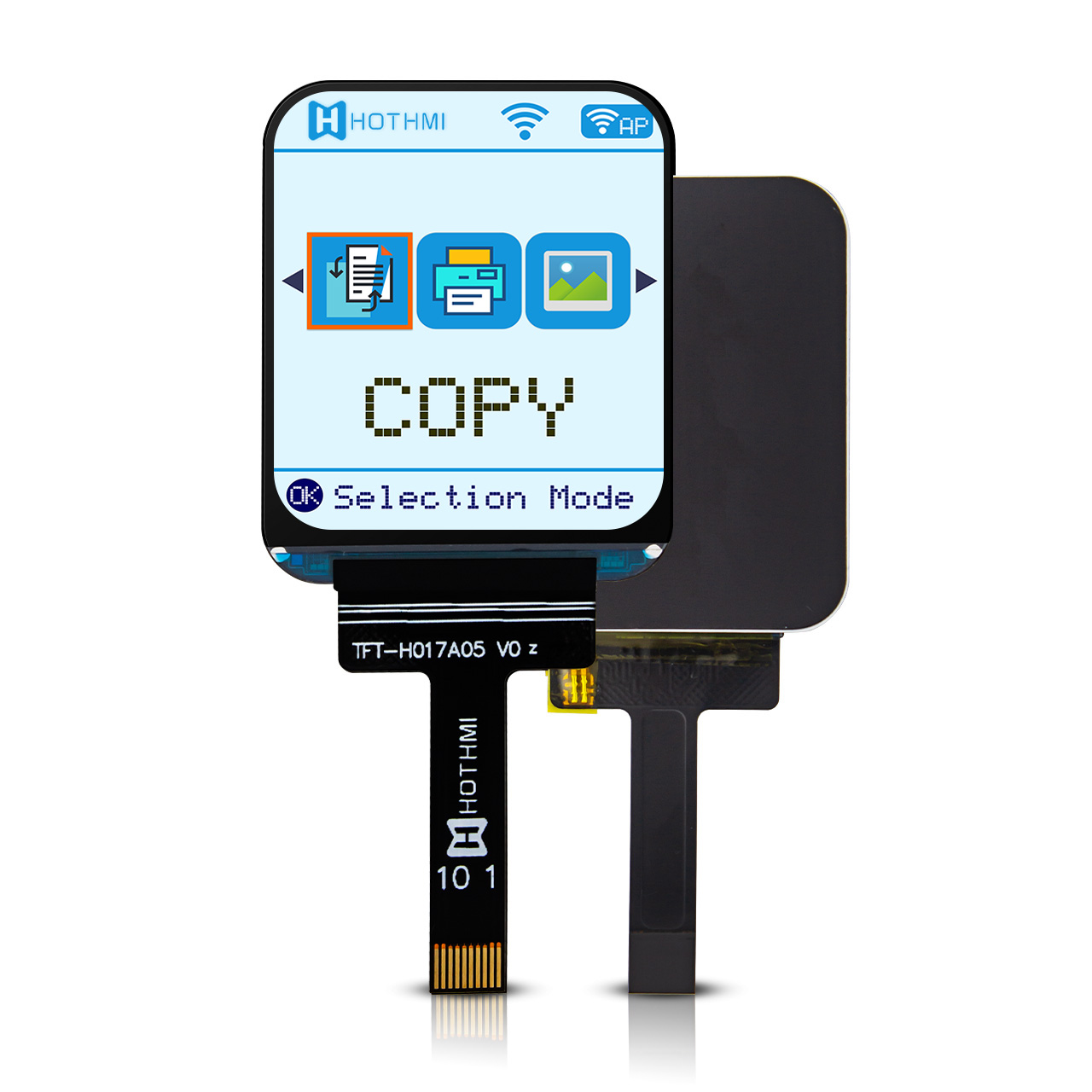

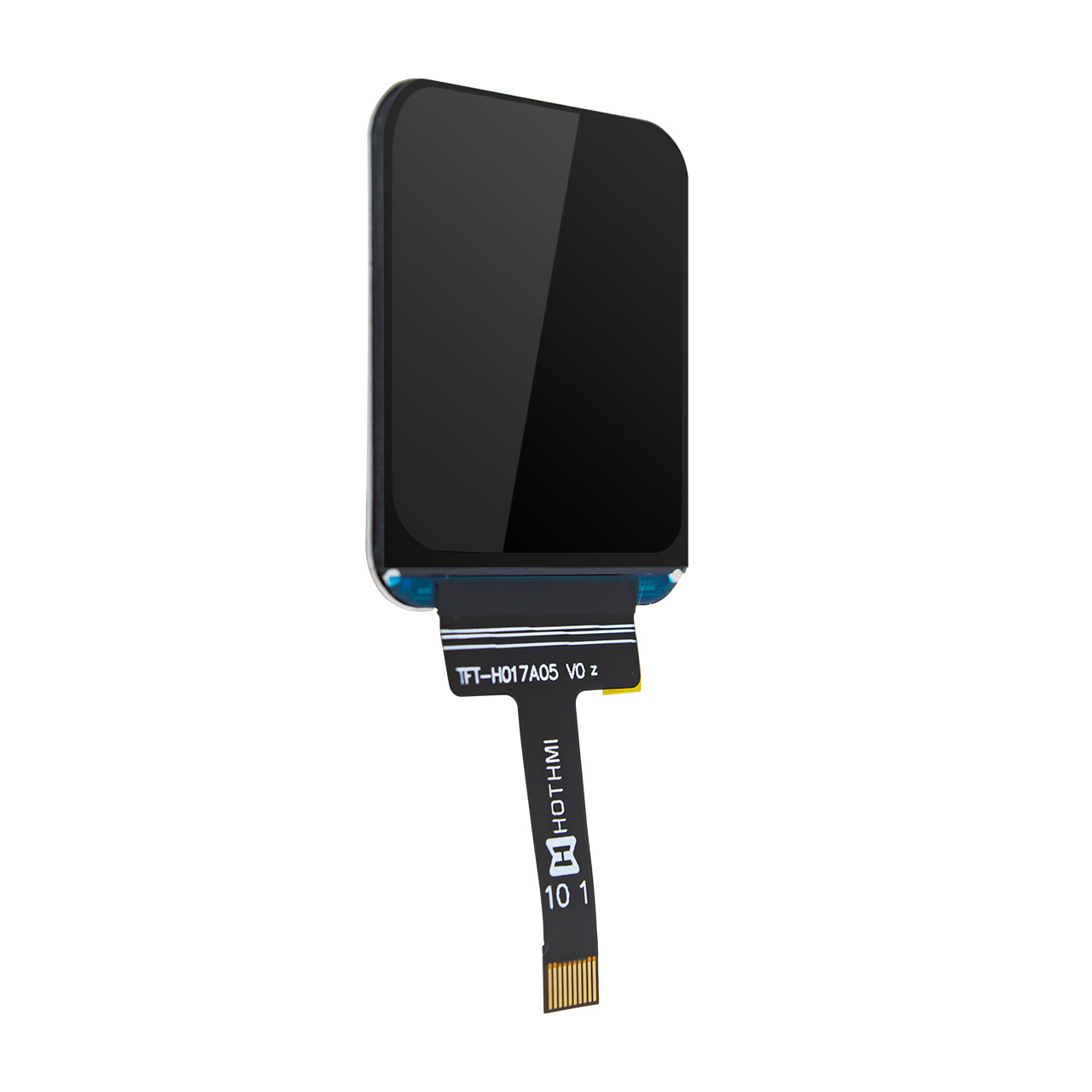

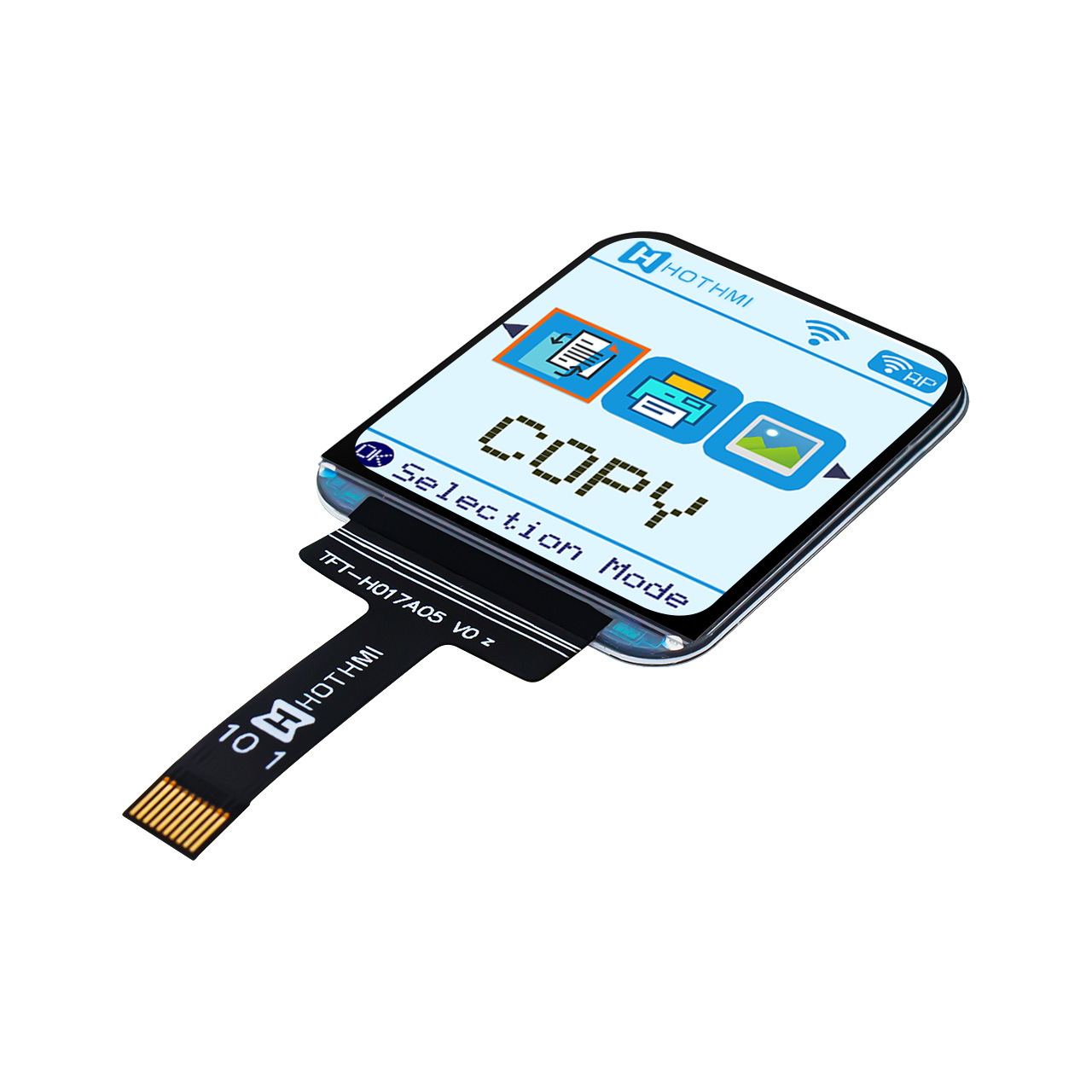

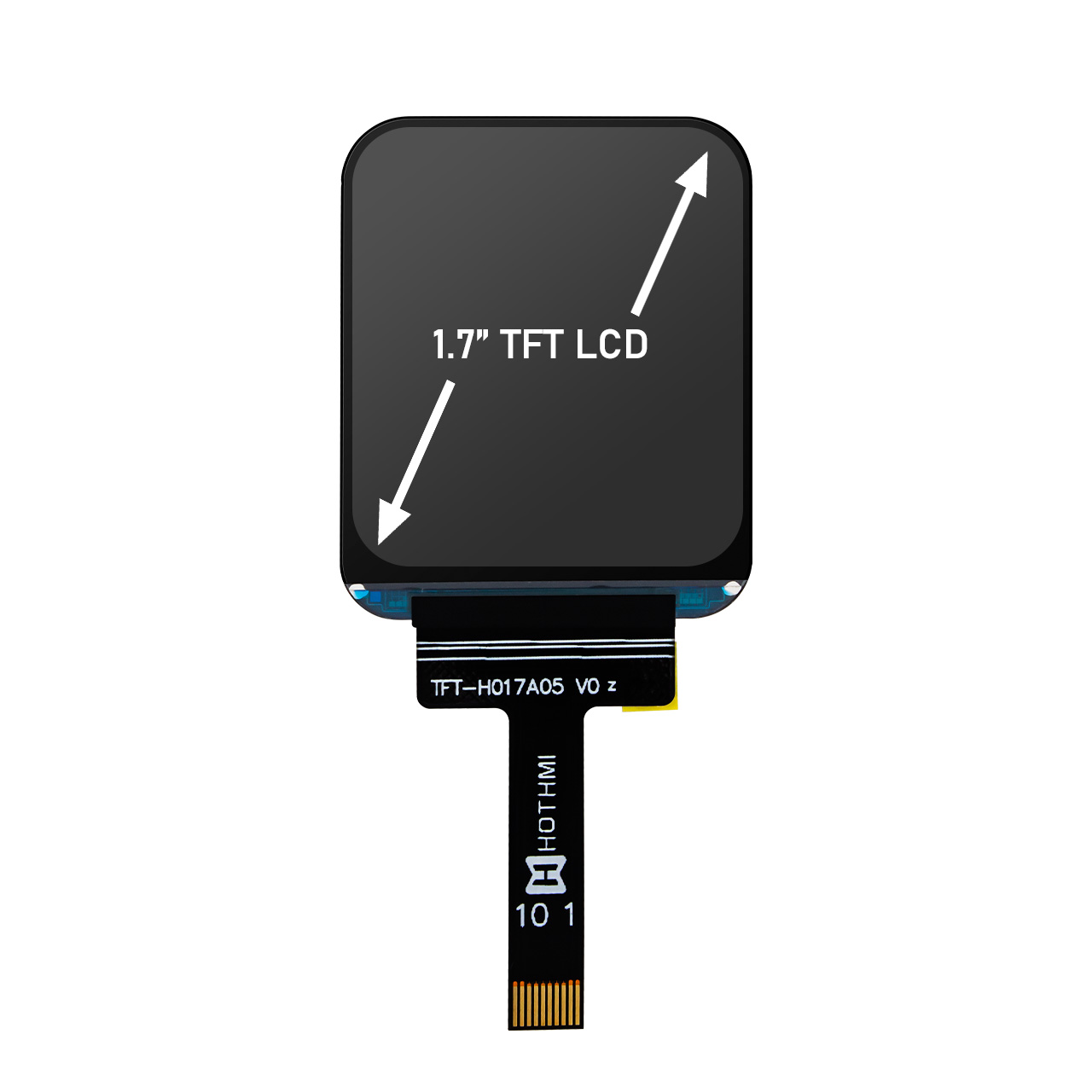

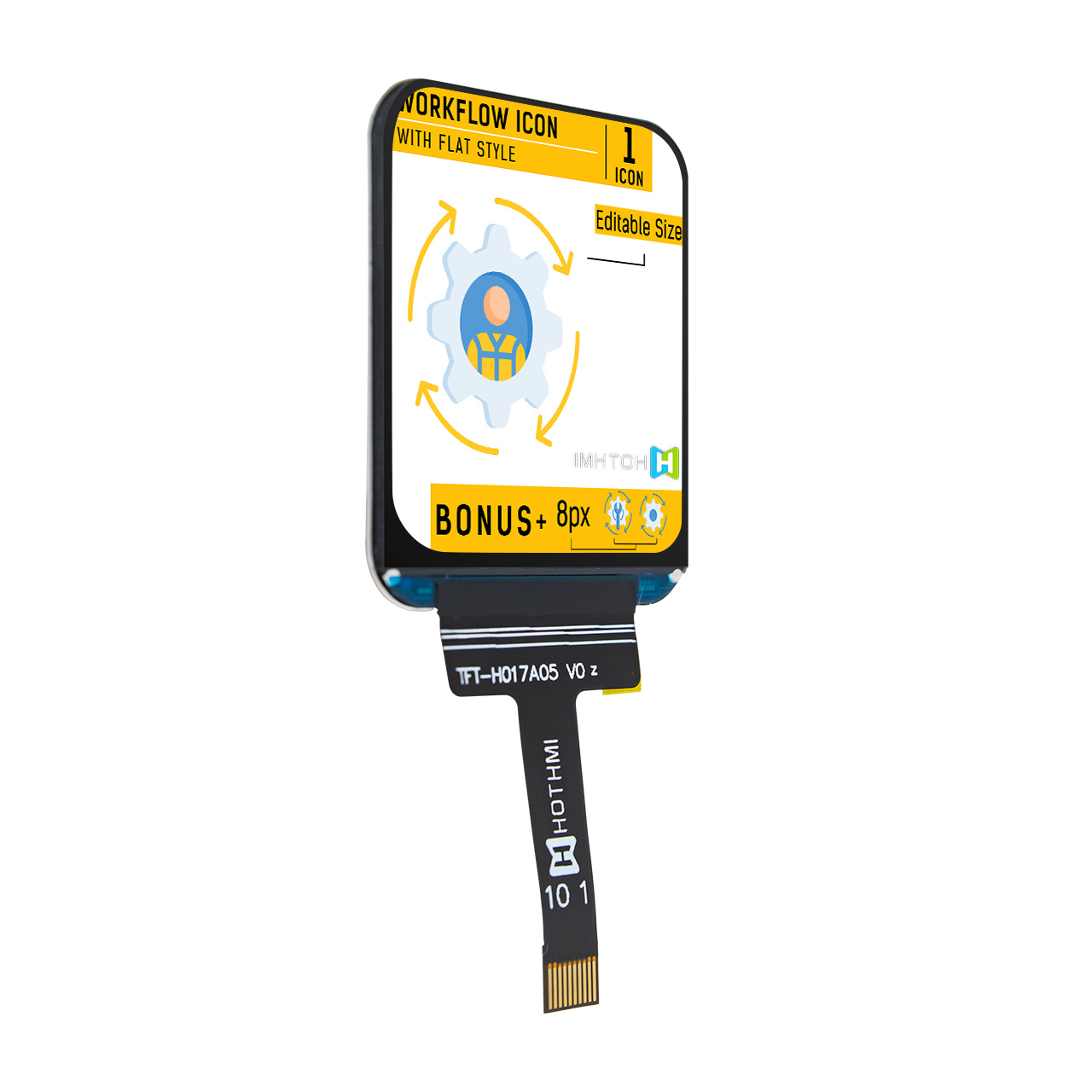

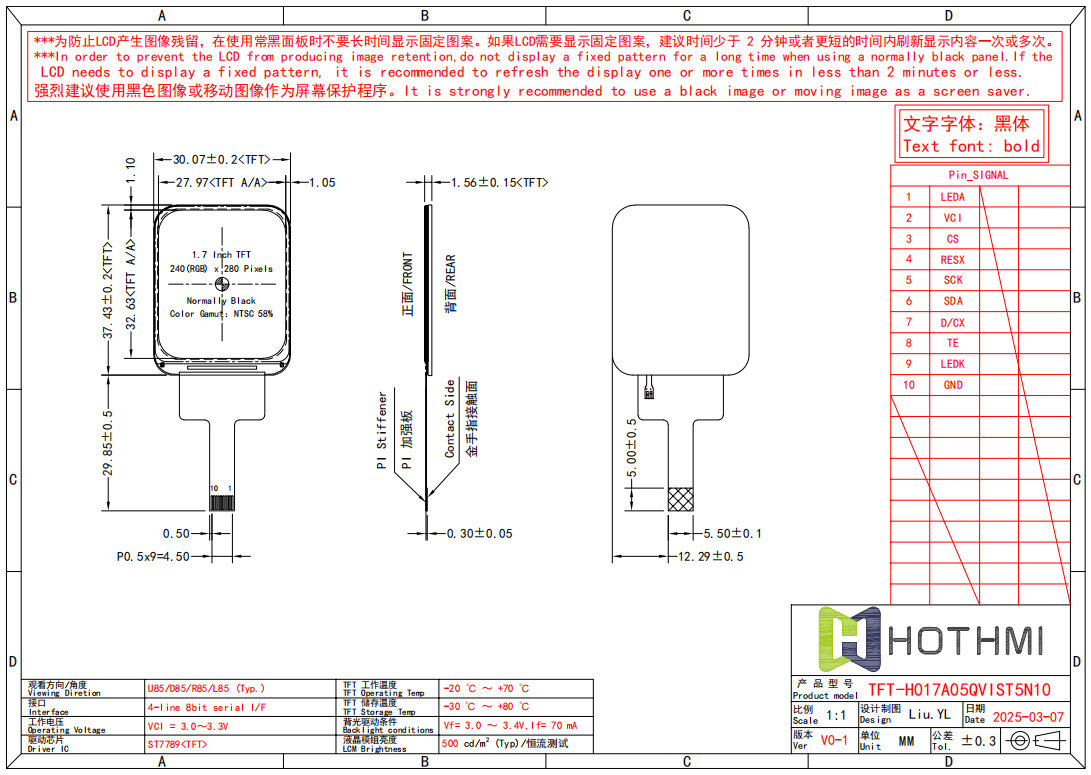

This 1.7"TFT LCD Screen is a 1.7-inch TFT LCD display, model TFT-H017A05QVIST5N10, with a normally black panel design, a resolution of 240 (RGB) × 280 pixels, a color gamut covering NTSC 58%, and clear and delicate color performance. Equipped with ST7789 driver chip, supports 4-wire 8-bit serial interface, and has an operating voltage range of 3.0~3.3V (VCI), with strong adaptability.

The typical brightness of 1.7"TFT LCD Screen is 500 cd/m² (constant current test), and the backlight driving conditions are Vf=3.0~3.4V, If=70 mA, ensuring stable and efficient display effects. The operating temperature range is -30℃ to +80℃, and the storage temperature is -20℃ to +70℃, which is suitable for various application scenarios in wide temperature environments.

Usage suggestions:
To avoid image retention, it is recommended to avoid displaying static patterns for a long time. If you need a fixed display, please refresh the content within 2 minutes or use a black/dynamic image as a screen saver to extend the screen life.

This 1.7"TFT LCD Screen combines high reliability and wide compatibility, suitable for industrial equipment, portable instruments and other fields with strict display performance requirements.

Datasheet for Touch Panel,Controller↓

Name	Date	Size
TFT-H017A05QVIST5N10	April 04, 2025	50.78KB

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H017A05QVIST5N10
Diagonal size	1.7”	Inch
Resolution	240x280	Dot
Dimensions	30.07x37.43x1.56	mm
Active area (AA)	27.97x32.63	mm
LCD type	1.7"TFT LCD Screen	mm
Display viewing angle	Full View
Aspect ratio	1:1
Backlight type	LED white
TFT driver IC	ST7789
Brightness	500	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
