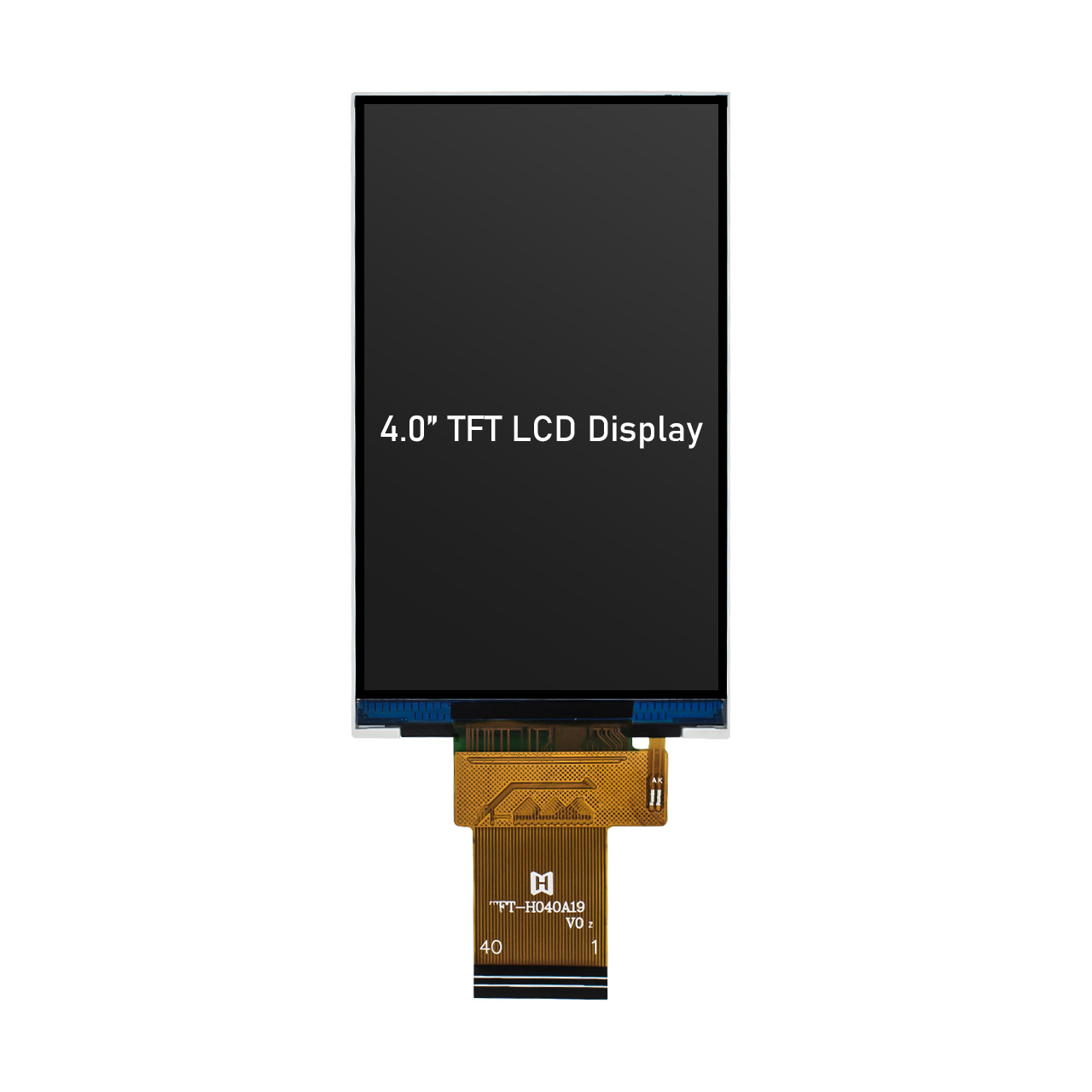

4.0 inch TFT LCD display | 480x800 RGB TFT display | RGB interface
This 4.0-inch TFT LCD display adopts 480x3(RGB)x800 resolution, with a display area of 51.84mm×86.40mm. It is equipped with full viewing angle (80 degrees up, down, left and right) technology to ensure that the picture is full of color and has a wide viewing angle. Whether it is industrial control, medical equipment or consumer electronics, it can present a clear and delicate visual experience.
This 4.0-inch TFT LCD display is equipped with ST7701S driver chip, supports RGB+9b_SPI (rising edge) and RGB+16b_SPI (falling edge) dual interface modes, and flexibly adapts to different system requirements. Its operating voltage range is 2.8V~3.6V, compatible with mainstream embedded platforms, built-in white LED backlight system, 8 LED series design provides 500cd/m² typical brightness, meeting the high visibility requirements in diverse indoor and outdoor lighting environments. The product has passed rigorous reliability testing and can operate stably in an environment of -20℃ to +70℃. It also has anti-vibration and anti-static (contact ±4KV/air ±8KV) capabilities, adapting to the harsh challenges of industrial scenarios.
To simplify the development process, the module provides complete initialization code and SPI configuration examples, supporting fast switching of 24/18/16-bit RGB color formats. The streamlined structure without touch screen design further reduces system complexity, while reserving capacitive/resistive touch screen expansion interfaces to meet customized needs. Shenzhen Xinhongtai Electronic Technology is deeply involved in the display field, backed by patented technology and professional services to ensure that each module meets international quality standards from design to delivery.

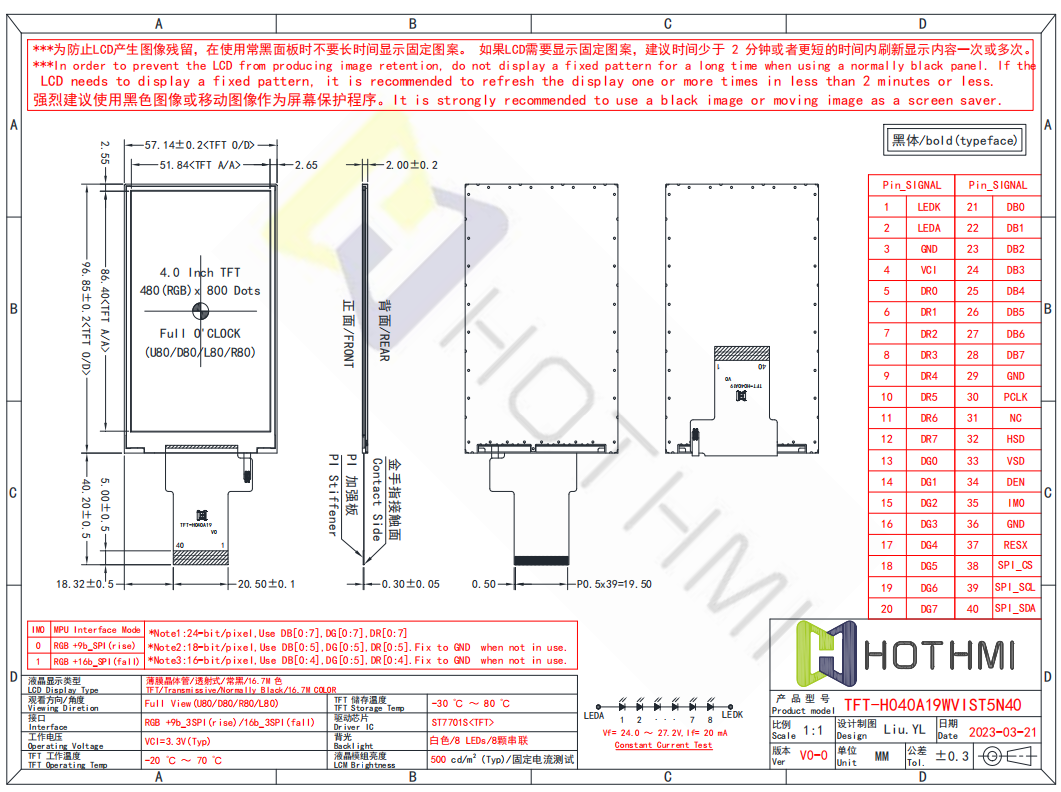

From smart home control panels to in-vehicle information terminals, this 4.0-inch TFT LCD display TFT-H040A19 injects visual competitiveness into your innovative products with compact size (57.14mm×96.85mm×2.00mm), high reliability and excellent display performance. In the same series, we also provide the module with driver board HTM-H040A27-SPI-A01C, and the square display TFT-H040A12DHIIL3C40 with
