3.2-inch 128X64 monochrome graphic dot matrix module LCM/12864 LCD graphic display module/white background gray characters/ST7920 control chip

3.2-inch 128X64 monochrome graphic dot matrix module LCM/12864 LCD graphic display module/white background gray characters/ST7920 control chip

▶ Model: HTM12864Z-31W-A5P

▶ Type: COB LCD module with Chinese font
▶ Display pixels: 128x64
▶ Overall dimensions (mm): 93.0x70.0x10.0
▶ VA size (mm): 71.4x38.7
▶ AA size (mm): 66.52x33.24
▶ Point spacing (mm): 0.52x0.48
▶ Application: Industrial control instrument
▶ Viewing angle: 6H
▶ Backlight/brightness: yellow-green light

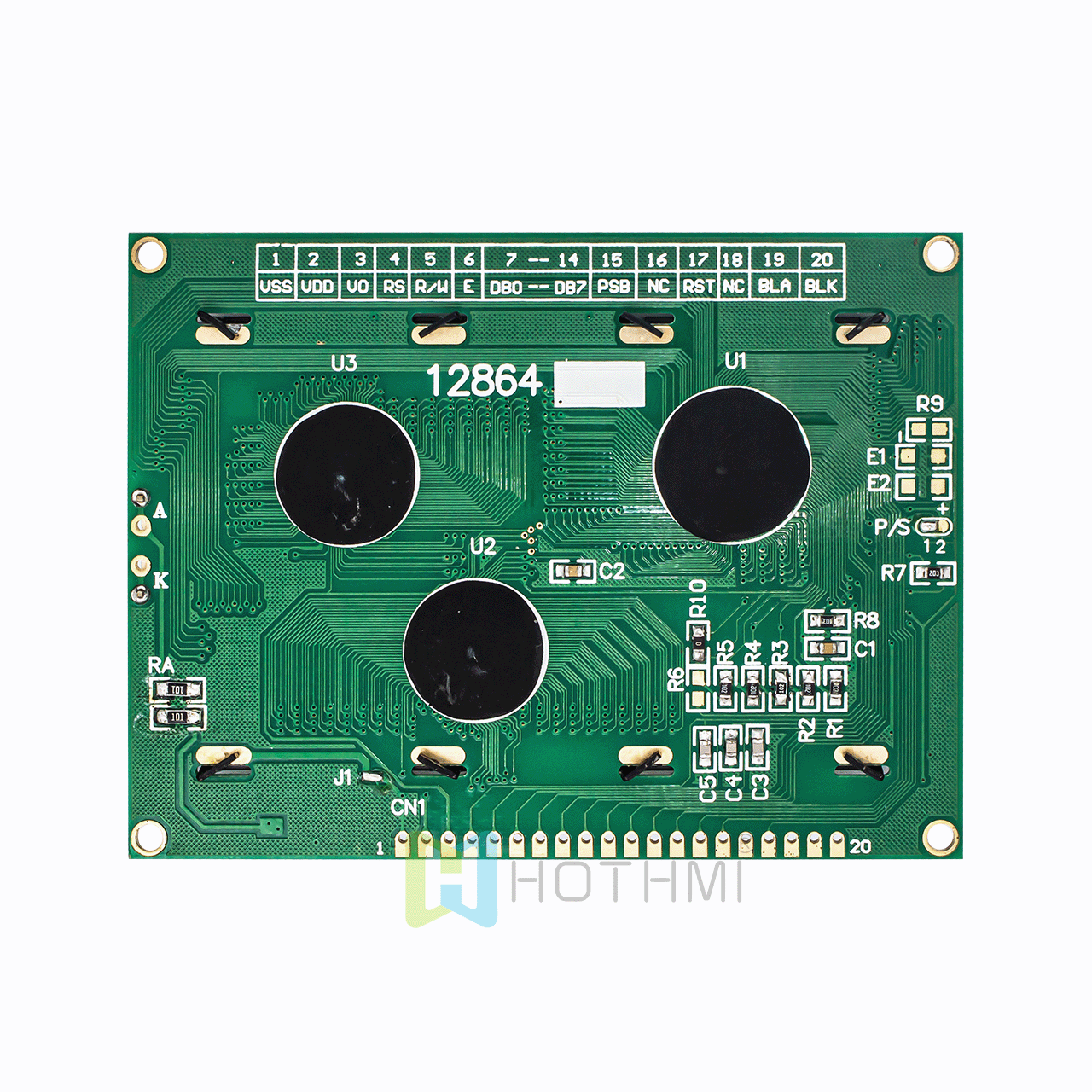

▶ Pin: 20PIN
▶ Interface mode: MCU
▶ Special instructions: with Chinese font library
▶ Working temperature: -20~70℃
▶ Supply voltage: 5.0V
▶ Driver chip: ST7920+ST7921

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

3.2-inch 128X64 monochrome graphic dot matrix module LCM/12864 LCD graphic display module/white background gray characters/ST7920 control chip

This Hot Display 128x64 Graphic LCD module displays illuminated gray pixels on a white background. This transflective LCD monitor is engineered to provide optimal visibility in a variety of lighting conditions in a variety of environments. In bright sunlight, the display uses its reflective layer to reflect ambient light back to the viewer, making the screen easy to read. In darker environments, the LCD has a strong built-in backlight that provides high contrast and displays clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read, regardless of lighting conditions.

This graphic LCD display module is fully compatible with Arduino and can be seamlessly connected with other electronic systems for a variety of applications. The HTM12864Z-31W-A5P model is designed to withstand harsh operating conditions and will perform abnormally when used in temperatures ranging from -20 to 70 degrees Celsius. The LCD has an optimal viewing angle of 6:00, operates on 5V, and is RoHS compliant.

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

parameter	Specifications	unit
name	HTM12864Z
graphic display	128 column× 64 rows	dots
Dimensions	93.0 x 70.0 x 10.0 (MAX)	mm
VA size	71.4 x 38.7	mm
AA size	66.52 x 33.24	mm
Pixel pitch	0.52 x 0.48	mm
driver chip	St7920
Applied voltage	5V	V
Backlighting	white
display mode	FSTN(+)
Drive mode	1/64 duty cycle
product type	Graphic LCD module
Polarizer type	Transflective
