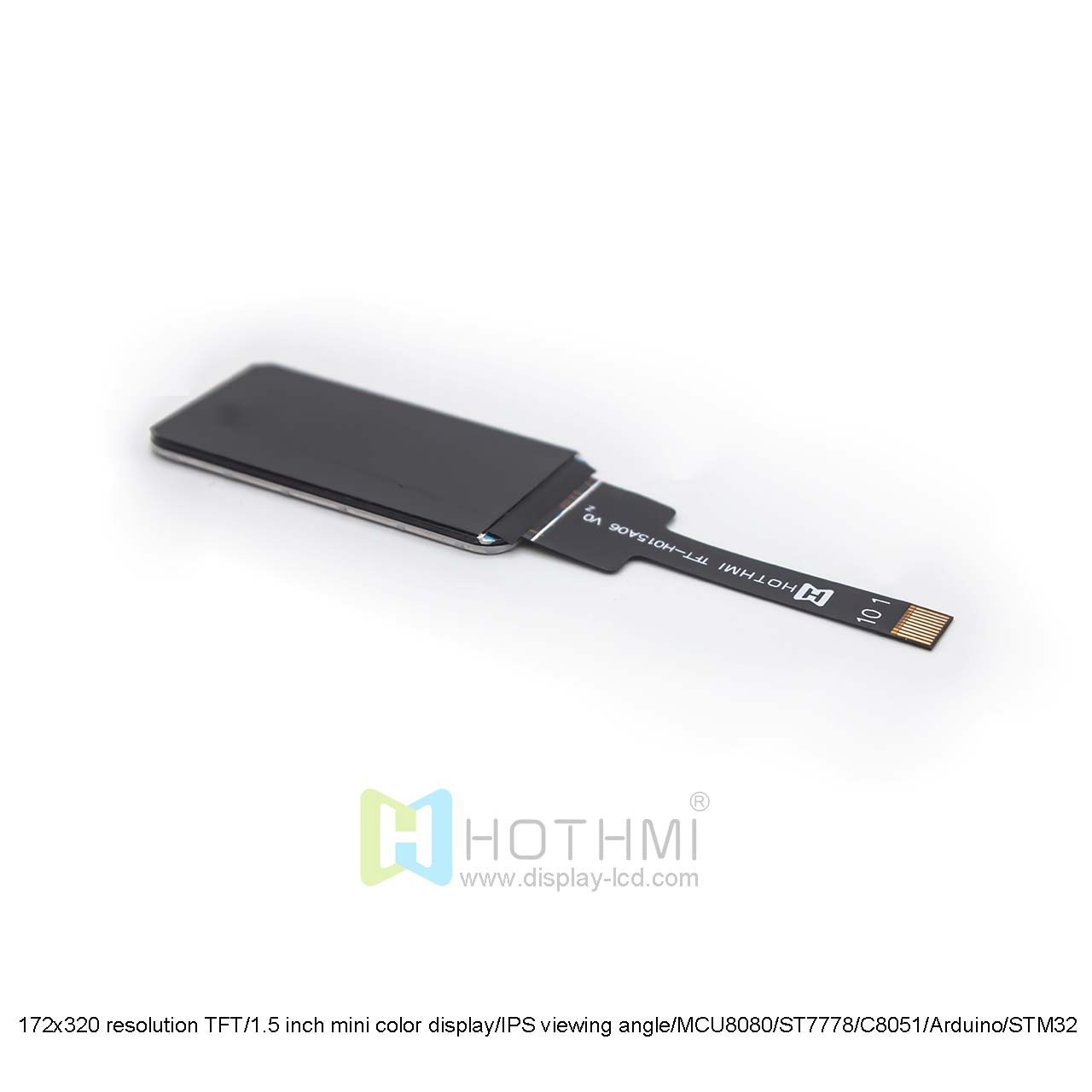

  • 1.5 inch 172x320 TFT LCD Screen ST7778 Controller for Arduino

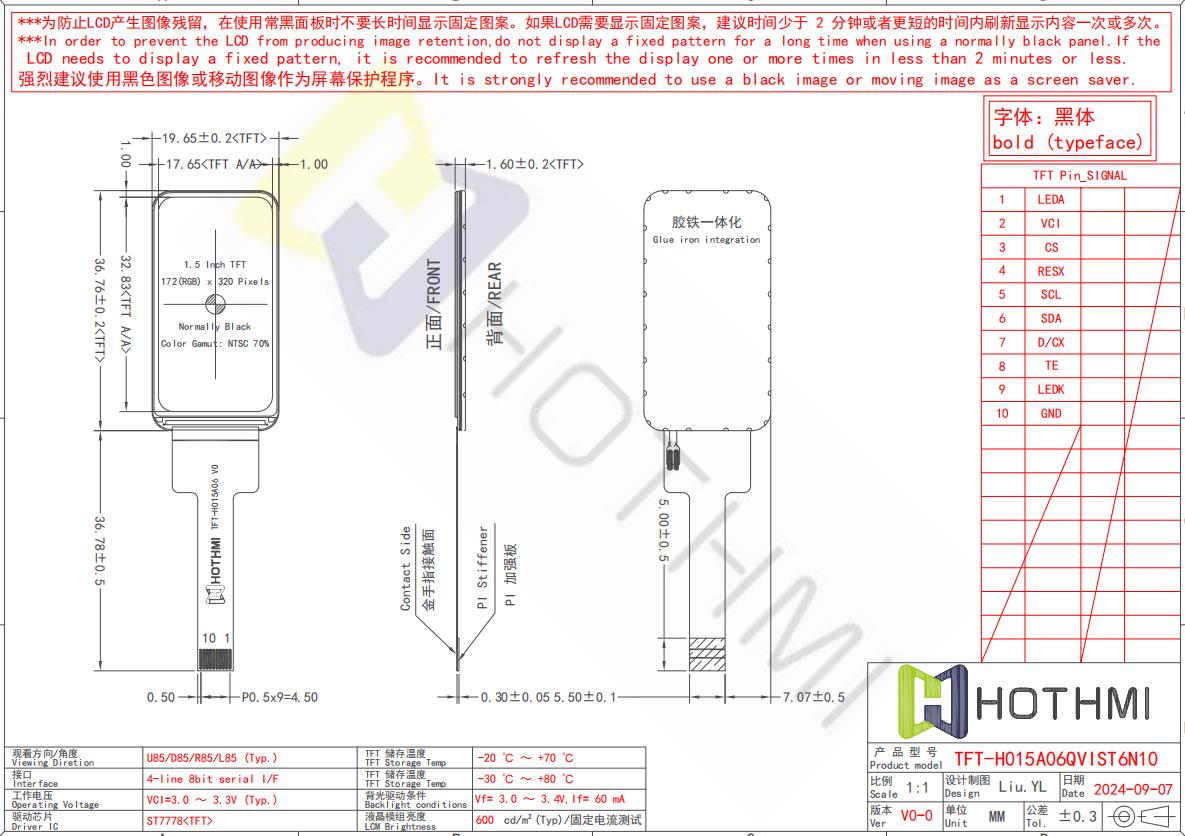

    This TFT LCD display TFT-H015A06QVIST3N10 is composed of a 172x320 dot 1.5-inch color TFT LCD screen with an ST7778 controller. Excellent display quality, IPS full viewing angle, and a brightness of 300cd/m2 provide excellent viewing effects from any angle. Easy to control by MCUs such as 8051, PIC, AVR, ARDUINO ARM, and Raspberry PI. It can be used for any embedded system, industrial equipment, security and handheld devices that require high-quality and color image display. It supports MCU interface. The resolution is 172 (RGB) x 320 pixels, the panel type is Normally Black, and the color gamut covers 70% of NTSC. The working voltage is VCI=3.0-3.3V (Type), the driver chip is ST7778 or compatible chip, and it supports 4-wire 8-bit serial interface. The backlight driving conditions are Vf=3.0-3.4V, If=60mA, and the typical brightness value of the LCD module is 300cd/m ². The product size is 36.76 ± 0.2mm (TFT), the visible area is 32.83mm (TFT A/A), and the thickness is 1.60 ± 0.2mm. The working temperature range is -20 ℃ to+70 ℃, and the storage temperature range is -30 ℃ to+80 ℃. The product adopts a rubber iron integrated design, with a PI reinforcement plate thickness of 0.30 ± 0.05mm. To prevent image residue, it is recommended to avoid displaying fixed patterns for a long time during use, and the refresh time should be less than 2 minutes. It is recommended to use black or moving images as screen protectors. Equipped with optional FPC zif connectors, easy to assemble or disassemble.


    The surface of this display screen is a glass cover with rounded corners, and the shape can be customized according to actual needs. At the same time, we also provide the EZUI driver board module HTM-H015A06-485-A01 with RS485 interface,


  • 企业微信截图_20241028161546.png

  • ITEM

    PARAMETER DESCRIPTION

    UNIT

    TFT series

    TFT-H015A06QVIST3N10


    Diagonal size

    1.5

    Inch

    Resolution

    320x320

    Dot

    Dimensions

    19.65x36.76X1.6

    mm

    Active area (AA)

    17.65*32.83

    mm

    LCD type

    TFT LCD Display

    mm

    Display viewing angle

    IPS Full View


    Aspect ratio

    1:1


    Backlight type

    white LED


    TFT driver IC

    ST7778


    Brightness

    300cd/m2

    cd/m2

    Operating temperature

    -20~70

    Storage temperature

    -30~80
