▶ Model: HTM160128B-11Y-A5P

▶ Type: Standard COB LCD module
▶ Display pixels: 160x128
▶ Overall dimensions (mm): 129.0x102.0x8.6
▶ VA size (mm): 101.0x82.0
▶ AA size (mm): 92.76x74.2
▶ Point spacing (mm): 0.58x0.54
▶ Application: Automatic packaging machine
▶ Viewing angle: 6H
▶ Backlight/brightness: yellow-green light
▶ Pin: 22PIN
▶ Interface mode: MCU
▶ Working temperature: -20~70℃
▶ Power supply voltage: 5.0v
▶ Driver chip: RA6963

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

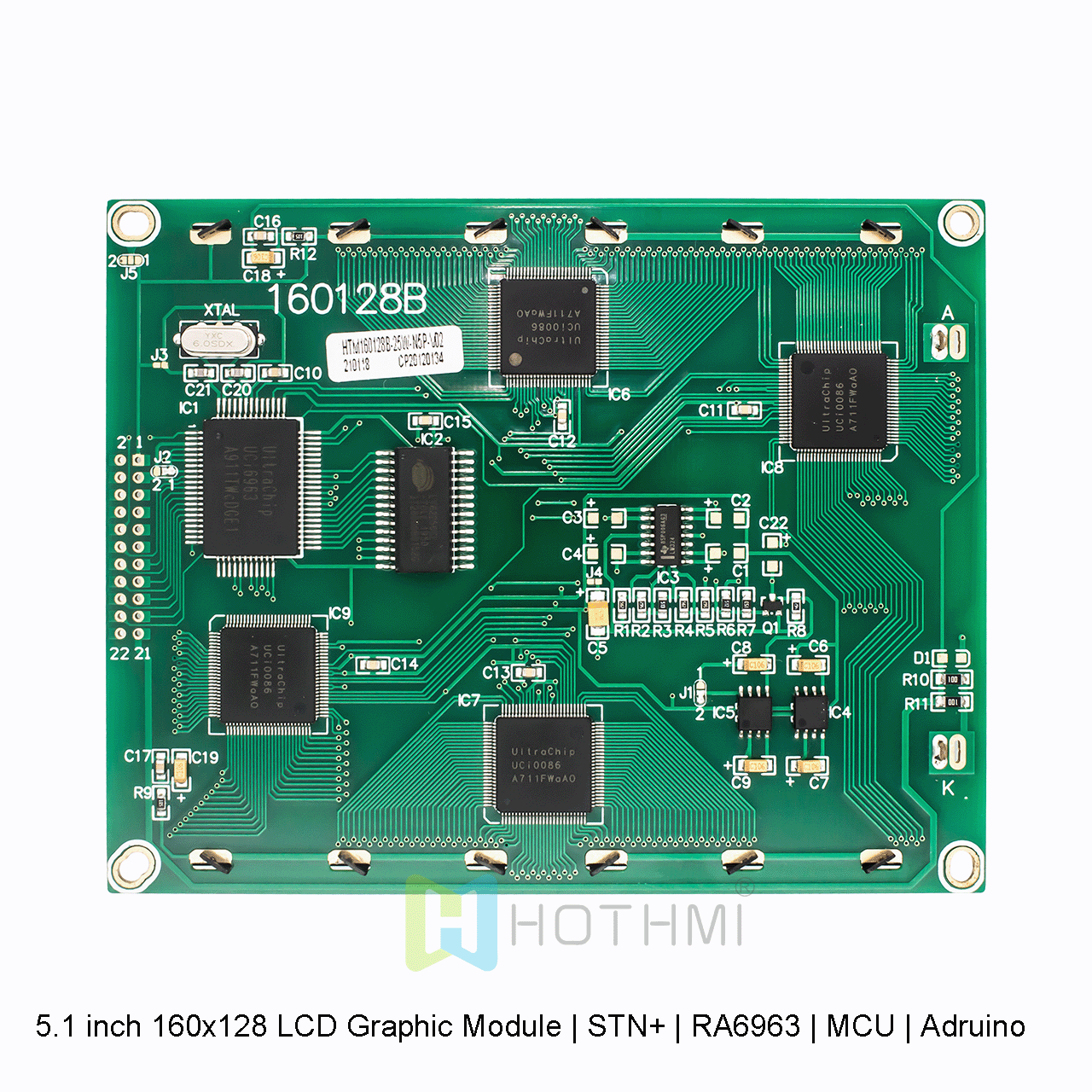

5.1 inch 160x128 LCD Graphic Module | STN+ | RA6963 | MCU | Arduino

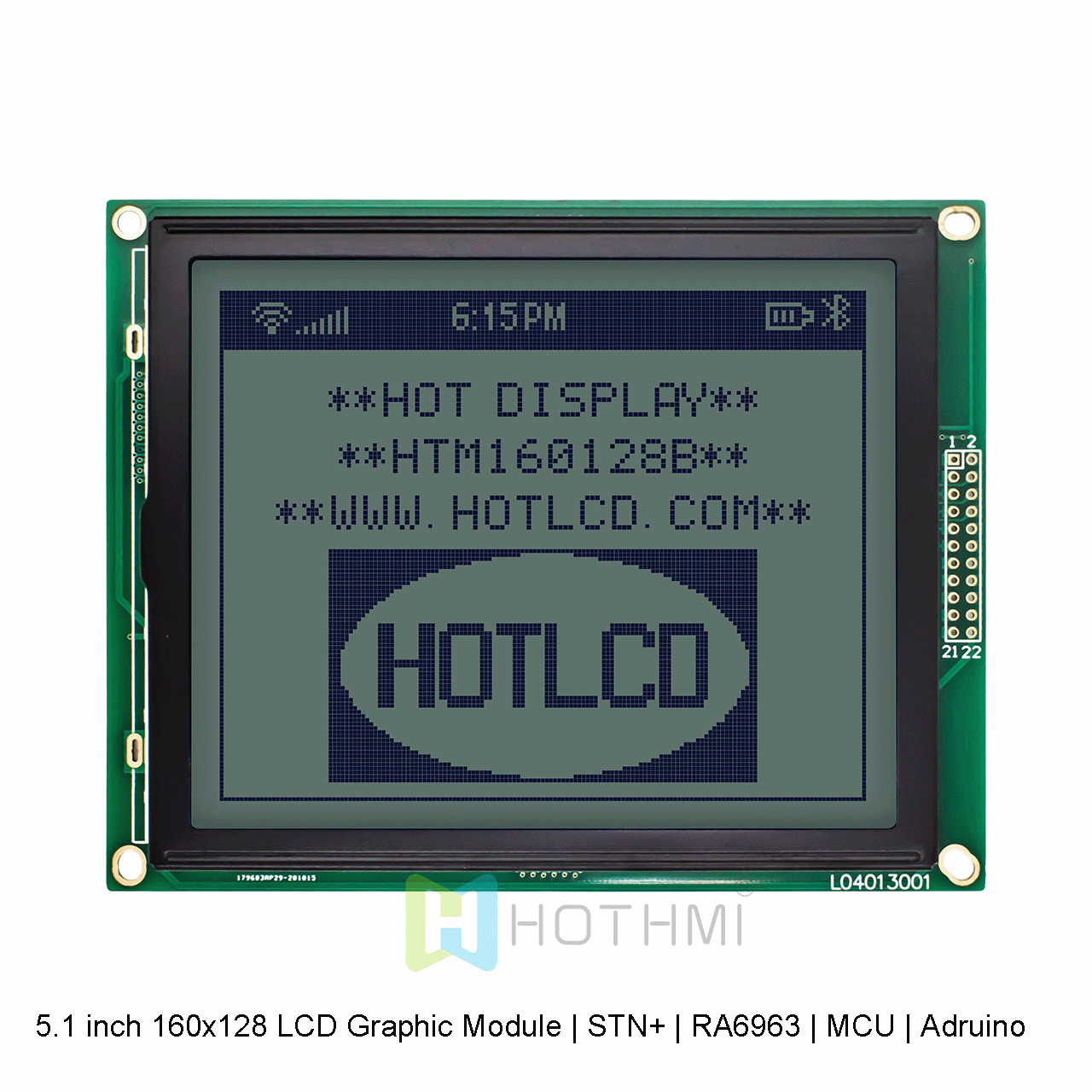

The 5.1 inch 160x128 LCD Graphic Module displays dark grey pixels on a yellow-green background. This transmissive LCD display is designed to provide optimal visibility and impressive colors when used in darker environments. The display has a strong built-in backlight to provide high contrast and ensure readability of all graphics on the screen.
