1.5 inch 320x320 resolution TFT/1.5 inch mini square color display/IPS viewing angle/MCU8080/ST7796/C8051/Arduino/STM32

1.5 inch 320x320 resolution TFT/1.5 inch mini square color display/IPS viewing angle/MCU8080/ST7796/C8051/Arduino/STM32

▶ Model: TFT-H015A4HQIST7N40

▶ Type: TFT LCD display
▶ Display content: 320X320
▶ Display inches: 1.5"
▶ Dimensions (mm): 31.52*33.72*1.51
▶ AA size (mm): 27.74*27.74
▶ Product application: handheld devices, micro speakers, mini home appliances
▶ Viewing angle: IPS full viewing angle
▶ Backlight type or brightness: white backlight 750cd/M2
▶ Connection method PIN number: 40pin
▶ Interface method: 8080 MCU
▶ Special instructions: without touch screen
▶ Operating temperature: -30~80℃
▶ Supply voltage: +3.0V
▶ Driver chip: ST7796

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

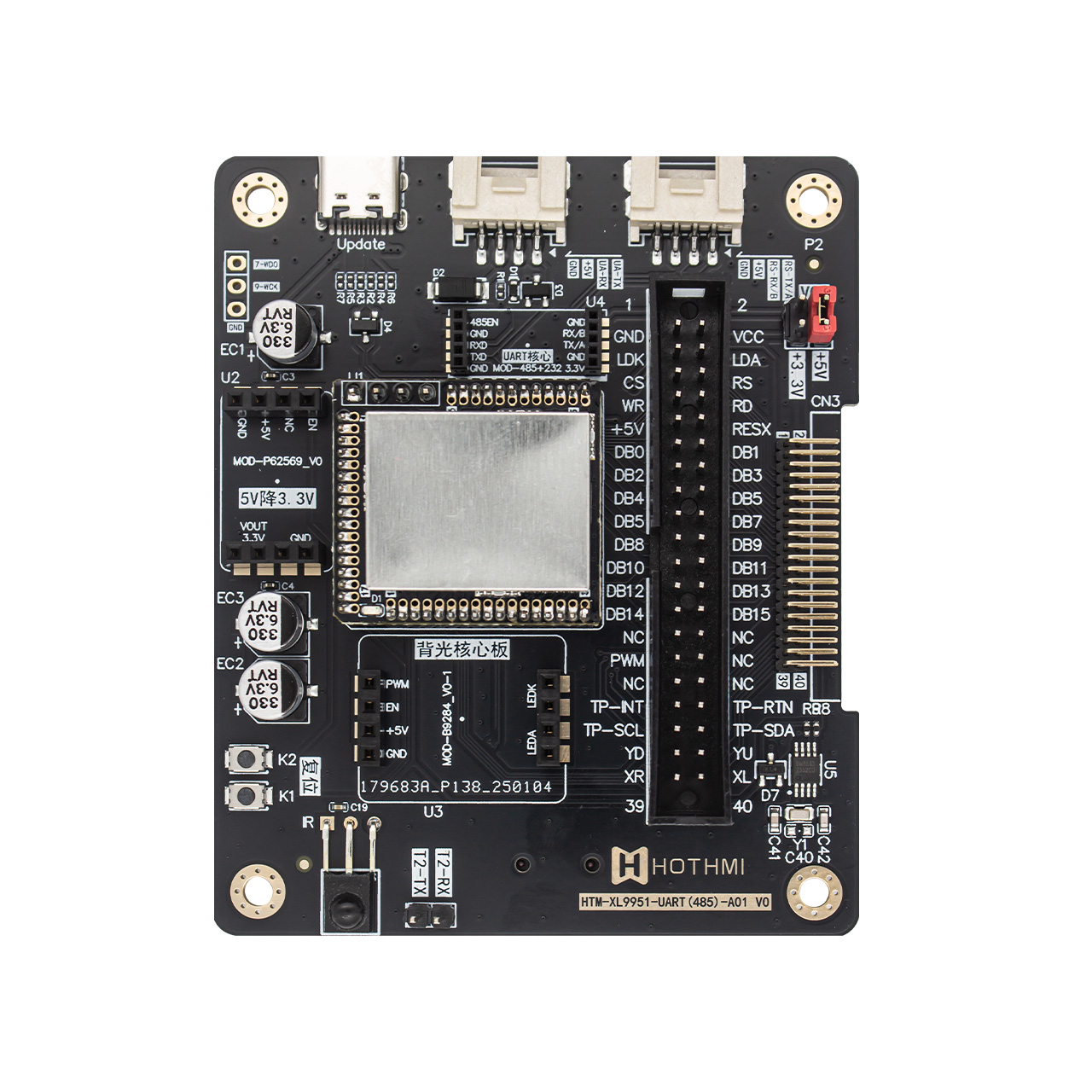

USB data cable T-port charging data cable/serial screen/adapter board
TFT to HI adapter board

Product Description
Specification
Attributes

1.5 inch 320x320 resolution TFT/1.5 inch mini square color display/IPS viewing angle/MCU8080/ST7796/C8051/Arduino/STM32

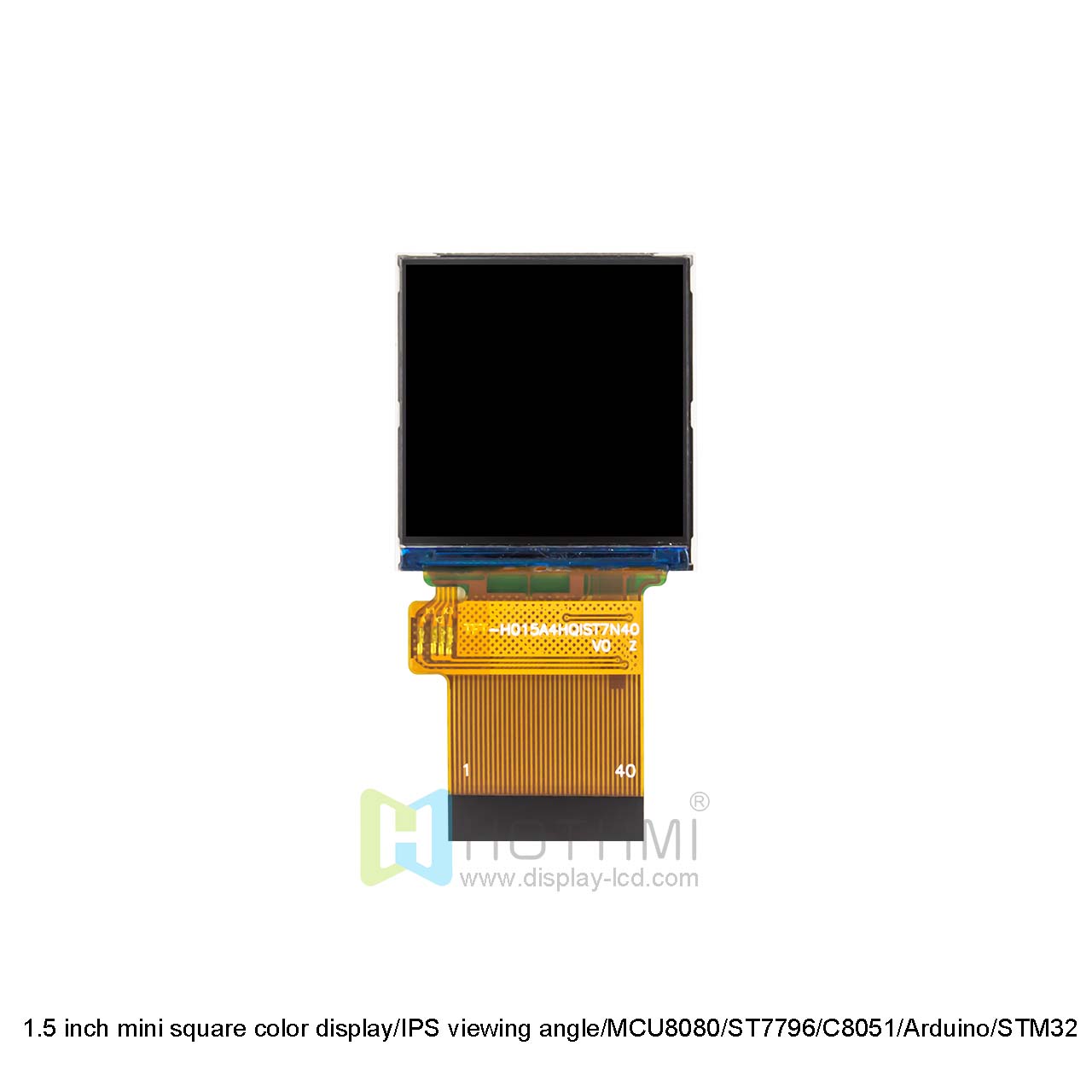

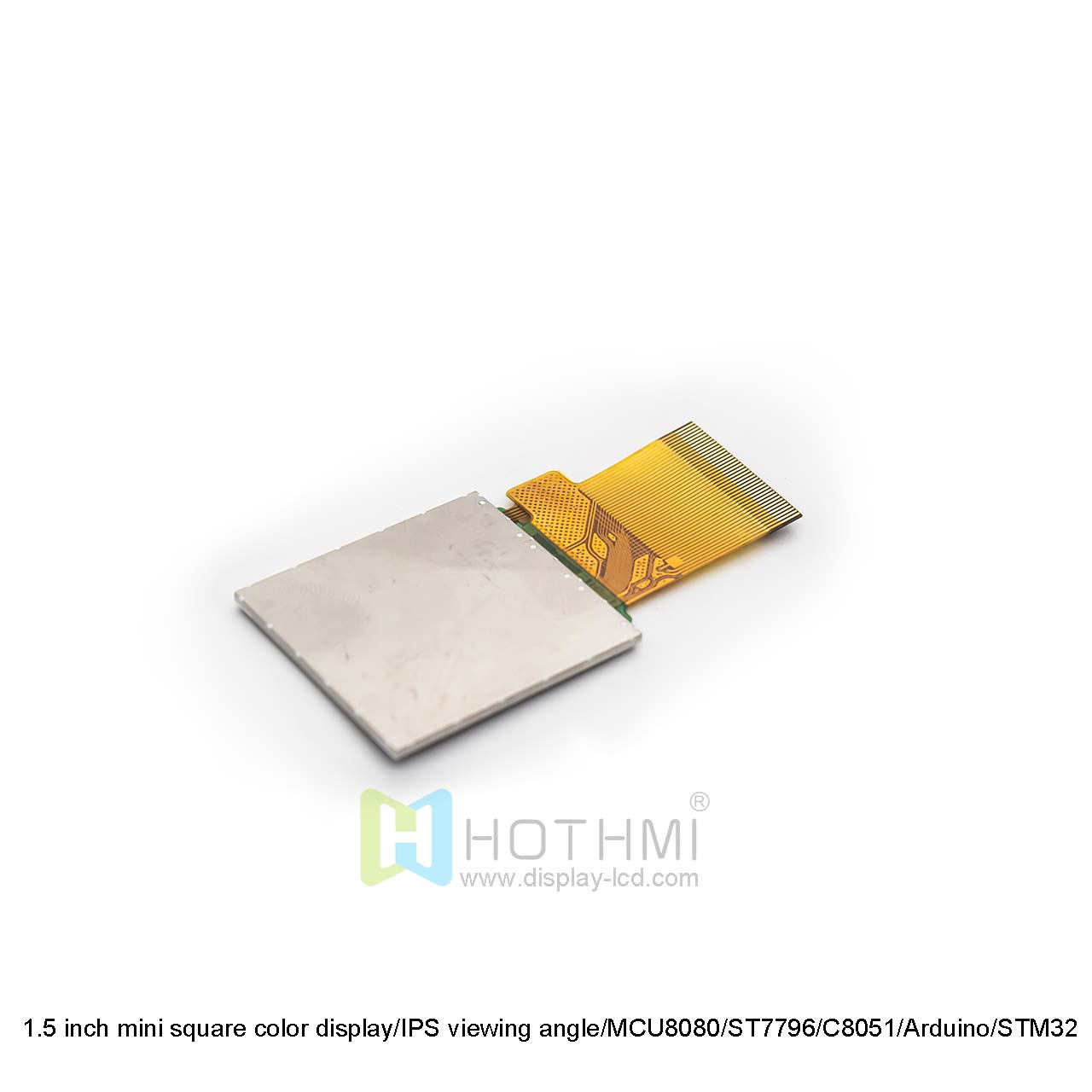

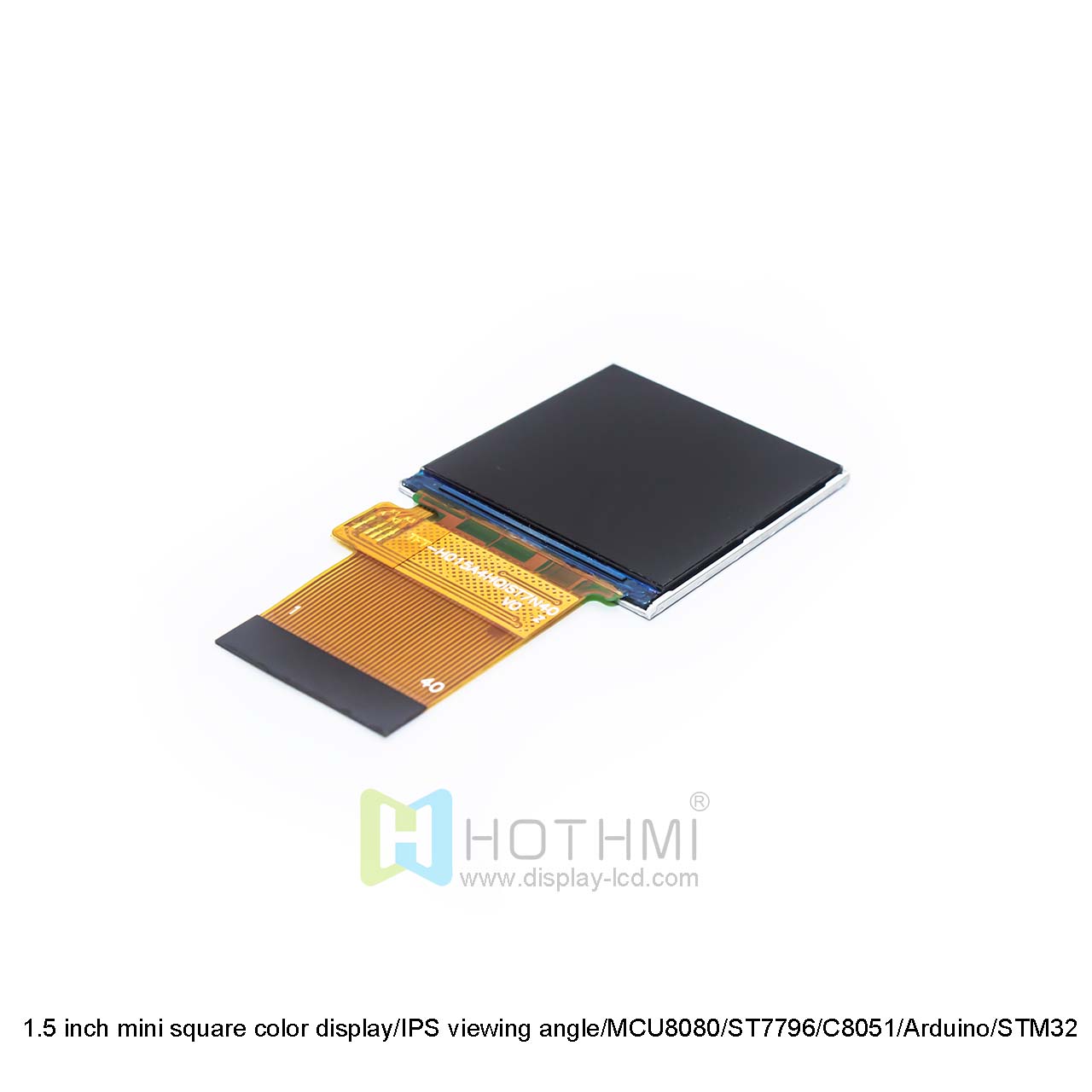

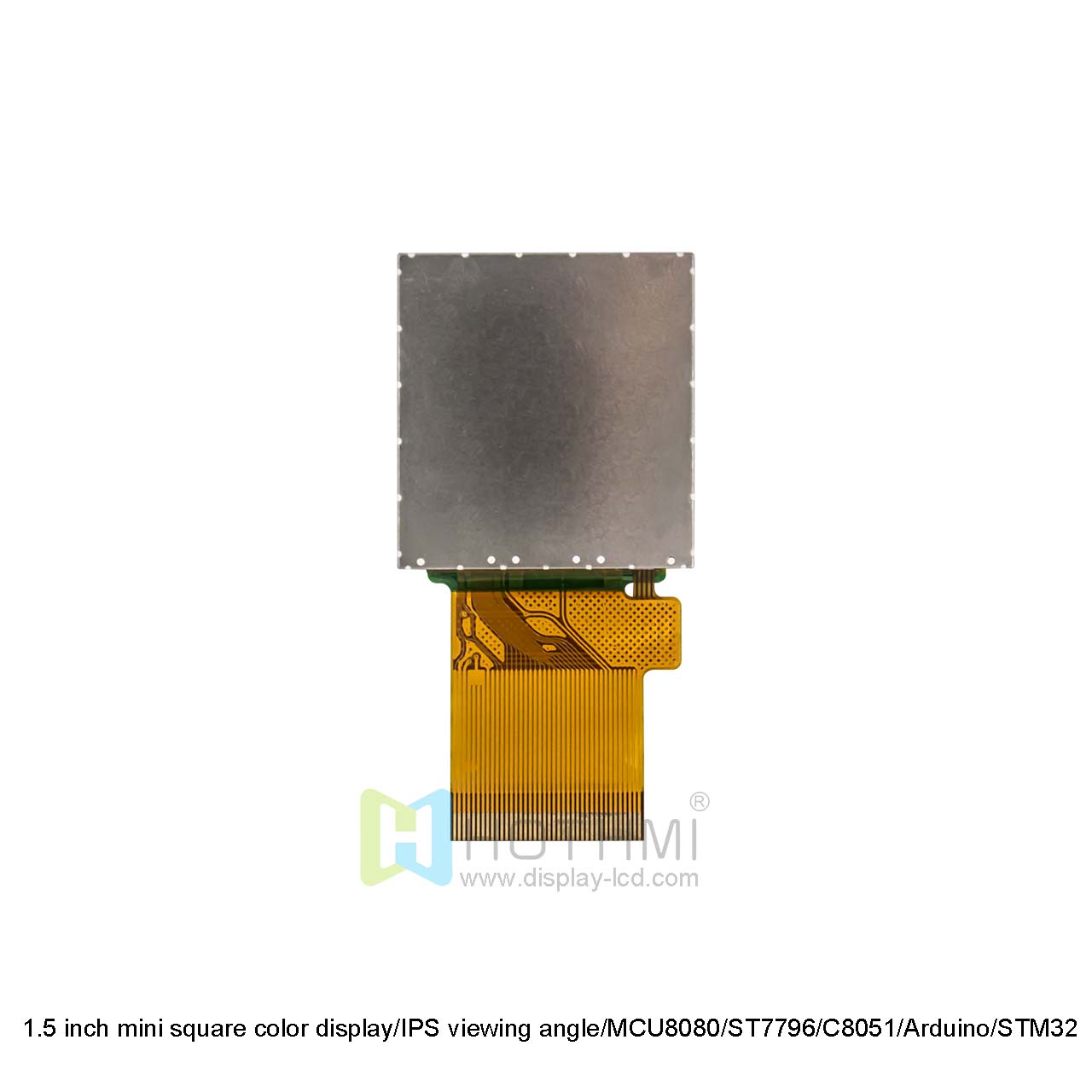

This TFT-H015A4HQIST7N40 is a 320x320 dot 1.5 inch color TFT square LCD display with ST7796 controller, excellent display quality, full viewing angle, easy to be controlled by MCU such as 8051, PIC, AVR, ARDUINO ARM and Raspberry PI. It can be used in any embedded system, industrial equipment, security and handheld devices that need to display with high quality and color images. It supports MCU interface. With optional FPC zif connector, easy to assemble or disassemble.

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H015A4HQIST7N40
Diagonal size	1.5”	Inch
Resolution	320x320	Dot
Dimensions	31.5233.721.51	mm
Active area (AA)	27.74*27.74	mm
LCD type	TFT LCD Display	mm
Display viewing angle	IPS Full View
Aspect ratio	1:1
Backlight type	white LED
TFT driver IC	ST7796
Brightness	750cd/m2	cd/m2
Operating temperature	-30~70℃	℃
Storage temperature	-30~80℃	℃
