1.7-inch LCD128 x 64 industrial control graphic LCD screen/LCM128x64 graphic dot matrix LCD module/Arduino

1.7-inch LCD128 x 64 industrial control graphic LCD screen/LCM128x64 graphic dot matrix LCD module/Arduino

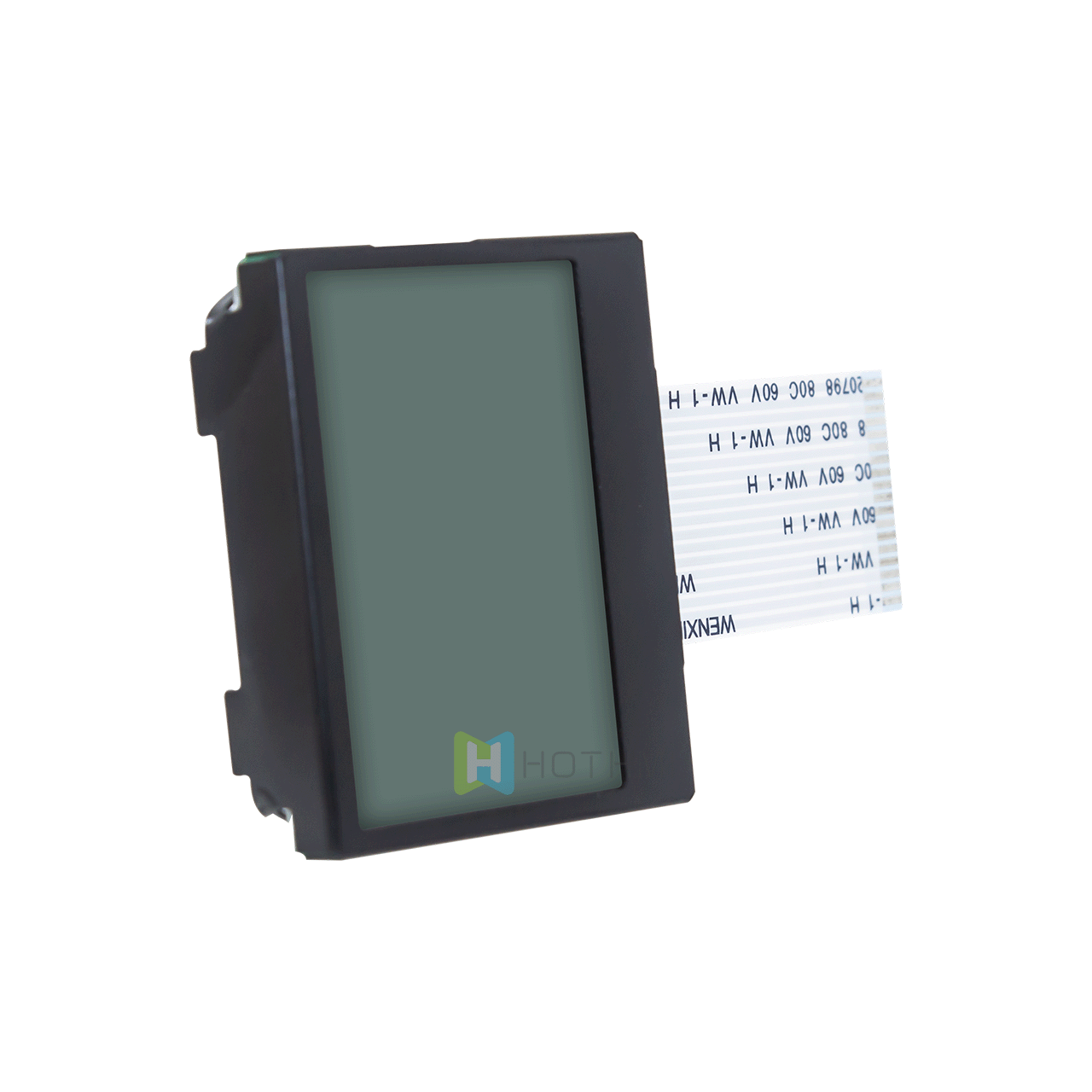

▶ Model: HTM12864C02-11Y-A5P

▶ Type: COG LCD module with board
▶ Display pixels: 128x64
▶ Overall dimensions (mm): 40.6x32.2x11.0
▶ VA size (mm): 37.0x23.3
▶ AA size (mm): 33.26x20.48
▶ Point spacing (mm): 0.26x0.32
▶ Application:Handheld instrument
▶ Viewing angle: 6H
▶ Backlight/brightness: white light
▶ Pin: FFC-18PIN
▶ Interface mode: MCU
▶ Special instructions: MCU/8BIT
▶ Working temperature: -20~70℃
▶ Supply voltage: 3.3V
▶ Driver chip: ST7565R
