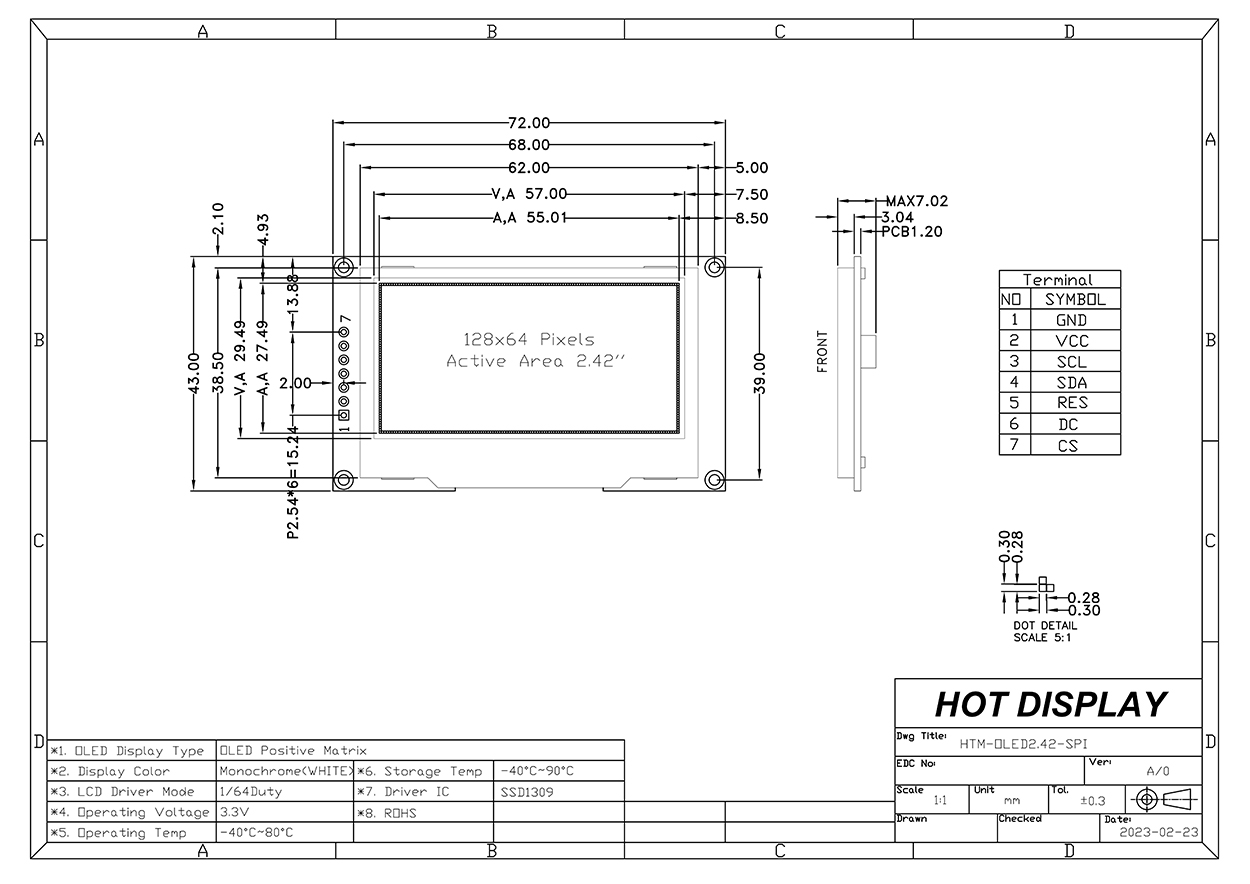

HTM-OLED2.42-SPI-B | 128x64 Pixels | Graphic OLED Module | Blue Monochrome Color | Serial or Parallel Interface | 7-Pin Connector
This 128x64 resolution graphics OLED display provides high contrast viewing effects, presenting bright blue graphics on a dark black background. OLED display technology is self luminous, designed to provide high visibility and ensure easy reading from any angle in different environments. With this OLED, you can expect the fastest response time. It is a passive matrix display built with 6800/8080 serial or parallel interface options, fully compatible with Arduino, seamlessly integrated with many different electronic systems, suitable for various applications. The monitor also comes with a 7-pin connector and a built-in SSD1309 controller. The HTM-OLED2.42-SPI-B model is specifically designed to withstand extreme working conditions and performs well when used in the temperature range of -40 to 85 degrees Celsius. It requires a 3.3V power supply to operate and complies with RoHS standards.
Cable Customization: Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure. |
Connector Customization: Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require. |
PCB Modifications: Choose from a wide selection of changes including shape, size, pinout, and component layout of your PCB to make it a perfect fit for your application. |
