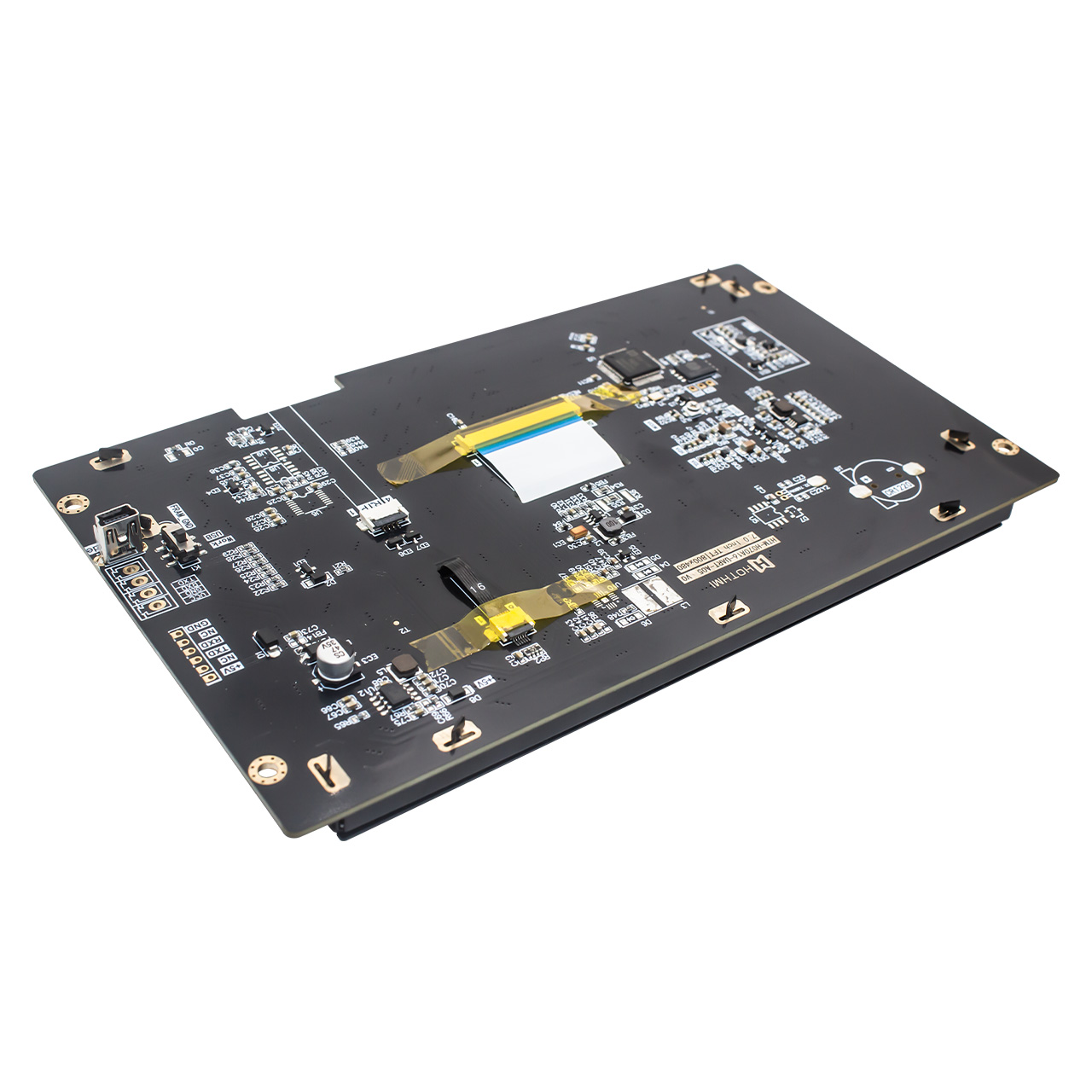

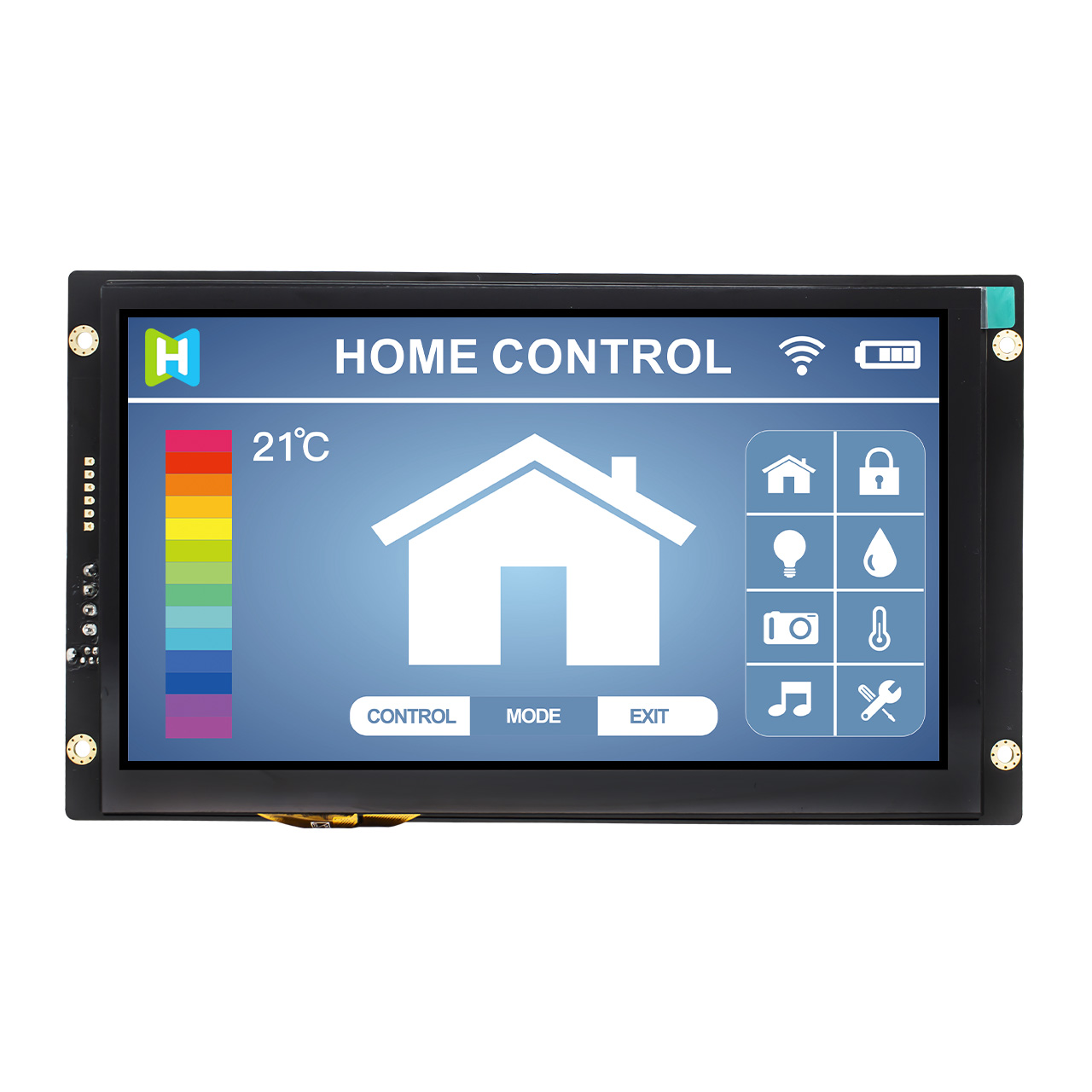

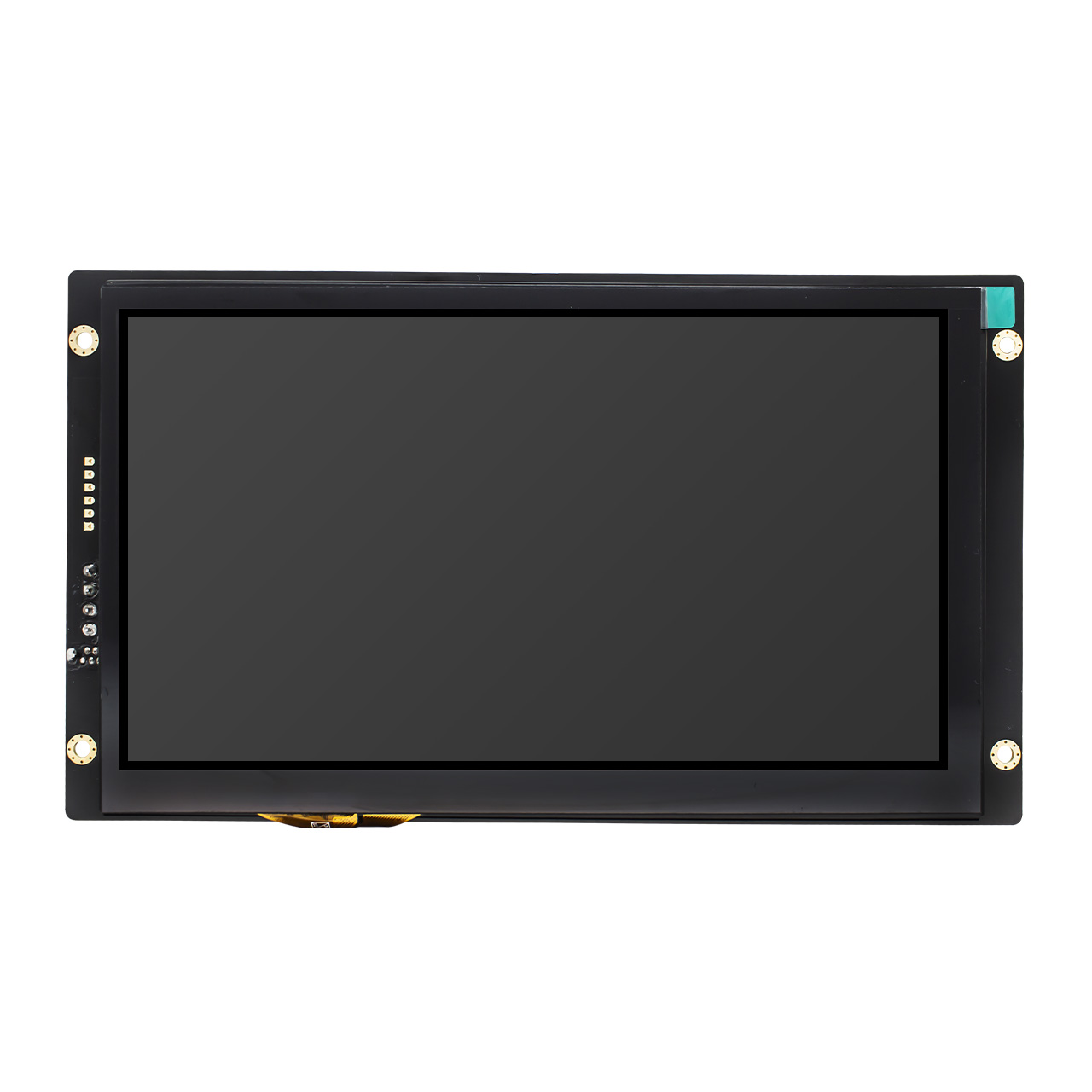

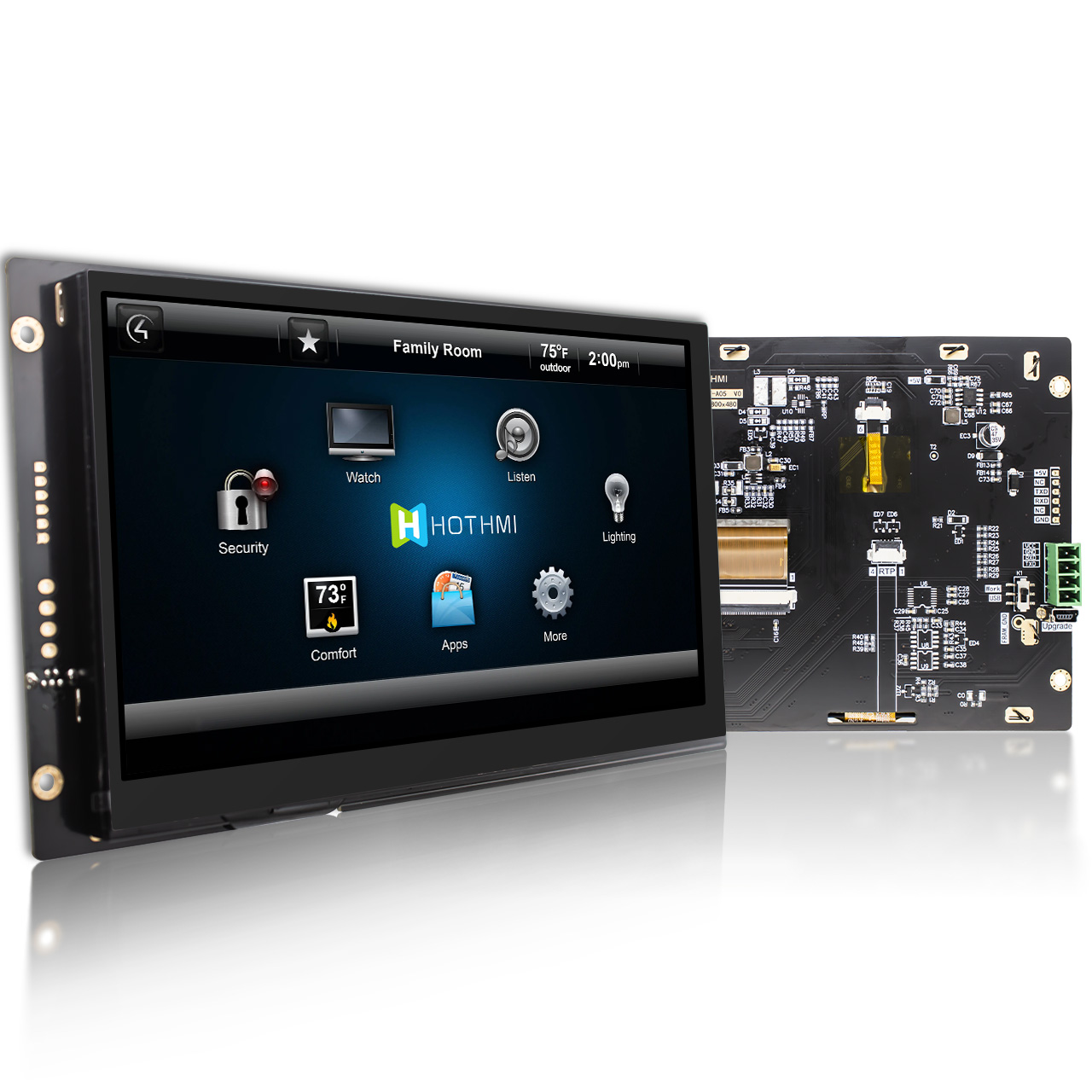

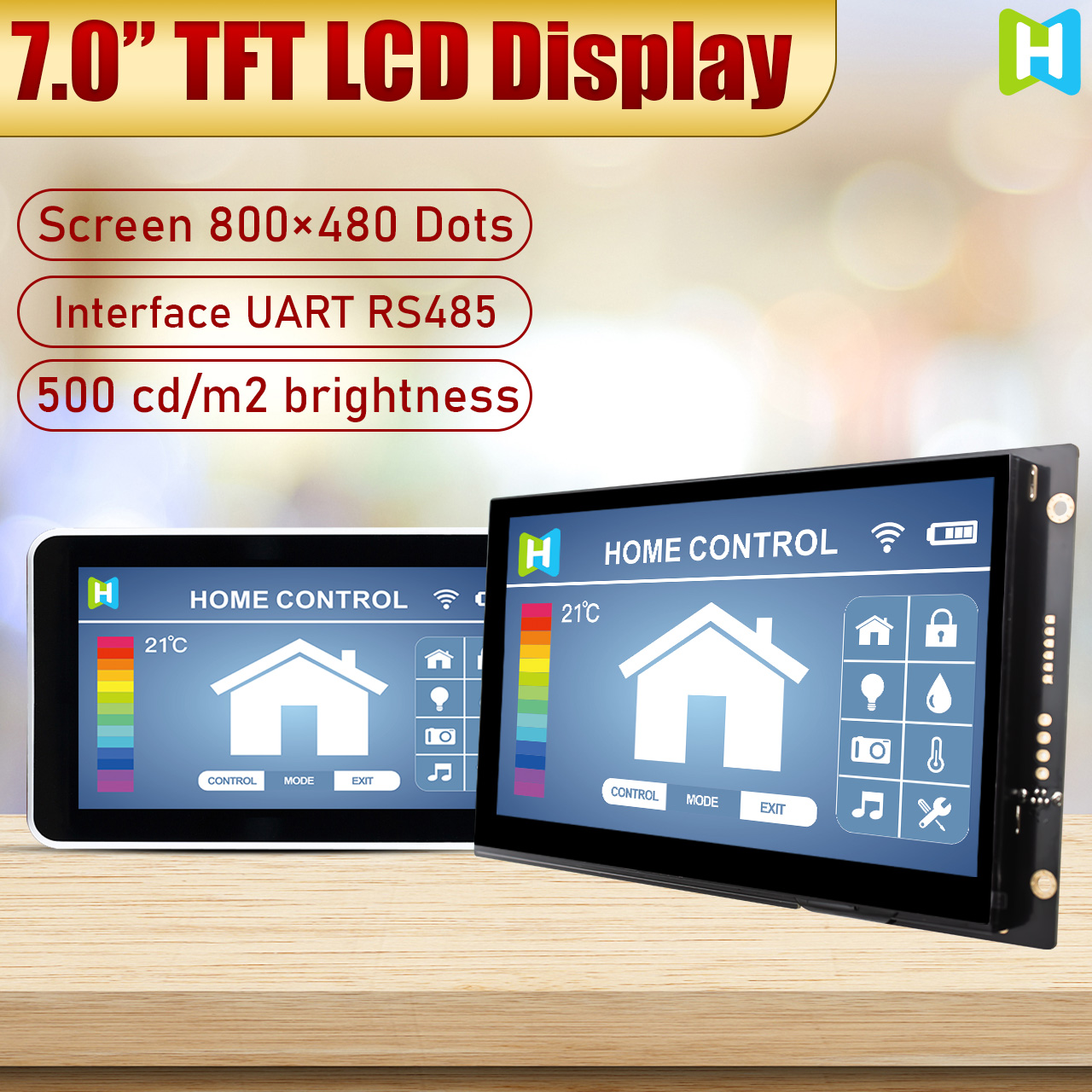

  • HTM-H070A16-UART-A05 Intelligent Serial Screen

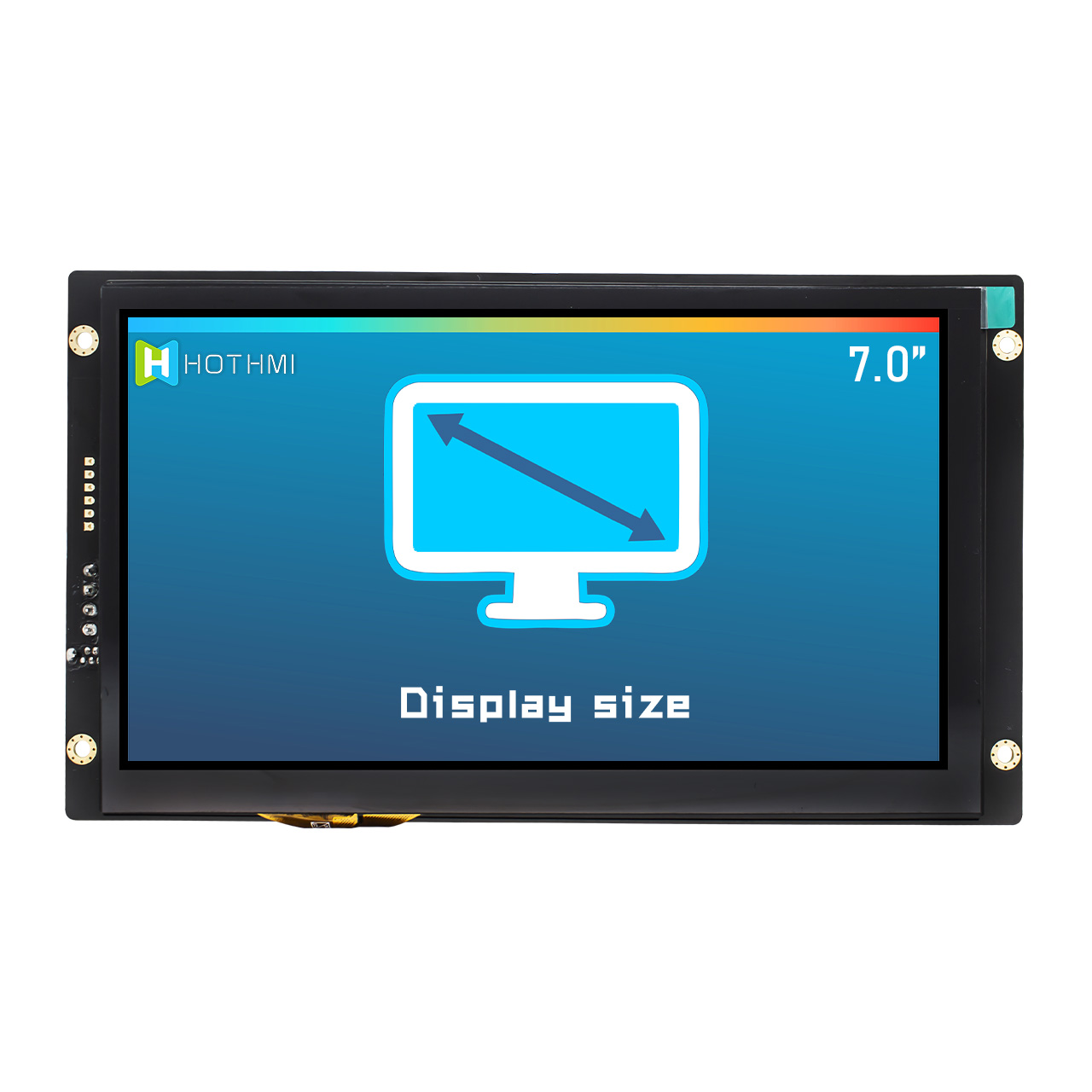

    Product Description: The HTM-H070A16-UART-A05 series intelligent serial screen is a 7-inch (diagonal) color TFT display with a high-definition resolution of 800x480 pixels and a 16-bit color depth. It features a built-in 128MB resource storage, powered by a 5V DC power supply. The product utilizes a serial UART (TTL level) interface with ASCII string communication protocol, suitable for interfacing with Arduino systems and other MCUs.

    Standard Configuration:

    • 7-inch diagonal color TFT screen, optional without touch/resistive touch/capacitive touch

    • Resolution: 800x480 pixels, supports 65536 colors

    • Power supply: 12~24V DC power

    • Serial interface: UART serial interface (TTL level), supports 9600~1000000 bps

    • Built-in resource storage: 128MB

    • Standard RTC real-time clock module

    • Internal 6x10, 8x16, 10x20, 16x32 point ASCII character set

    Features:

    • Supports basic drawing commands, including drawing points, lines, rectangles, circular rectangles, circles, arcs, string display, bitmap display, JPEG images, PNG image display, etc.

    • Supports audio and video playback commands.

    • Resource storage supports GBK2312 second-level Chinese character set, vector font library, BIG5 font library, BMP bitmap, JPEG images, PNG image display, ASCII Western character set, etc.

    • Supports interface transition effects settings, such as transparency fade-in, random quick fade-in, Venetian blinds fade-in, fast buffer switching.

    • Supports various controls, including area buttons, bitmap buttons, numerical controls, string controls, drop-down selection controls, waveform controls, progress bar controls, bitmap animation controls, time/date display controls, dial display controls, slider controls, QR codes, etc.

    EzUI Series Intelligent LCD Display Module by HOTHMI:

    The EzUI series intelligent LCD display module is a user-friendly, code-free full-color graphic touchscreen human-machine interface development tool. Users can use the EzUITool interface development tool software for design, editing, control configuration, and response settings. The generated resource files can then be copied to EzUIH series modules, completing the design and production of the human-machine interaction interface without programming single-chip microcontrollers or other controllers.

    Features and Application Scope:

    • Easy to use: Adopts a simple and user-friendly design philosophy, allowing users to easily perform interface design and development through EzUITool software.

    • Code-free: Achieves the goal of code-free user interface design. Users only need to copy the resource files generated by the software to EzUIH series modules, eliminating the need for programming.

    • Rich functionality: Provides rich features and performance. Users can choose between simple or complex usage and freely control the module's display functions.

    • Multiple size options: Offers various sizes for customer selection, suitable for different application scenarios such as industrial control equipment and medical devices.

    In summary, both product series offer rich functionality and flexible usage in the field of LCD displays, catering to the needs of different users and application scenarios.


    Customized Ribbon Cables/Flexible Printed Circuits (FPC):

    Tailor your cables to perfection by adjusting their length, position, and pin arrangements, or adding other connectors. Obtain a precisely designed cable solution to streamline and enhance the safety of your connections

    Touchscreen Add-On Components:

    Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

    Interface Customization:

    Choose from various interface options or consult with our experts to select the options that best suit your project. We can integrate HI,USB, SPI, VGA, and other interfaces into your display to achieve your design goals.

    Cover Glass:

    Equip your display with custom-cut cover glass to improve durability. Choose from various thicknesses of cover glass and undergo optical bonding to prevent moisture and debris.


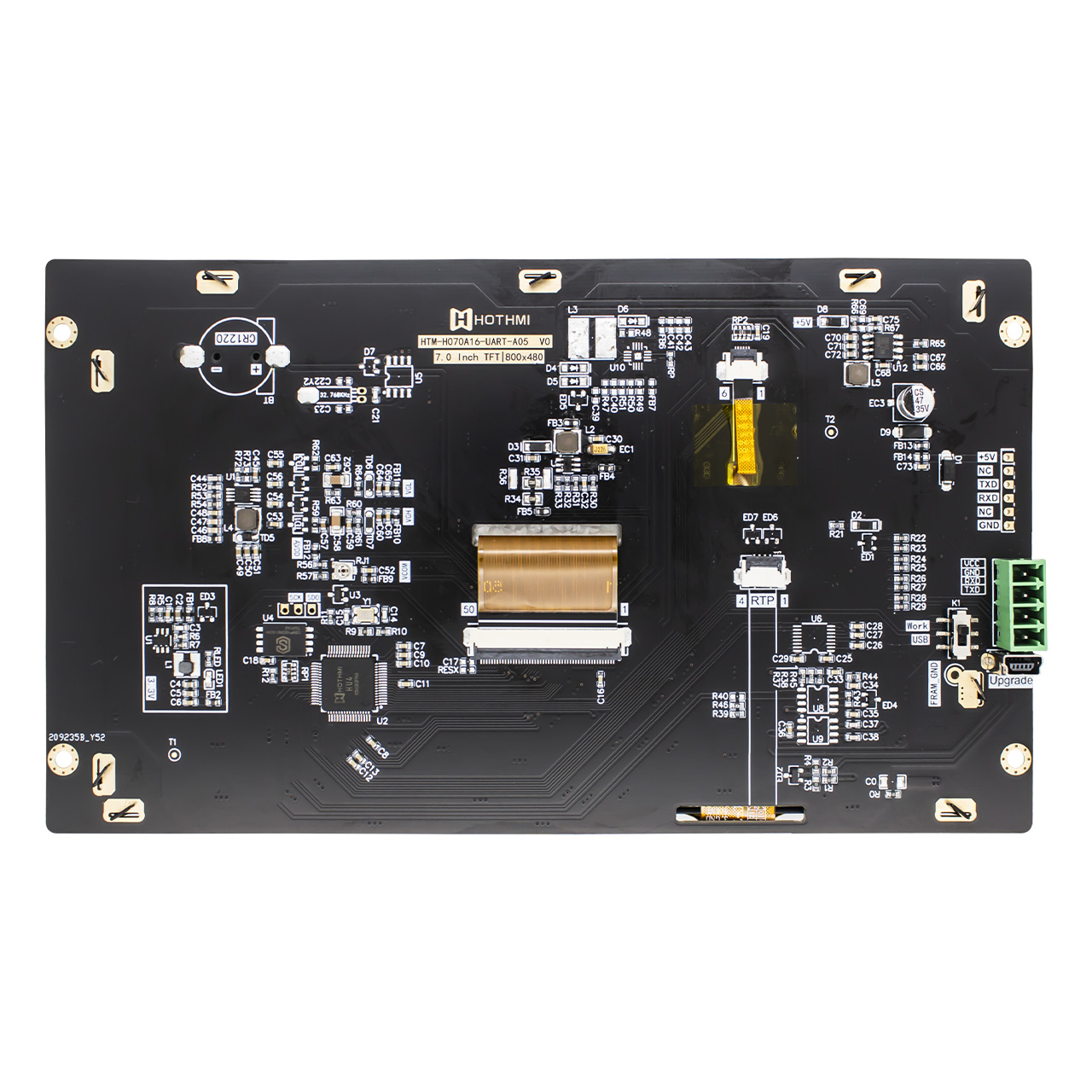

  • HTM-H070A16-UART-A05_V0-0_00.jpg

  • Quality Standards

    At HOTLCD Display we strive every day to provide our customers with the highest quality products. This means Quality, Engineering, and Manufacturing teams are aligned to exceed your expectations.


    ITEM

    PARAMETER DESCRIPTION

    UNIT

    TFT series

    HTM-H070A16-UART-A05


    Diagonal size

    7.0”

    Inch

    Resolution

    800x480

    Dot

    Dimensions

    166.50x108.05

    mm

    Active area (AA)

    153.84x85.63

    mm

    LCD type

    7.0” TFT Module

    mm

    Display viewing angle

    TN


    Aspect ratio

    2:3


    Backlight type

    LED white

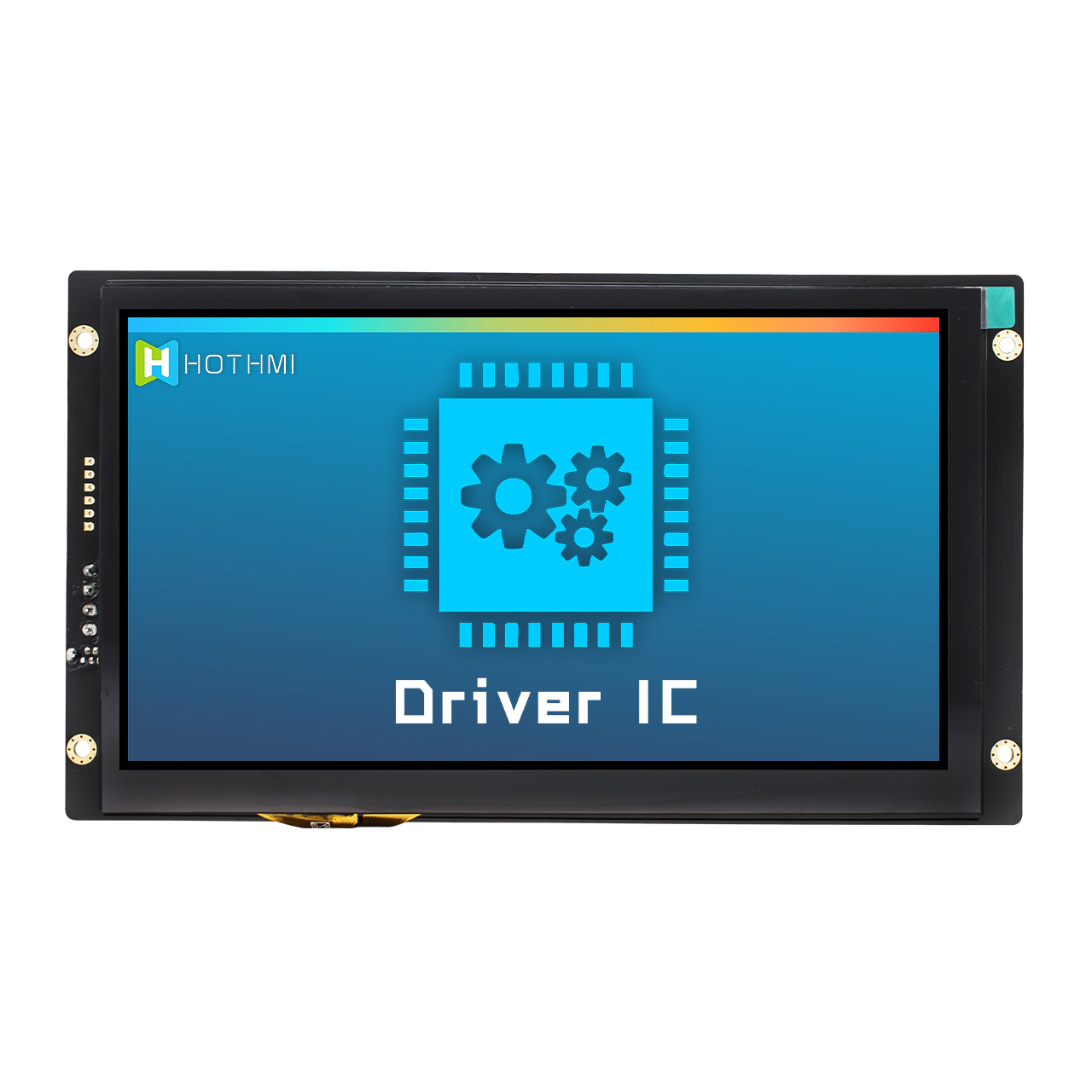

    TFT driver IC

    RS232

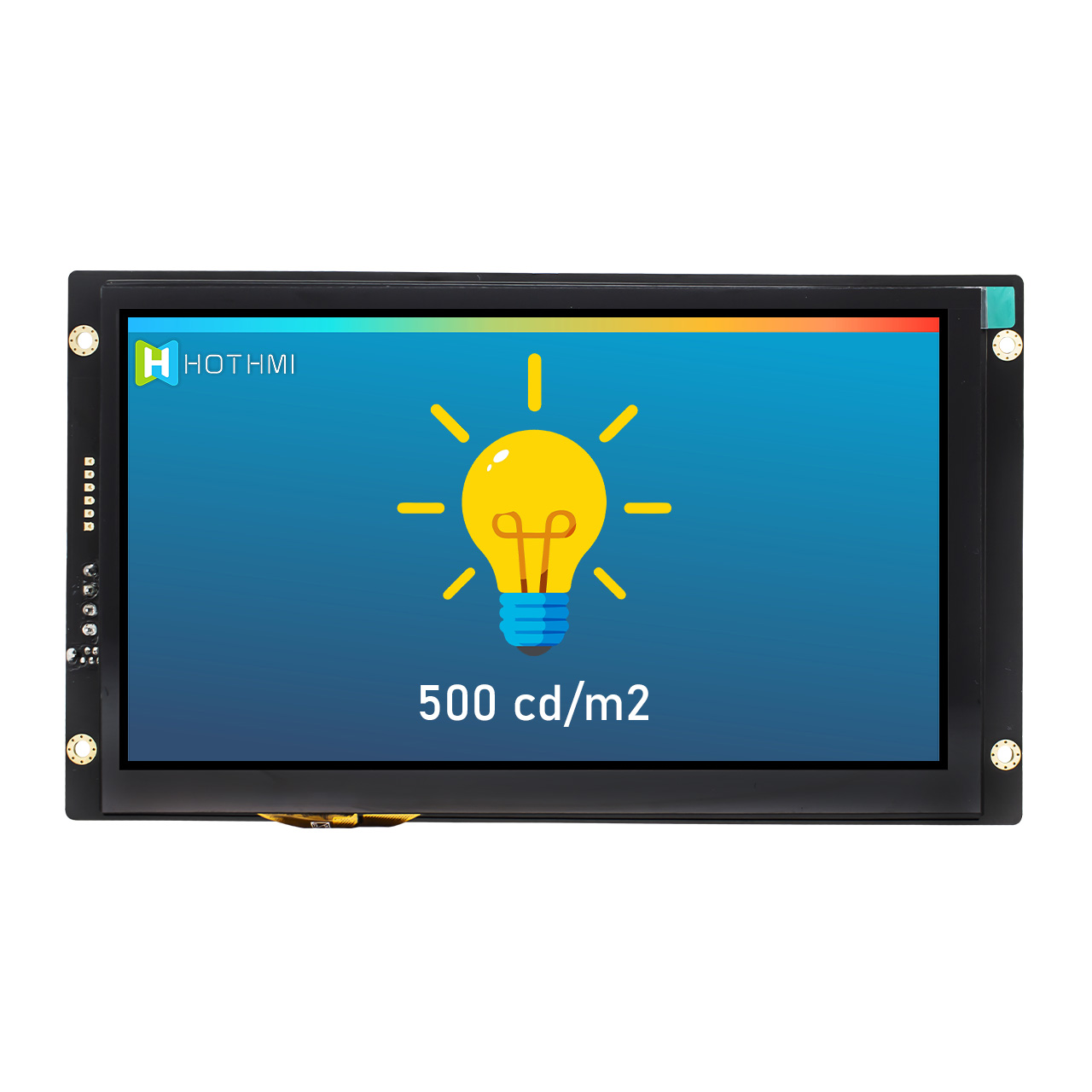

    Brightness

    500

    cd/m2

    Operating temperature

    -20~70℃

    Storage temperature

    -30~80℃
