图形点阵 COG 3.1寸 128X48 | DFSTN - | 黑底白字显示屏 | MCU

图形点阵 COG 3.1寸 128X48 | DFSTN - | 黑底白字显示屏 | MCU | Arduino

▶ 型号: HTG12848A-47W-28K08

▶ 类型：图形点阵 COG
▶ 显示像素：128x48

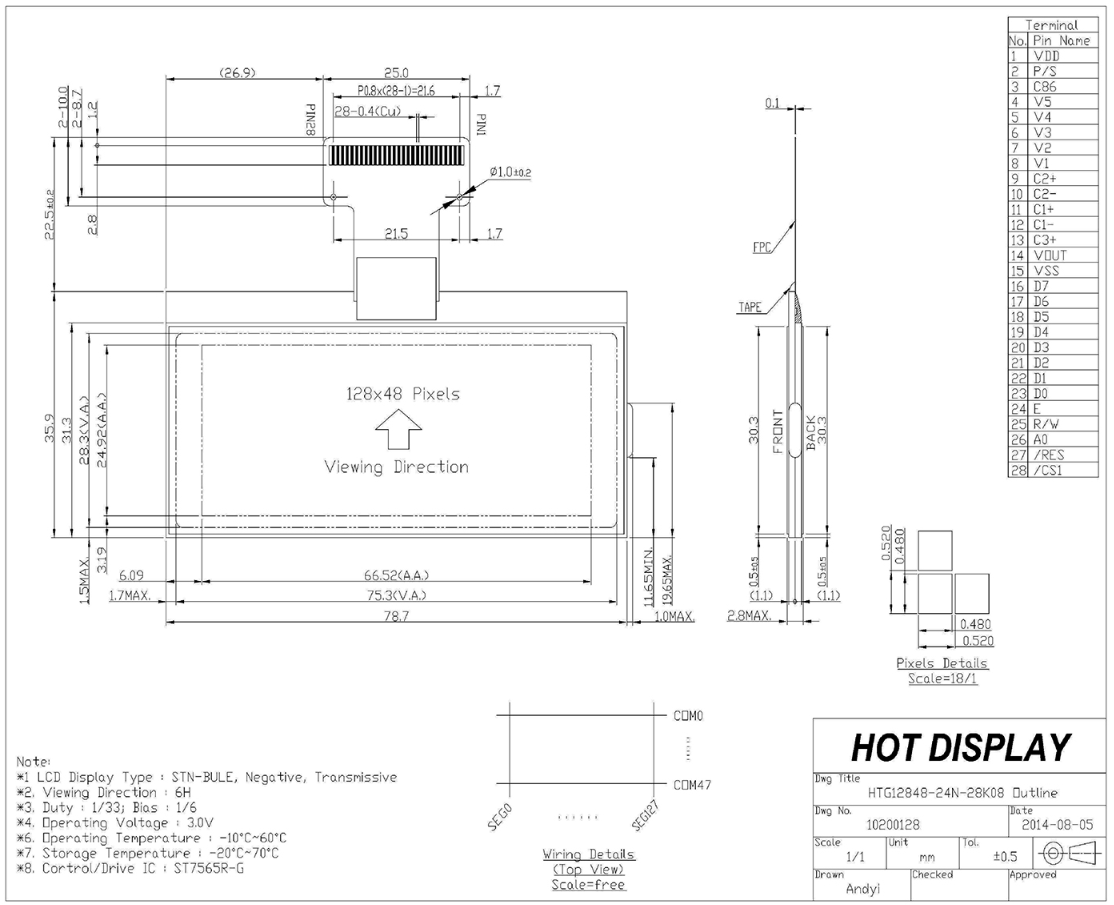

▶ 外形尺寸(mm) ：81.1x38.3x4.9
▶ 显示英寸: 3.1"
▶ VA尺寸(mm)：75.3x28.3
▶ AA尺寸(mm) ：66.52x24.92
▶ 点间距(mm)：0.52x0.52
▶ 应用：网络电话
▶ 视角：12H
▶ 背光/亮度：白光
▶ 引脚：FPC-28PIN
▶ 接口方式：MCU
▶ 特殊说明：抗静电ESD 8KV
▶ 工作温度：-20-70℃
▶ 供电电压：3.3V
▶ 驱动芯片：ST7565R

产品咨询数据下载索取Demo Code
- 运输
- 付款
- 税款
- 保证
- 退回
- 停产
运输

国内快递我司与顺丰有合作,国外和DHL进行合作,您可以我们联系咨询运费以及重量得到最新的报价。

付款

不支持线上付款，可通过对公账户转账,若开增值税票请联系我司销售人员获取对公账户.

税款

此网站出售的所有产品都不含税,若需要增值税票请与我司销售人员联系线下购买。

保证

此网站出售的所有产品质保一年,若因客户使用不当造成的损坏免费维修,收取材料成本费用。

退回

质保期内的产品可退回维修或换新, 退回前请先与我司销售人员联系确认退货原因后再退回。

停产

我们承诺长期生产此网站销售的所有产品,若IC或面板停产,将尽量使用兼容物料替换。

上一个 返回 下一个

相关配件

单色COG/图形COB/字符COB/OLED模组/E-paper模组/段码屏 8051测试板
单色COG/图形COB/字符COB/OLED模组/E-paper模组/段码屏 STM32测试板
COG转接板

产品描述
定制服务
属性

图形点阵 COG 3.1寸 128X48 | DFSTN - | 黑底白字显示屏 | MCU | Arduino
这款 HTG12848A-47W-28K08 图形点阵 COG可在黑色背景上显示明亮的白像素。这款透射式 LCD 显示屏经过精心设计，在环境光线下，偏光片的反射作用下，将图像反射给观赏者，使图像清晰可见；可在较暗的环境中使用时，背光的作用下，使图形清晰可见，提供最佳的可视性和令人印象深刻的色彩。显示屏内置强大的背光，可提供高对比度并确保屏幕上所有图形的可读性。
该图形 LCD 显示模块的显示屏与 Arduino/C8051 完全兼容，可与其他电子系统无缝连接，适用于各种应用。这款型号专为承受恶劣的工作条件而设计，在 -20 至 70 摄氏度的温度范围内使用时运行异常。该 LCD 的最佳视角为 12:00，工作电压为 3.3V，并且符合 RoHS 标准。

参数	规格参数	单位
名称	HTG12848A-41W- A5P
点阵数	128 × 48	dots
模组尺寸	81.1 x 38.3 x 4.9 (MAX)	mm
可视(VA)区域	75.3 x 28.3	mm
AA尺寸	66.52 x 24.92	mm
点(像素)间距	0.52 x 0.52	mm
IC	ST7565R
应用电压	3.3V	V
背部灯光	白色
模式	DFSTN(-)
驱动方式(Duty)	1/48 duty cycle
类型	图形 COG
偏光片类型	全透

搜索关键词: 3.1 128X48 图形 COG DFSTN -MCU ST7565R LCD Arduino
