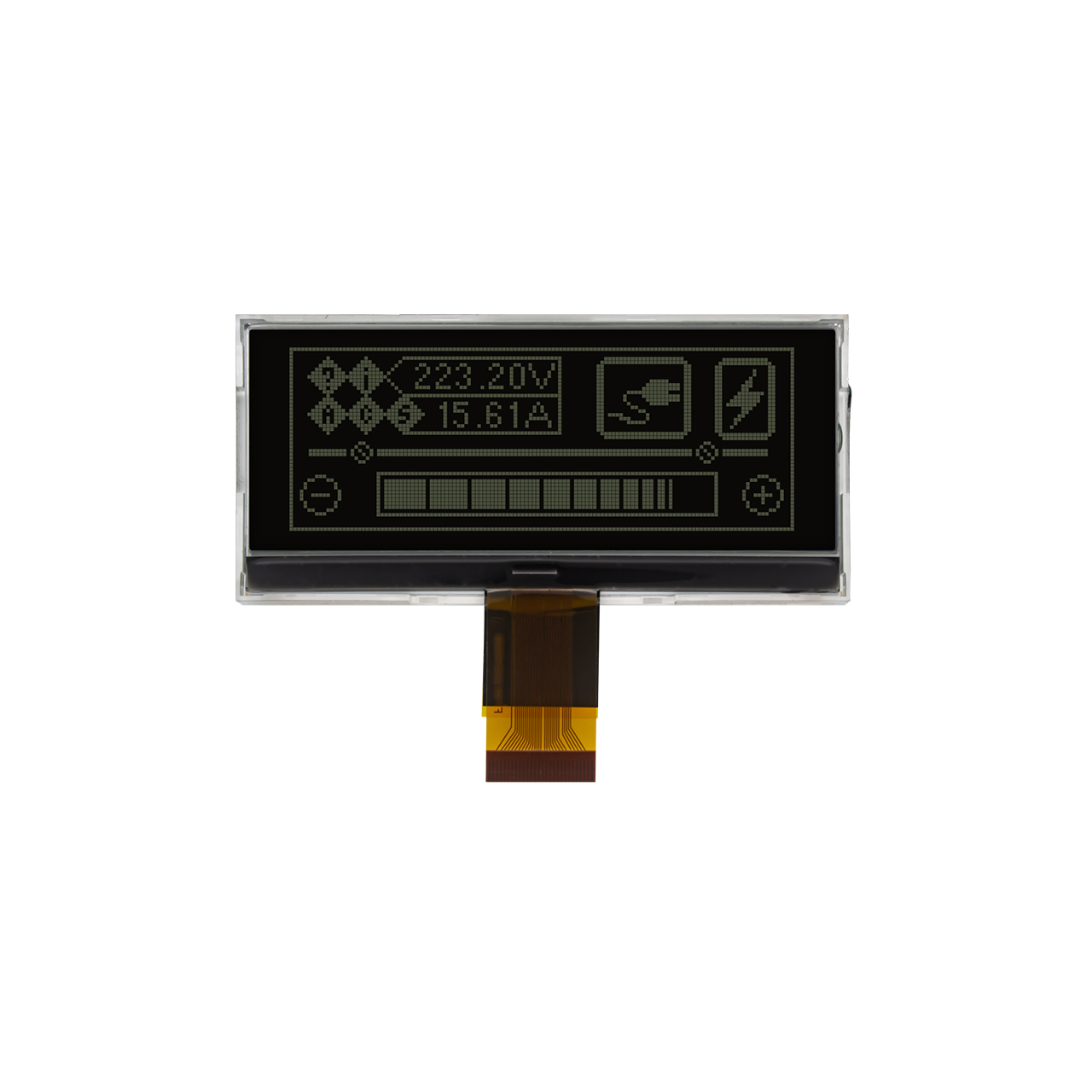

  • Graphic Dot Matrix COG 3.1" 128X48 | DFSTN - | White on Black Display | MCU | Arduino

    This HTG12848A-47W-28K08 Graphic Dot Matrix COG bright white pixels on a black background. This transmissive LCD display is designed to reflect the image to the viewer under ambient light, making the image clearly visible under the reflection of the polarizer; when used in darker environments, the backlight makes the graphics clearly visible, providing optimal visibility and impressive colors. The display has a powerful built-in backlight to provide high contrast and ensure readability of all graphics on the screen.

    The display of this graphic LCD display module is fully compatible with Arduino/C8051 and can be seamlessly connected with other electronic systems for a variety of applications. This model is designed to withstand harsh working conditions and operates abnormally when used in a temperature range of -20 to 70 degrees Celsius. The LCD has an optimal viewing angle of 12:00, operates at 3.3V, and is RoHS compliant.

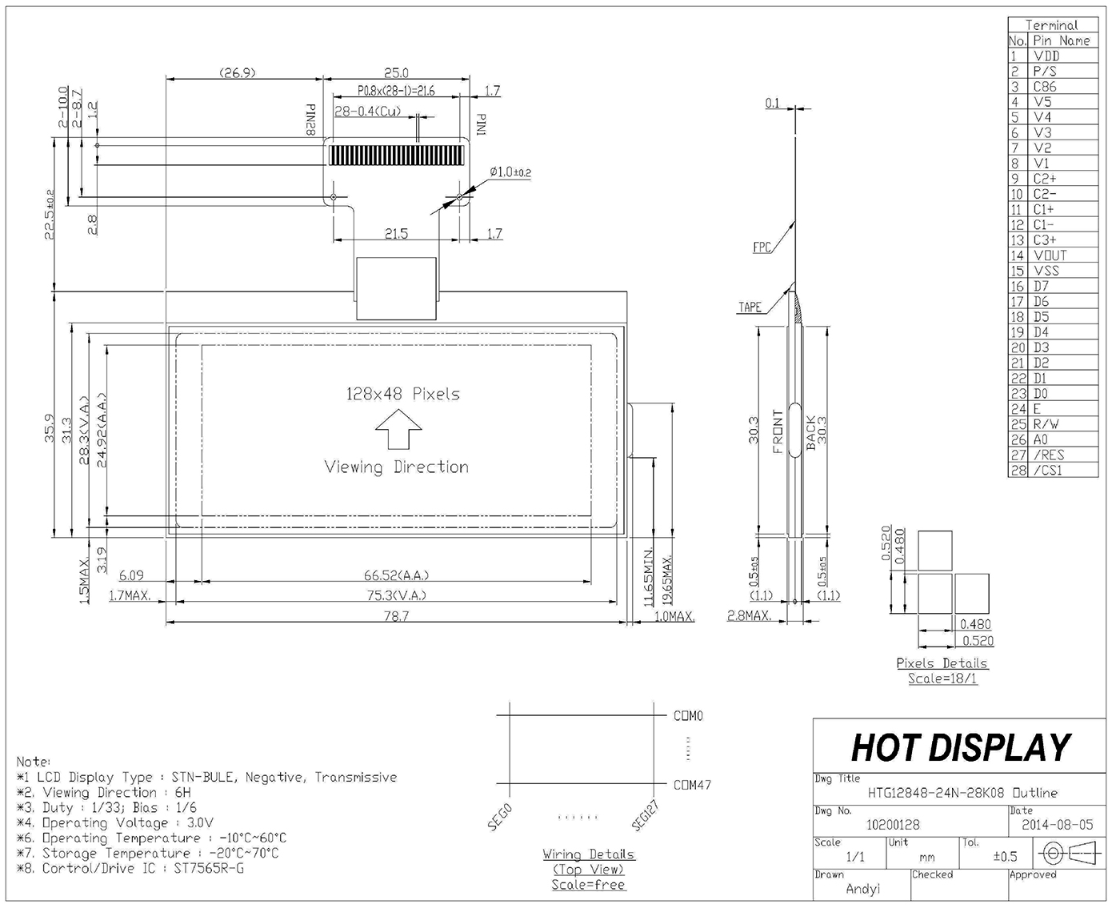

  • COG12848A.png

  • PARAMETER

    SPECIFICATION CONTENT

    UNIT

    Name

    HTG12848A-41W- A5P


    Number of dots

    128 × 48

    dots

    Module size

    81.1 x 38.3 x 4.9  (MAX)

    mm

    Viewable (VA) area

    75.3 x 28.3

    mm

    AA size

    66.52 x 24.92

    mm

    Dot (pixel) pitch

    0.52 x 0.52

    mm

    IC

    ST7565R


    Applied voltage

    3.3V

    V

    Backlight

    WHITE


    Mode

    DFSTN(-)


    Drive mode (Duty)

    1/48 duty cycle


    Type

    Graphic COG


    Polarizer type

    Transmissive




Search Keywords: 3.1128X48GraphicCOGDFSTN -MCUST7565RLCDArduino
