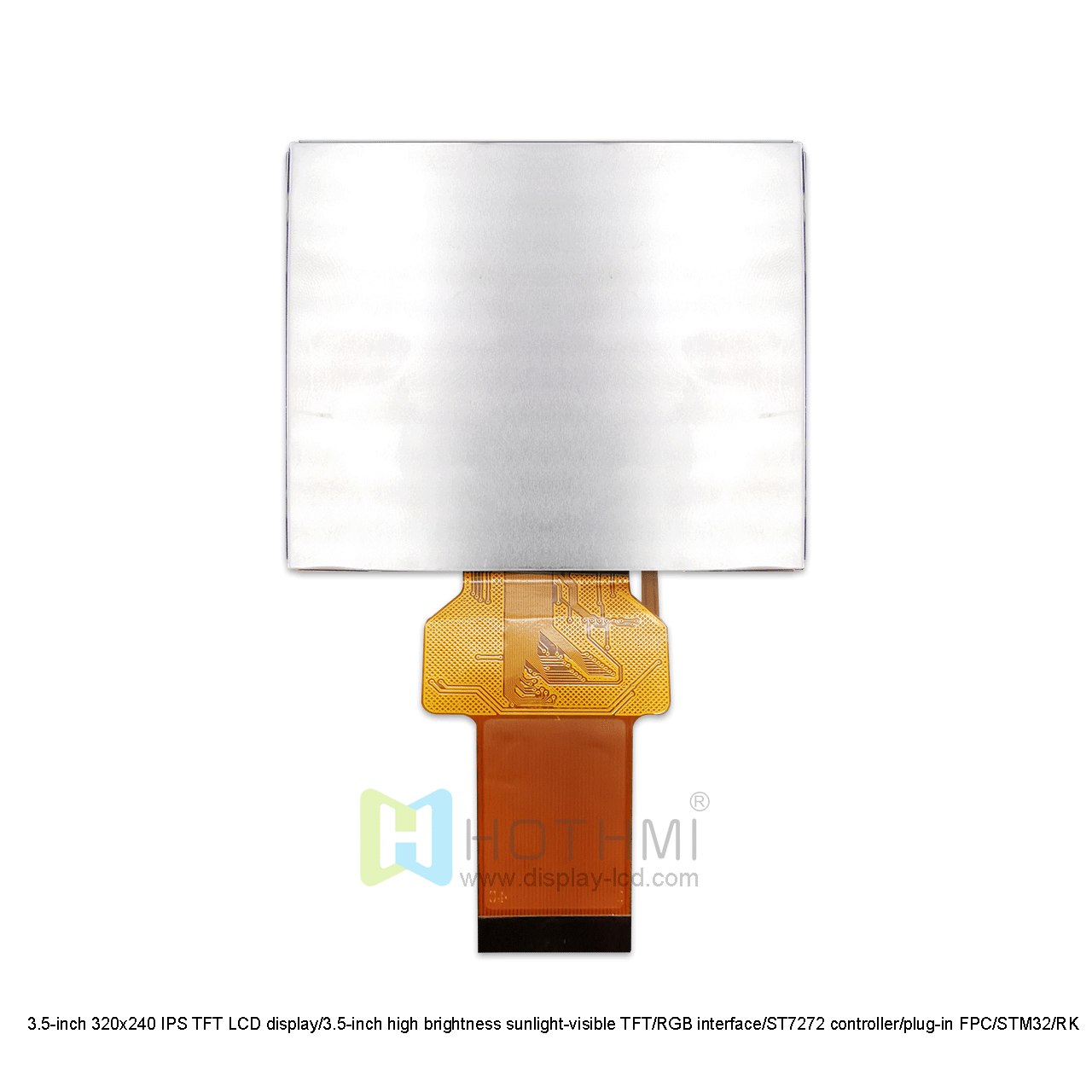

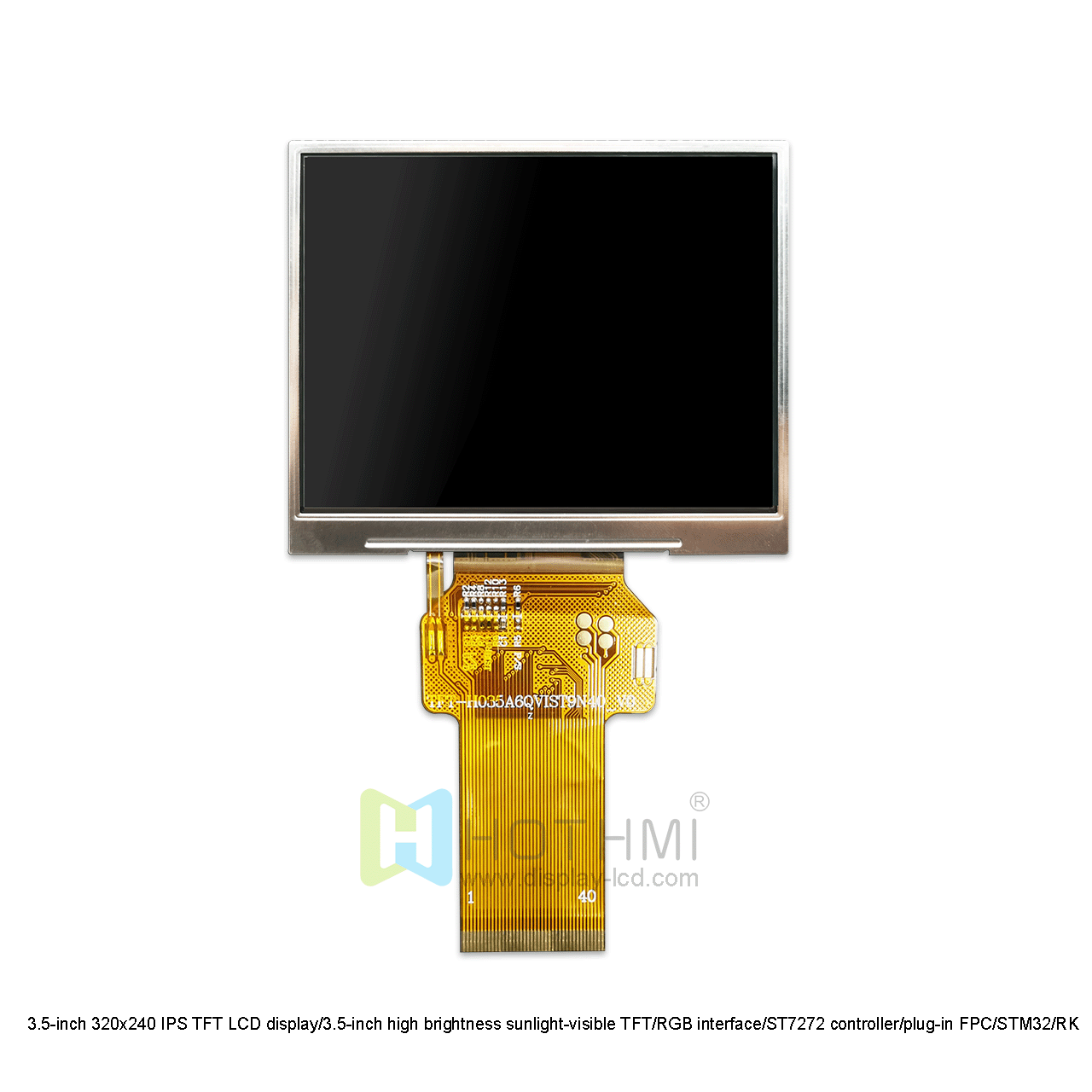

3.5-inch 320x240 IPS TFT LCD display/3.5-inch high brightness sunlight-visible TFT/RGB interface/ST7272 controller/plug-in FPC/STM32/RK
This standard 3.5-inch TFT LCD display TFT-H035A6QVIST9N40 has a resolution of 320x240 pixels, IPS full viewing angle, and excellent viewing effect regardless of the direction. The standard brightness LED backlight brightness is 900 nits. This high-brightness TFT makes it readable in sunlight. The compact size, 3.3V low-voltage power supply and impressive display quality of this display make it an excellent choice for projects that require portrait mode visual output without touch function.
This 3.5-inch LCD display uses a 40PIN FPC soft cable connection to provide a safe and reliable electrical connection. The connection method of the FPC soft cable makes disassembly easier and easier to operate. This TFT LCD display is powered by the ST7272 controller. It can provide excellent performance and reliability. The controller optimizes the display's functionality, ensuring smooth operation and accurate rendering of images and graphics. Popular industries for this TFT size include IoT, industrial automation, consumer electronics, test and measurement, and handheld devices. They are also well suited for DIY or prototyping projects due to their compatibility with STM32 and RK. The RGB interface enables fast and efficient communication between the Android system and RK motherboard and the display, ensuring smooth data transmission and real-time updates. Our displays are all RoHS compliant and adhere to strict environmental and safety standards.
