1X16 Character LCD | FSTN+ WHITE Display with Backlight 5V Arduino display

1X16 Character LCD | FSTN+ WHITE Display with Backlight 5V Arduino display

▶ Model: HTM1601B-31W-A5P

▶ Type: Standard COB character module
▶ Display content: 16x1 characters

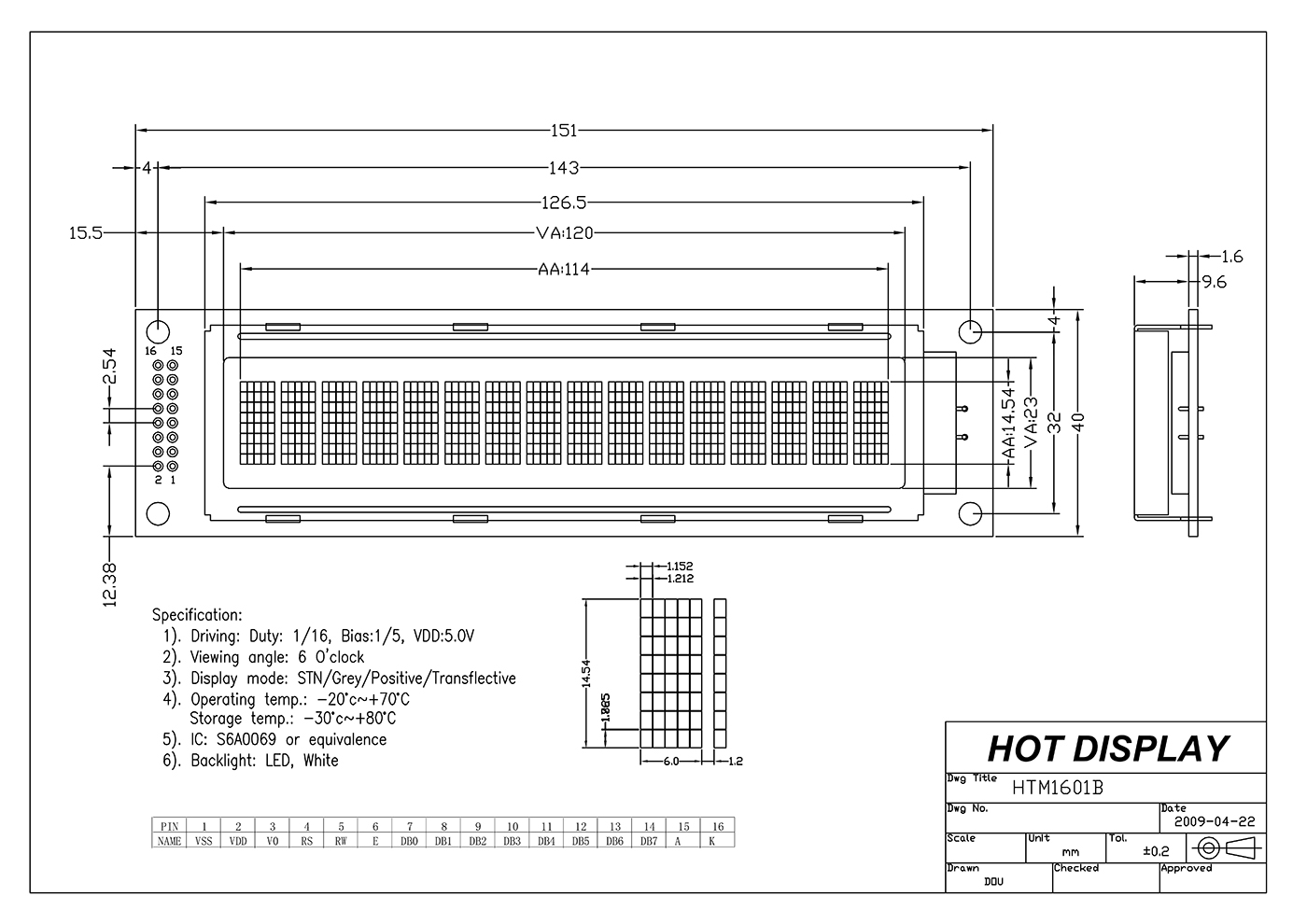

▶ Overall dimensions (mm): 151.0x40.0x9.6
▶ View window size (mm): 120.0x23.0
▶ Display size (mm): 114.0x14.54
▶ Point spacing mm: 1.212x1.825
▶ Product application: industrial control
▶ Viewing angle: 6H
▶ Backlight type or brightness: white light
▶ Number of PINs: 16PIN
▶ Interface: MCU
▶ Working temperature: -20~70℃
▶ Power supply voltage: 5.0v
▶ IC：ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

HTM1601B-31W-A5P | 1x16 Character Display | Reflective LCD | STN (+) Positive Gray Display | Arduino display

If you're in search of a reliable and user-friendly 16-character, single-row LCD, consider the HOTDISPLAY HTM1601B-31W-A5P as an excellent option. This high-quality display is well-suited for applications where a backlight is not required. Operating at a 5V supply voltage, it seamlessly integrates with Arduino/C8051 and other similar boards and microcontrollers. The reflective, monochrome display ensures flawless performance with C, C++, and Python, supporting parallel communication. Featuring a 16-pin standard LCD configuration, this display provides a broad operating temperature range and complies with RoHS standards.

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

project	Specification content	Unit
model	HTM1601B-31W-A5P
words × lines	16 word × 1line	dots
Module size	151.0 × 40.0 × 9.6 (MAX)	mm
Visual (VA) area	120.0 × 23.0	mm
Valid (AA) area	114.0 × 14.54	mm
Point (pixel) spacing	1.212x1.825	mm
IC	ST7066U
voltage	5V	V
backlight	white
model	FSTN(+)
Drive mode (Duty)	1/16 duty cycle
type	Character LCD module
characteristic	Transflective polarizer
