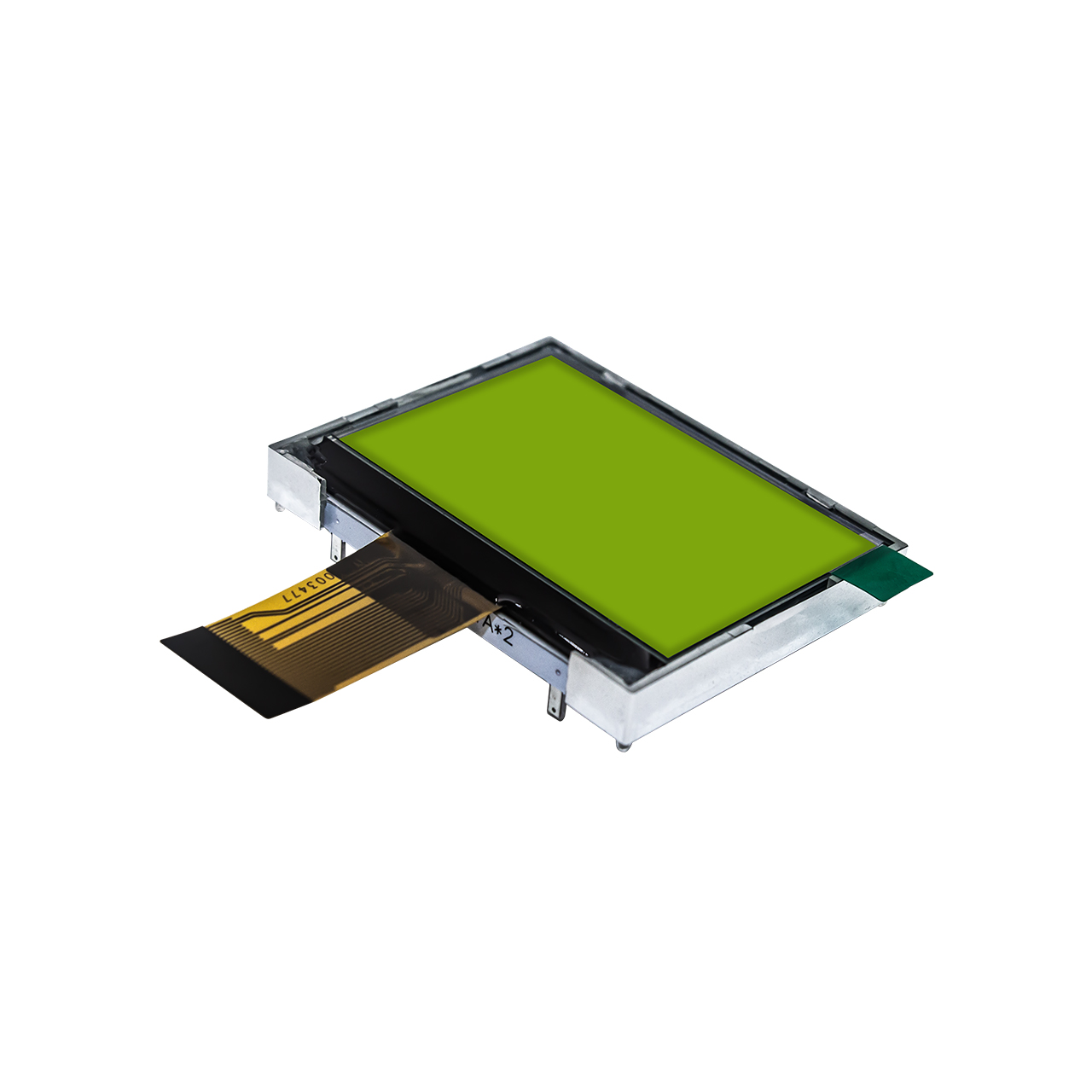

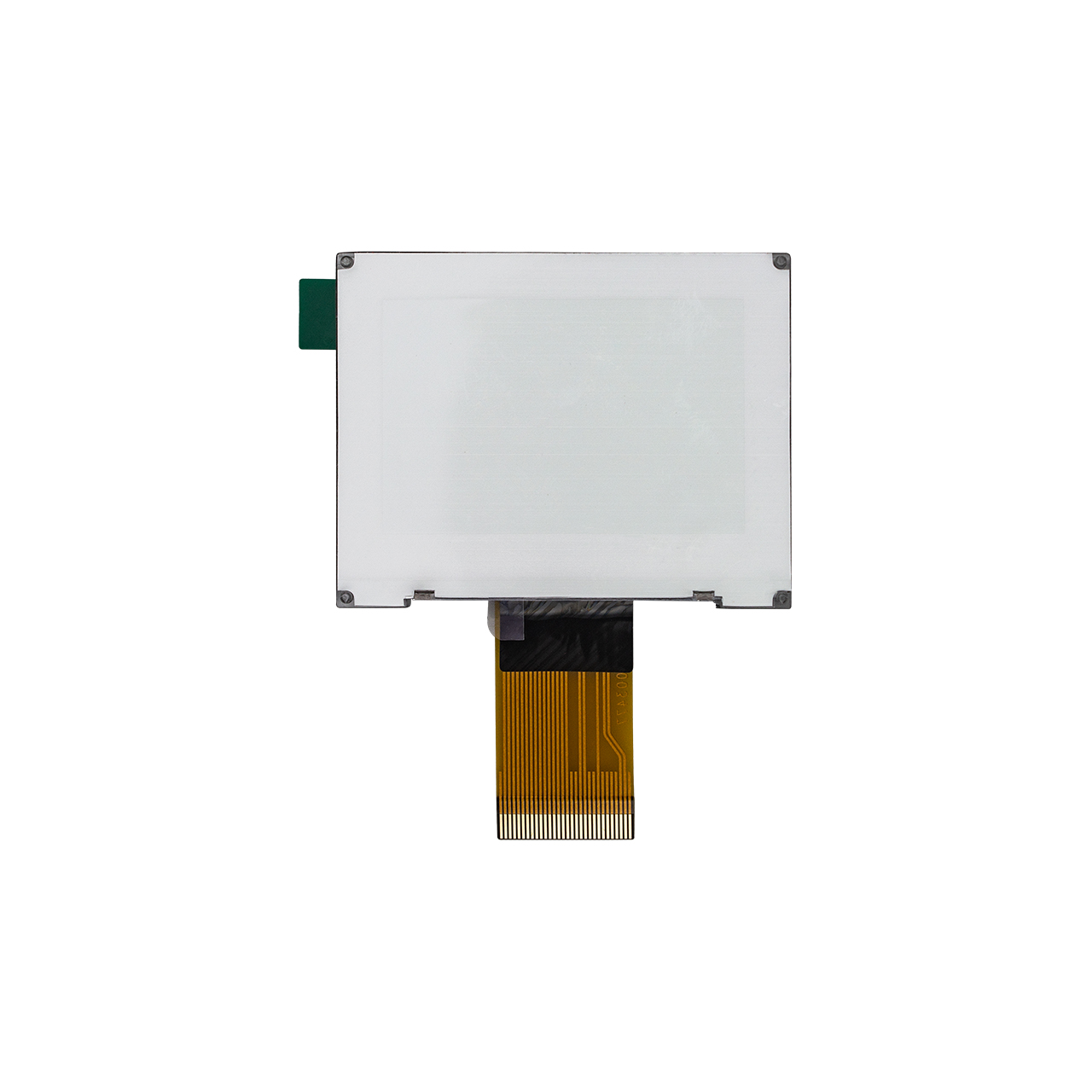

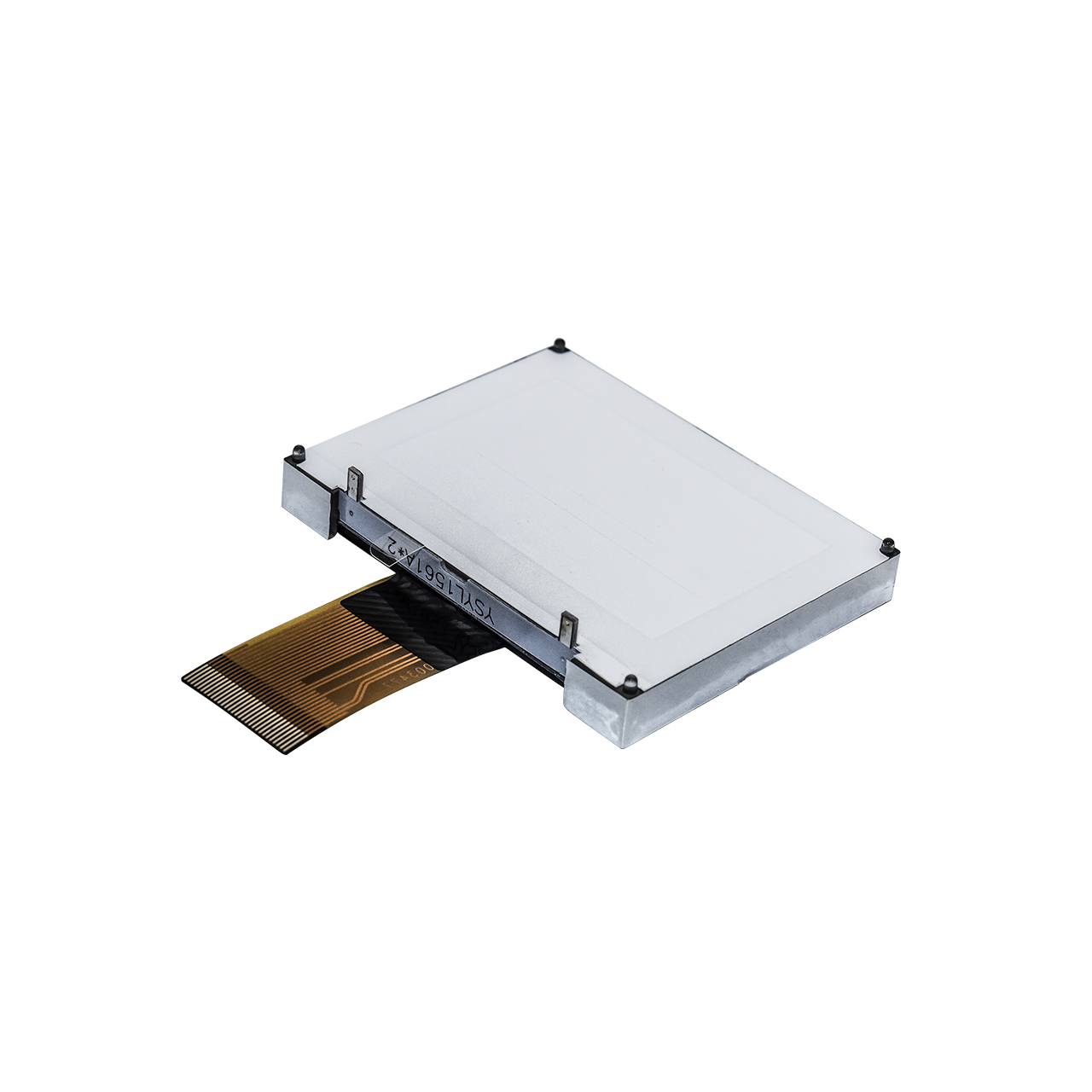

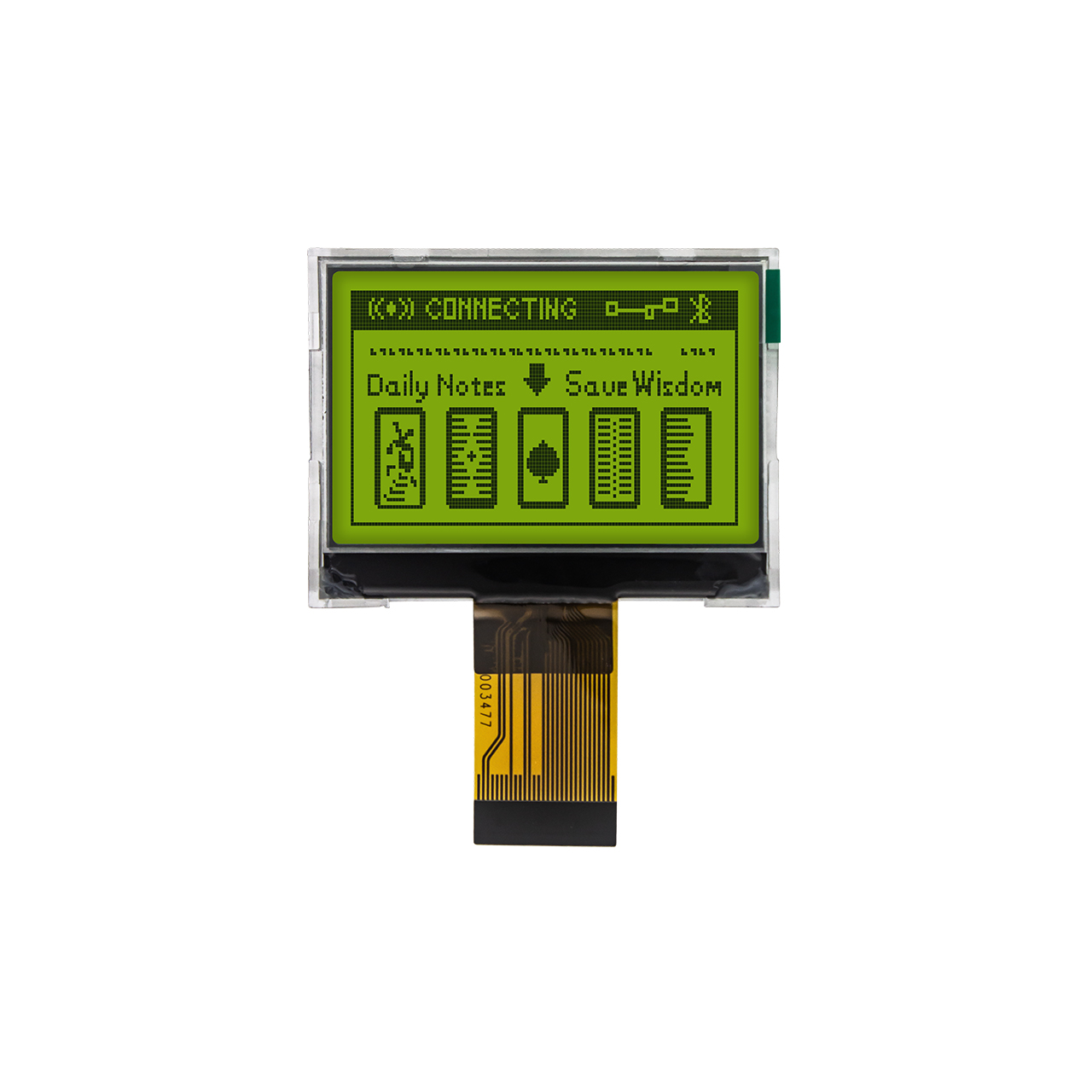

2.0 inch 128x64 yellow-green COG display | STN+ LCD

2.0 inch 128x64 yellow-green COG display | STN+ LCD | Industrial control display

▶ Model: HTG12864-132-01Y-30C05-V01

▶ Type: COG graphic dot matrix
▶ Display pixels: 128x64
▶ Dimensions (mm): 50.2x39.2x6
▶ Display inches: 2.0"
▶ VA size (mm): 44.0x29.0
▶ AA size (mm): 40.93x24.93
▶ Dot spacing (mm): 0.39x0.32
▶ Application: inverter
▶ Viewing angle: 6H
▶ Backlight/brightness: yellow-green light
▶ Pin: FPC-30PIN
▶ Interface mode: SPI
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Supply voltage: 3.3V
▶ Driver chip: ST7567A

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

No Back Next

Product Description
Specification
Attributes

2.0 inch 128x64 yellow-green COG display | STN+ LCD | Industrial Control Display
The HTG12864-132-01Y-30C05-V01 display panel launched by HotDisplay has become an ideal choice for the industrial and consumer electronics fields with its sophisticated design and reliable performance. The product adopts high-quality LED circuit design to ensure clear and stable display effects, suitable for a variety of application scenarios.

Product Highlights:
Precision structure: double-sided adhesive is used to fix the panel to ensure firm installation and strong durability.
Efficient circuit design: optimized LED circuit layout provides stable display performance and reduces energy consumption.
Versatile application: suitable for industrial control, medical equipment, consumer electronics and other fields.
Easy to integrate: detailed wiring diagrams and installation instructions are provided to simplify the integration process.

Whether it is industrial equipment that requires high reliability or consumer electronics products that pursue clear display, HTG12864-132-01Y-30C05-V01 can meet your needs. Choose HotDisplay and experience the perfect combination of excellent quality and innovative technology!

Datasheet for Touch Panel,Controller

Name	Date	Size
HTG12864-132-01Y-30C05-V01	January 01, 1970	80.34KB

Parameter	Specification content	UNIT
Name	HTG12864-132-01Y-30C05-V01
Graphic display	128 × 64	dots
Dimensions	50.2x39.2x6 (MAX)	mm
VA size	44.0x29.0	mm
AA size	40.93x24.93	mm
Pixel pitch	0.39x0.32	mm
Driver chip	ST7567A
Applied voltage	3.3V	V
Backlight illumination	Y/G
Display mode	STN(+)
Drive mode	1/64 duty cycle
Product type	Graphic COG
Polarizer type	Transflective
