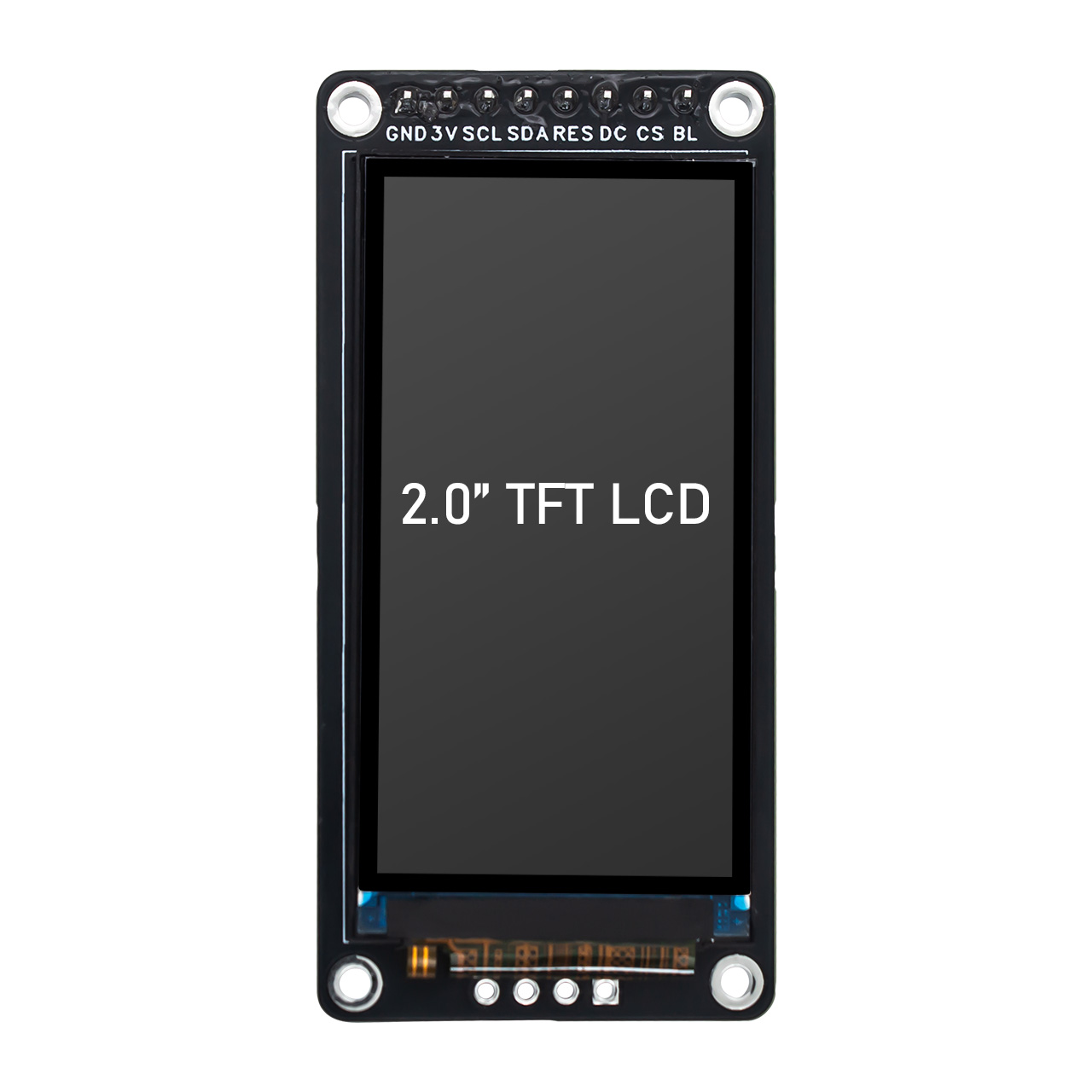

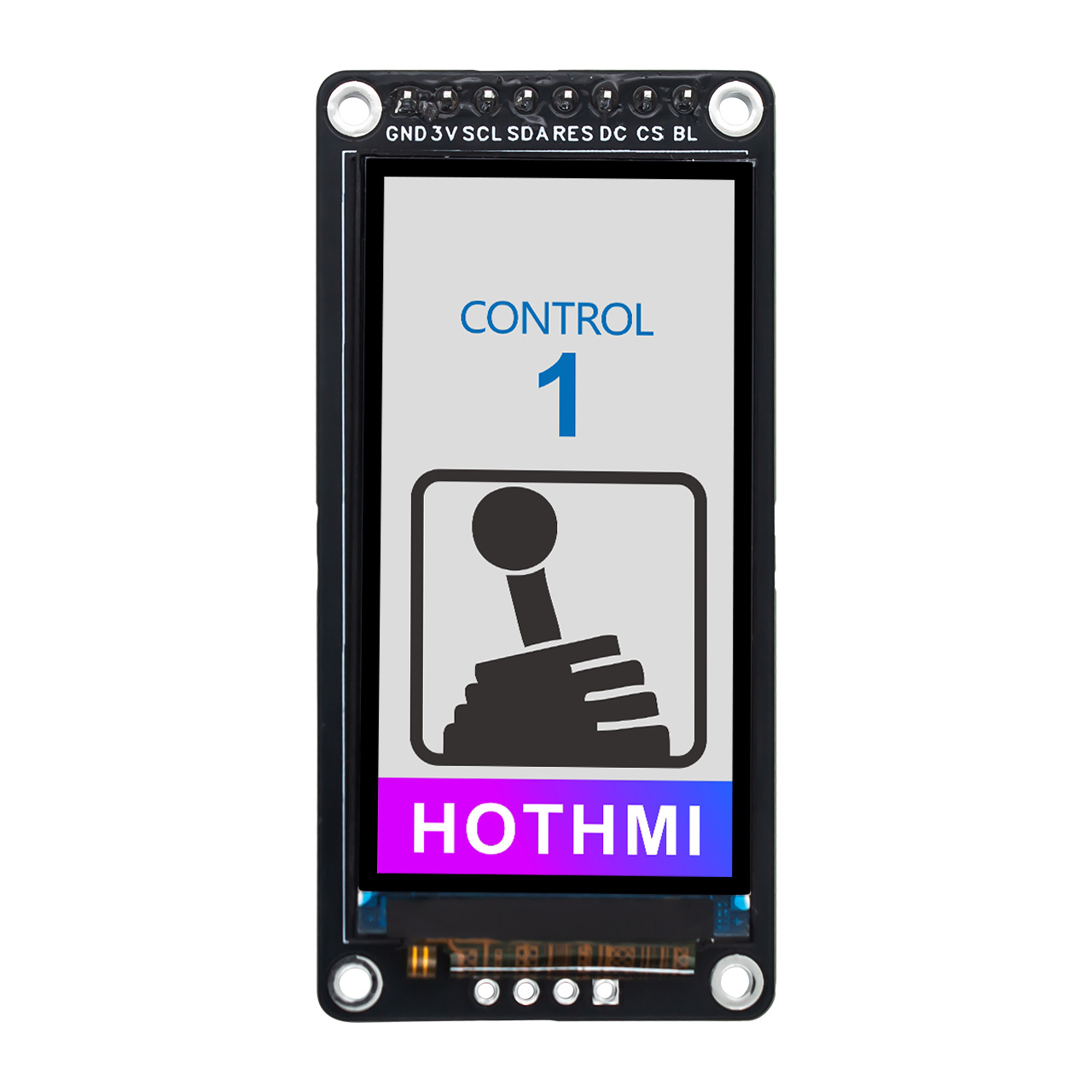

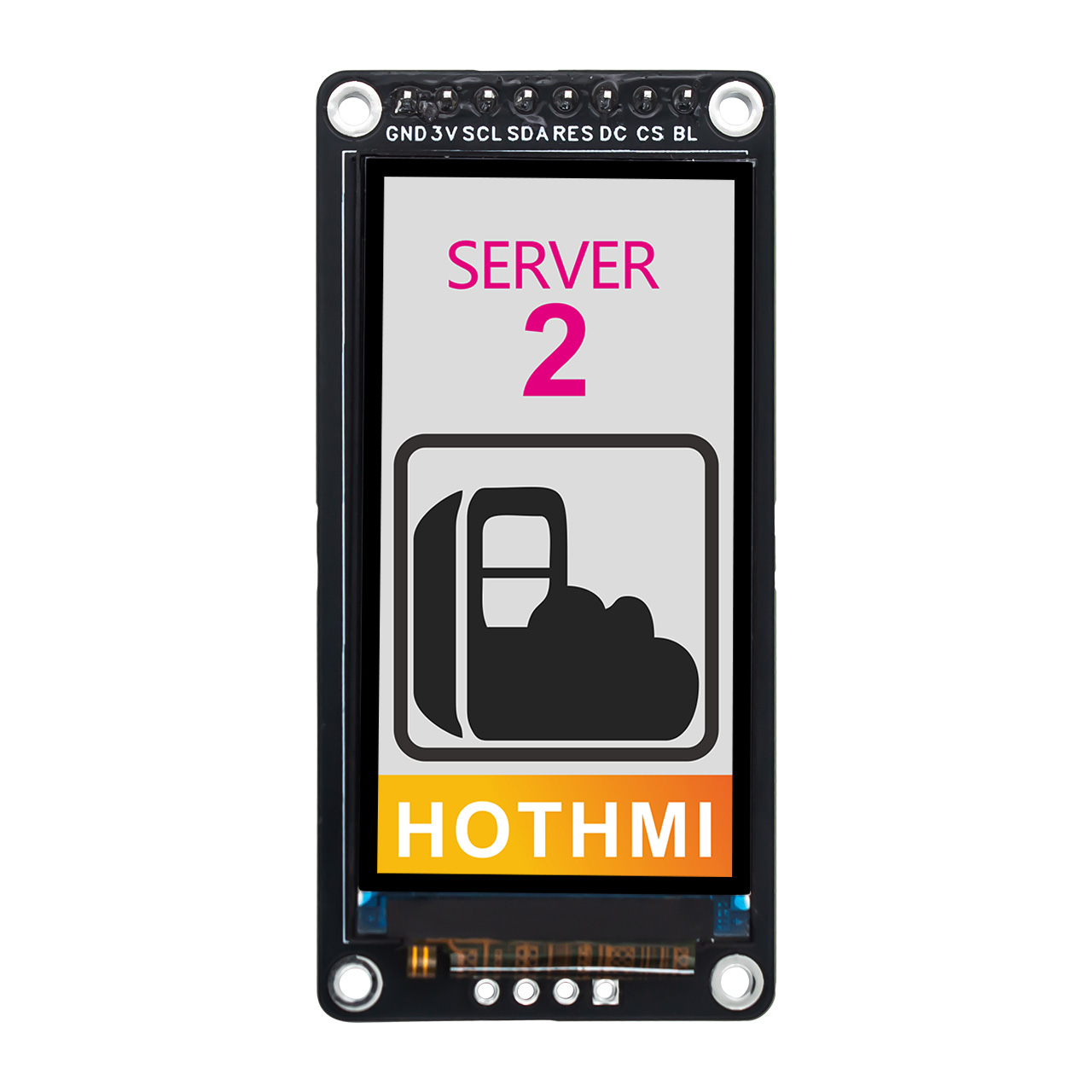

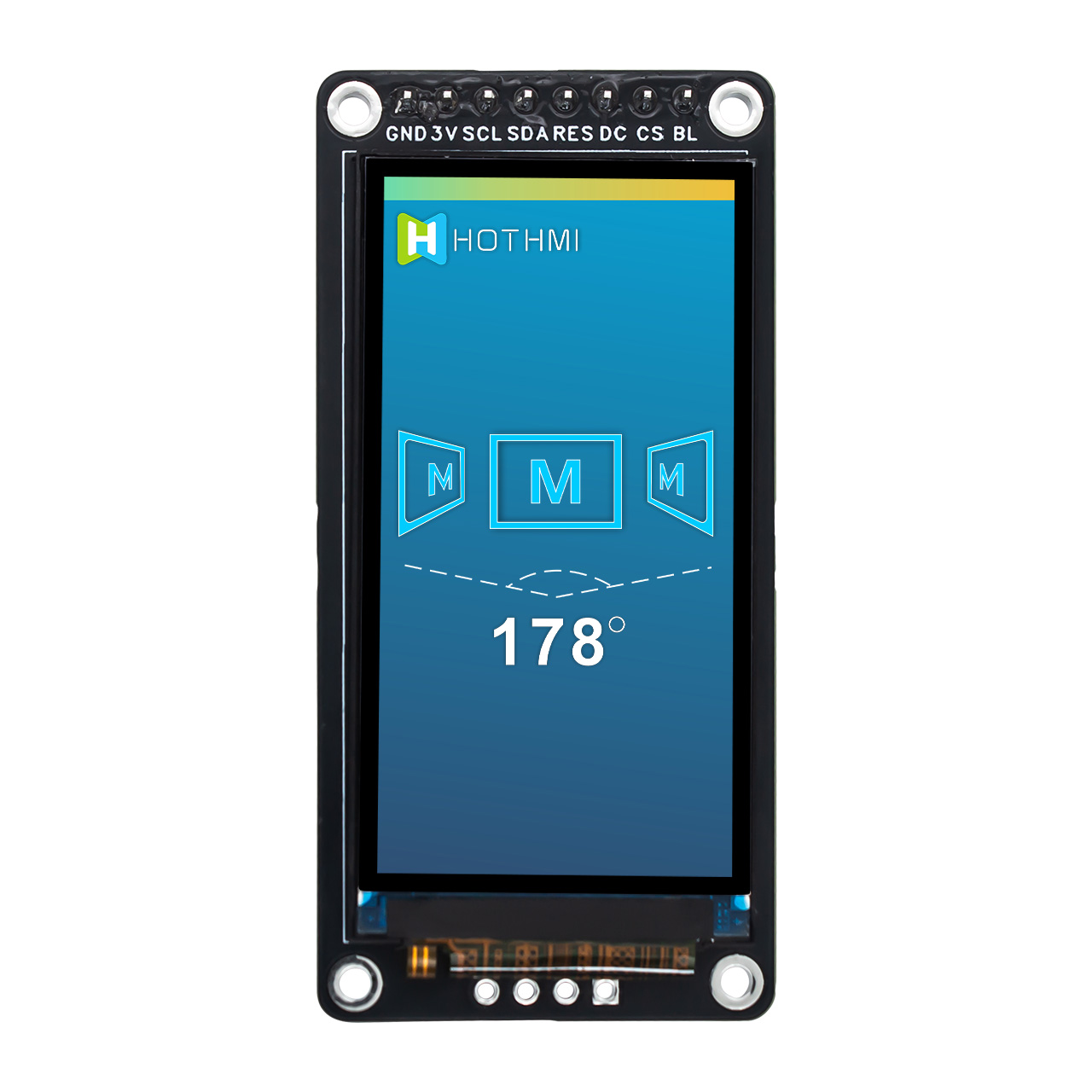

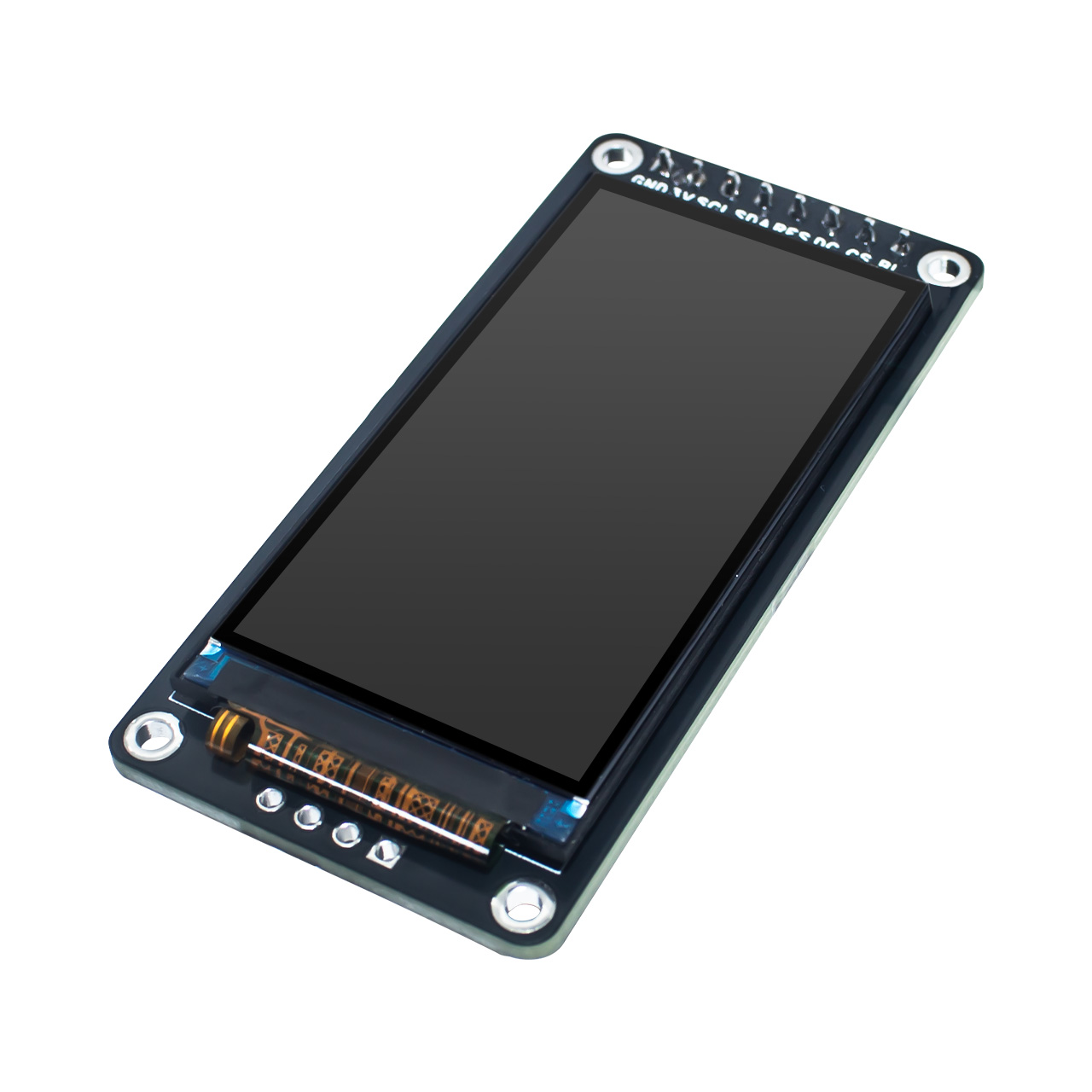

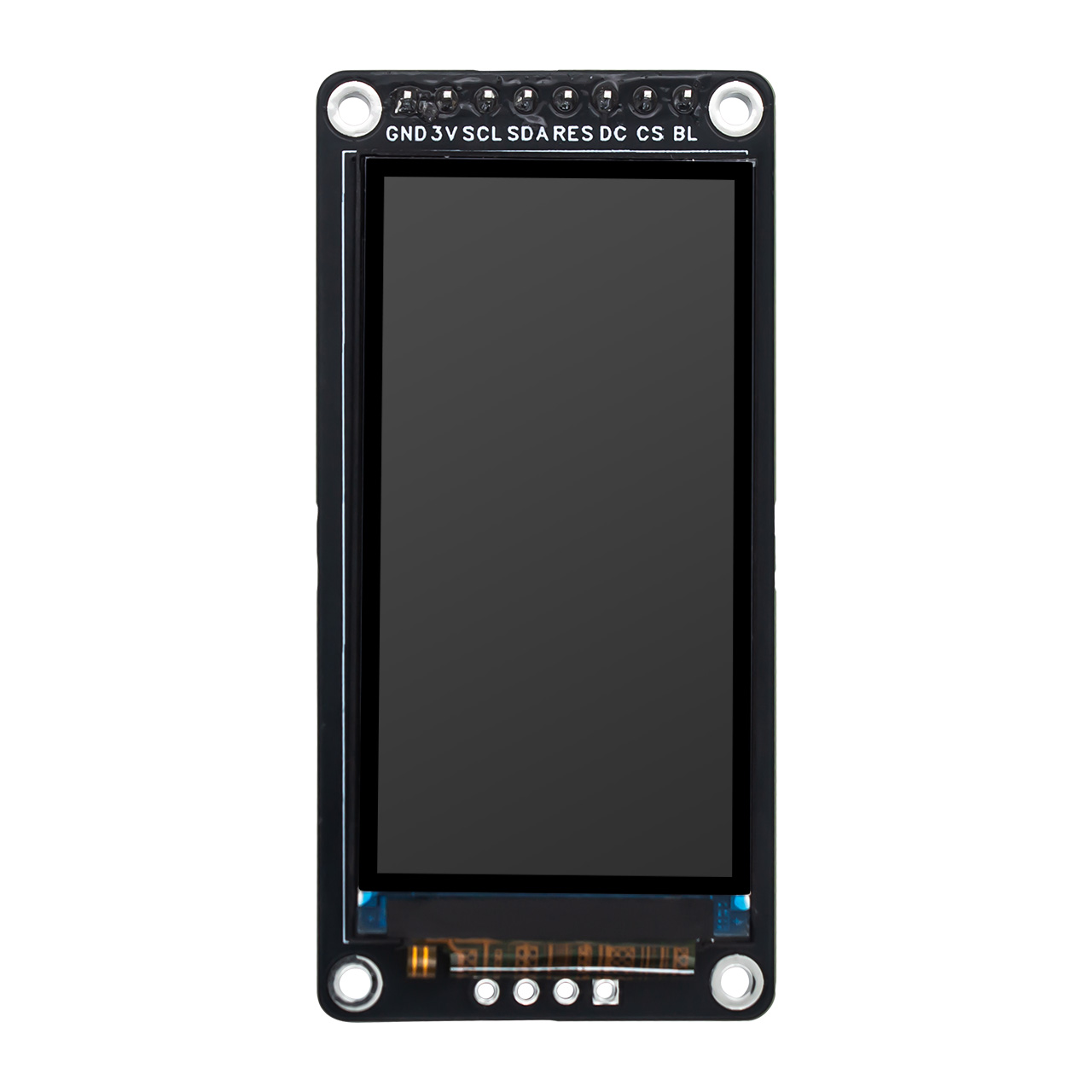

2.0 Inch IPS TFT LCD Display Module with ST7789 for Arduino

2.0 Inch IPS TFT LCD Display Module with ST7789 for Arduino

▶ Model: HTM-H020A05-SPI-V0

▶ Type:2.0 Inch IPS TFT LCD Display Module
▶ Display pixel: 170x320
▶ External dimensions (millimeters): 29.4x60.0x1.9
▶ Effective size (millimeters): 22.7x42.72

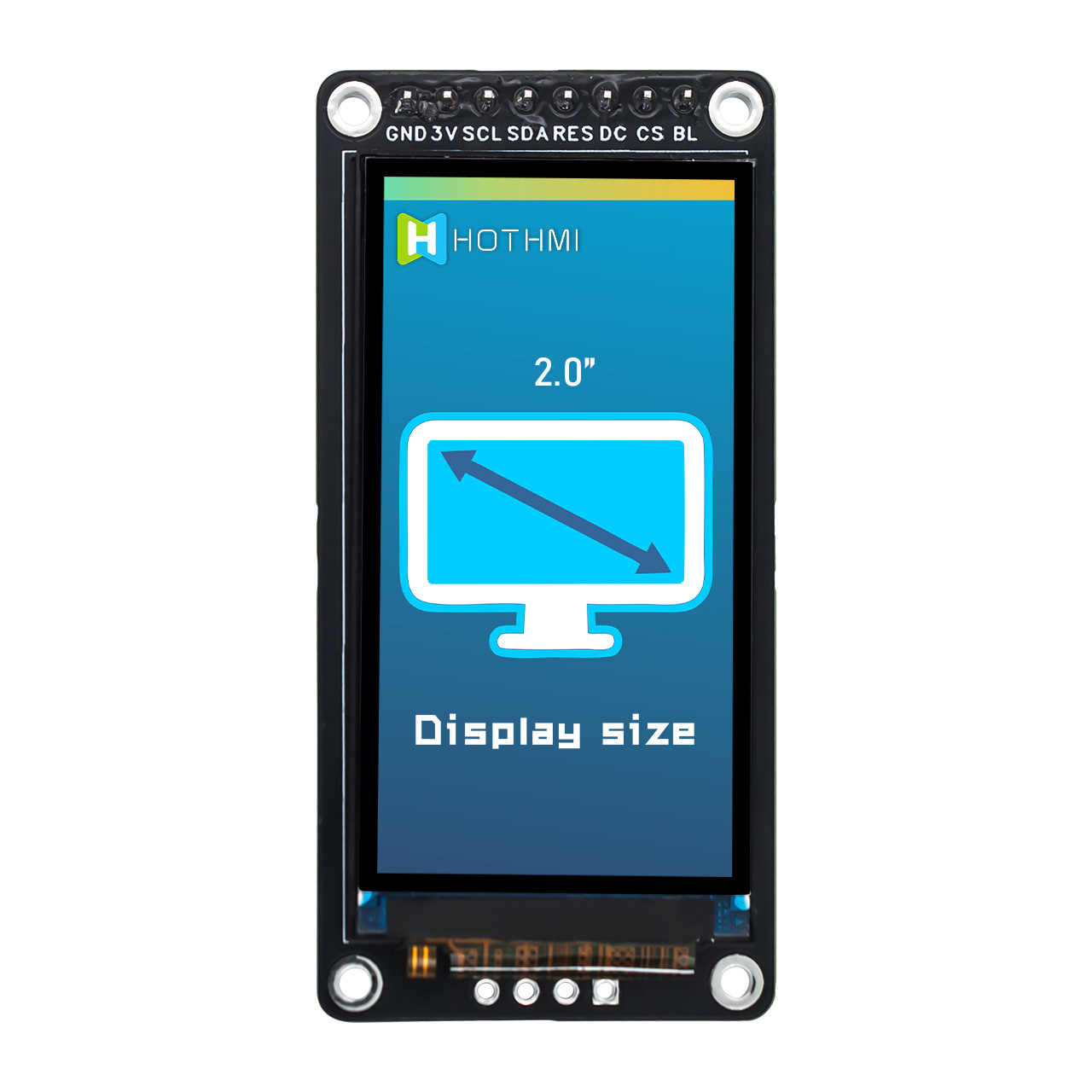

▶ Display inches: 2.0"
▶ Application: C8051/Arduino/STM32
▶ Perspective: IPS

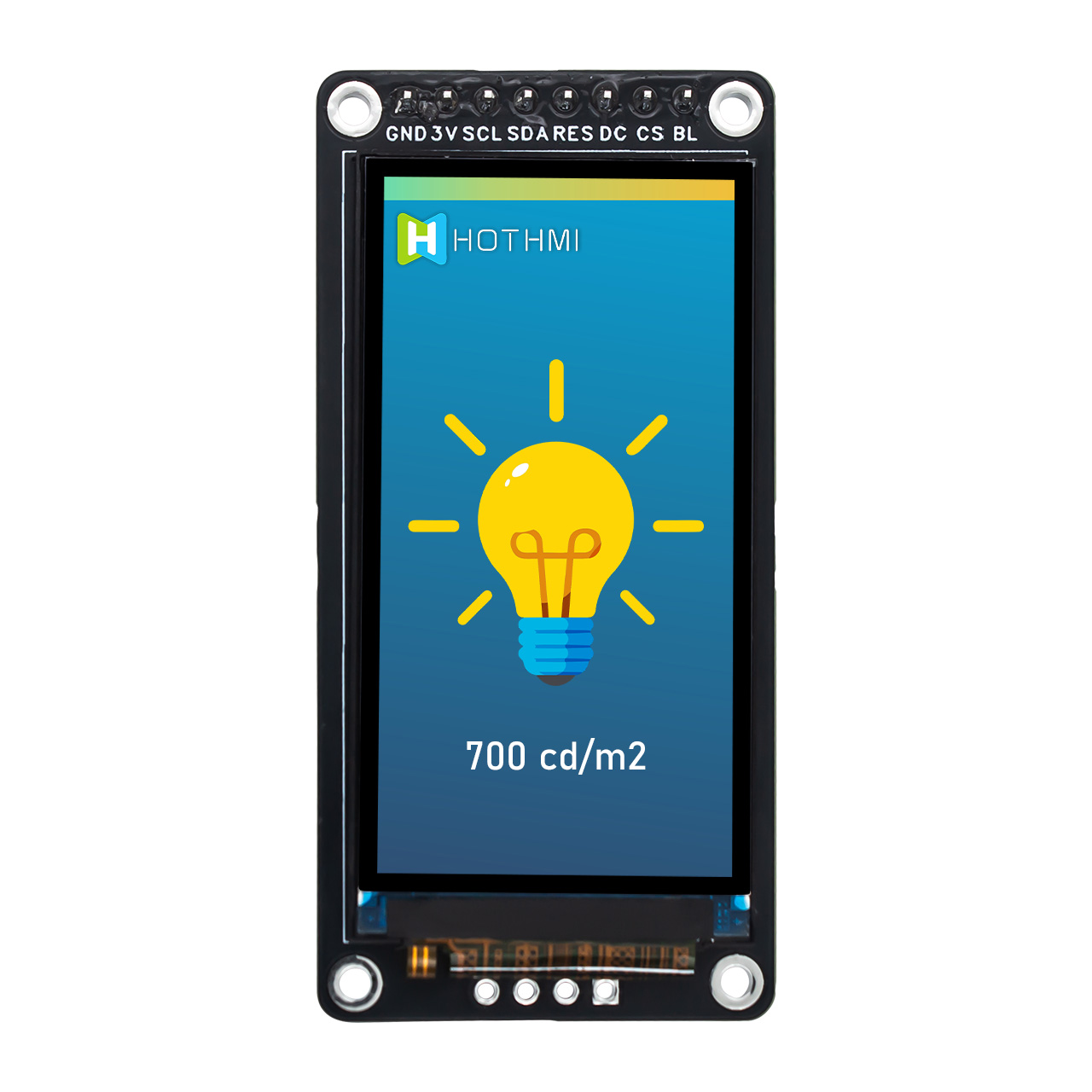

▶ Brightness: 700cd/m2

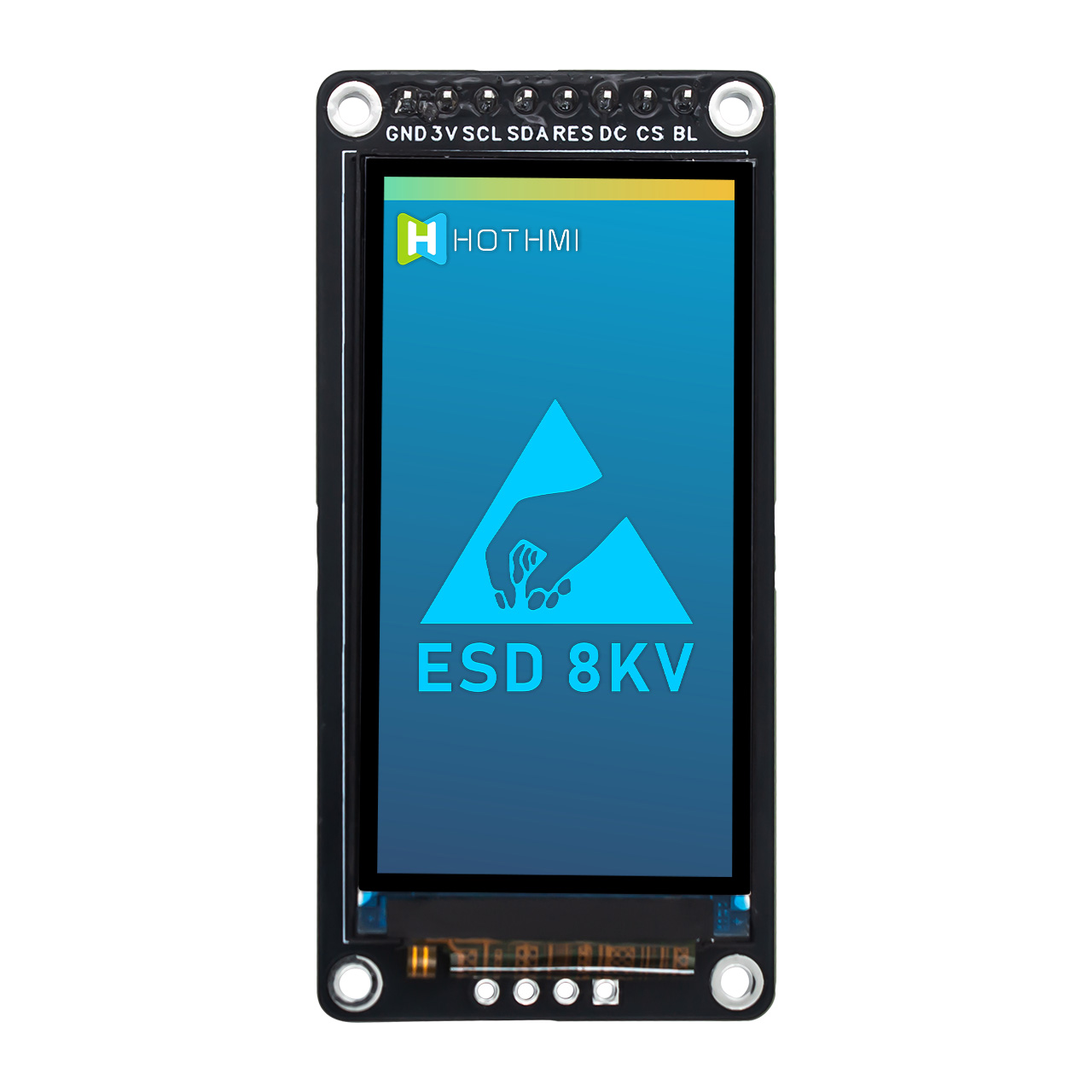

▶ Special reminder: Anti static ESD 8KV
▶ Working temperature: -20~70 ℃
▶ Power supply voltage: 3.3V

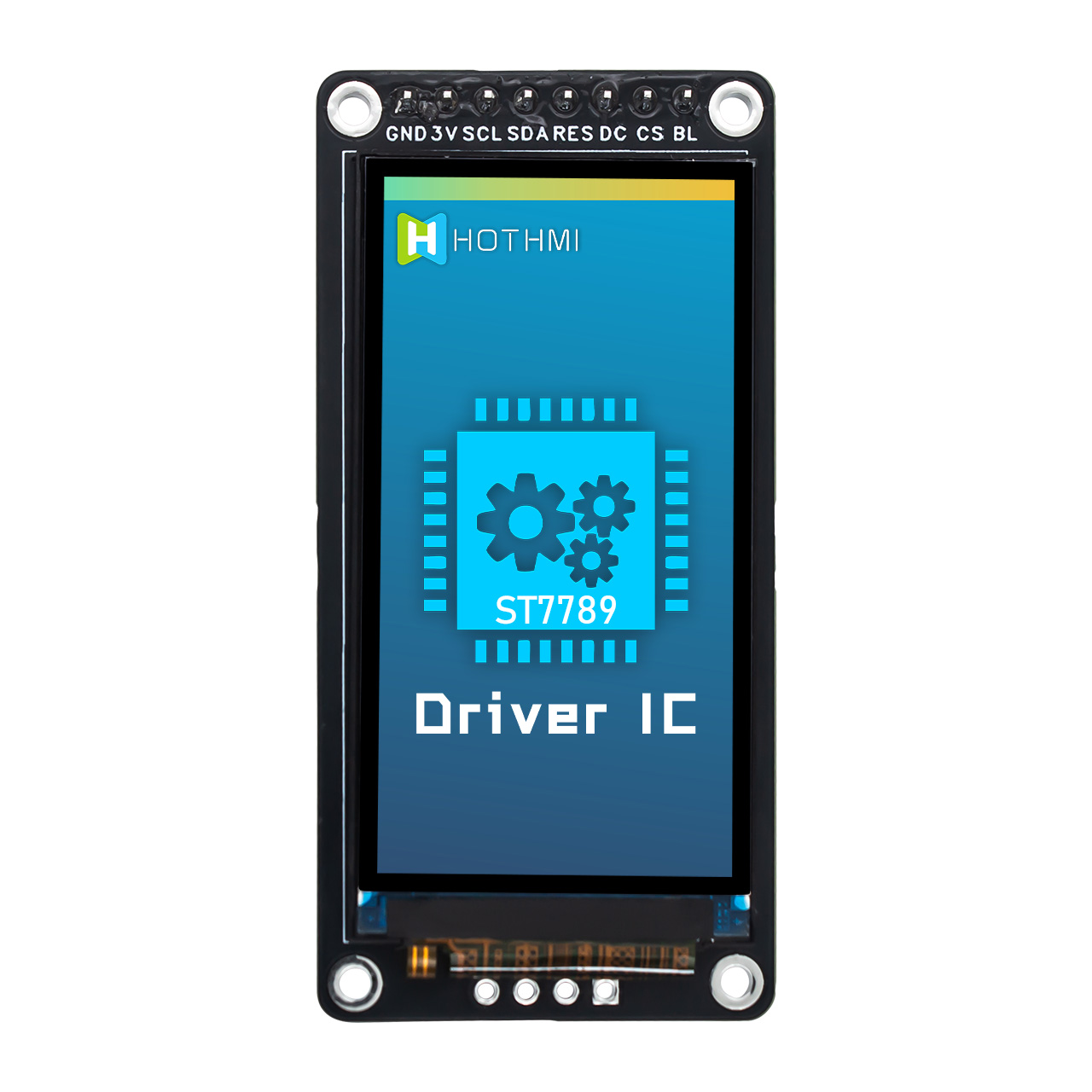

▶ Driver chip: ST7789

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Product Description
Specification
Attributes

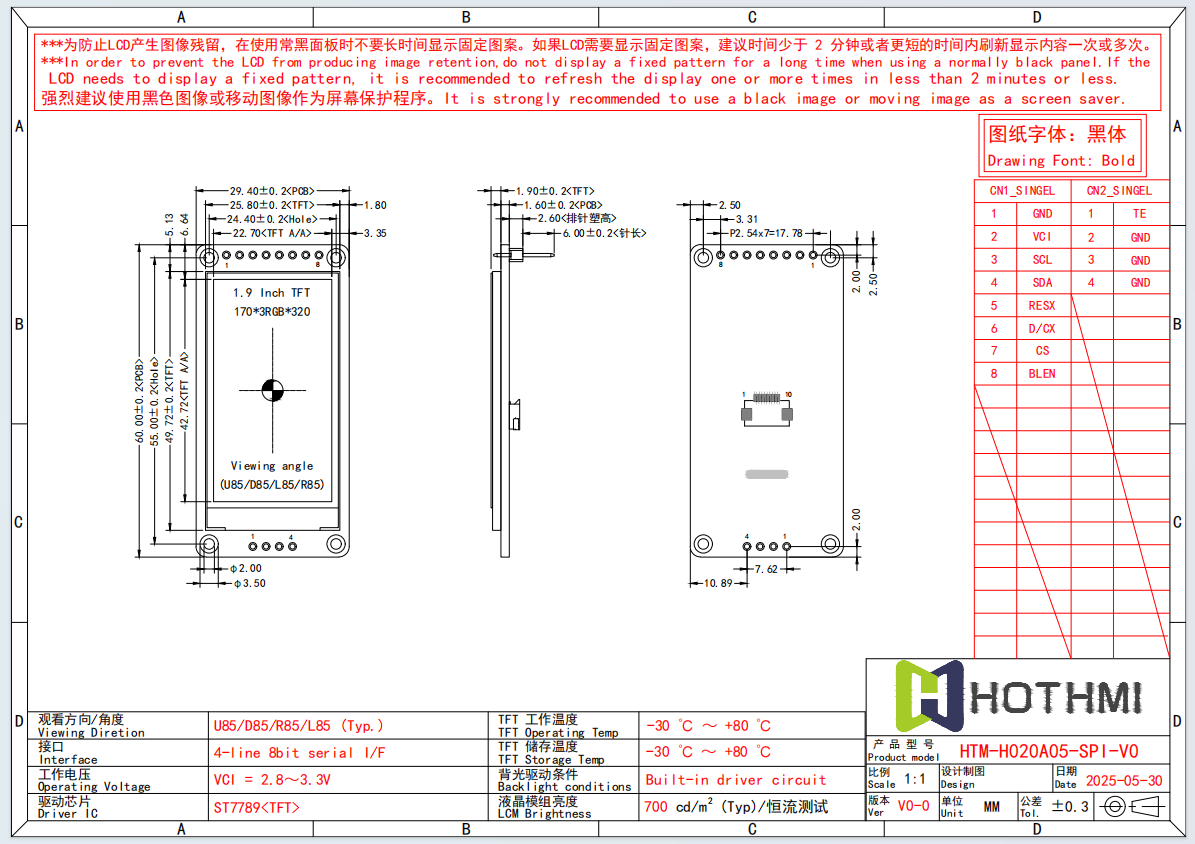

HTM-H020A05-SPI-V0 | 2.0 inch Sunlight Readable SPI TFT LCD Module | SPI TFT LCD Module | 170x320 Resolution | ST7789 driver chip
This 2.0 inch TFT LCD Module adopts a 4-wire 8-bit serial interface and supports high resolution of 170x320, with clear and delicate images and precise color reproduction. It has a built-in ST7789 driver chip, a wide operating voltage range (2.8V~3.3V), strong compatibility, and can easily adapt to various main control platforms.

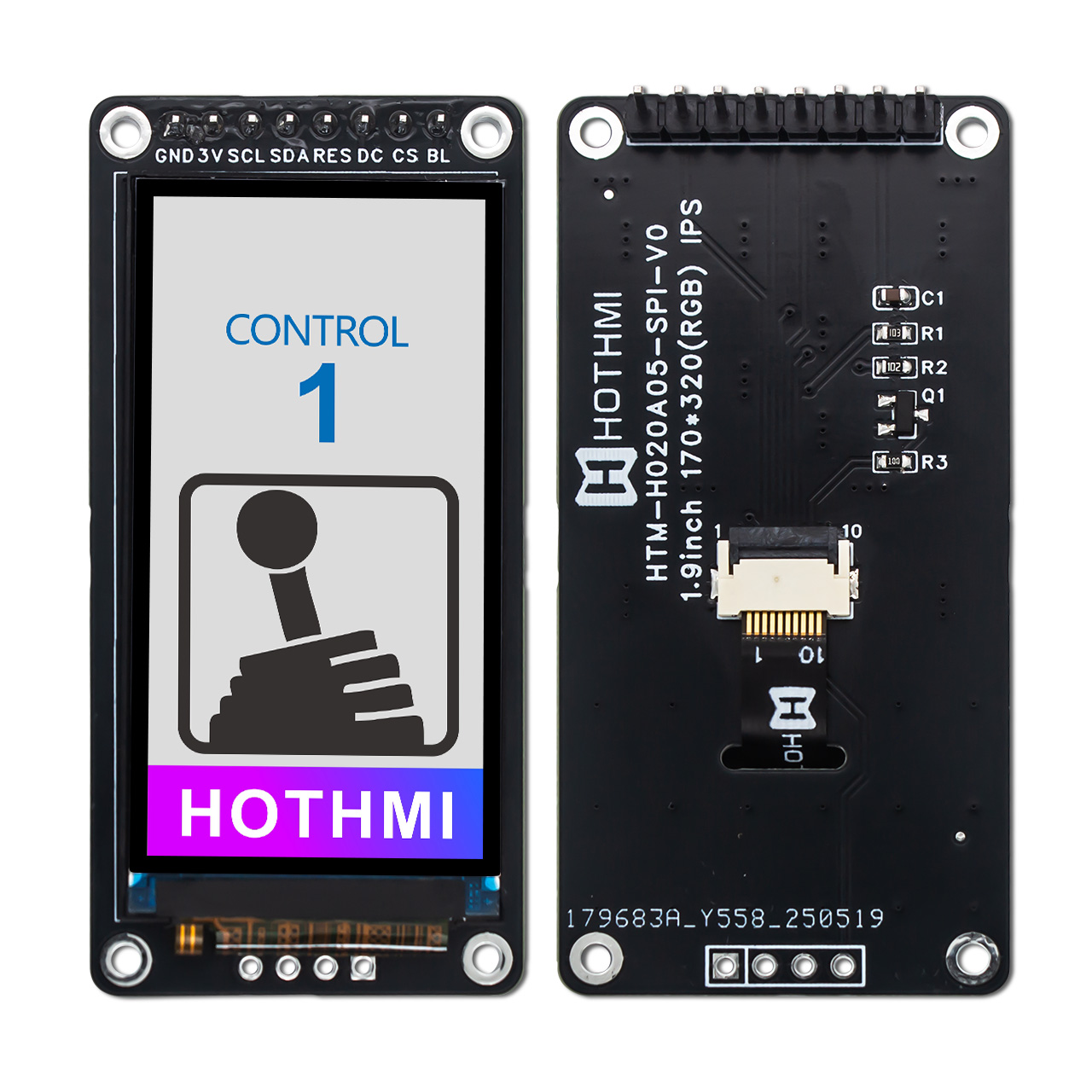

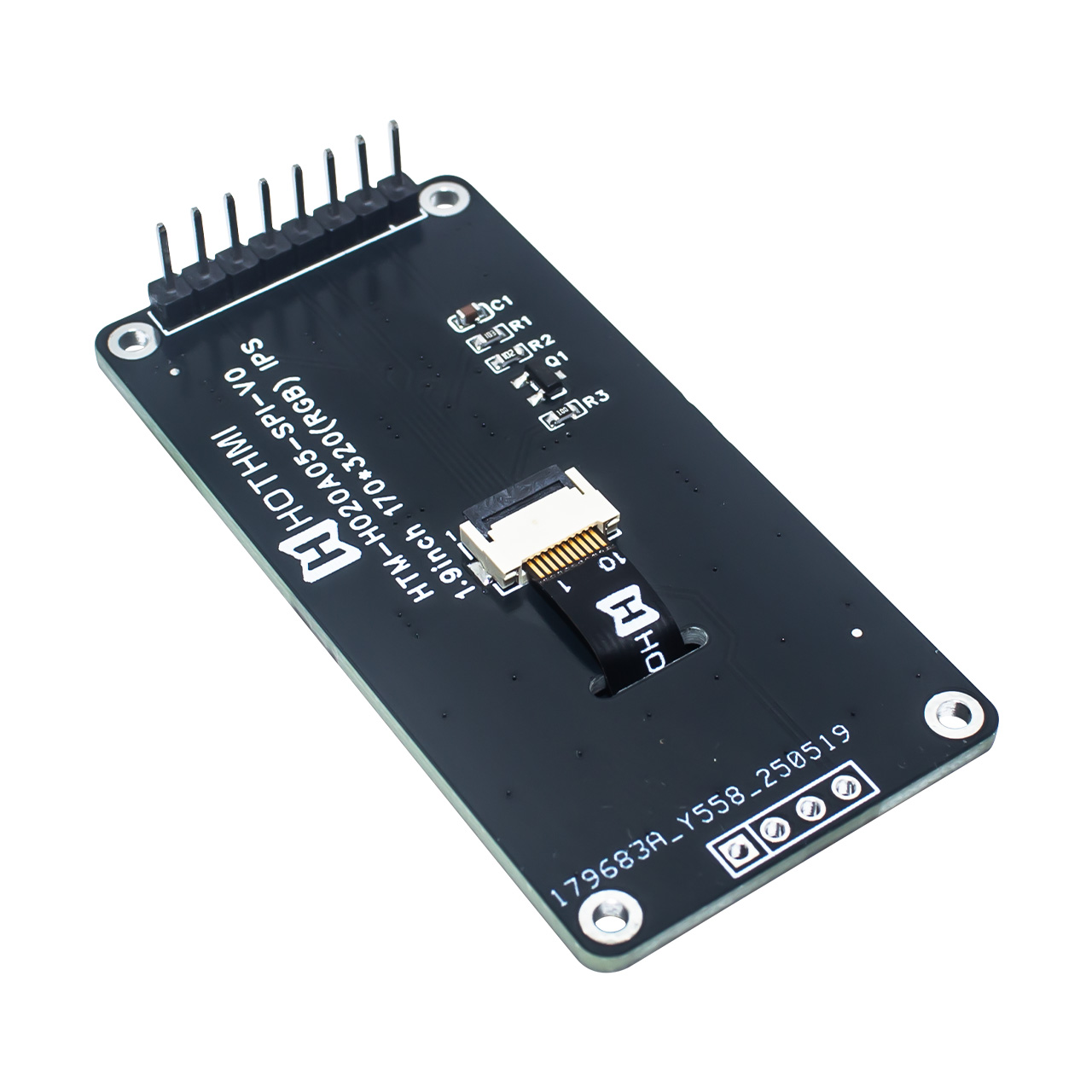

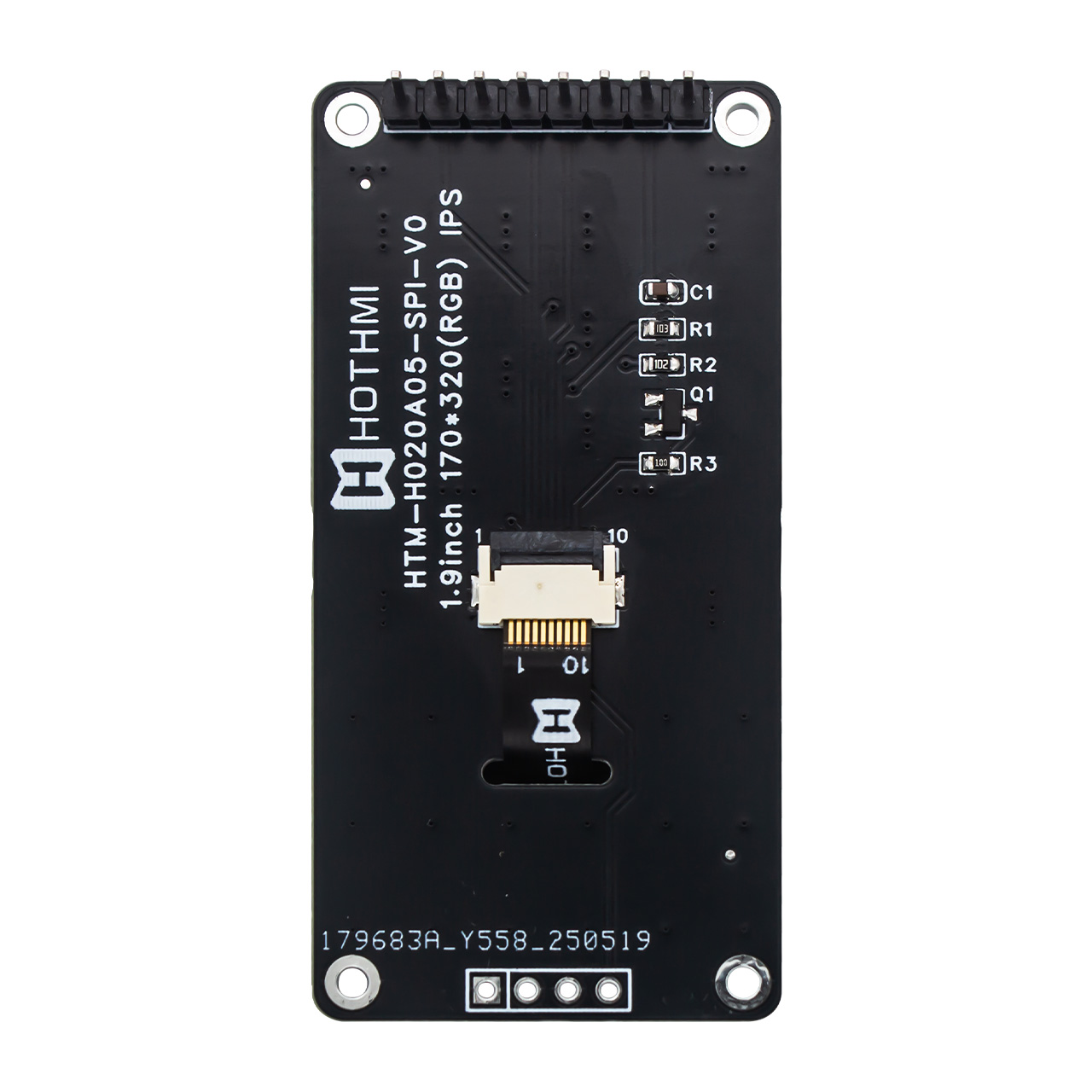

This 2.0-inch sunlight-readable SPI TFT LCD module has an easy-to-disassemble connector on the driver board. Users only need to do simple operations to separate the display from the driver board. At the same time, the driver board transmits the display signal through metal pins to achieve smooth transmission between the device and the display module. In addition to realizing conventional signal transmission, the metal pins on the driver board of this module also merge the backlight into the same pin control. Under this function, this display module realizes the PWM dimming function, and users can selectively use the TE signal. This model of module can still operate stably in extreme temperature environments from -30℃ to +80℃, meeting the requirements of stringent industrial applications.

The 2.0-inch sunlight-readable SPI TFT LCD module combines high performance, high reliability and ease of use, and is a rare display solution for your project. Whether it is a consumer electronic product that pursues extreme display or an industrial device that requires stable operation, it can perfectly meet your design goals.

This 2.0-inch TFT display module HTM-H020A05-SPI-V0 display module has become an ideal choice for industrial control, smart home, portable devices and other fields with its excellent design and stable performance.

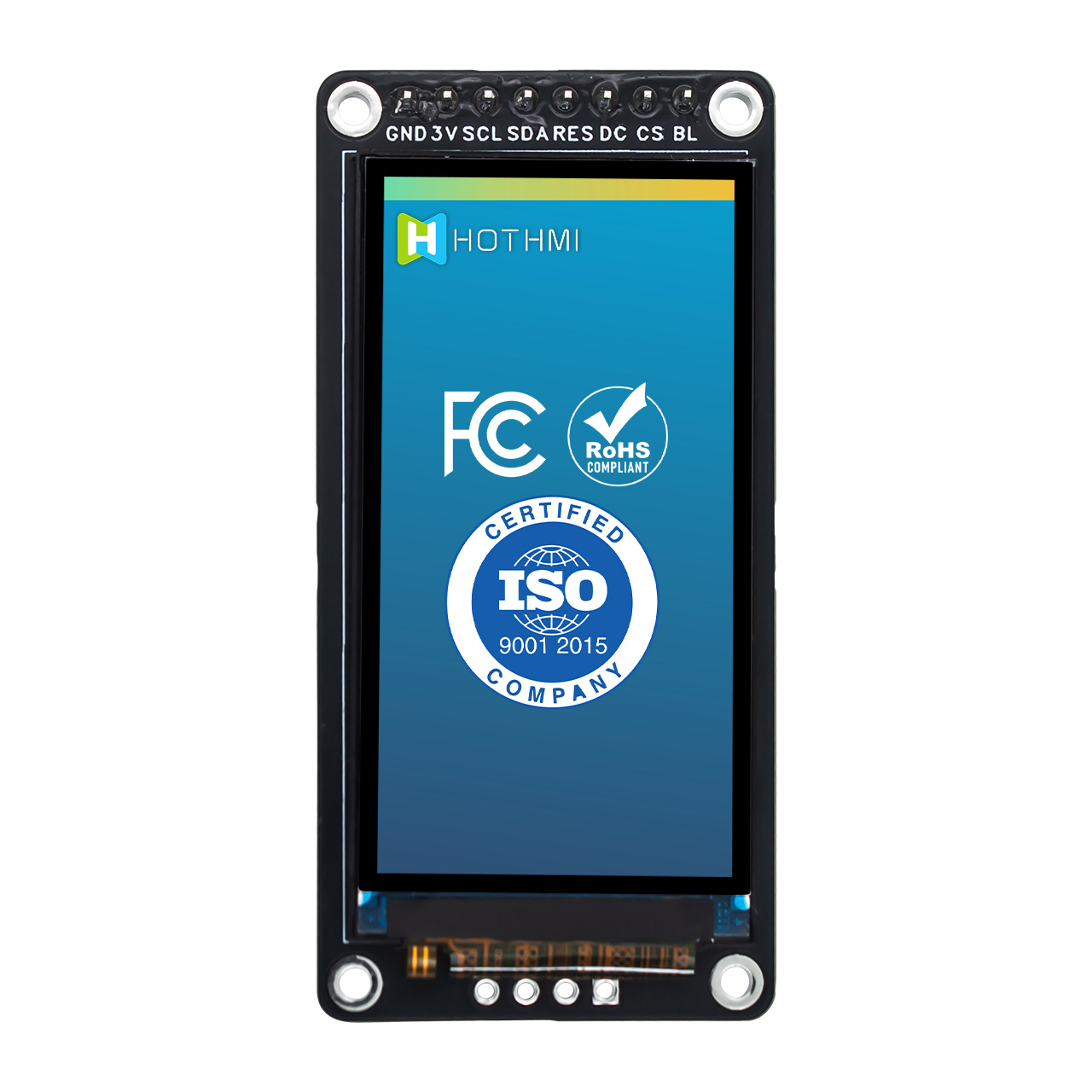

The display screen that matches this module is TFT-H020A05QVIST7N10. Users can also develop driver boards based on this standard display. All our products comply with ROHS standards.

Datasheet for Touch Panel,Controller↓

Name	Date	Size
HTM-H020A05-SPI-V0	June 06, 2025	92.71KB

Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	HTM-H020A05-SPI-V0
Diagonal size	2.0”	Inch
Resolution	170x320	Dot
Dimensions	29.4x60.0x1.9	mm
Active area (AA)	22.7x42.72	mm
LCD type	2.0” TFT Module	mm
Display viewing angle	Full View
Aspect ratio	1:2
Backlight type	LED white
TFT driver IC	ST7789
Brightness	700cd/m2	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
