4.0inch square TFT LCD module display 720X720px HD/ST7701S/LVDS interface/IPS/with capacitive touch screen

4.0inch square TFT LCD module display 720X720px HD/ST7701S/LVDS interface/IPS/with capacitive touch screen

▶ Model: TFT-H040A22DKINV3C30

▶ Product type: TFT square capacitive screen
▶ Display pixels: 720x720 Px
▶ External dimensions (mm): 80.150x83.2x3.8
▶ Display inches: 4.0"
▶ Effective size (mm): 71.928x71.928
▶ Application: Linux/industrial control/RK
▶ Visual angle: IPS full view
▶ Brightness: 350cd/M ²
▶ Pin: FPC-30PIN
▶ Interface: LVDS
▶ Special note: Anti static ESD 8KV
▶ Working temperature: -30~80 ℃
▶ Power supply voltage: 3.3V
▶ Driver chip: ST7701S
▶ Capacitive drive: GT911

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board

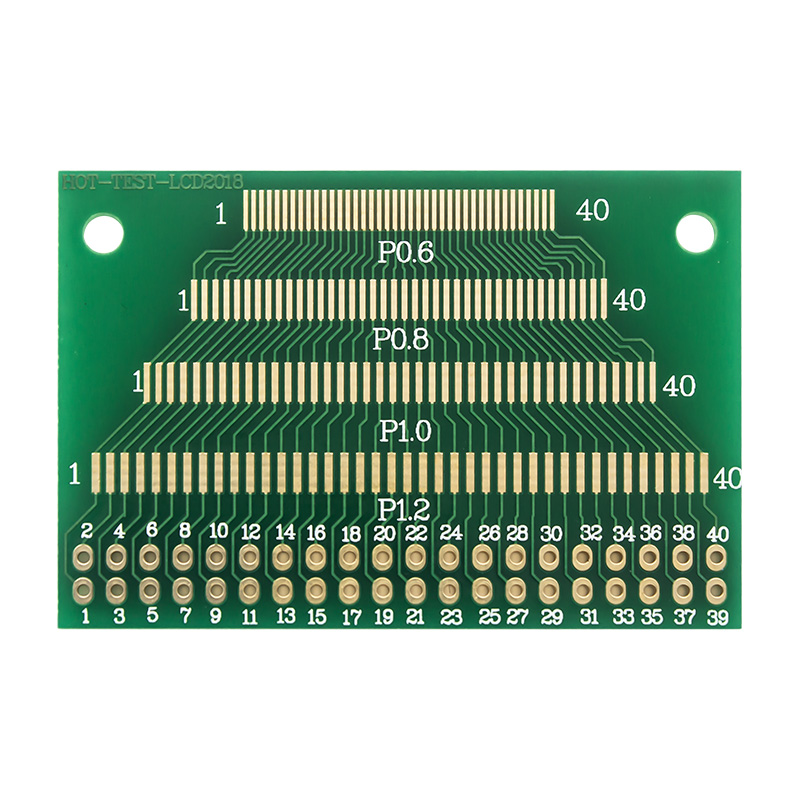

TFT to HI adapter board

Product Description
Specification
Attributes
Download Related Materials

4-inch square TFT LCD module display 720X720px HD/ST7701S/LVDS interface/IPS/with capacitive touch screen/wide temperature

The TFT-H040A22DKINV3C30-LVDS is a high-performance 4-inch IPS TFT capacitive monitor that delivers superior image quality, superior color reproduction and contrast at any angle. It has a resolution of 720x720 pixels and offers a 24-bit true color LCD display. The monitor features a better FPC design, has EMI shielding on the cables, and is RoHS compliant. The screen has multi-touch function and supports customization. 4-inch IPS LCD screen with EMI shielding and 3M brightness enhancement film. The brightness of this 4-inch IPS display is 350cd/m². The transmissive display mode and LVDS interface make it an ideal choice for various fields such as medical, industrial, control, aviation and automotive. An excellent choice for the industry.

Customized Ribbon Cables/Flexible Printed Circuits (FPC):

Tailor Your Cables To Perfection By Adjusting Their Length, Position, And Pin Arrangements, Or Adding Other Connectors. Obtain A Precisely Designed Cable Solution To Streamline And Enhance The Safety Of Your Connections

Touchscreen Add-On Components:

Enhance Your User Experience With Capacitive Or Resistive Touchscreen Technology. We Can Adjust The Glass Thickness Or Shape Of The Touchscreen To Ensure A Perfect Fit For Your Design.

Interface Customization:

Choose From Various Interface Options Or Consult With Our Experts To Select The Options That Best Suit Your Project. We Can Integrate HI,USB, SPI, VGA, And Other Interfaces Into Your Display To Achieve Your Design Goals.

Cover Glass:

Equip Your Display With Custom-Cut Cover Glass To Improve Durability. Choose From Various Thicknesses Of Cover Glass And Undergo Optical Bonding To Prevent Moisture And Debris.

parameter	Parameter Description	unit
TFT LCD	Standard TFT square
Diagonal inches	4.0 "	Inch
resolution	720 x RGB x 720 (TFT)	dots
Dimensions	80.150x83.2x3.8	mm
Size (AA) area	71.928x71.928	mm
LCD specifications	TFT, white, transparent
Display perspective	85/85/85/85 (IPS)
aspect ratio	1: 1
Backlight specifications	LED, white
TFT driver chip	ST7701S
Touch glass type	Capacitive Touch (CTP)
surface	Anti glare/glossy surface
Display brightness	three hundred and fifty	cd/㎡
Operating temperature	-30~+80	°C
Storage temperature	-30~+85	°C
