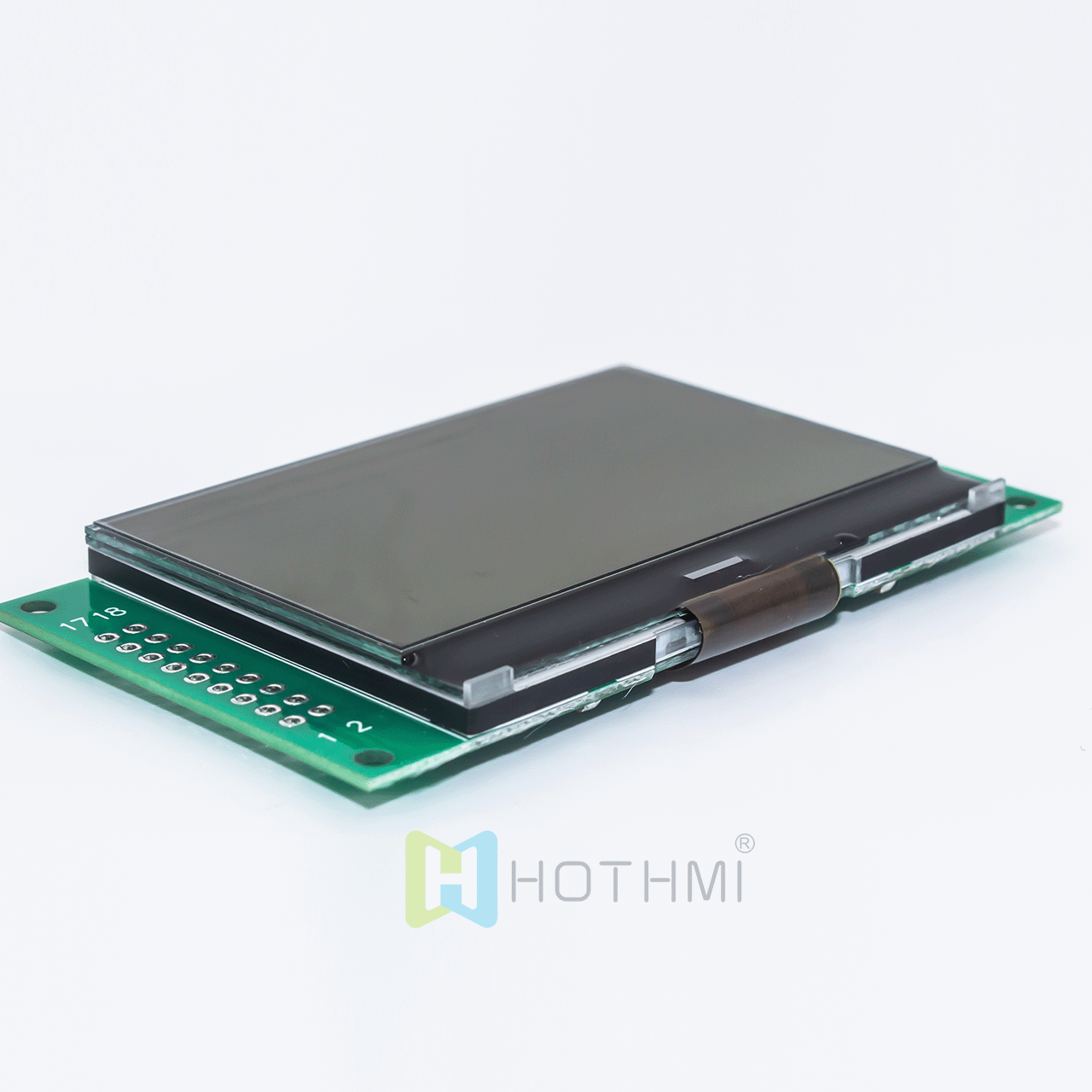

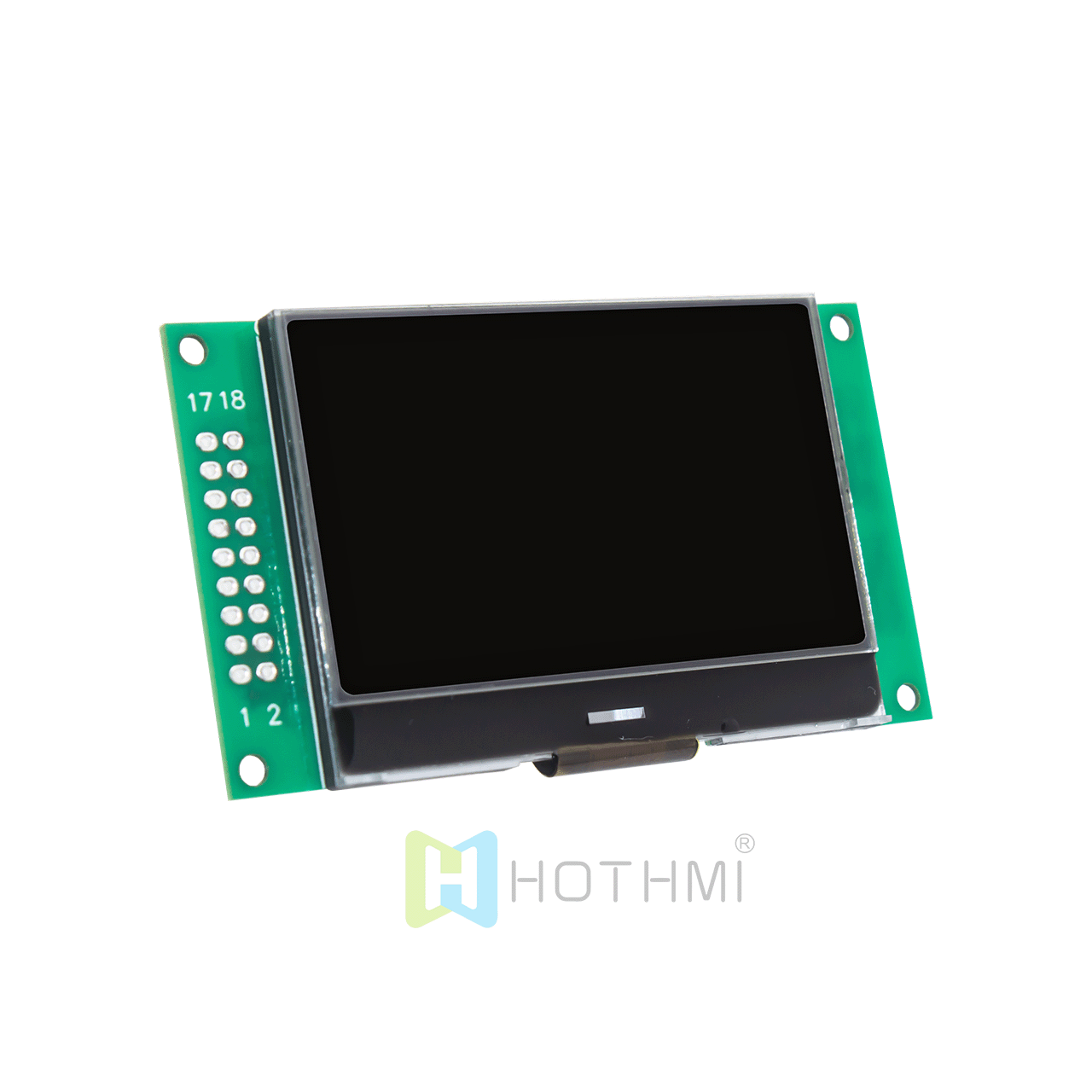

2.4-inch 132x64 LCD graphic LCD screen/132 X 64 graphic dot matrix LCD module/DFSTN negative display/white text on black background

2.4-inch 132x64 LCD graphic LCD screen/132 X 64 graphic dot matrix LCD module/DFSTN negative display/white text on black background

▶ Model: HTM13264C-41W-A5P

▶ Type: Standard COB LCD module
▶ Display pixels: 132x64

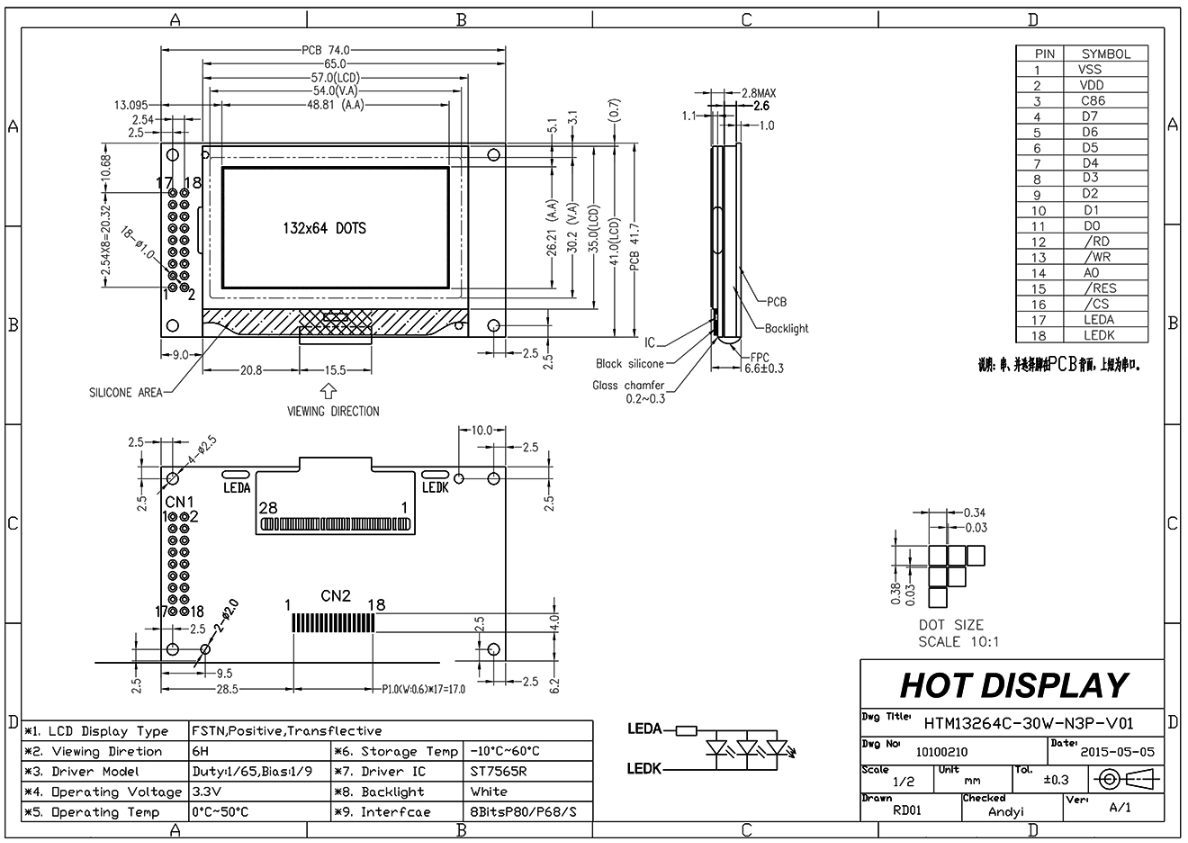

▶ Overall dimensions (mm): 74x41.7x6.6
▶ VA size (mm): 54x30.2
▶ AA size (mm): 48.81x26.21
▶ Point spacing (mm): 0.38x0.34
▶ Application: Industrial Control
▶ Viewing angle: 6H
▶ Backlight/brightness: white light
▶ Pin: 18PIN
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: 0~50℃
▶ Supply voltage: 3.3V
▶ Driver chip: ST7565R

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

2.4-inch 132x64 LCD graphic LCD screen/132 X 64 graphic dot matrix LCD module/DFSTN negative display/white text on black background

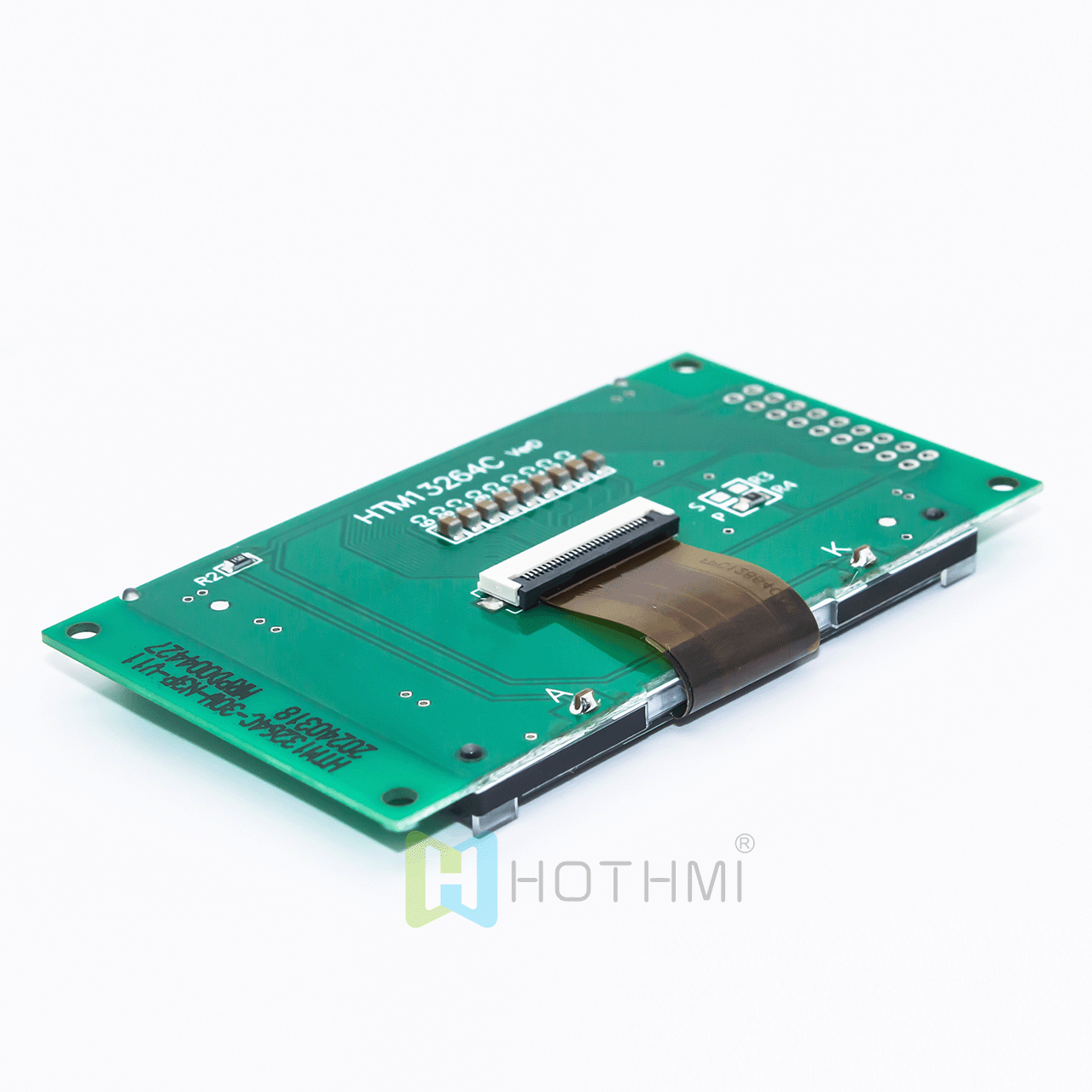

2.4-inch LCD132x64 industrial control graphic LCD screen HTM13264C-41W-A5P is a 2.4-inch 132x64 dot matrix monochrome graphic LCD module with built-in ST7565R controller, 5V voltage, white LED backlight, DFSTN negative polarizer, which can display white text on a black background. The brightness can be adjusted through the resistor behind the board. The operating temperature is minus 20 degrees to above zero 70 degrees. The pin header is connected (you can choose whether to buy it and weld it to the board). All materials comply with environmental protection requirements and RoHS standards. This module is widely used in various instruments, smart devices, etc., and is suitable for a variety of microcontroller development platforms such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi.

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

PARAMETER	SPECIFICATION CONTENT	UNIT
name	HTM13264c-41W-A5P
graphic display	132columns × 64rows	dots
Dimensions	74 x 41.7 x 6.6 (MAX)	mm
VA size	54 x 30.2	mm
AA size	48.81 x 26.21	mm
Pixel pitch	0.38 x 0.34	mm
driver chip	ST7565R
Applied voltage	5V	V
Backlighting	WHITE
display mode	DFSTN(-)
Drive mode	1/64 duty cycle
product type	Graphic LCD
Polarizer type	Transflective
