TFT-H024A22AVIST1N40 | 2.4-inch transflective and semi-reflective TN-TFT-LCD | MCU8080 interface | 240x320 pixel resolution LCD screen | optional capacitive touch/resistive touch | readable under sunlight

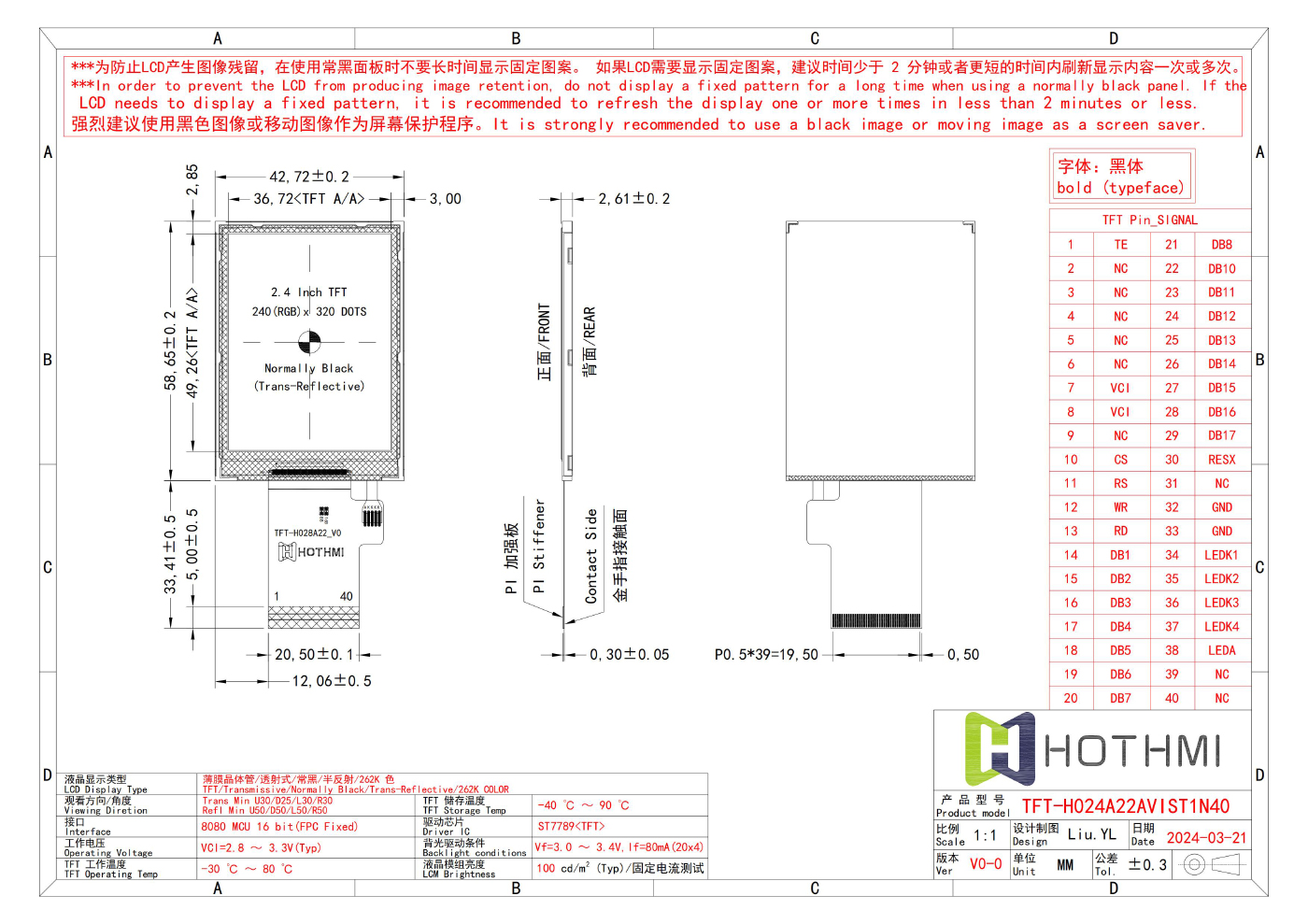

TFT-H024A22AVIST1N40 is a 2.4-inch transflective display panel with a resolution of 240x320 pixels. It uses ST7789 display driver IC and plug-in FPC, which can be used with connectors. The TN technology used in this monitor offers wide viewing angles and excellent color reproduction, allowing you to easily view from all angles without distortion. The display features a high contrast ratio of 500:1, delivering deep blacks and vibrant colors. Can be read in sunlight. Comply with ROHS standards。
Compared to traditional transmissive display technology, transflective technology offers significant advantages, especially in outdoor applications. This technology combines transmissive and reflective display modes, utilizing ambient light to enhance screen readability in bright sunlight while reducing the need for backlighting. This results in lower power consumption and longer battery life. Here are its main advantages and applications:
Main Advantages:
Clear Readability in Sunlight: Transflective technology enhances screen brightness by reflecting ambient light, ensuring that the display remains clearly readable even in direct sunlight. This is crucial for outdoor use.
Reduced Power Consumption: By minimizing the need for backlighting in bright environments, this technology significantly lowers the power consumption of the display, thus extending the battery life of the device.
Energy Efficiency and Environmental Benefits: Reduced energy consumption not only improves device endurance but also contributes to energy savings and carbon footprint reduction, aligning with environmental sustainability goals.
Application Areas:
Outdoor Handheld Devices: Devices such as PDAs and navigation tools used in outdoor environments benefit greatly from transflective technology, maintaining clear visibility in sunlight.
Motorcycle Information Displays: Motorcycle dashboards need to be easily readable in bright light conditions, and transflective technology ensures that riders can see information clearly regardless of the lighting.
Bicycle Information Displays: Smart display devices for bicycles, such as navigation systems and speedometers, also benefit from this technology, making it easier for cyclists to view data in sunny conditions.
Customized Ribbon Cables/Flexible Printed Circuits (FPC): Tailor your cables to perfection by adjusting their length, position, and pin arrangements, or adding other connectors. Obtain a precisely designed cable solution to streamline and enhance the safety of your connections |
Touchscreen Add-On Components: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design. |
Interface Customization: Choose from various interface options or consult with our experts to select the options that best suit your project. We can integrate HI,USB, SPI, VGA, and other interfaces into your display to achieve your design goals. |
Cover Glass: Equip your display with custom-cut cover glass to improve durability. Choose from various thicknesses of cover glass and undergo optical bonding to prevent moisture and debris. |
