  • 1.6 inch round TFT LCD display with MIPI interface and 400x400 ST7797 Controller

    This 1.6-inch circular TFT LCD display TFT-H016A01ZGIT47N20 has a resolution of 400x400, built-in ST7797 controller, optional touch screen, high image quality, IPS wide viewing angle, high resolution, and 450cd/m2 brightness, giving this display a high-quality viewing effect. Supports MIPI interface, 65K/262K true color, FPC connection (customizable connector), adopts Normally Black panel design, color gamut covers 65% of NTSC. The module is equipped with ST7797 driver chip and supports MIPI Video Mode (1 Lane) interface. The operating voltage is VCI=3.0-3.3V and IOVCC=1.8-3.3V. The backlight driving conditions are Vf=3.0-3.4V, If=60mA (constant current), and the typical brightness is 450cd/m ².


    This 1.6-inch circular TFT LCD display adopts MIPI high-speed mode transmission and supports low-power mode switching. The reset timing requires a reset pulse width of at least 10 μ s and a wait of at least 5ms after releasing RESX before sending commands. The typical lifespan of backlight LED is 30000 hours at 25 ℃ environment. To prevent image residue, it is recommended to avoid displaying fixed patterns for a long time and refresh time should be less than 2 minutes. It is recommended to use black or dynamic images as screensavers. The product has passed reliability tests such as high temperature, low temperature, high humidity, impact, vibration, and electrostatic discharge, and is suitable for industrial and consumer electronics fields. The initialization code includes power on reset, register configuration, and display parameter settings to ensure fast startup and stable operation.


    All materials comply with environmental requirements and RoHS standards. This module is widely used in various instruments, smart devices, etc., and is suitable for microcontroller development platforms such as 8051 PIC, AVR, ARDUINO, ARM, Raspberry Pi, etc. This 1.6-inch circular TFT LCD display has a wide range of applications, including wearable devices, handheld instruments, home appliances, and more. We also have other series of models for circular display screens in related sizes: circular TFT LCD .

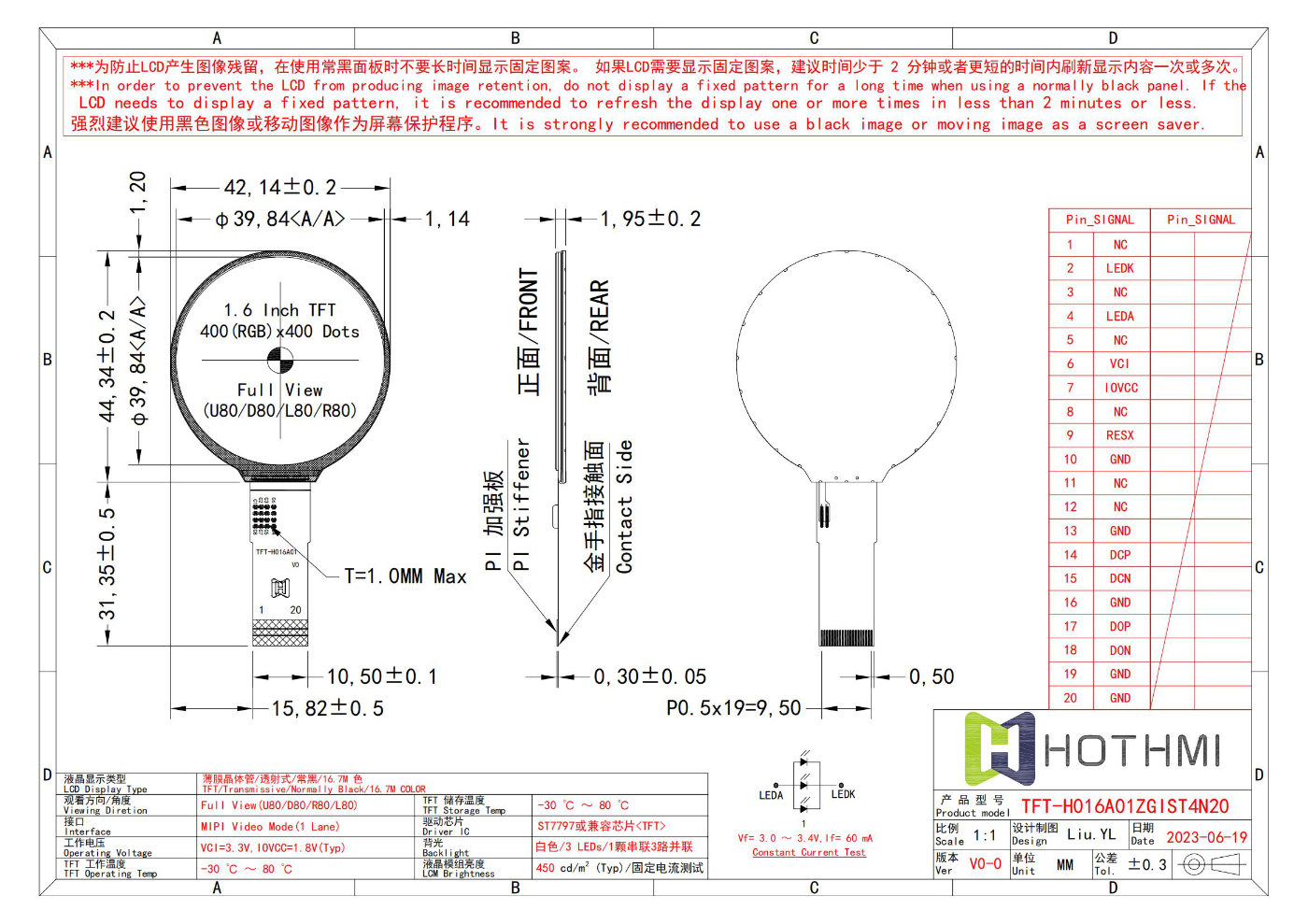

  • TFT-H016A01ZGIST4N20_V0-0_00.jpg

  • parameter

    Parameter Description

    unit

    TFT LCD

    Standard TFT


    Diagonal inches

    1.6 "

    Inch

    resolution

    400 x RGB x 400 (TFT)

    dots

    Dimensions

    42.14x44.34x1.95

    mm

    Size (AA) area

    39.84x39.84

    mm

    LCD specifications

    TFT,  White, transparent


    Display perspective

    80/80/80/80 (IPS)


    aspect ratio

    1: 1


    Backlight specifications

    LED,  white


    TFT driver chip

    ST7797


    Touch glass type

    nothing


    surface

    Anti-Glare


    Display brightness

    four hundred and fifty

    cd/

    Operating temperature

    -30~+80

    °C

    Storage temperature

    -30~+80

    °C
