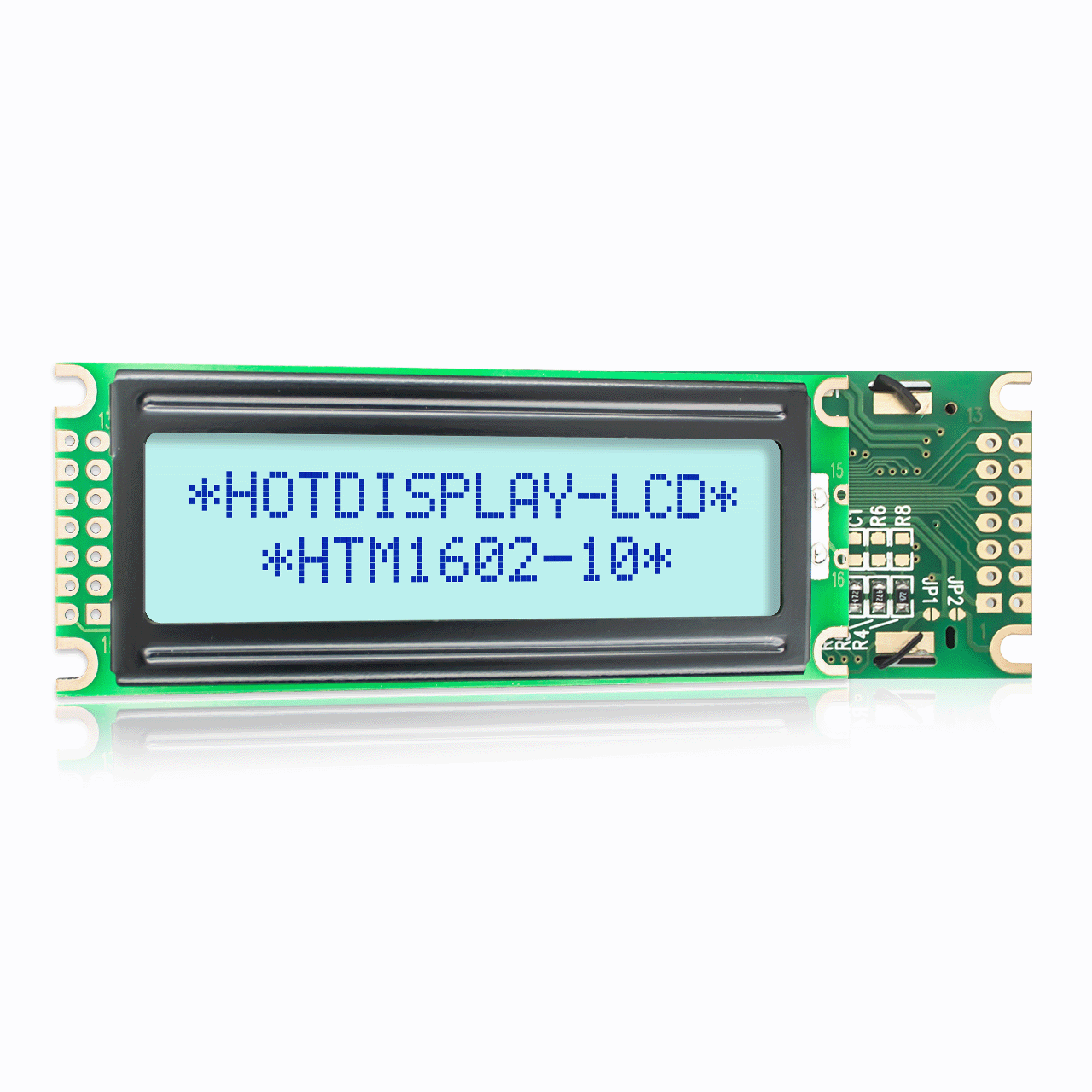

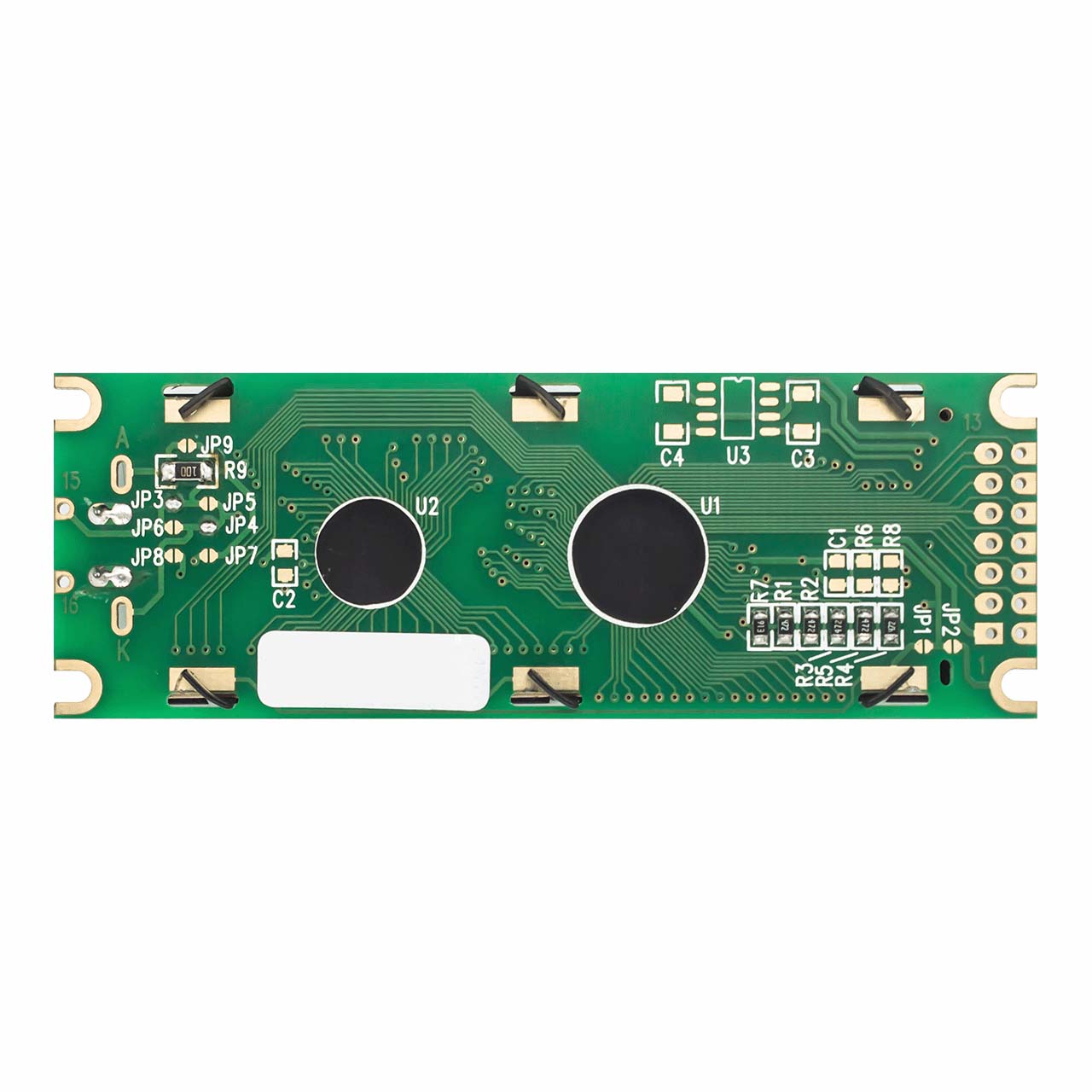

Character LCD module |16X2 MONO STN+ Gray Display with Side White Backlight 5.0V-Arduino

Character LCD module |16X2 MONO STN+ Gray Display with Side White Backlight 5.0V-Arduino

▶ Model: HTM1602-10-11W-A5P

▶ Type: Character LCD module
▶ Display content: 16x2 characters
▶ Overall dimensions (mm): 85.0x29.5x13.1
▶ VA window size (mm): 64.5x15.8
▶ AA size (mm): 55.8x10.64
▶ Point spacing mm: 0.62x0.64
▶ Product application: industrial control
▶Viewing angle: 6H
▶ Backlight type: white light
▶ Connection method PIN number: 16PIN
▶Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶Power supply voltage: 5.0V
▶ Driver chip: ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

Character LCD module |16X2 MONO STN+ Gray Display with Side White Backlight 5.0V-Arduino

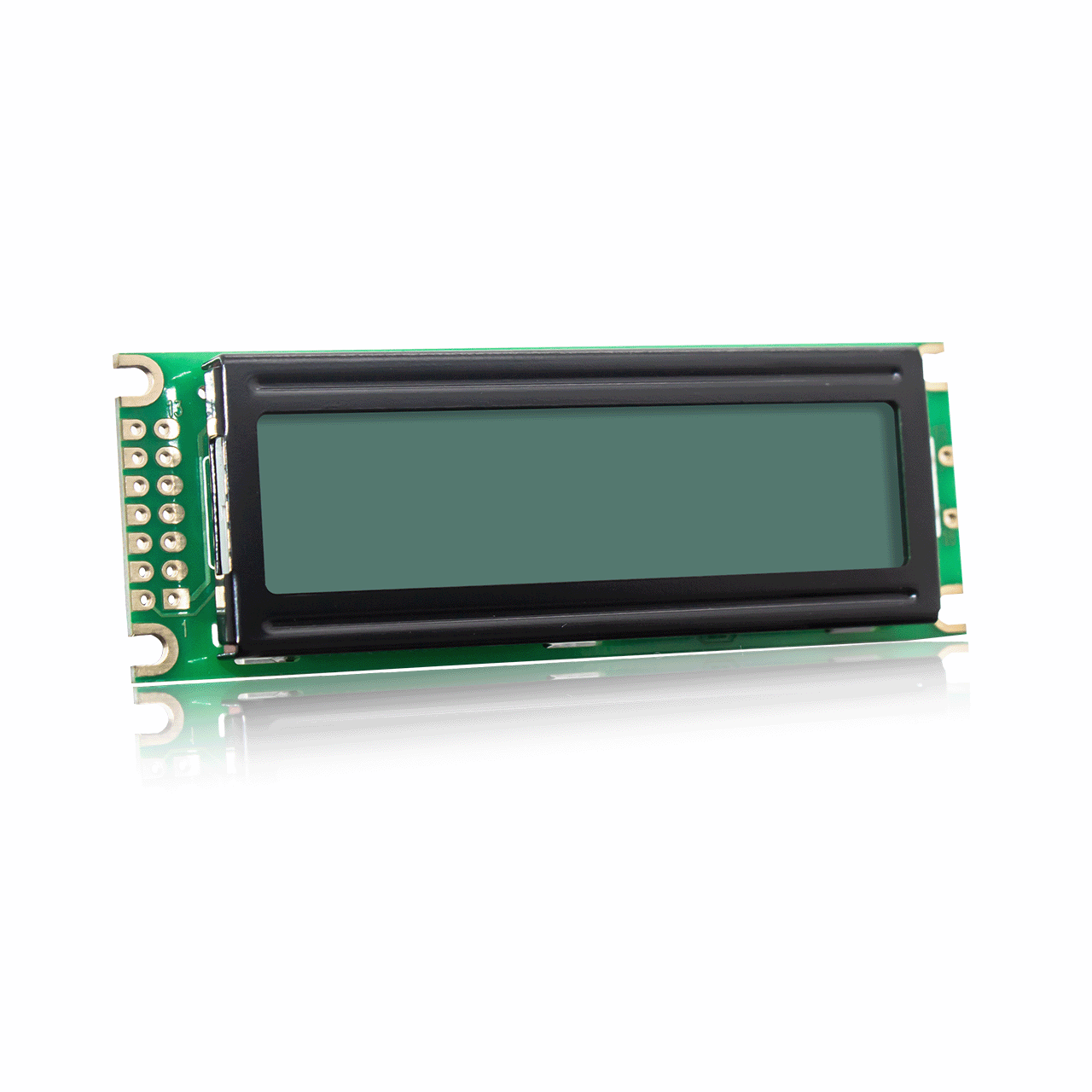

Character LCD module is a 2x16 character glass chip LCD with side white backlight. This monitor is very suitable for applications where visibility is crucial, such as industrial environments or low light conditions. The STN positive gray display screen is visible in ambient light or backlight, and the best viewing angle at 6:00 ensures that the display screen can be easily read from all angles. This product meets ROHS standards and has undergone multiple quality tests, meeting or exceeding quality standards. 8-bit parallel data communication enables this LCD to have high performance and low power consumption, as it only requires a 5V power supply voltage. The 2-line, 16 character display has a built-in font table, making it easy to start. This monitor is compatible with many development boards, including Arduino.

entry name	Specification parameters	unit
Model name	HTM1602-10-11W-A5P
Character display line	16 words x 2 lines	dots

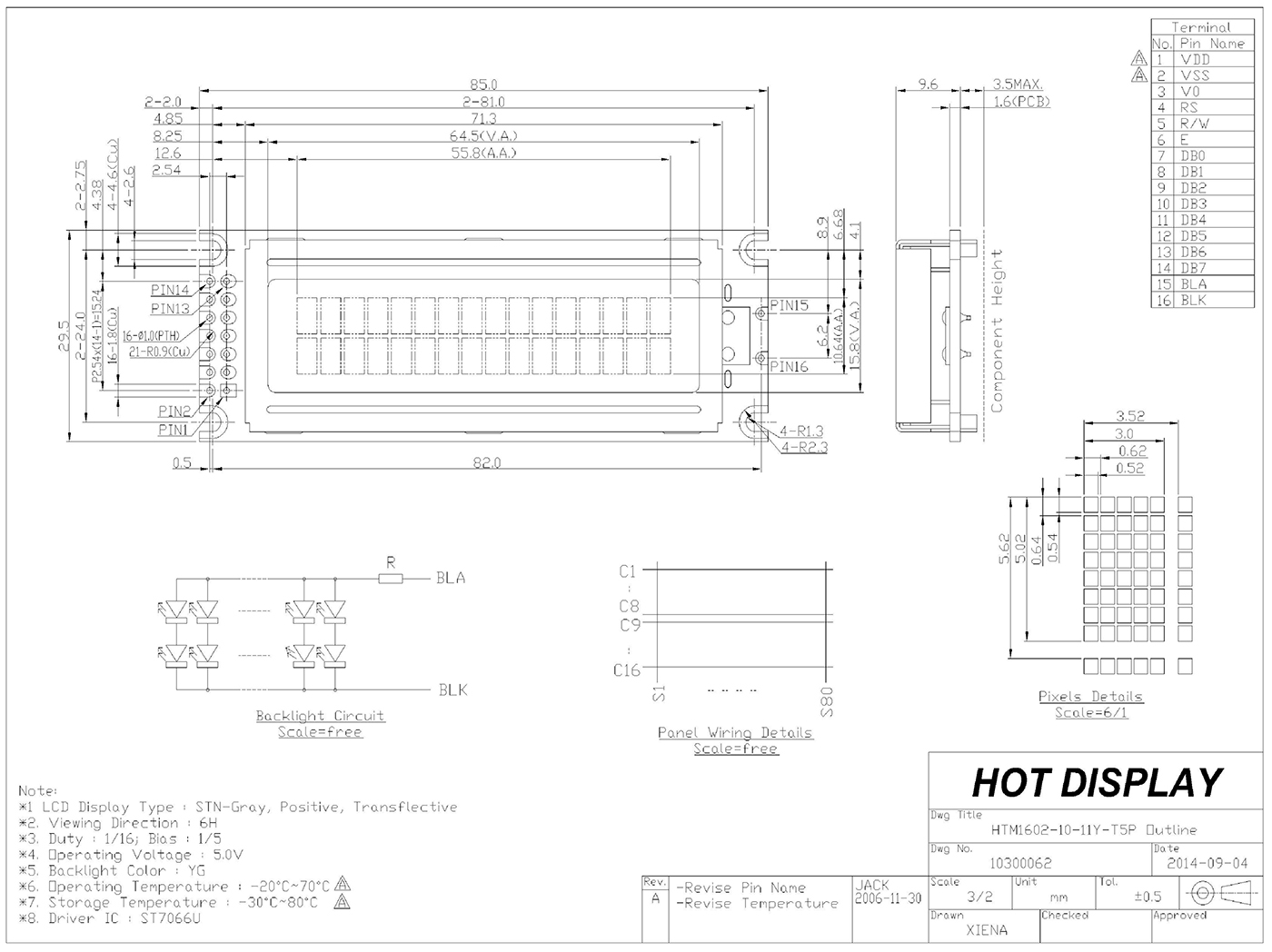

Module Size	85.0 (W) x 29.5 (H) x 13.1 (D) mm	mm
Visible (VA) area	64.5 (W) x 15.8 (H)	mm
Effective Area (AA)	55.8 (W) x 10.64 (H) mm	mm
Point (Pixel) Size	0.52 x 0.54mm	mm
Point (pixel) spacing	0.62 (W) x 0.64 (H) mm	mm
Driver chip	ST7066U driver
/Application voltage	5.0V	V
Backlight	White backlight
mode	STN+
Driving method	1/16 duty cycle
type	Character module
characteristic	Semitransparent reflection
