LCD module monochrome display 16x2 characters FSTN+ with RGB yellow, green and blue backlight-Arduino

LCD module monochrome display 16x2 characters FSTN+ with RGB yellow, green and blue backlight-Arduino

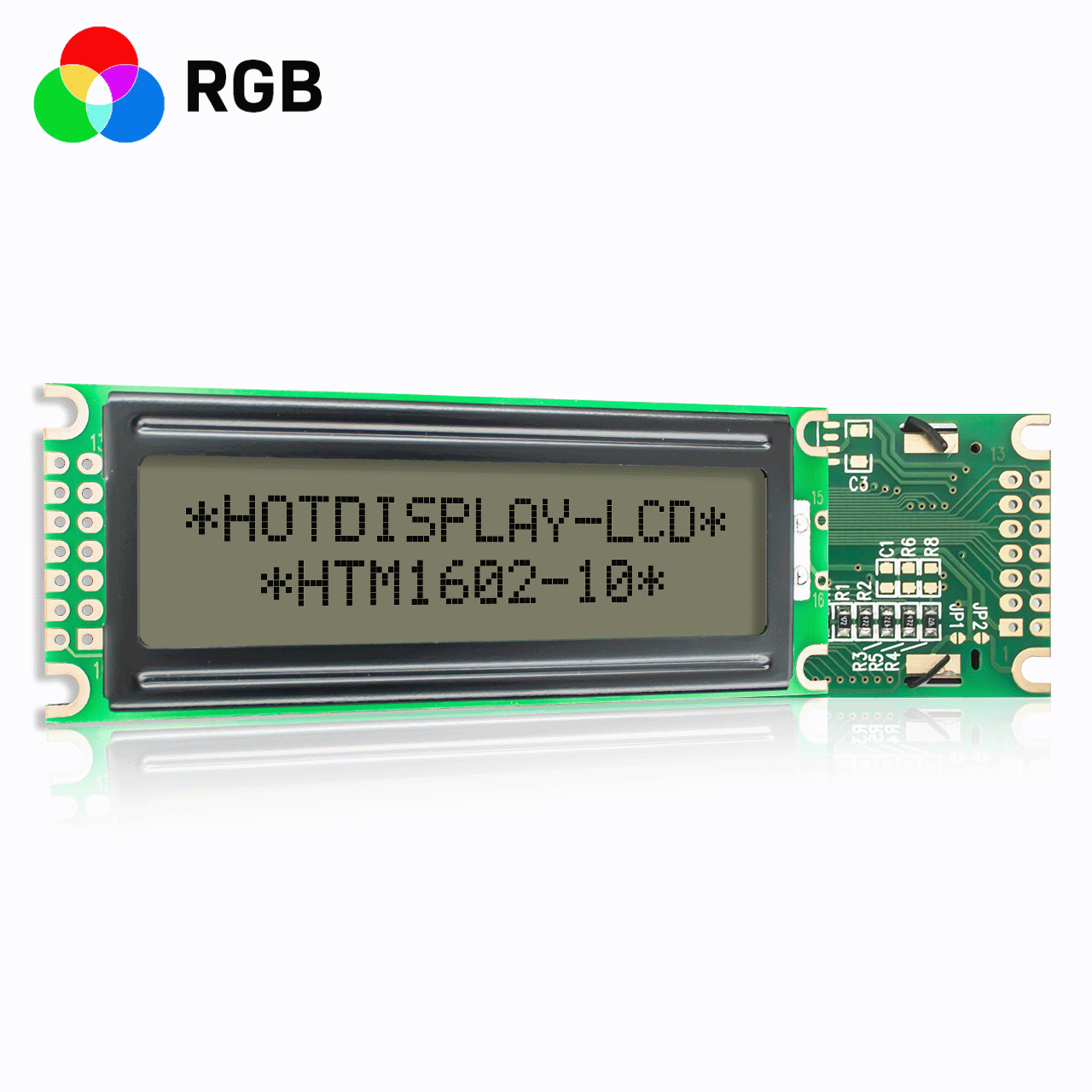

▶ Model: HTM1602-10-35S-A5P

▶ Type: Standard COB character LCD module
▶ Display content: 16x2 characters
▶ Overall dimensions (mm): 85.0x29.5x13.1
▶ VA window size (mm): 64.5x15.8
▶ AA size (mm): 55.8x10.64
▶ Point spacing mm: 0.62x0.64
▶ Product application: industrial control
▶Viewing angle: 6H
▶ Backlight type: white light
▶ Connection method PIN number: 16PIN
▶Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶Power supply voltage: 5.0V
▶ Driver chip: ST7066U
