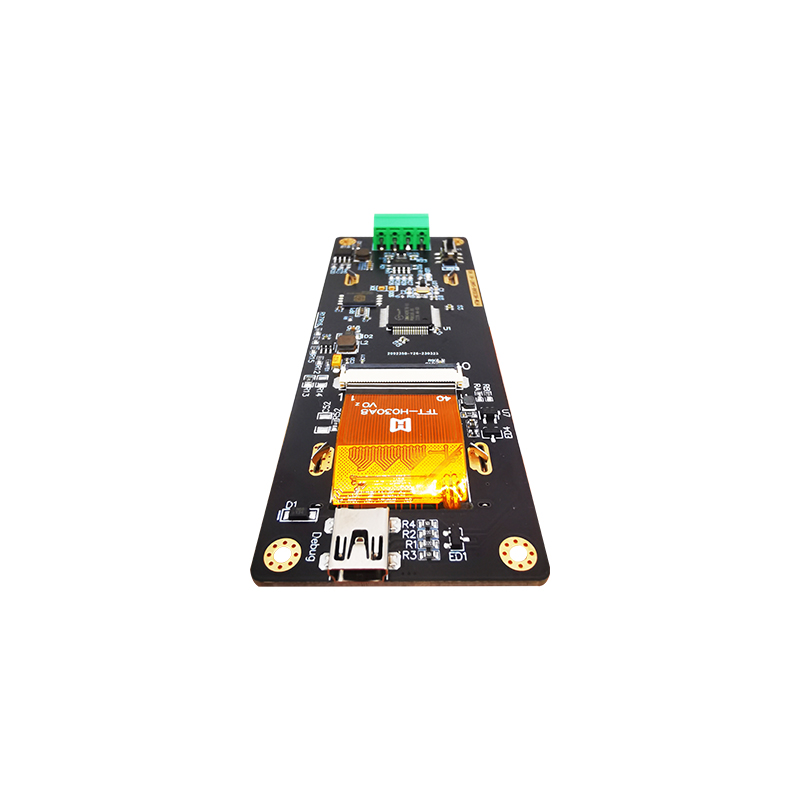

Product name: HTM-H030A8-UART-A1_V0-0 smart serial screen

Product Description: HTM-H030A8-UART-A1_V0-0 series smart serial screen is a 3-inch (diagonal) color TFT display with HD resolution (268x800 dot matrix) and 32-bit color depth. Built-in 1G-Bit (128M bytes) resource memory, powered by 12~24V DC power supply. This product adopts a serial UART (TTL level) interface, and the communication protocol is in the form of ASCII string, which is suitable for interface operations of Arduino systems and other MCUs.

Standard configuration:

3-inch diagonal color TFT screen, optional touchless/resistive touch/capacitive touch

Resolution: 268x800 dot matrix, supports 65536 colors

Power supply mode: 12~24V DC power supply

Serial interface: UART serial interface (TTL level), supports 9600~1000000bps

Built-in resource memory: 1G-Bit (128M bytes)

Standard RTC real-time clock module

Built-in 6x10, 8x16, 10x20, 16x32-point ASCII code Western font library

Features:

Supports basic drawing instructions, including drawing points, straight lines, rectangles, circular rectangles, circles, arcs, string display, bitmap display, JPEG picture, PNG picture display, etc.

Support audio and video playback instructions.

The resource memory supports GBK2312 secondary Chinese character library, vector font library, BIG5 font library, BMP bitmap, JPEG pictures, PNG picture display, ASCII Western character library, etc.

Supports interface switching effect settings, such as transparency fade-in, random fast fade-in, blind fade-in, and buffer fast switching.

Supports a variety of controls, including area buttons, bitmap buttons, numeric controls, string controls, drop-down selection controls, waveform controls, progress bar controls, bitmap animation controls, time/date display controls, dial display controls, slider controls, QR code, etc.

The EzUI series of smart LCD modules launched by HOTHMI:

The EzUI series smart LCD module is an easy-to-use, zero-code, full-color graphic touch screen human-machine interface development tool. Users can use the EzUITool interface development tool software to perform operations such as design, editing, control configuration, and response settings, and then copy the generated resource files to the EzUIH series modules to complete the design and production of human-computer interaction interfaces without programming to control microcontrollers or other controllers. .

Features and Applications:

Easy to use: Adopting a simple and easy-to-use design concept, users can easily design and develop interfaces through the EzUITool software.

Zero code: To achieve the goal of codeless user interface design, users only need to copy the resource files generated by the software into the EzUIH series modules without programming.

Rich functions: Provides rich functions and performance. Users can choose simple or complex usage and freely control the display function of the module.

Multiple size options: A variety of sizes are available for customers to choose from, suitable for different application scenarios, such as industrial control equipment and medical equipment.

Overall, these two product series provide rich functions and flexible usage in the field of LCD display, suitable for users with different needs and application scenarios.
