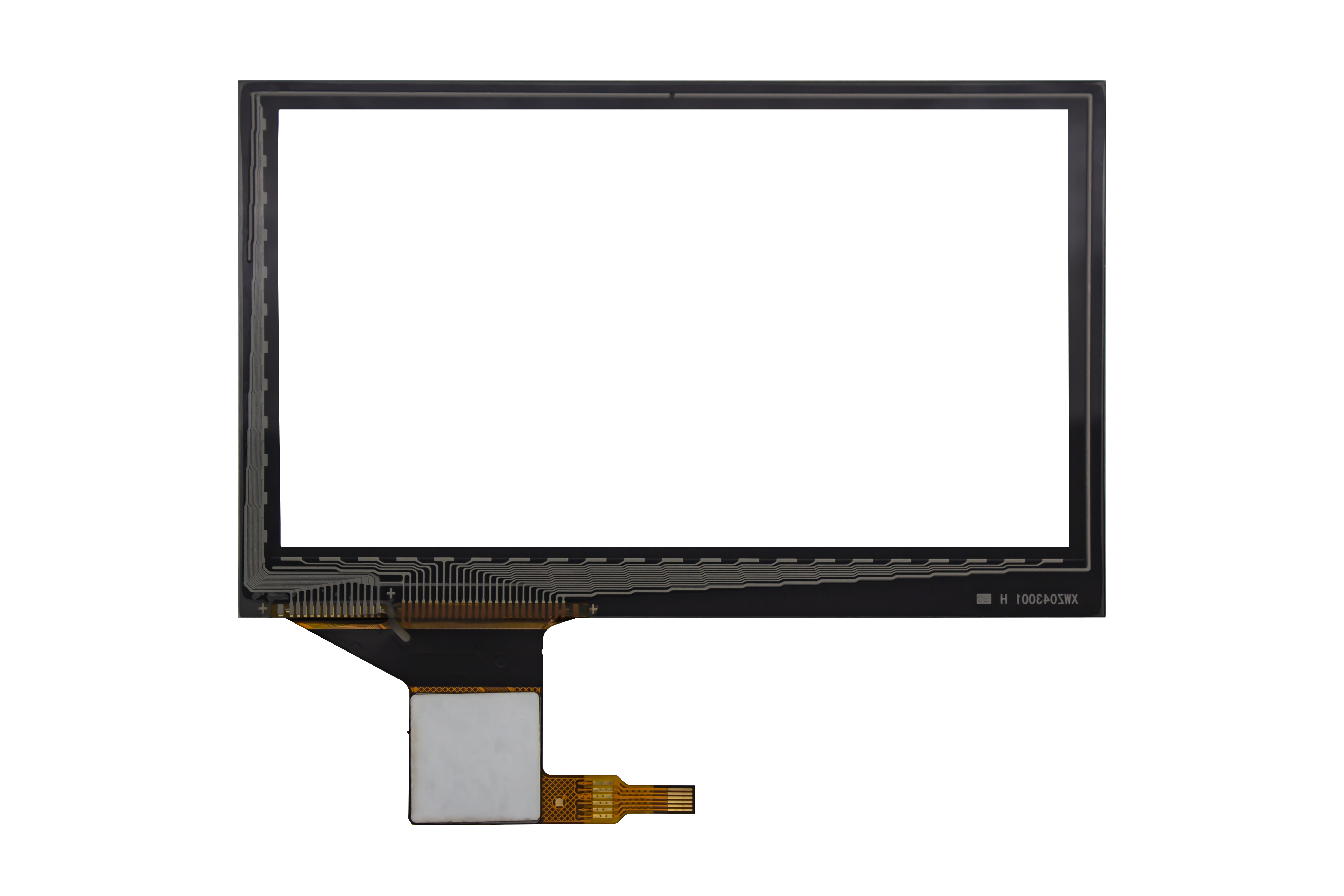

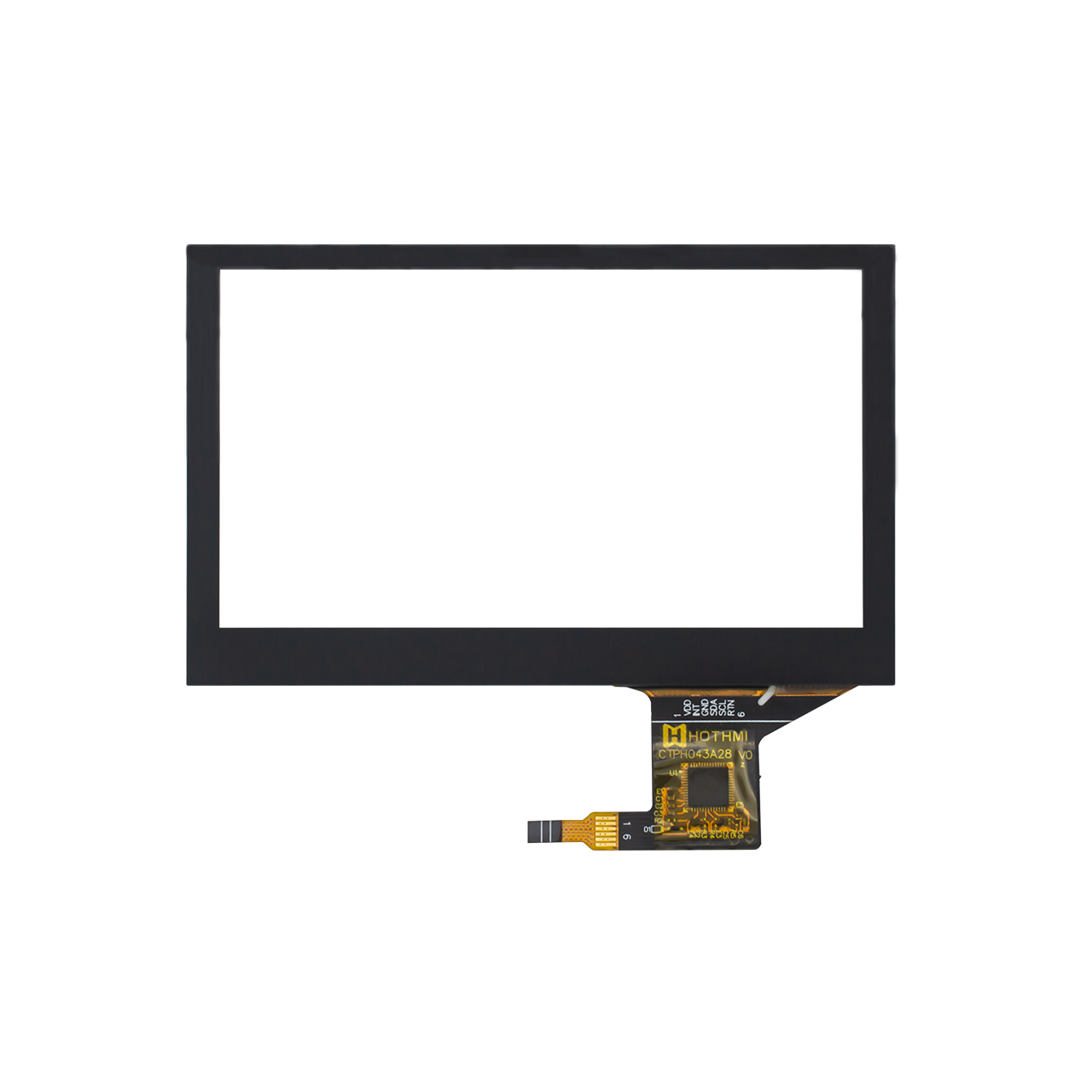

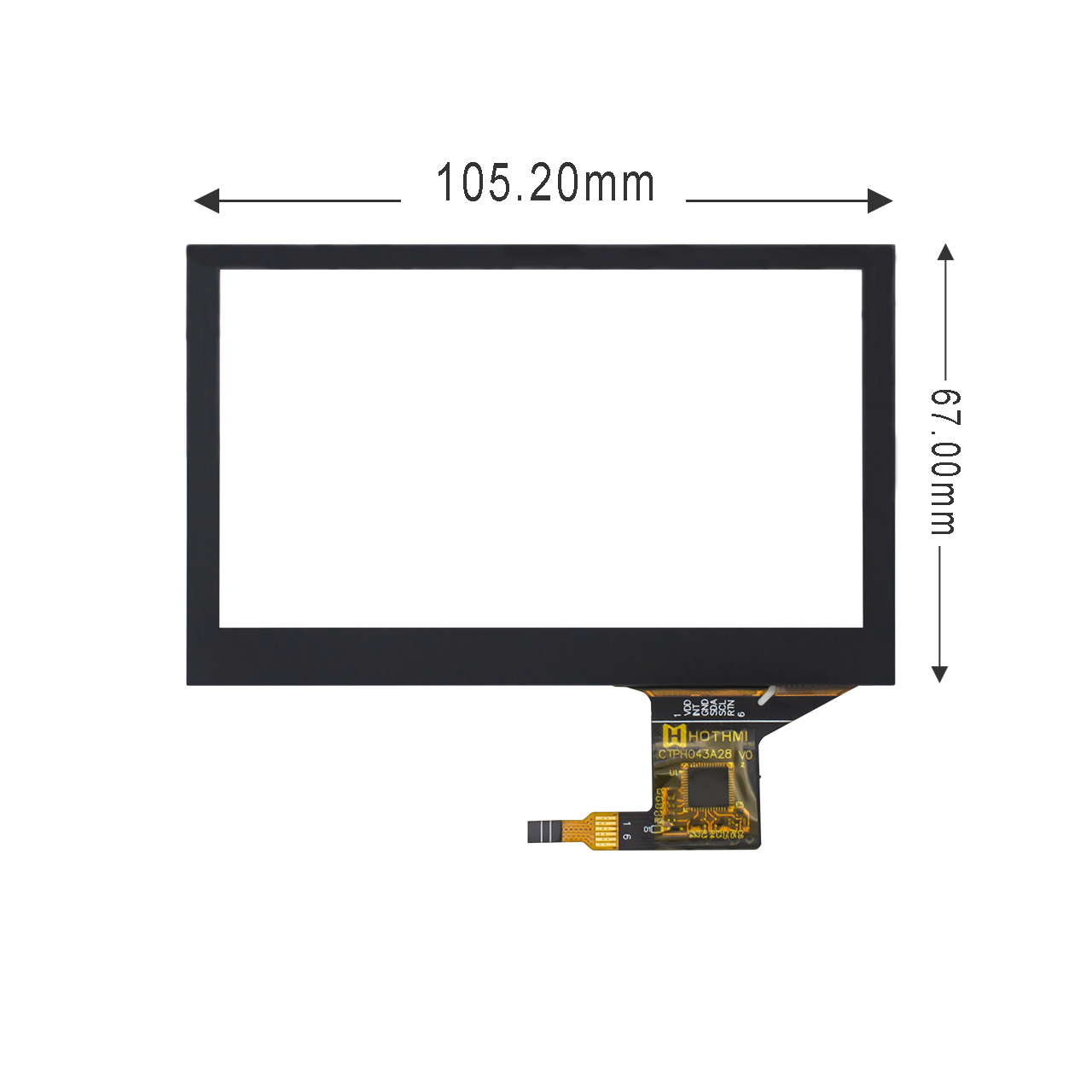

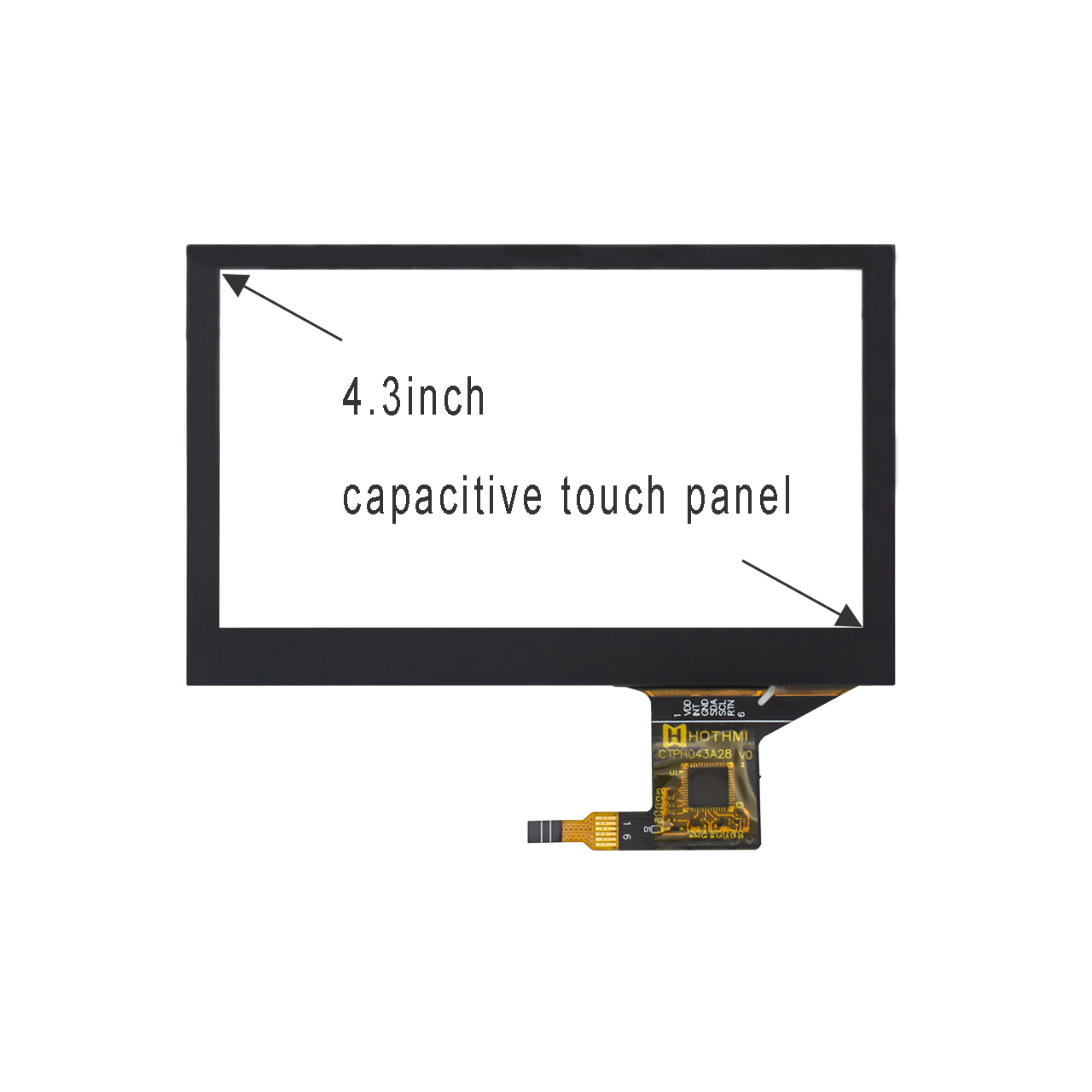

4.3 Inch Capacitive Touchscreen With GT911 Controller I2C Interface
This customized 4.3-inch capacitive touch screen adopts G+G (double-layer glass) structure, with industrial-grade reliability as the core design concept. The cover surface can be equipped with AG anti-glare, AR anti-reflection or AF anti-fingerprint coating, with dark/color ink silk-screen border to meet the aesthetic and functional requirements of the device appearance.
The product innovation uses a 6-PIN metal straight pin interface to replace the traditional FFC soft cable, supporting two installation modes: horizontal or vertical. The metal direct connection solution completely solves the hidden danger of easy loosening of the FFC connector, with a plug-in life of more than 10,000 times, and still maintains stable electrical contact in a vibration environment, significantly reducing the after-sales failure rate of the equipment.
The touch core is equipped with the Goodix GT911 controller. This solution is particularly suitable for scenarios such as industrial control panels, vehicle-mounted central control systems and medical equipment. The anti-motor interference characteristics of the metal pins ensure the stable operation of the PLC equipment; the wide temperature range design can cope with sudden changes in the cabin temperature; the surface of the glass cover can be directly disinfected and wiped with alcohol.
We provide a full range of customized services: from interface definition, connection method (plug/weld/connector), process structure (G+G/G+FF/G+F/P+G/P+F), to cover plate form (size, 2.5D fillet, etc.), hardness level (3H/6H/7H/9H) and surface coating (AF/AG/AR ), and even designated brand cover glass (such as Panda, Corning Gorilla), all can be realized on demand.
We not only provide touch screen accessories, if users are looking for the corresponding TFT LCD display module, we have prepared it for you. This 4.3-inch capacitive touch TFT LCD module TFT-H043A28WQIST8C22 readable in sunlight is your best choice.
