Character LCD Modules |1X16 STN mono+ Yellow/Green Background with Yellow/Green Backlight-Arduino

Character LCD Modules |1X16 STN mono+ Yellow/Green Background with Yellow/Green Backlight-Arduino

▶ Model: HTM-1601A-01Y-A5P

▶ Product type: Character LCD Modules
▶ Display content: 16x1 characters

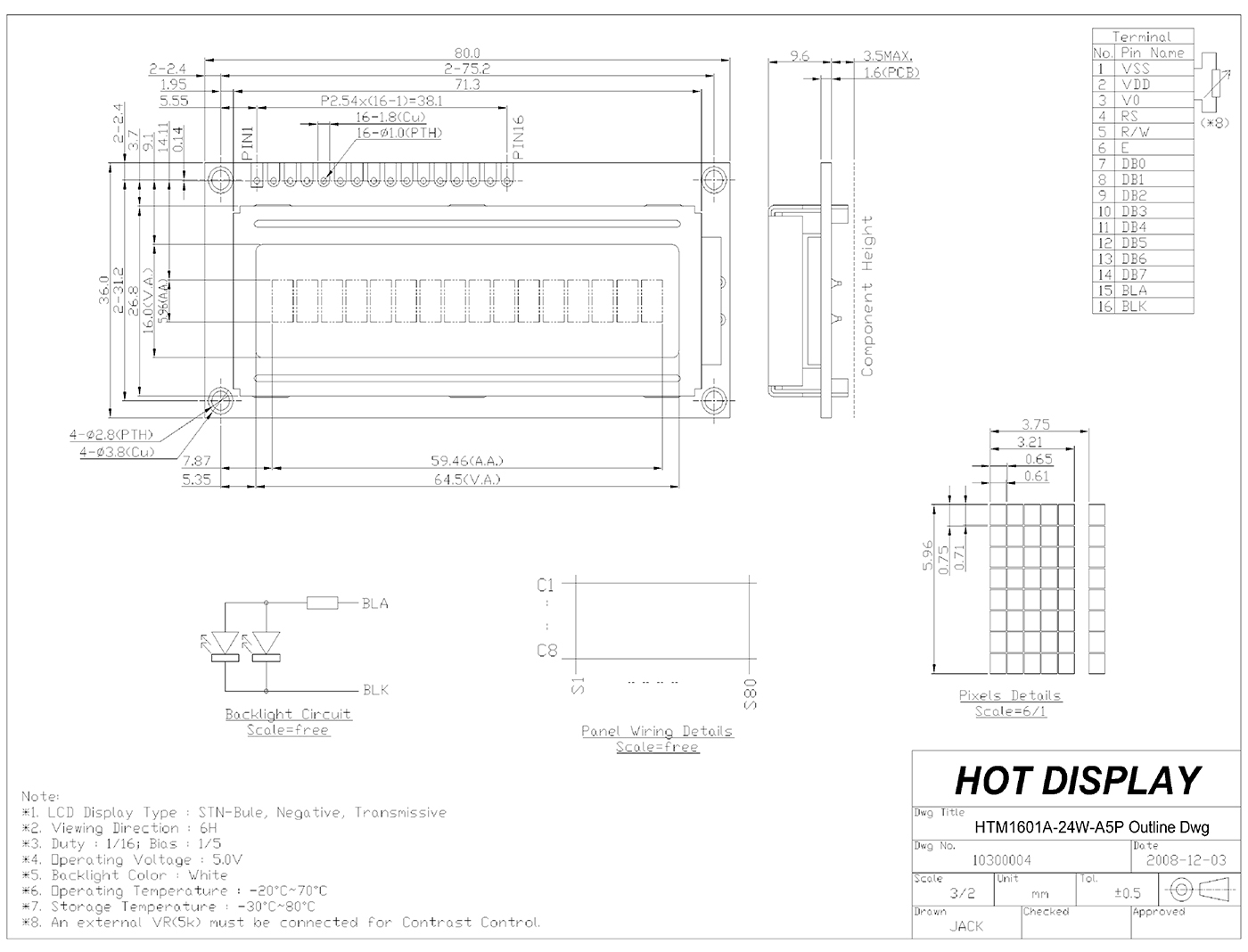

▶ Overall dimensions (mm): 80.0x36.0x13.1
▶ View window size (mm): 64.5x16.0
▶ Display size (mm): 59.46x5.96
▶ Point spacing mm: 0.65x0.75
▶ Product application: industrial control
▶ Viewing angle: 6H
▶ Backlight: yellow-green light
▶ Number of PINs: 16PIN
▶ Interface: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 5.0v
▶ Driver chip:ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

Character LCD Modules |1X16 STN mono+ Yellow/Green Background with Yellow/Green Backlight-Arduino

Character LCD Modules High-quality on-screen performance experience with HTM - 1601A - 01Y - A5P. This compact transfective LCD display has a single 16 character line. This single-line LCD display features dark pixels on an intense yellow/green background and ensures optimal readability in various lighting conditions, making it adaptable for use in ambient light or with its own built-in backlight.
The HTM - 1601A - 01Y - A5P emits a clear yellow/green screen that improves visibility and user interaction.With an ideal viewing angle fixed for 6:00 am and a wide spectrum of operating temperatures ranging from - 20 to about 70 degrees Celsius, this LCD screen is suitable for different environmental conditions.
Powered by a voltage of 5 V, this high-performance display is compatible with different power sources.

item	Parameter description	uint
name	HTM-1601A-01Y-A5P
Number of dots	16x1 character	dots
Module size	80.0x36.0x13.1 (MAX)	mm
VA size	64.5（W） × 16.0（H）	mm
AA size	59.46（W） × 5.96（H）	mm
Pixel pitch	0.65x0.75	mm
IC	ST7066
voltage	5.0V	V
backlight	Yellow/green backlight
display mode	STN positive
Drive mode (Duty)	1/16 duty cycle
type	Character LCD
characteristic	Semi transparent reflective polarizer

Search keyword：lcd 16x1, lcd 16 x 1, 16x1 lcd, 16 x 1 lcd ，mono，Arduino
