▶ Model: TFT-H043B15WVIST3C45

▶ Type: TFT display
▶ Display pixels: 480x800
▶ Dimensions (mm): 66.66x102.97
▶ Display inches: 4.3"
▶ AA size (mm): 56.16x93.6
▶ Application: Instruments, smart devices
▶ Viewing angle: IPS full viewing angle
▶ Backlight/brightness: 350cd/m2
▶ Pin: FPC-45 pin
▶ Interface: RGB +9b_3SPI(fall)/16b_3SPI(rise)
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Supply voltage: 2.8V
▶ Driver IC: ST7701S<TFT>,GT911<CTP>

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
TFT to HI adapter board

Product Description
Specification
Attributes

4.3-inch 480x800/full-color TFT LCD display/IPS full-viewing angle wide-temperature TFT/ST7701 controller/STM32/RK series/plug-in FPC

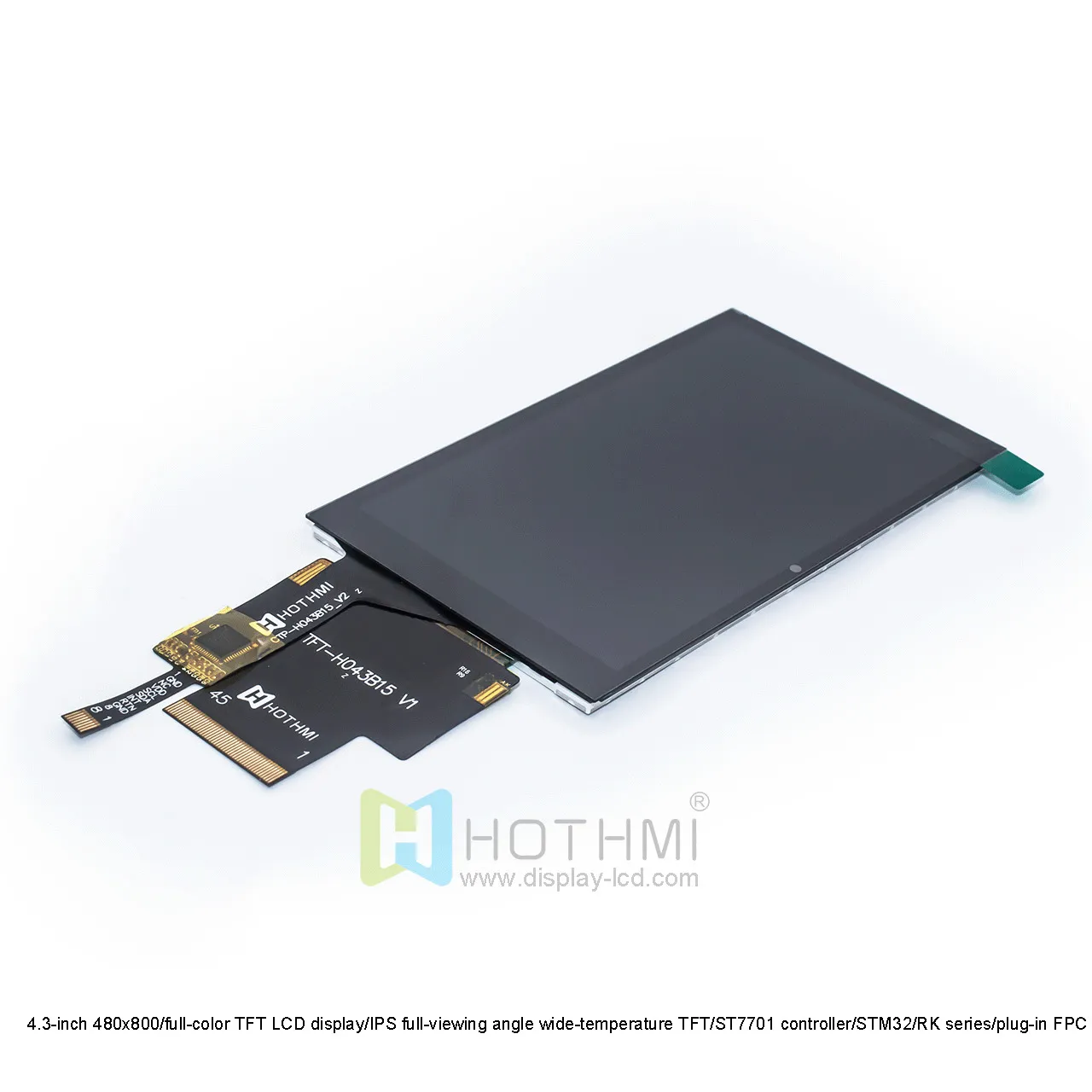

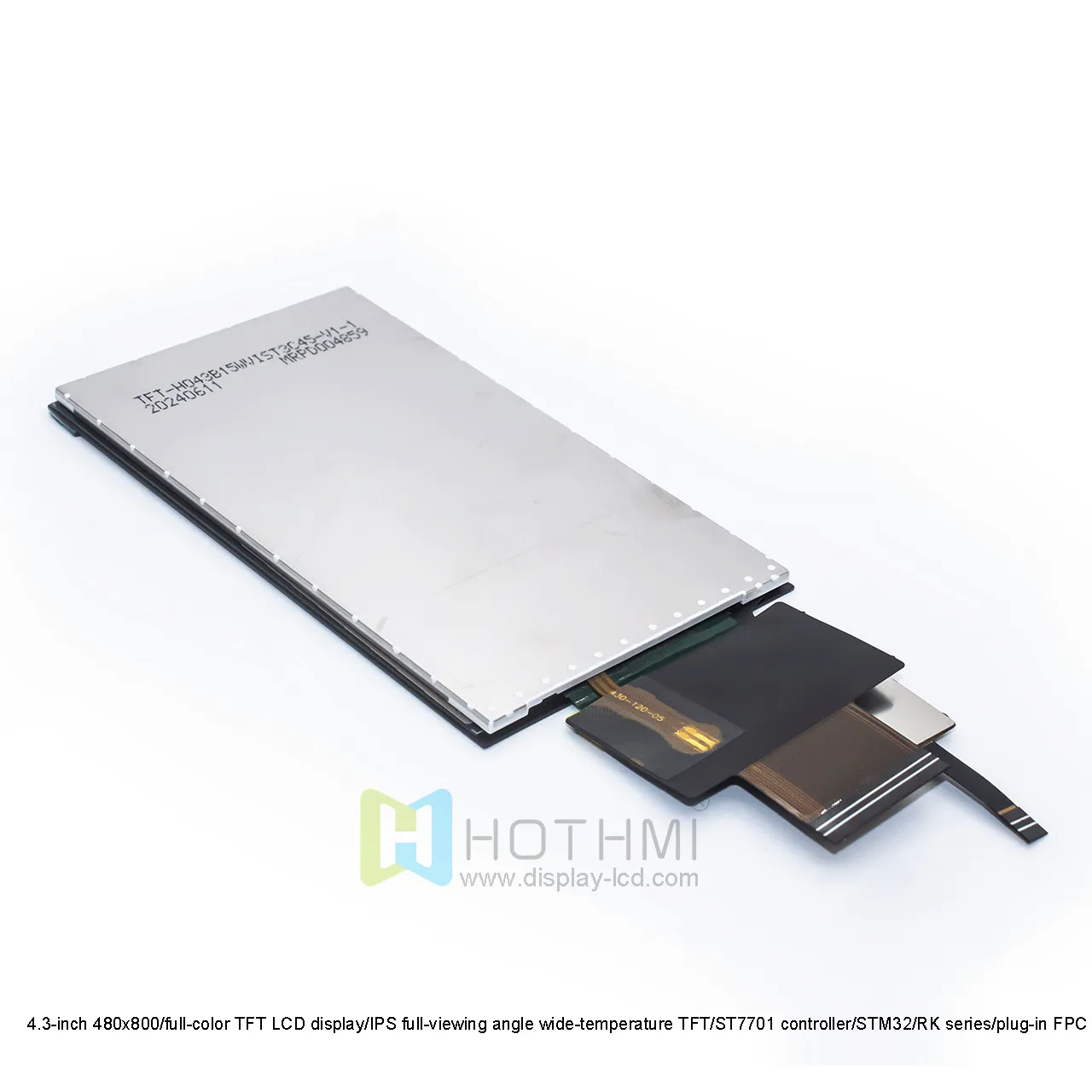

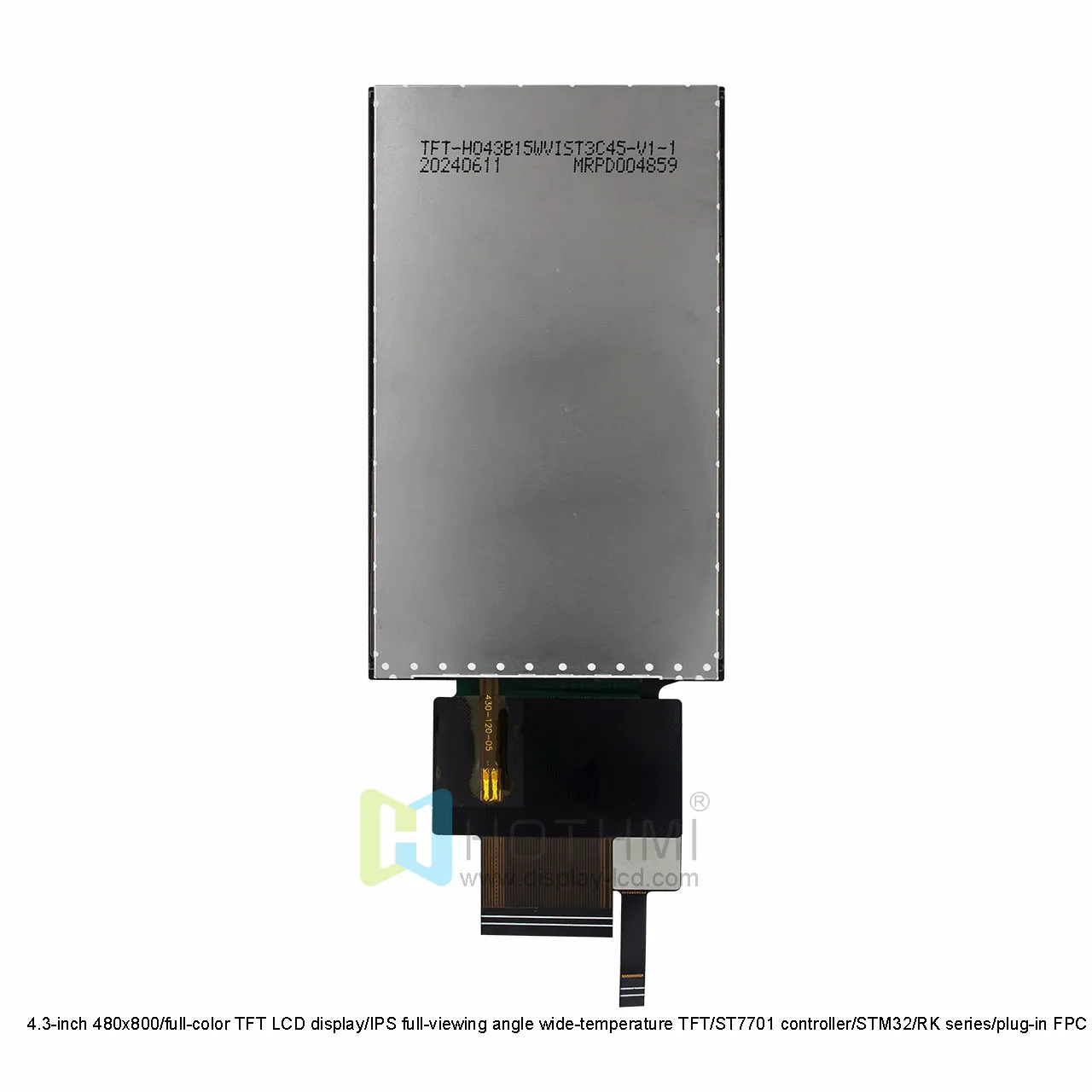

TFT-H043B15WVIST3C45 This is a 4.3-inch full-viewing angle display with a resolution of 480x800, moderate brightness, and high-definition visibility. This model has a capacitive touch function and responds quickly. Built-in ST7701 controller with capacitive touch function, which is controlled by GT911. High image quality, wide viewing angle, support RGB +9b_3SPI(fall)/16b_3SPI(rise) interface, FPC connection (optional connector), 2.8V voltage, and support vertical display. All materials meet environmental protection requirements and RoHS standards. This module is widely used in various instruments, smart devices, etc., and is suitable for 8051 PIC, AVR, ARDUINO, ARM, Raspberry Pi and other single-chip microcomputer development platforms.

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H043B15WVIST3C45
Diagonal size	4.3”	Inch
Resolution	480X800	Dot
Dimensions	66.66x102.97	mm
Active area (AA)	56.16x93.6	mm
LCD type	TFT LCD Display	mm
Display viewing angle	IPS
Aspect ratio	1:1.5
Backlight type	LED white
TFT driver IC	ST7701S<TFT>,GT911<CTP>
Brightness	350	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
