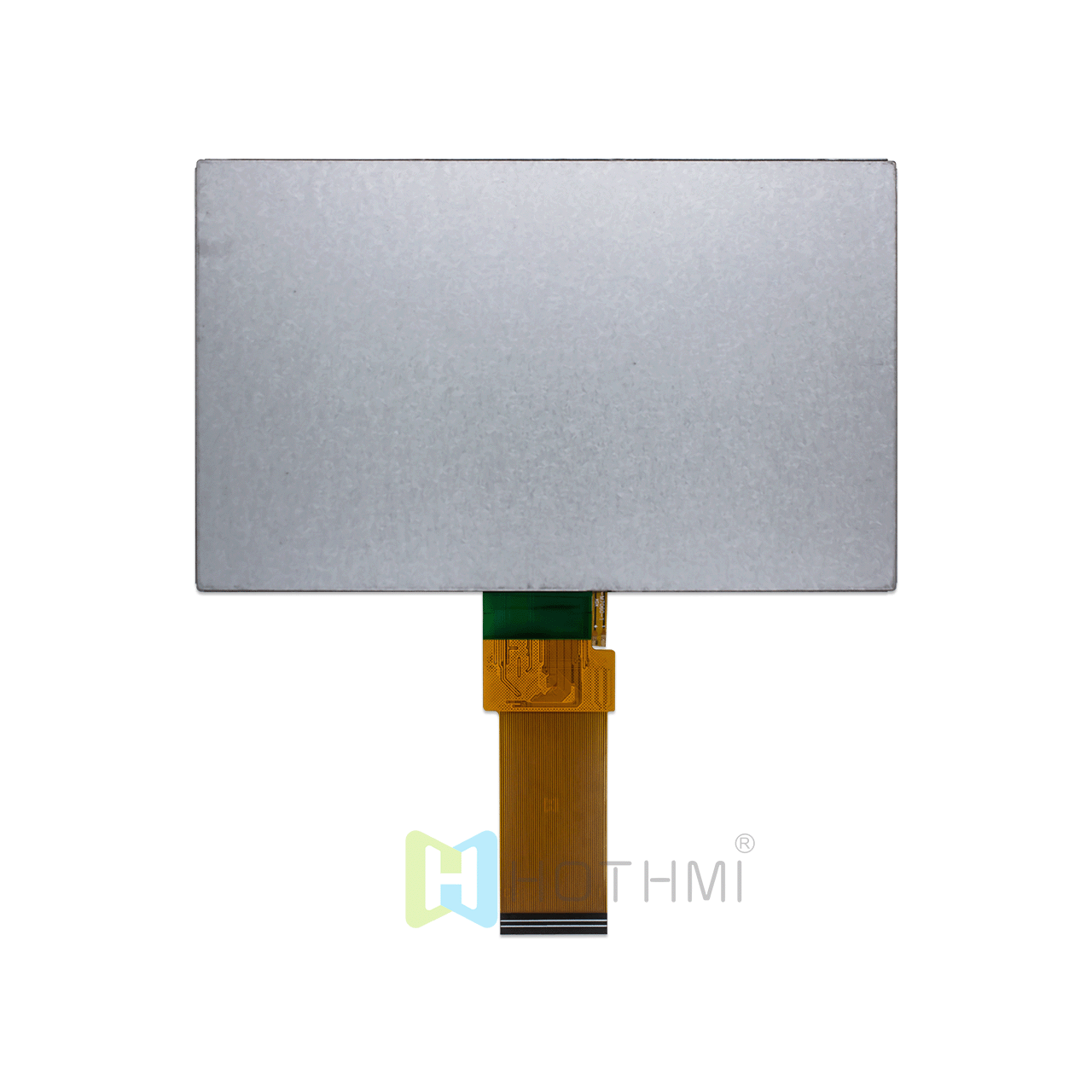

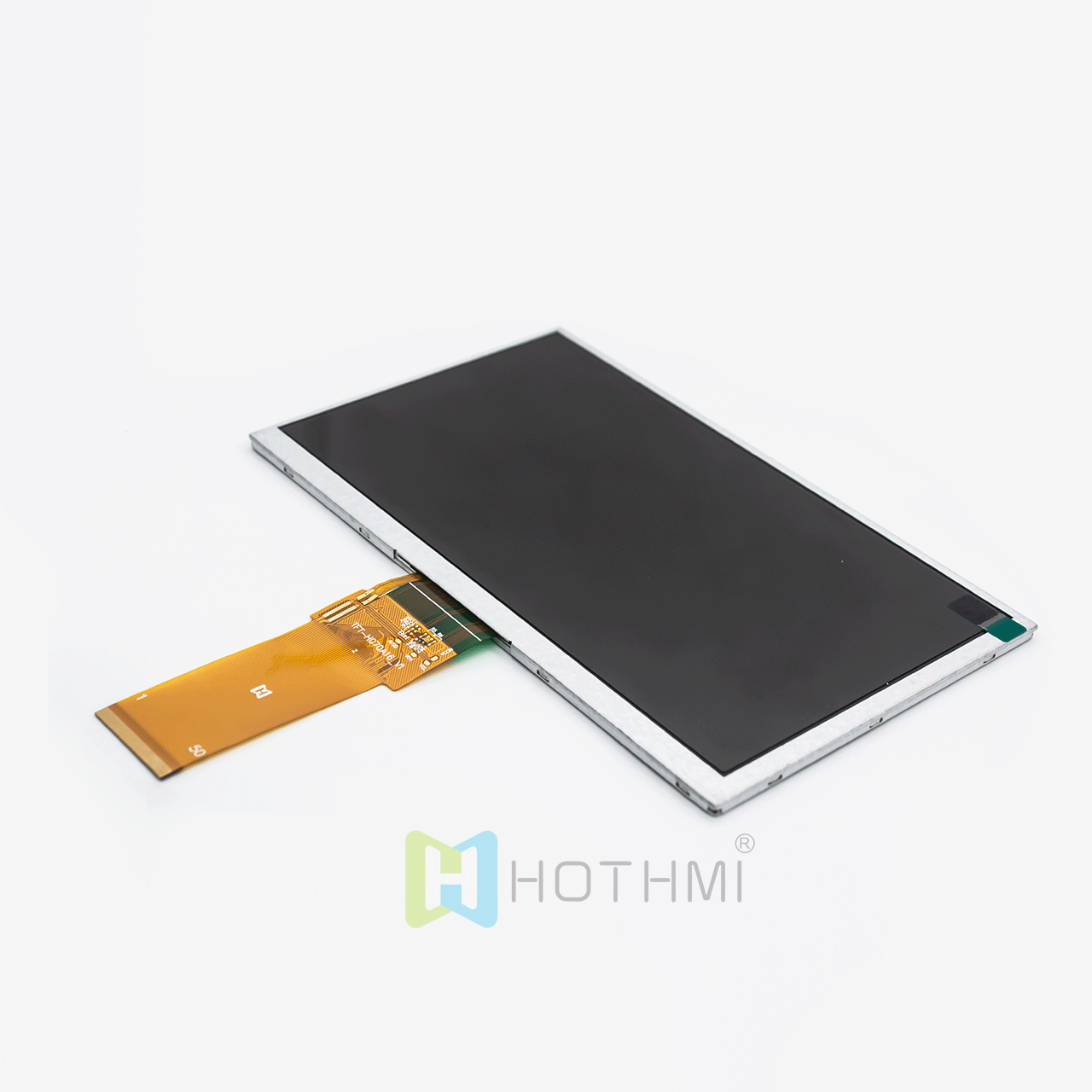

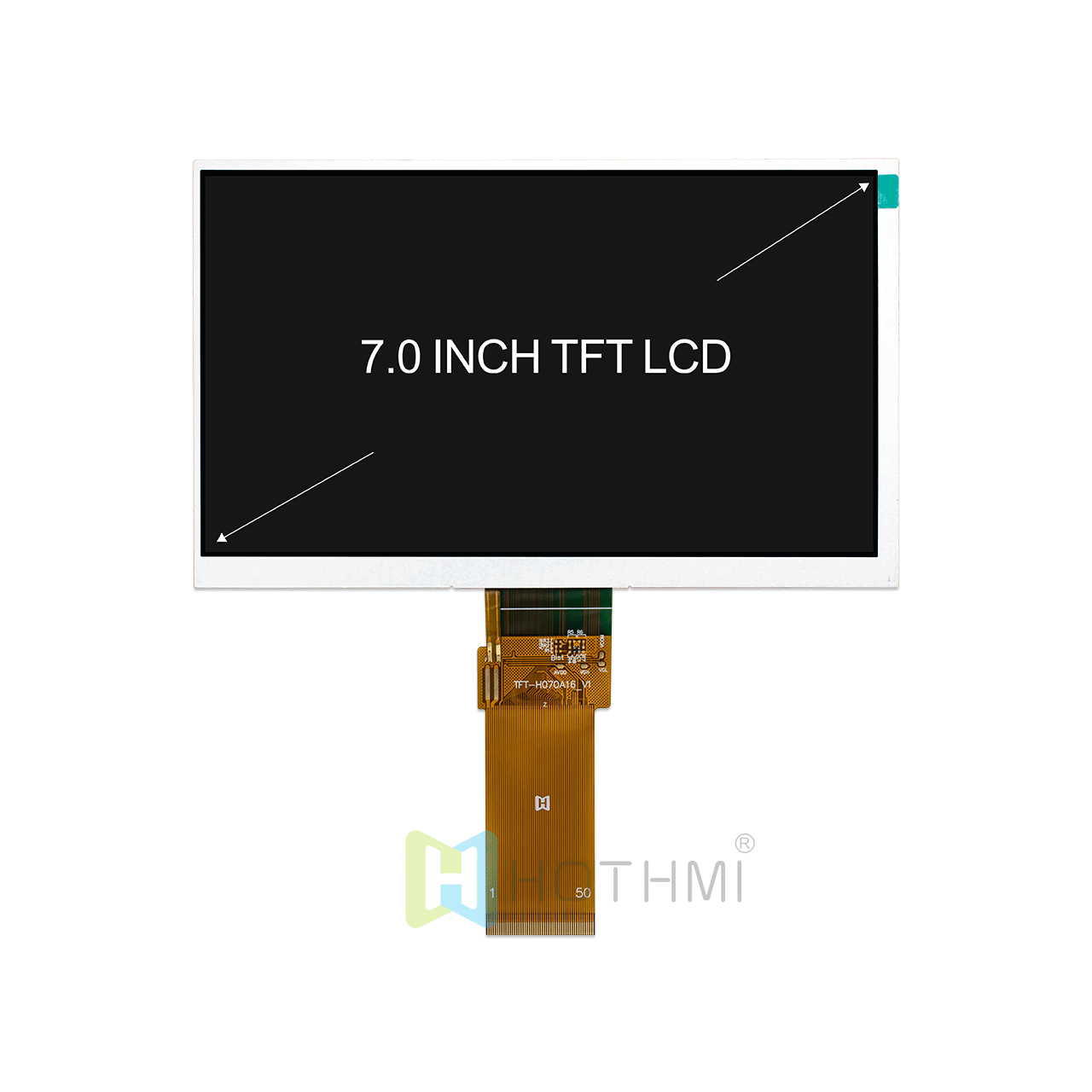

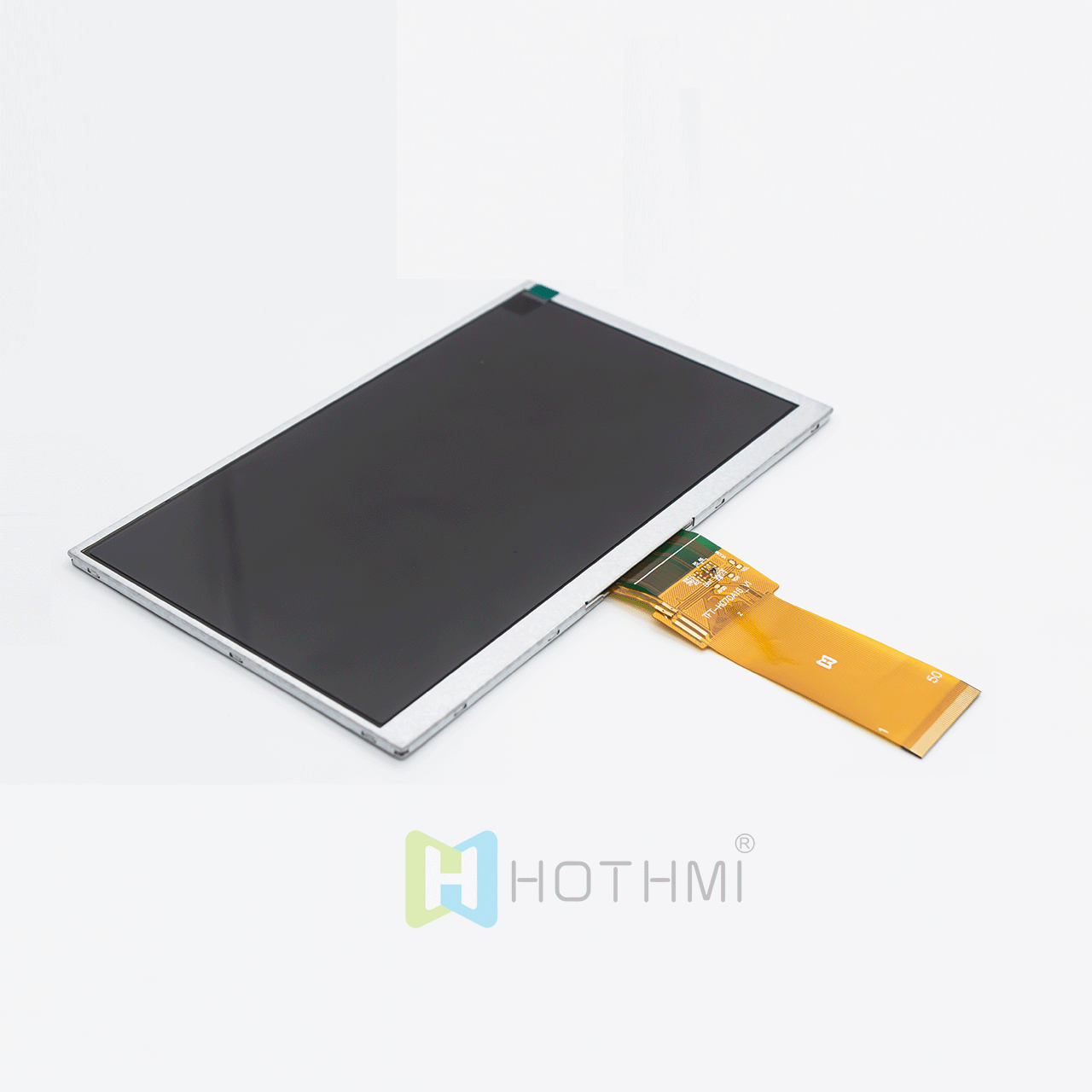

TFT-H070A16SVTFTKN50 | 7.0-inch TN-TFT-LCD | RGB interface | 800x480 pixel resolution LCD screen | optional capacitive touch/resistive touch | readable under sunlight
The TFT-H070A16SVTFTKN50 is a 7.0-inch TN display panel with a resolution of 800x480 pixels. It uses EK9716 display driver IC and plug-in FPC, which can be used with connectors. The TN technology used in this monitor offers wide viewing angles and excellent color reproduction, allowing you to easily view from all angles without distortion. The display features a high contrast ratio of 500:1, delivering deep blacks and vibrant colors. Can be read in sunlight. FPC connection (optional connector), 3.3V voltage, supports vertical screen display. All materials comply with environmental protection requirements and RoHS standards. This module is widely used in various instruments, smart devices, etc., and is suitable for a variety of microcontroller development platforms such as STM32, 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi, etc. .
Customized Ribbon Cables/Flexible Printed Circuits (FPC): Tailor your cables to perfection by adjusting their length, position, and pin arrangements, or adding other connectors. Obtain a precisely designed cable solution to streamline and enhance the safety of your connections |
Touchscreen Add-On Components: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design. |
Interface Customization: Choose from various interface options or consult with our experts to select the options that best suit your project. We can integrate HI,USB, SPI, VGA, and other interfaces into your display to achieve your design goals. |
Cover Glass: Equip your display with custom-cut cover glass to improve durability. Choose from various thicknesses of cover glass and undergo optical bonding to prevent moisture and debris. |
