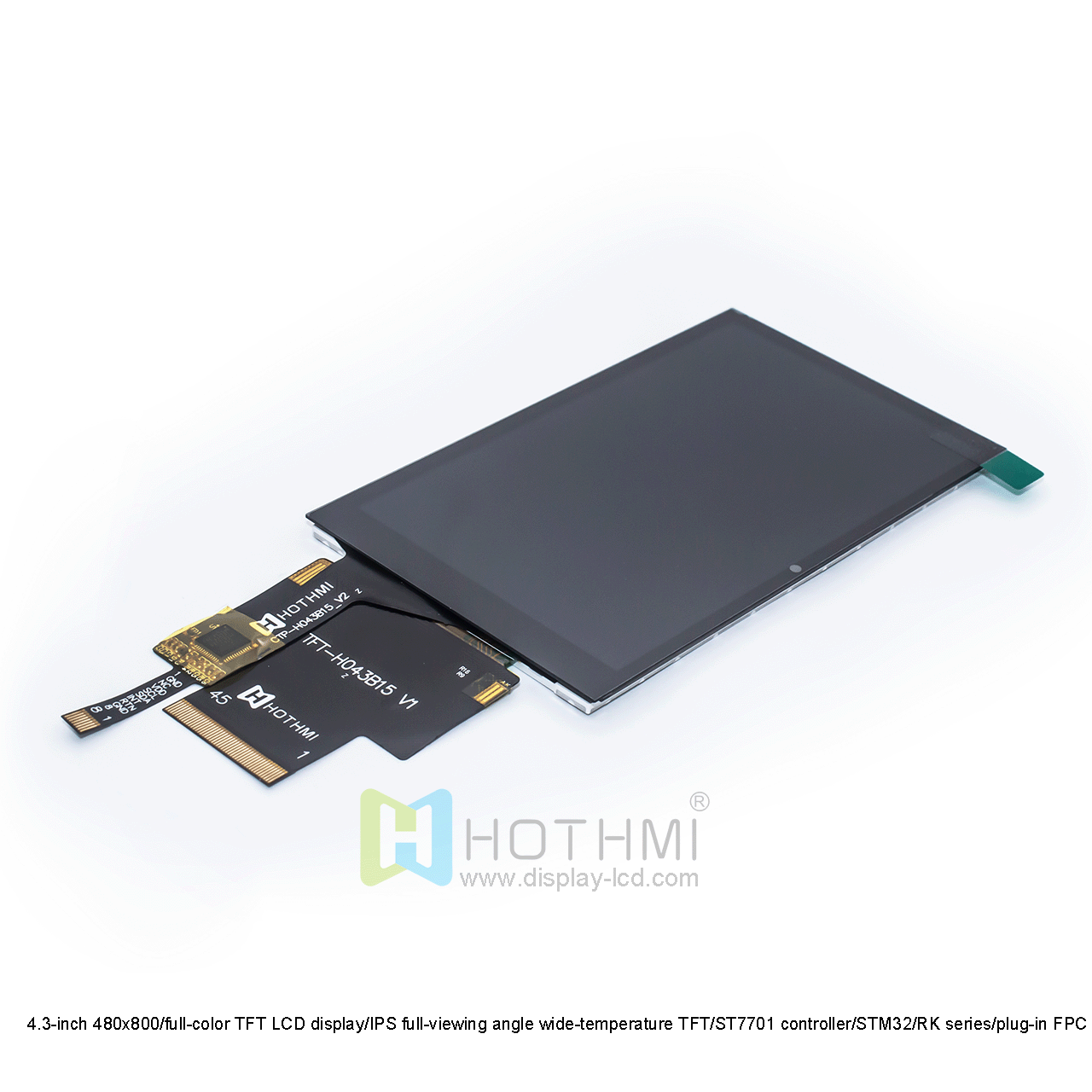

4.3-inch color capacitive touch TFT LCD display / 480x800 capacitive touch screen / ST7701S controller / IPS full-view TFT / FPC plug-in/Arduino

4.3-inch color capacitive touch TFT LCD display / 480x800 capacitive touch screen / ST7701S controller / IPS full-view TFT / FPC plug-in/Arduino

▶ Model: TFT-H043B15WVIST3C45

▶ Type: TFT standard display
▶ Display pixels: 480x800 px
▶ Dimensions (mm): 62.66x102.97x3.85
▶ Display inches: 4.3"
▶ AA size (mm): 56.16x93.6
▶ Application: Industrial control systems, portable electronic devices
▶ Viewing angle: IPS full viewing angle
▶ Backlight/brightness: 350cd/m2
▶ Pin: FPC-45 pin
▶ Interface: RGB +9b_3SPI(fall)/16b_3SPI(rise)PI
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Supply voltage: 1.8V~2.8V
▶ Driver chip: ST7701S<TFT>, GT911<CTP>

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
TFT to HI adapter board

Product Description
Specification
Attributes

4.3-inch color capacitive touch TFT LCD display / 480x800 capacitive touch screen / ST7701S controller / IPS full-view TFT / FPC plug-in/Arduino
4.3-inch color TFT LCD display / ST7701S controller / 480x800 resolution / IPS full-view TFT / FPC plug-in TFT-H043B15WVIST3C45 This display is IPS full-view, no matter which direction you look at it, you can clearly see the displayed content. This model uses FPC connection, and FPC requires a connector. Just connect with our optional welding FPC connector, which is easy to insert or remove. This display also has a brightness of up to 350cd/m2. It can also be viewed in sunlight. This model is a capacitive touch version, and the touch function is controlled by GT911.
For users using 8051 microcontrollers, we have also prepared a detailed tutorial, which includes interface information, demonstration code, and development kits. You can contact us to request and learn. Our displays are RoHS compliant and adhere to strict environmental and safety standards.

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H043B15WVIST4C45
Diagonal size	4.3”	Inch
Resolution	480X800	Dot
Dimensions	62.66X102.97X3.85	mm
Active area (AA)	56.16X93.6	mm
LCD type	TFT LCD Display	mm
Display viewing angle	IPS
Aspect ratio	1:1.7
Backlight type	LED white
TFT driver IC	ST7701S
Brightness	350	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
