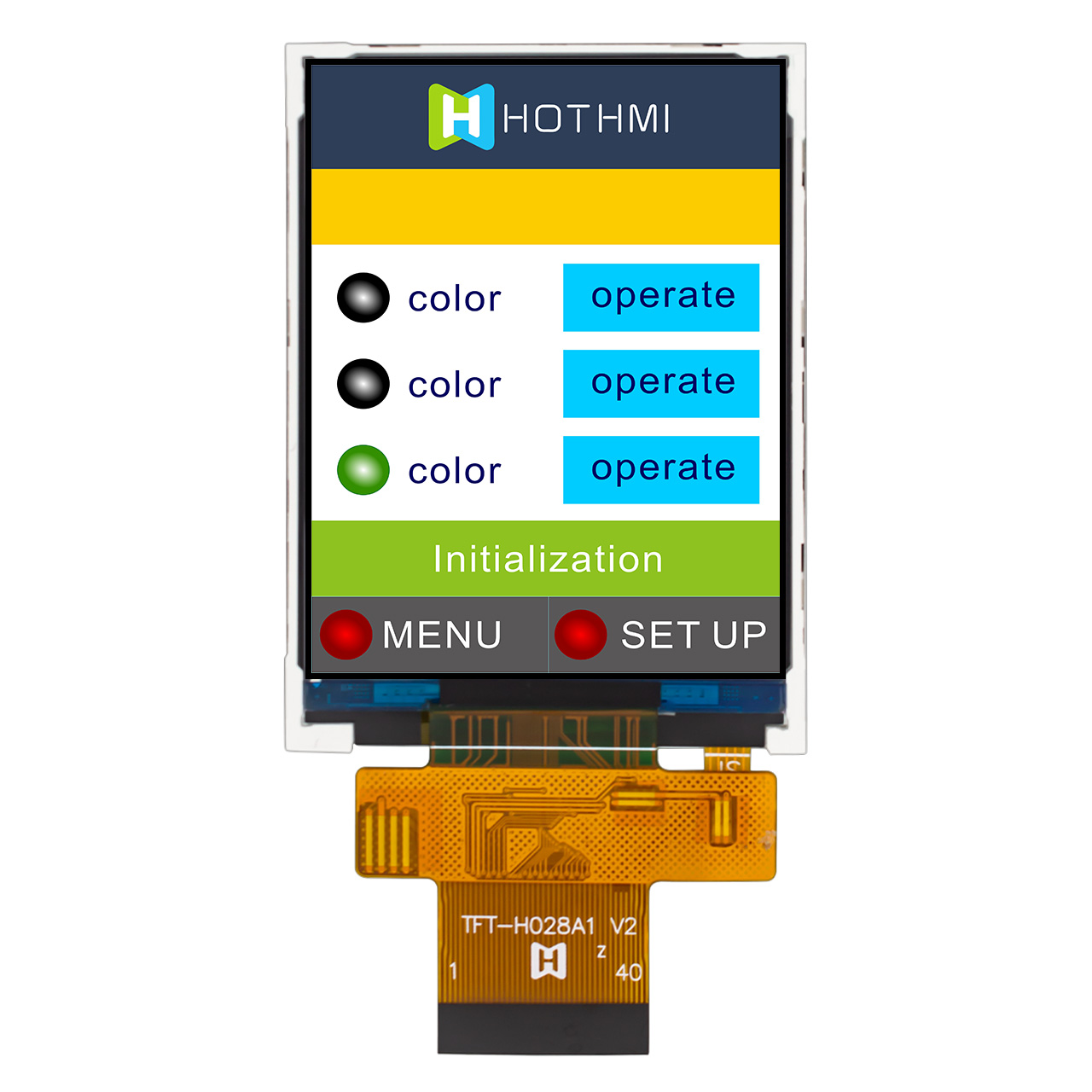

2.8 inch IPS TFT LCD Screen ST7789V Driver chip

2.8 inch IPS TFT LCD Screen ST7789V Driver chip

▶ Model: TFT-H028A1QVIST6N40

▶ Type: TFT LCD display
▶ Display content: 240X320
▶ Display inches: 2.8"
▶ Dimensions (mm): 50.0*69.2*2.3
▶ AA size (mm): 43.2*57.6
▶ Product application: medical monitors, handheld devices
▶ Viewing angle: full viewing angle (U80/D80/L80/R80)
▶ Backlight type or brightness:600cd/M2
▶ Connection method PIN number: 40pin
▶ Interface method: 8080 MCU 8/16 Bit / SPI 3L/4L
▶ Special instructions: without touch screen
▶ Operating temperature: -20~70℃
▶ Supply voltage: +2.8 V
▶ Driver IC: ST7789V

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

EZUI-Let driver board/MCU/SPI (general purpose below 480*320)
EZUI-Let adapter board/MCU/40PIN
typ-c data cable T-port charging data cable/COB adapter board/COG adapter board
USB data cable T-port charging data cable/serial screen/adapter board
EZUI-H Main Control Board-RGB/MCU (Universal for 800*480 and below)
Full-function test development PCB-Bluetooth-WIFI-UART-CAN-LVGL-RS485

Product Description
Customized Services
Attributes

TFT-H028A1QVIST6N40 | 2.8-inch Color LCD | 240x320 Resolution IPS LCD | C8051,Arduino, and STM32
The TFT-H028A1QVIST6N40 is a 2.8-inch TFT LCD with a 240x320 resolution and IPS full-viewing angle, delivering high-definition image quality from any viewing angle. Its brightness is approximately 600 cd/m², and the backlight brightness can be adjusted to suit customer needs. It features a built-in ST7789V controller and is a non-touchscreen model.

This display includes an FPC cable, allowing developers to easily connect it to a development board via plug-in or soldering. This version is touch-free. In the same size range, we offer capacitive touchscreen versions of the 2.8-inch TFT-H028C2QVTST4C45 and resistive touchscreen versions of the TFT-H028A17QVTST2R37. This model does not include a driver board, allowing engineers to freely choose from common development platforms such as Arduino, C8051, or LVGL. If developers lack development capabilities, we also offer the HTM-H028A16-USART-ST V2.0 smart TFT module with a driver board, or the HTM-TFT028A16-SPI module with SPI communication.

This 2.4-inch display is suitable for a variety of industries and applications, including industrial, commercial, control, PLC, outdoor handheld devices, aviation, consumer electronics, medical equipment, automotive dashboards, kiosks, field engineering, agriculture, and outdoor sports equipment. All our products are ROHS compliant.

Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.Optional surface treatment: AF (anti-fingerprint oil) / AG (anti-glare) / AR (anti-reflection).

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H028A1QVIST6N40
Diagonal size	2.8”	Inch
Resolution	240X320	Dot
Dimensions	50.069.22.3	mm
Active area (AA)	43.2*57.6	mm
LCD type	TFT LCD	mm
Display viewing angle	U80/D80/R80/L80
Aspect ratio	4:3
Backlight type	LED white
TFT driver IC	ST7789V
Brightness	300	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
