2.2寸 128X128图形COG液晶屏 | DFSTN - | 黑底白字 | SPI | UC1617S

2.2寸 128X128图形COG液晶屏 | DFSTN - | 黑底白字 | SPI | UC1617S | Arduino

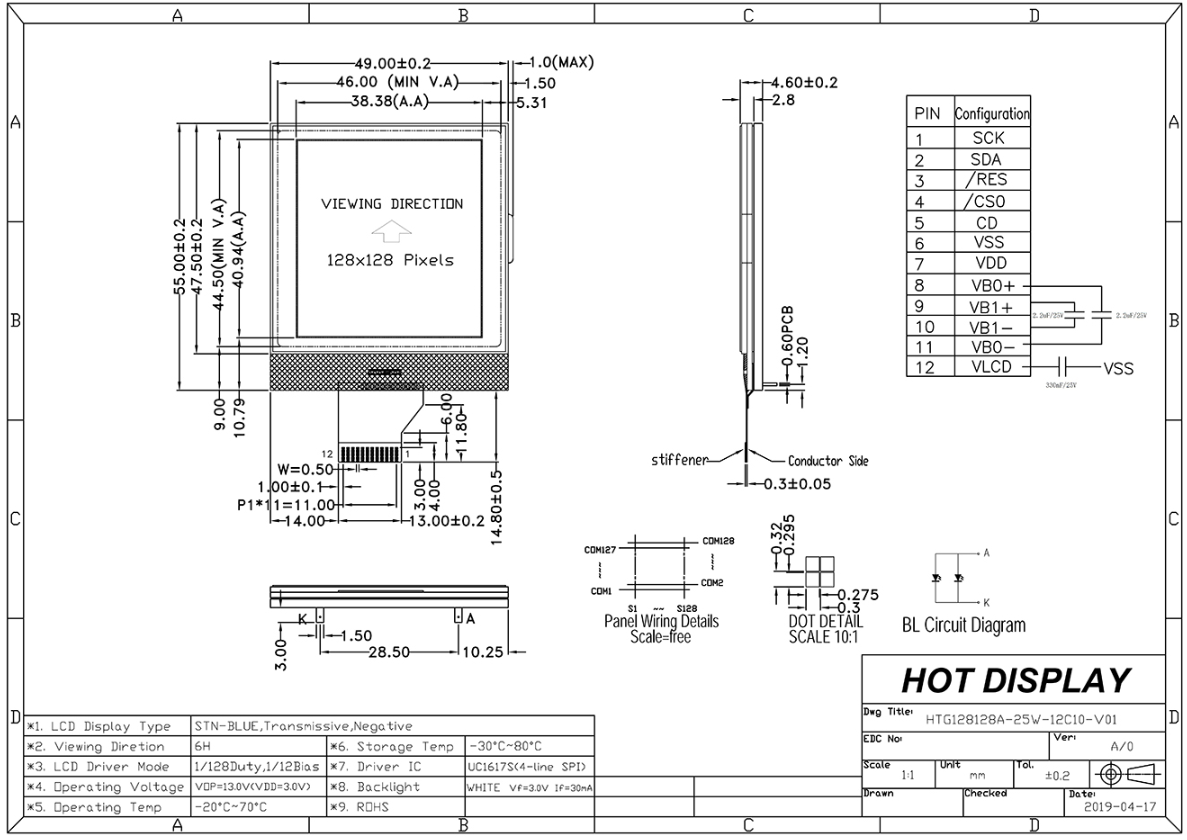

▶ 型号: HTG128128A-47W-12C10-V01

▶ 类型：COG图形点阵
▶ 显示像素：128x128
▶ 外形尺寸(mm) ：55.0x49.0x4.6
▶ 显示英寸：2.2"
▶ VA尺寸(mm)：46.0x44.5
▶ AA尺寸(mm) ：40.935x38.375
▶ 点间距(mm) ：0.295x0.275
▶ 应用：仪器仪表
▶ 视角：12H
▶ 背光/亮度：白光
▶ 引脚：FPC-12PIN
▶ 接口方式：SPI
▶ 工作温度：-20~70℃
▶ 特殊说明：抗静电ESD 8KV
▶ 供电电压：3.0V
▶ 驱动芯片：UC1617S

产品咨询数据下载索取Demo Code
- 运输
- 付款
- 税款
- 保证
- 退回
- 停产
运输

国内快递我司与顺丰有合作,国外和DHL进行合作,您可以我们联系咨询运费以及重量得到最新的报价。

付款

不支持线上付款，可通过对公账户转账,若开增值税票请联系我司销售人员获取对公账户.

税款

此网站出售的所有产品都不含税,若需要增值税票请与我司销售人员联系线下购买。

保证

此网站出售的所有产品质保一年,若因客户使用不当造成的损坏免费维修,收取材料成本费用。

退回

质保期内的产品可退回维修或换新, 退回前请先与我司销售人员联系确认退货原因后再退回。

停产

我们承诺长期生产此网站销售的所有产品,若IC或面板停产,将尽量使用兼容物料替换。

上一个 返回 下一个

相关配件

单色COG/图形COB/字符COB/OLED模组/E-paper模组/段码屏 8051测试板
单色COG/图形COB/字符COB/OLED模组/E-paper模组/段码屏 STM32测试板
COG转接板

产品描述
定制服务
属性

2.2寸 128X128图形COG液晶屏 | DFSTN - | 黑底白字 | SPI | UC1617S | Arduino
这款 HOT Display 128x128 图形玻璃芯片 (COG) 液晶显示屏是黑色背景白色像素。这款半透式 LCD 显示器经过精心设计，可在多种不同环境的各种照明条件下提供最佳可视性。在明亮的阳光下，显示屏利用偏光片反射性，将图像反射给观赏者，使屏幕易于阅读。在较暗的环境中，LCD 内置有强背光，可提供高对比度并向观看者显示清晰的图形。这种先进的显示技术可确保无论照明条件如何，显示屏始终易于阅读。这款显示屏还可以根据需要配置黄绿色，白色，绿色。琥珀色，蓝色，红色，橙色等背光，可选择性滴搭配STN+,STN-,DFSTN-,FSTN+,TN+,TN-等模式。
该图形 LCD 显示模块与 Arduino/C8051 完全兼容，可与其他电子系统无缝连接，适用于各种应用。这款产品型号专为承受恶劣的工作条件而设计，在 -20 至 70 摄氏度的温度范围内使用时运行异常。该 LCD 的最佳视角为 12:00，工作电压为 3.3V，并且符合 RoHS 标准

参数	规格内容	单位
型号	HTG128128A-47W-12C10-V01
分辨率	128 x 128	dots
模组尺寸	55.0（W） × 49.0 （H） × 4.6 （T）	mm
可视(VA)区域	46.0 x 44.5	mm
有效(AA)区域	40.935（W） × 38.375（H）	mm
像素间距	0.295（W） × 0.275（H）mm	mm
IC	UC1617S
应用电压	3.0V	V
背光	白色
显示模式	DFSTN(-)
驱动模式	1/128 duty cycle
产品类型	图形 LCD
特性	全透

搜索关键词: 2.2 128X128 图形 COG DFSTN -SPI UC1617S Arduino LCD
