2 inch 128 x 64 Graphic LCD | For Arduino | White Backlight | 128x64 Graphic LCD Module | ST7567 SPI | STN Negative Display

2 inch 128 x 64 Graphic LCD | For Arduino | White Backlight | 128x64 Graphic LCD Module | ST7567 SPI | STN Negative Display | White Characters on Blue Background

▶ Model: HTM12864-117-25W-A5P

▶ Type: LCM with Chinese font
▶ Display pixels: 128x64

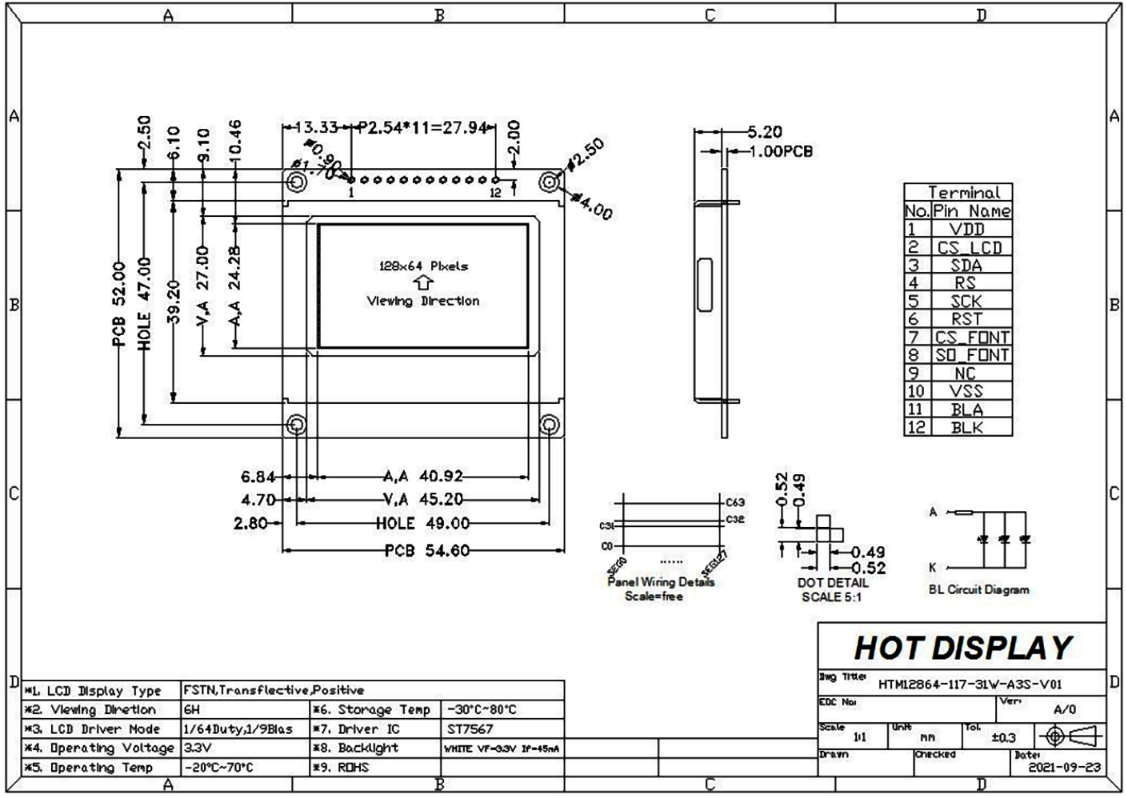

▶ Overall dimensions (mm): 54.6x52.0x5.2
▶ VA size (mm): 45.2x27.0
▶ AA size (mm): 40.92x24.2
▶ Point spacing (mm): 0.52x0.52
▶ Application: Industrial instrumentation
▶ Viewing angle: 6H
▶ Backlight/Brightness: white
▶ Pin: 12PIN
▶ Interface mode: SPI
▶ Special instructions: Optional font library
▶ Working temperature: -20~70℃
▶ Power supply voltage: 3V/5V optional
▶ Driver chip: ST7567

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

2 inch 128 x 64 Graphic LCD | For Arduino | White Backlight | 128x64 Graphic LCD Module | ST7567 SPI | STN Negative Display | White Characters on Blue Background

2 inch 128 x 64 Graphic LCD Blue Background with 128x64 monochrome white pixels cob (chip on PCB board) LCD module, ST7567 controller, compact size, high contrast, wide operating temperature, white LED backlight, stn-lcd negative, optional pin header and font chip (contains Chinese characters or ISO8859, ASCII, Unicode, LCM characters), it is a 4-wire serial spi interface.

It can be easily controlled by MCUs such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi. It can be used in any embedded system, industrial equipment, security, medical and handheld devices.

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

参数	规格参数	单位
名字	HTM12864-117-25W-A5P
图形显示	128 × 64 点阵	dots
外形尺寸	54.6x 52 x 5.2 (MAX)	mm
VA大小	45.2 x 27.0	mm
AA大小	40.92 x 24.2	mm
像素间距	0.52 x 0.52	mm
驱动芯片	st7567
应用电压	5V	V
背光照明	White
显示模式	STN(-)
驱动模式	1/64 duty cycle
产品类型	图形LCD
偏振器类型	全透偏光片
