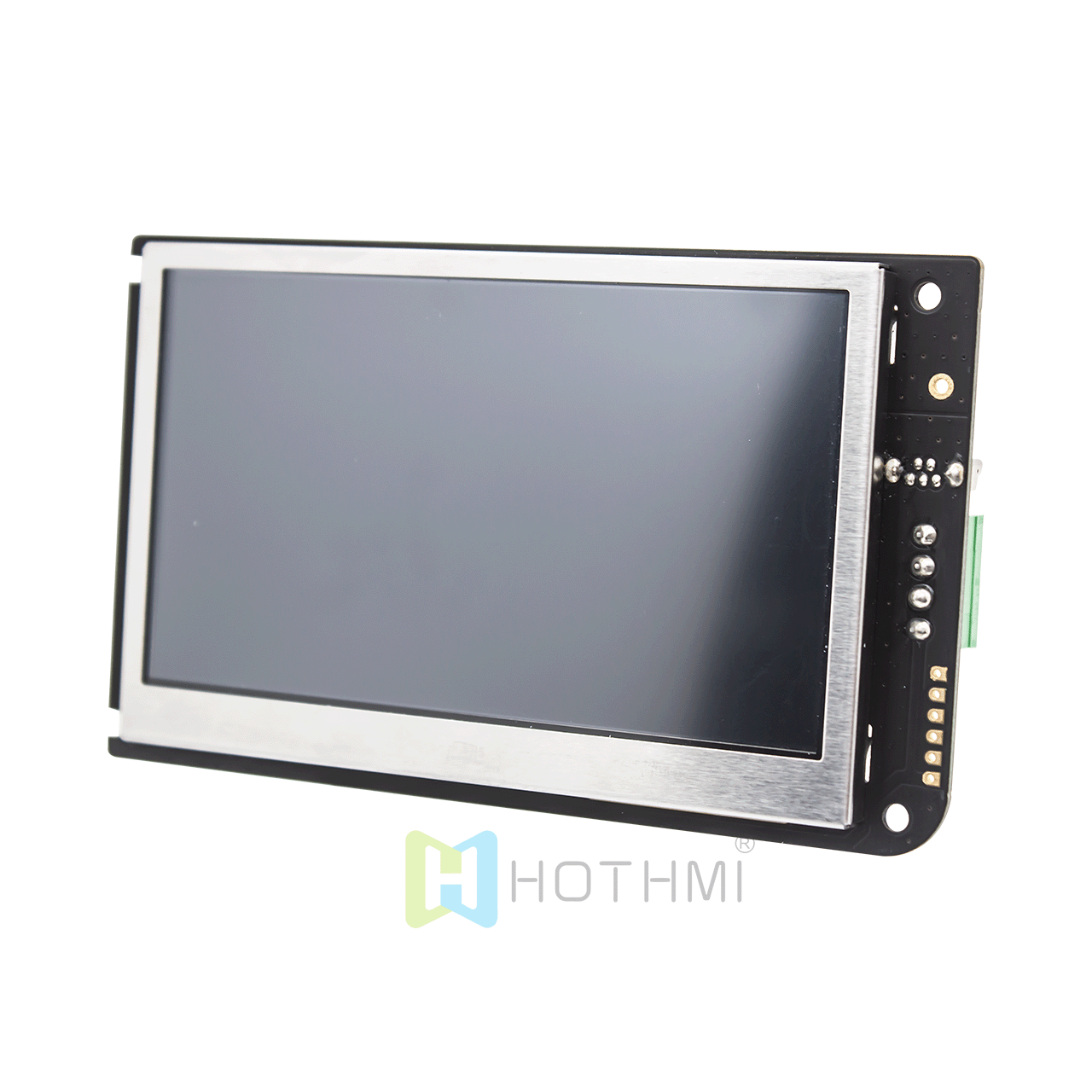

What is the display of UART?

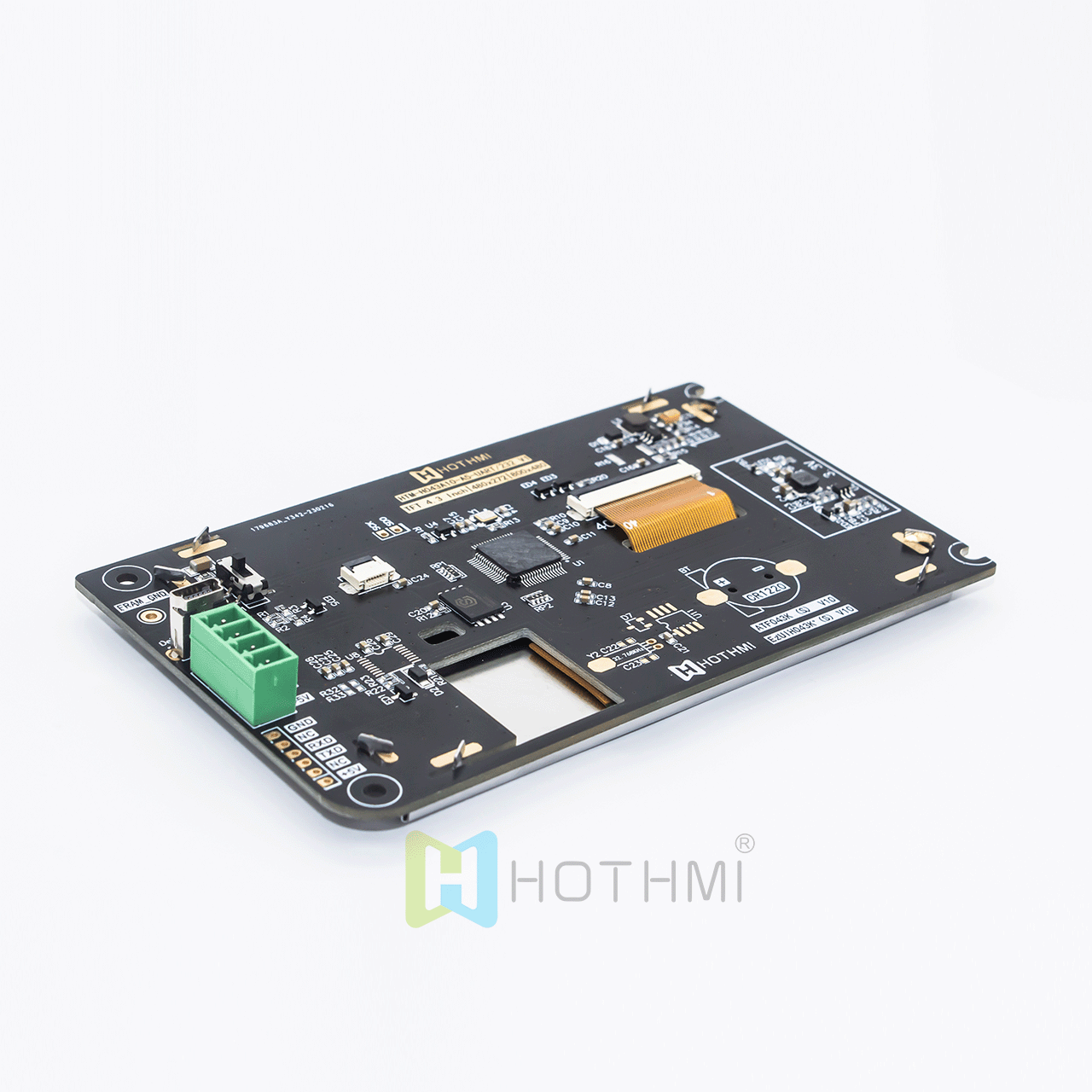

UART display is a type of LCD screen that uses UART serial port for communication. It sends instructions to the display through a microcontroller or other controller, and the display can automatically complete drawing and display operations on the screen. The HOTDISPLAY UART monitor consists of two parts: hardware and software. The hardware part includes a processor, LCD screen, resistive or capacitive touch screen FLASH memory RS232 or 485 serial port chip, audio and video decoding chip, and SD card slot. Some models also integrate modules such as WIFI, 4G, Bluetooth, voice recognition, facial recognition, and fingerprint recognition. The software part consists of system software running on the display screen and interface development software UI Editor running on the PC. Users use UI Editor to create an interface on a PC, generate a "Project BIN file", and then use the UART port The USB port or SD card will download the file to the FLASH of the monitor, and the monitor will automatically load and run these files, displaying the corresponding interface and content.
HOTDISPLAY UART displays are widely used in many industries due to their simple operation and powerful functions. The industrial automation, power, and telecommunications industries use it to monitor and control the status of production lines and equipment, while the environmental and medical fields use it for environmental monitoring and display terminals of medical instruments. Industries such as finance, petrochemicals, transportation, and energy also extensively use this type of display screen for equipment operation and information display. The fields of public query and monitoring, smart home appliances, railways, data centers, charging stations, national defense and security, and shared devices also benefit from their convenient graphical interface development and display solutions. These application scenarios demonstrate the wide applicability and importance of HOTDISPLAY UART displays in various industries.
Customized Ribbon Cables/Flexible Printed Circuits (FPC): Tailor Your Cables To Perfection By Adjusting Their Length, Position, And Pin Arrangements, Or Adding Other Connectors. Obtain A Precisely Designed Cable Solution To Streamline And Enhance The Safety Of Your Connections |
Touchscreen Add-On Components: Enhance Your User Experience With Capacitive Or Resistive Touchscreen Technology. We Can Adjust The Glass Thickness Or Shape Of The Touchscreen To Ensure A Perfect Fit For Your Design. |
Interface Customization: Choose From Various Interface Options Or Consult With Our Experts To Select The Options That Best Suit Your Project. We Can Integrate HI,USB, SPI, VGA, And Other Interfaces Into Your Display To Achieve Your Design Goals. |
Cover Glass: Equip Your Display With Custom-Cut Cover Glass To Improve Durability. Choose From Various Thicknesses Of Cover Glass And Undergo Optical Bonding To Prevent Moisture And Debris. |
