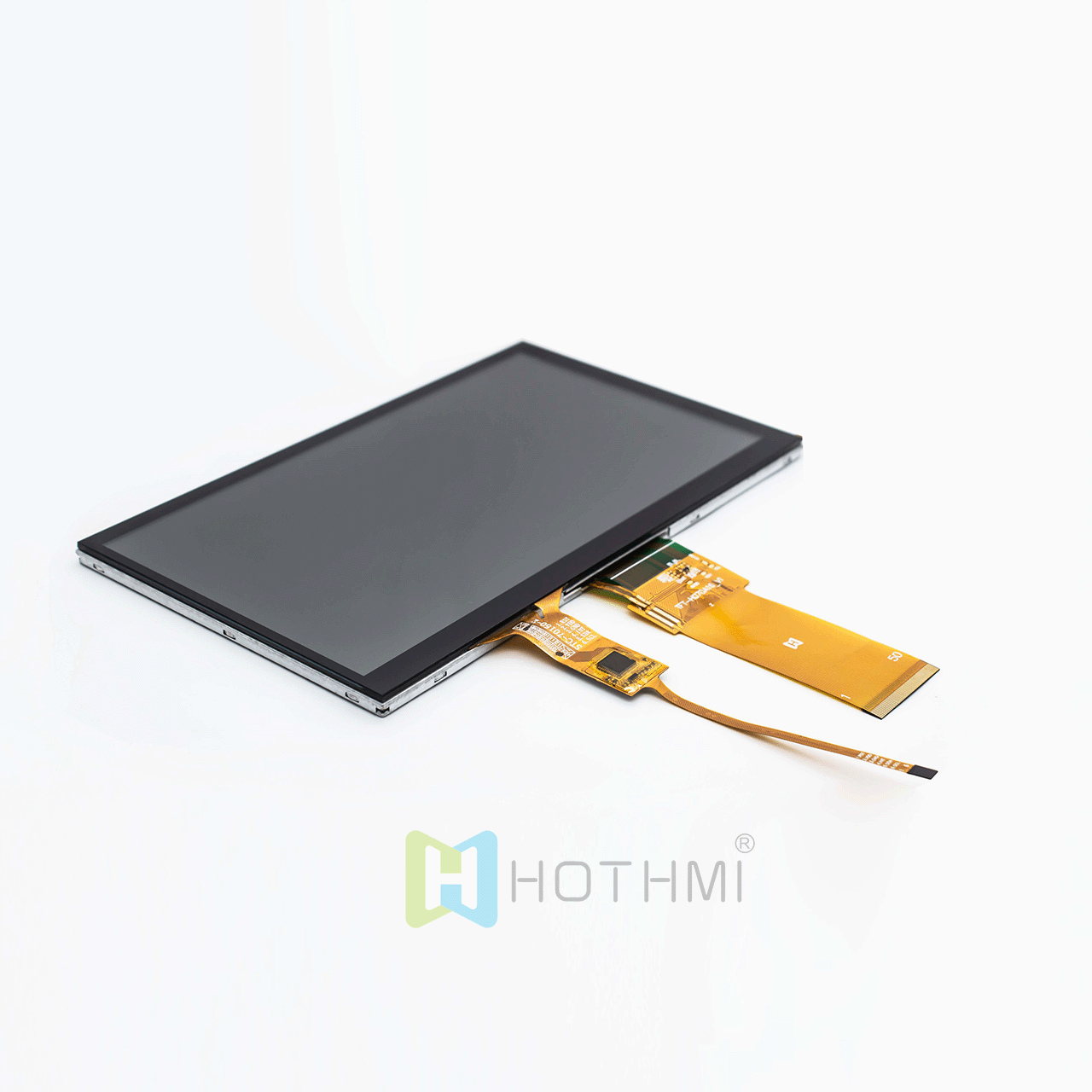

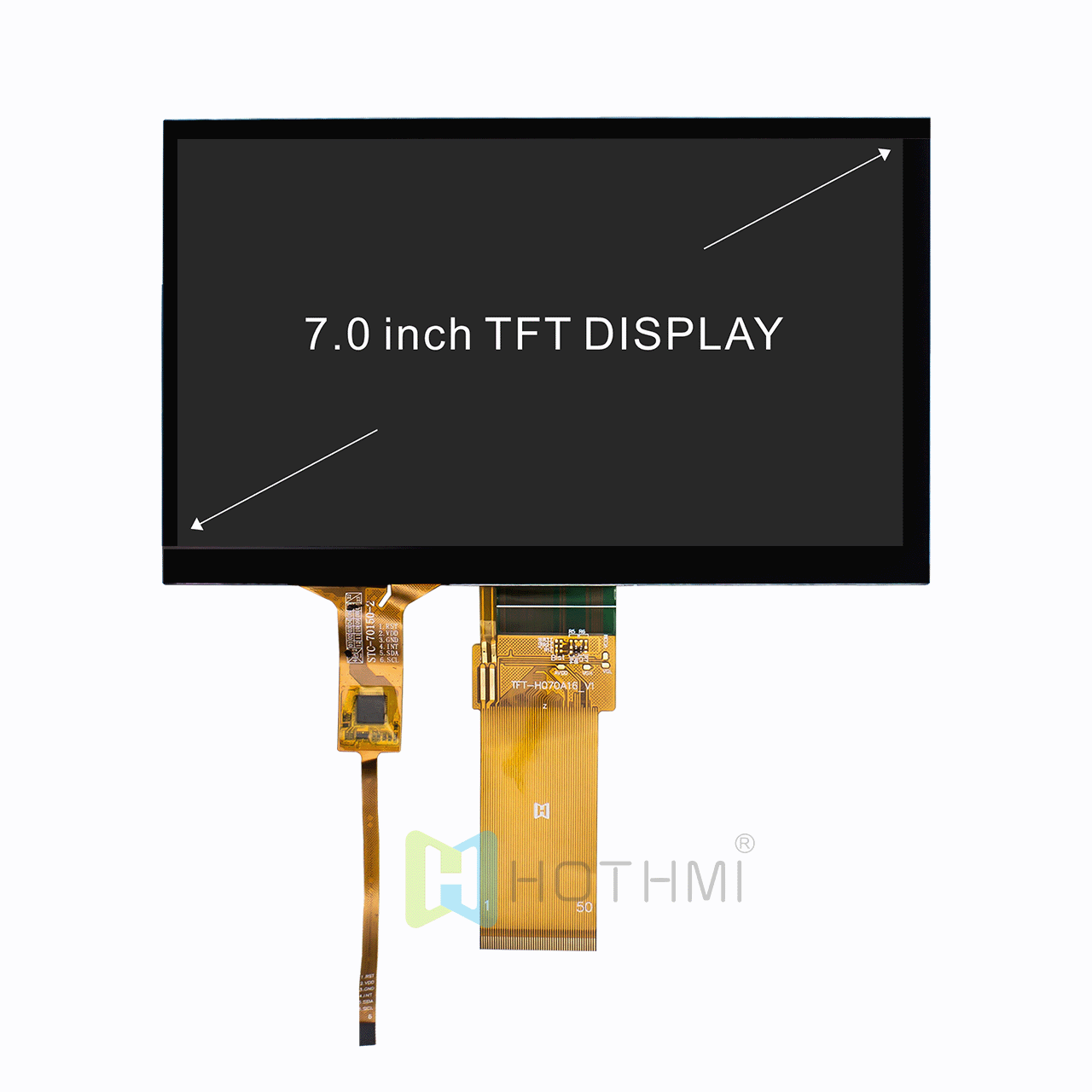

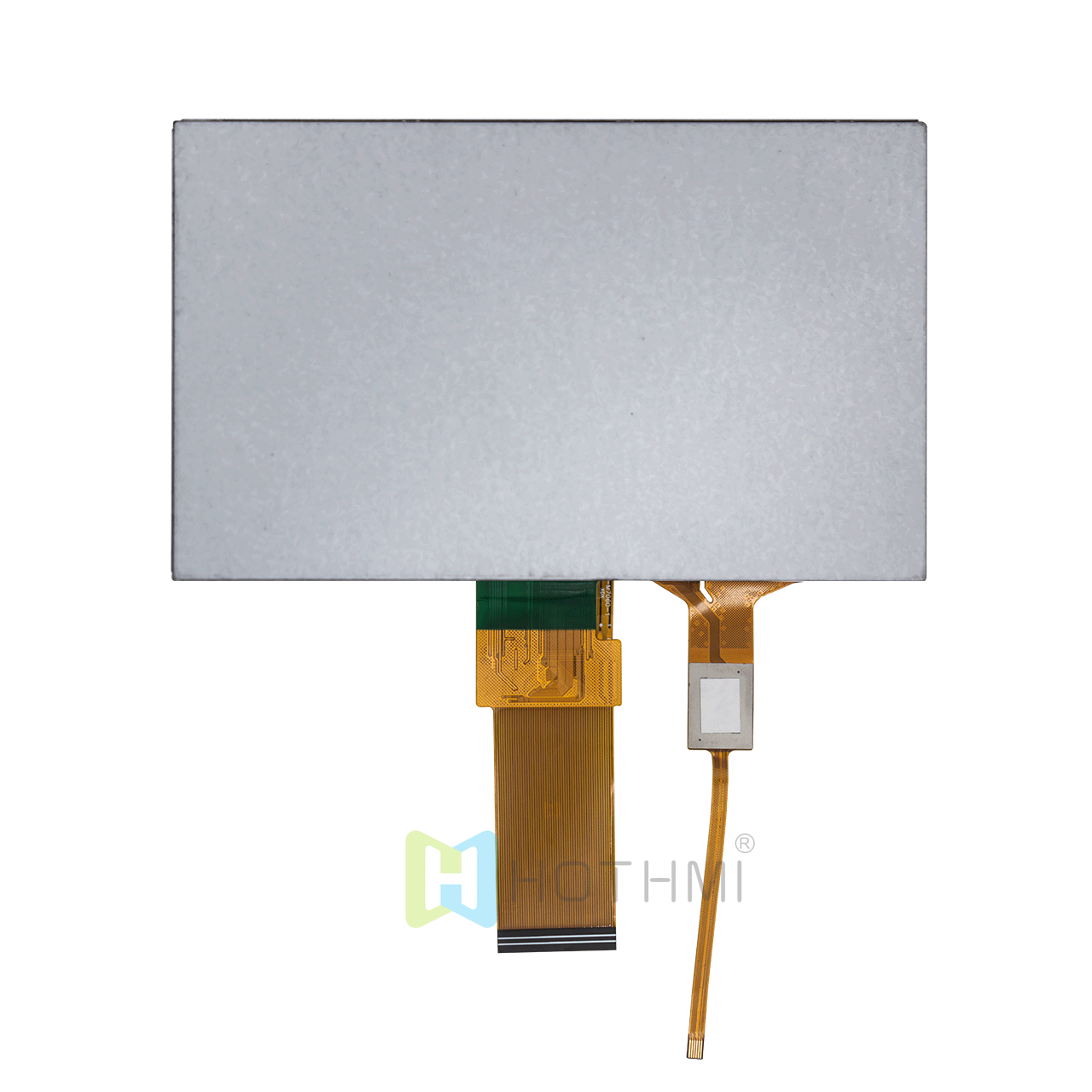

7 inch 800x480px TN Sunlight Readable Capacitive TFT LCD Display Module RGB

7 inch 800x480px TN Sunlight Readable Capacitive TFT LCD Display Module RGB

▶ Model: TFT-H070A16SVTFT8C50

▶ Product type: TN TFT capacitor module
▶ Dot matrix: 800x480 Px
▶ Overall dimensions (mm): 165x100x7.5
▶ Diagonal size: 7.0"
▶ Effective size (mm): 153.84x85.63
▶ Application: STM32/RK series
▶ Display viewing angle: U60/D70/L70/R70
▶ Brightness: 850cd/m2
▶ Pin: FPC-50PIN
▶ Interface: RGB
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 3.3V
▶ Driver chip: EK9716
▶ Touch panel: capacitive touch (GT911)

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
TFT to HI adapter board

Product Description
Specification
Attributes
Download Related Materials

TFT-H070A16SVTFT8C50-CTP|7.0-inch TN-TFT-LCD|RGB interface|800x480 pixel resolution LCD screen|Optional capacitive touch/resistive touch|Readable in sunlight

This 7" sunlight-readable TFT LCD offers an 800x480 resolution equipped with a powerful backlight and delivers a luminance of 850 cd/m2, providing visibility in bright lighting conditions, including direct sunlight. The 24-bit LCD has an RGB interface and a 12:00 optimal view. This Liquid Crystal Display is RoHS compliant and compliant with Arduino and other similar boards. It features a 3M brightness enhancing film (BEF) to help increase the backlight intensity and brightness.The transmissive display mode and the 10-point multi-touch capacitive touchscreen make this 7-inch LCD screen the perfect display for indoor and bright outdoor devices. Some industries and applications include industrial, commercial, controls, PLCs, handheld devices for outdoor use, aviation, consumer electronics, medical devices, automotive dashboards, kiosks, field engineering, agriculture, outdoor sports equipment, and many more.

Customized Ribbon Cables/Flexible Printed Circuits (FPC):

Tailor your cables to perfection by adjusting their length, position, and pin arrangements, or adding other connectors. Obtain a precisely designed cable solution to streamline and enhance the safety of your connections

Touchscreen Add-On Components:

Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization:

Choose from various interface options or consult with our experts to select the options that best suit your project. We can integrate HI,USB, SPI, VGA, and other interfaces into your display to achieve your design goals.

Cover Glass:

Equip your display with custom-cut cover glass to improve durability. Choose from various thicknesses of cover glass and undergo optical bonding to prevent moisture and debris.

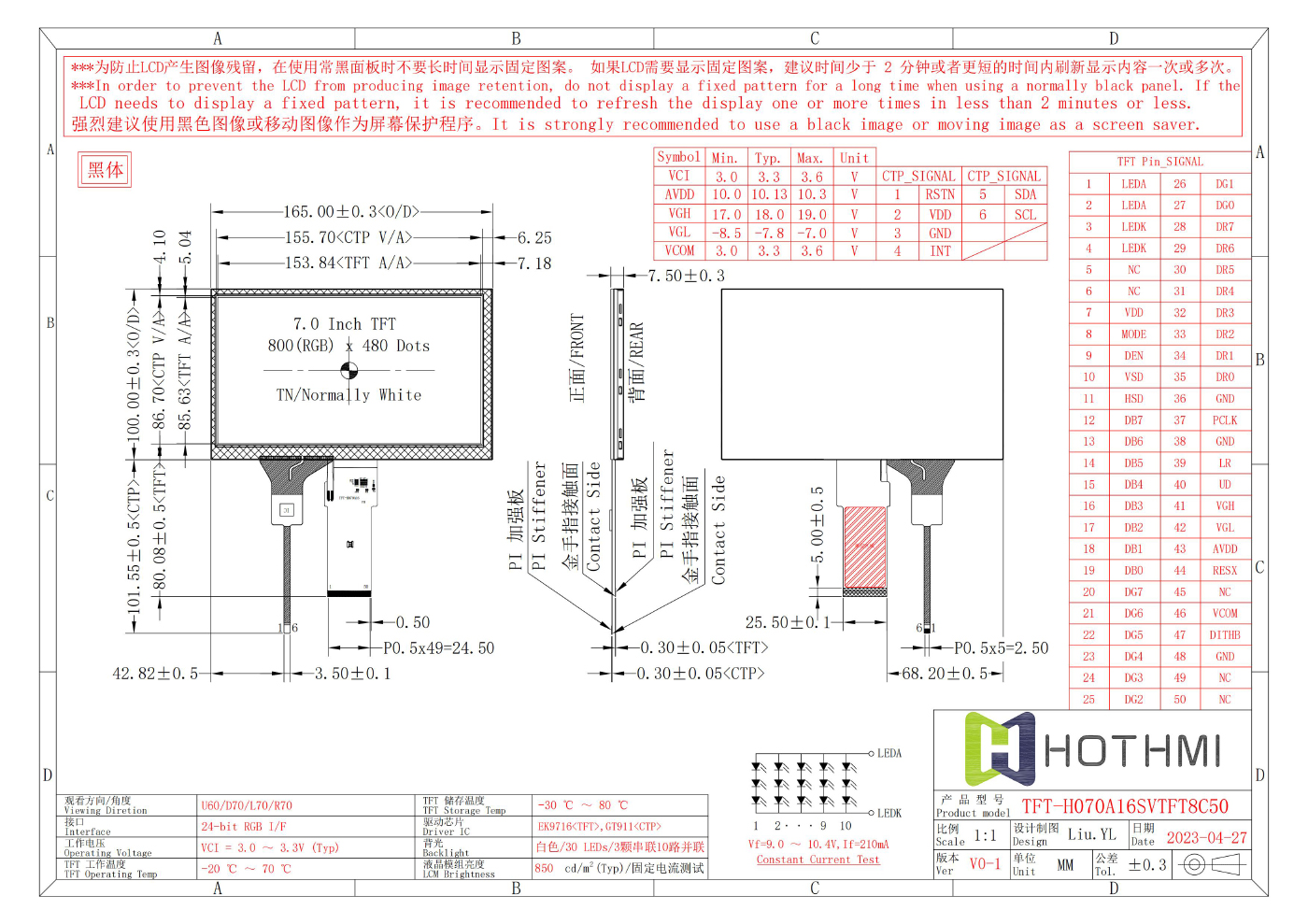

project	Parameter Description	unit
TFT series	Standard TFT
Diagonal size	7.0”	Inch
Resolution	800 × RGB × 480 (TFT)	dots
Dimensions	165x100x7.5	mm
Effective area (AA)	153.84x85.63	mm
LCD type	TN TFT
Display perspective	U60/D70/L70/R70
Aspect ratio	1.1:2
Backlight type	LED, white
TFT driver IC	EK9716
Touch panel	GT911
Surface	Glossy
Brightness	850	cd/㎡
Operating temperature	-20~+70	°C
Storage temperature	-30~+80	°C
