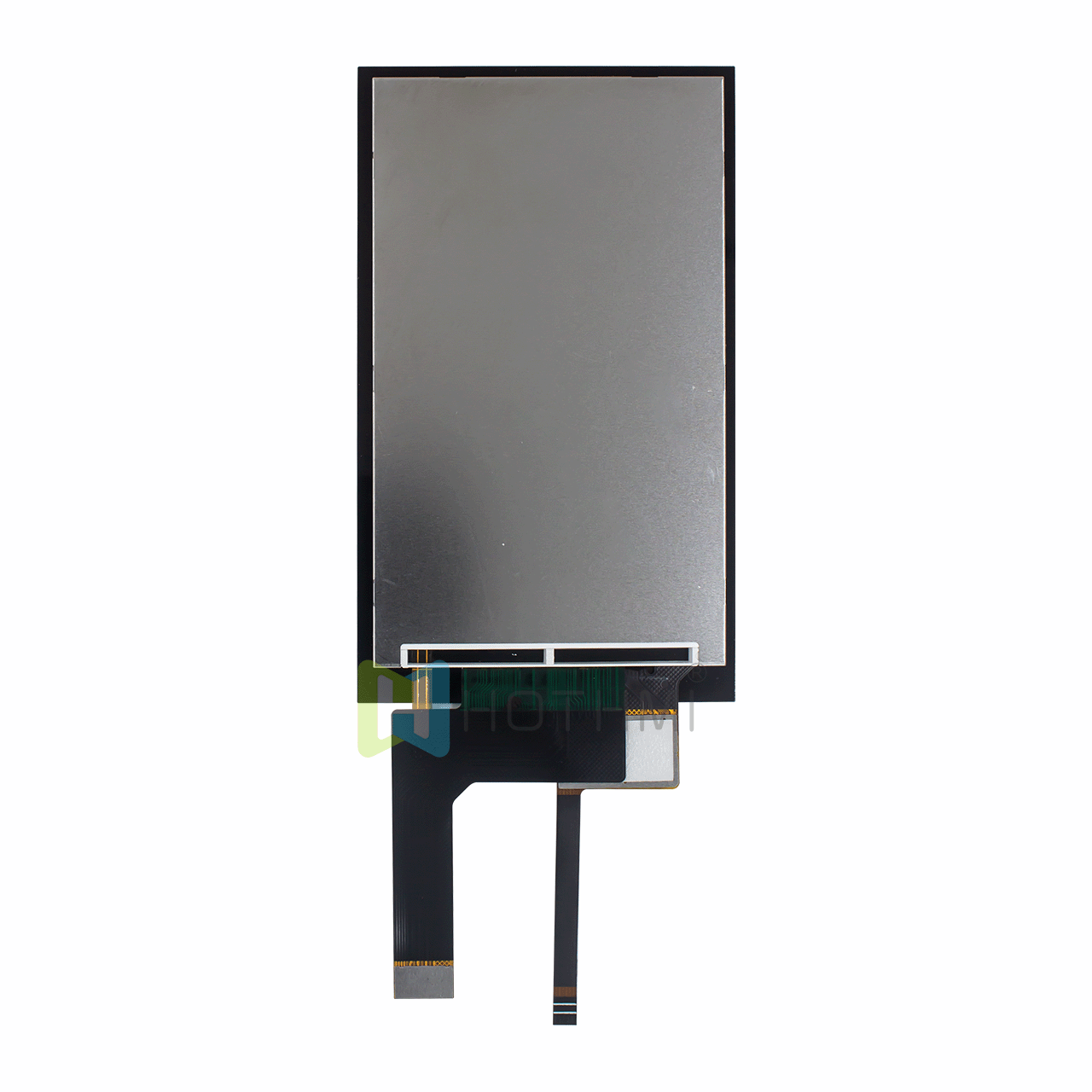

IPS 3.5-inch TFT LCD display module/480x800 pixels/ST7701S/capacitive touch/MIPI interface/3.3V/compatible with Android

IPS 3.5-inch TFT LCD display module/480x800 pixels/ST7701S/capacitive touch/MIPI interface/3.3V/compatible with Android

▶ Model: TFT-H035B22WVIST3C30

▶ Product type: TFT capacitive touch module
▶ Dot matrix: 480x800 Px
▶ Overall dimensions (mm): 56.0(H)x95.0(V)x5.1
▶ Diagonal size: 3.5"
▶ Effective size (mm): 45.36x75.6
▶ Application: Android motherboard/RK motherboard
▶Display viewing angle: IPS(U85/D85/L85/R85)
▶Brightness: 350cd/m2
▶ Pin: FPC-30PIN
▶ Interface: MIPI 2 lanes
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶Power supply voltage: 3.3V
▶ Driver chip: ST7701S
▶ Touch panel: capacitive touch (GT911)

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
TFT to HI adapter board

Product Description
Specification
Attributes

TFT-H035B22WVIST3C30 | 3.5 Inch IPS TFT LCD | MIPI DSI Interface | 480x800 px High Resolution LCD Screen | Capacitive Touchscreen | 3.5” PCAP TFT with 2-lane MIPI DSI | High-Speed Data Transfer | Lower EMI | Reduced Wiring Complexity

This 3.5” IPS TFT LCD display has a high-resolution of 480x800 pixels and built-in EMI shielding. This TFT includes a high brightness LED backlight with a typical luminance rating of 350 nits. This display offers stunning sharpness, superior color reproduction, better image consistency, and high contrast with full viewing angles due to the IPS technology built into this Liquid Crystal Display.

While this transmissive LCD boasts impressive quality with a 3.3V power supply, it also includes a capacitive touch panel, making it an excellent choice for projects that desire high-end visual output with 10-point multi-touch functionality. The Projected Capacitive (PCAP) touchscreen with built-in I2C interface and GT911 controller, will allow users to perform various gestures and interact more intuitively with its precise touch recognition and enhanced responsiveness for interactive applications. The display, powered by a built-in ST7701S driver IC and compatible with Raspberry Pi, delivers exceptional performance and reliability. The driver optimizes the display's functionality, ensuring smooth operation and accurate rendering of images and graphics. This LCD features a FFC (Flat Flexible Cable) connection style, ensuring a hassle-free electrical connection. All of our displays are RoHS compliant and adhere rigorously to environmental and safety regulations.

Customized Ribbon Cables/Flexible Printed Circuits (FPC):

Tailor your cables to perfection by adjusting their length, position, and pin arrangements, or adding other connectors. Obtain a precisely designed cable solution to streamline and enhance the safety of your connections

Touchscreen Add-On Components:

Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization:

Choose from various interface options or consult with our experts to select the options that best suit your project. We can integrate HI,USB, SPI, VGA, and other interfaces into your display to achieve your design goals.

Cover Glass:

Equip your display with custom-cut cover glass to improve durability. Choose from various thicknesses of cover glass and undergo optical bonding to prevent moisture and debris.

project	Parameter Description	unit
TFT series	Standard TFT
Diagonal size	3.5 "	Inch
Resolution	480 x RGB x 800 (TFT)	dots
Dimensions	56.0 (H) x95.0 (V) x5.1	mm
Effective area (AA)	45.36x75.6	mm
LCD type	TFT vertical screen
Display perspective	85/85/85/85 (IPS)
Aspect ratio	3: 5
Backlight type	LED, white
TFT driver IC	ST7701S
Touch panel	Capacitive touch (GT911)
Surface	Bright surface
Brightness	350	cd/㎡
Operating temperature	-20~+70	°C
Storage temperature	-30~+80	°C
