2X8 Character MONO LCD Display | STN+ Gray Background with Yellow/Green Backlight-Arduino

2X8 Character MONO LCD Display | STN+ Gray Background with Yellow/Green Backlight-Arduino

▶ Model: HTM-0802B-11Y-A5P

▶ Product type: Standard COB character LCD module
▶ Display content: 8x2 characters
▶ Overall dimensions (mm): 58.0x32.0x10.3
▶ VA size (mm): 38.0x16.0
▶ AA size (mm): 27.81x11.5
▶ Point spacing mm: 0.6x0.7
▶ Product application: Instrumentation
▶Viewing angle: 6H
▶ Backlight type or brightness: yellow-green
▶ Connection method PIN number: 16PIN
▶ Interface mode: MCU/8bit
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶Power supply voltage: 5.0v
▶ Driver chip:ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

HTM-0802B-11Y-T5P | 8X2 character display | Transmissive LCD display | Side yellow-green backlight | STN+ gray LCD display Arduino display

Hotdisplay htm-0802b-11y-t5p is an 8-character LCD screen, 2 character lines with black characters on a yellow-green background. This single-line transmissive display works with a power supply voltage of 5.0 v. A compact design with a yellow-green LCD screen gives you the best viewing experience with an optimal viewing orientation of 6: 00. It operates over a wide temperature range from -20 °C to 70 °C. it features a unique yellow green side backlight that improves visibility and legibility in low-lighting environments. LCD display with integrated st7066u controller, ensuring a high level of compatibility with many interfaces and development cards such as arduino

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

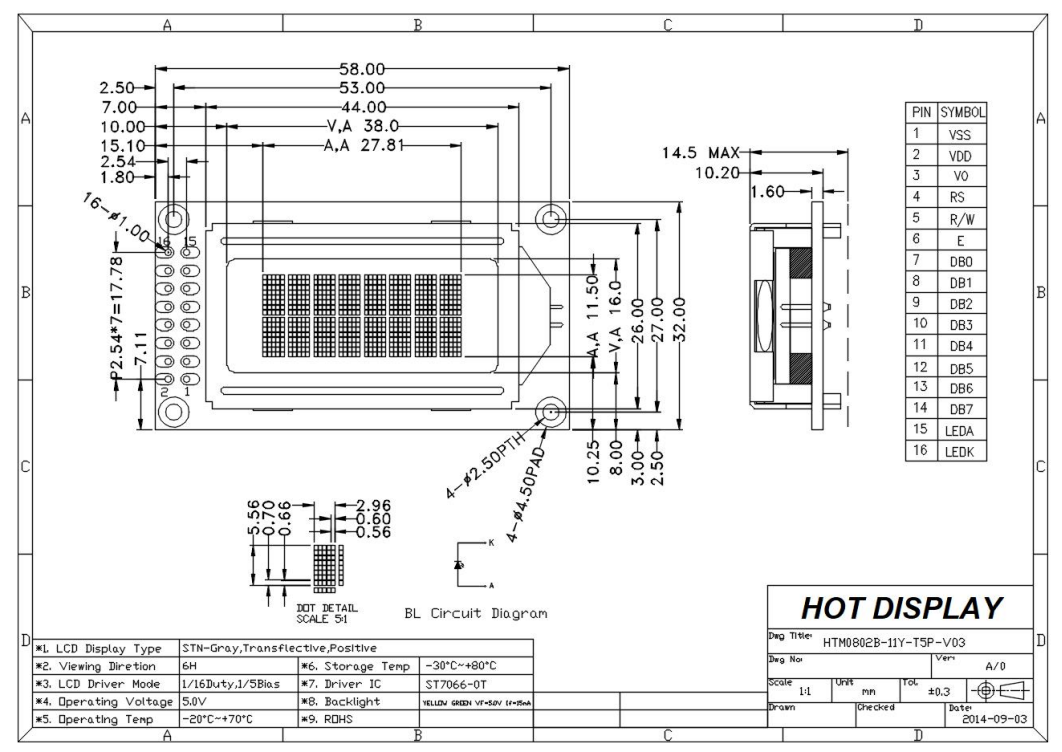

item	Parameter Description	unit
name	HTM-0802B-11Y-A5P
Number of dots	8x2 character	dots
Module size	58.0 × 32.0 × 13.2 (MAX)	mm
VA size	38.0（W） × 16.0（H）	mm
AA size	27.81（W） × 11.5（H）	mm
Pixel pitch	0.60 × 0.70	mm
IC	ST7066
voltage	5.0V	V
backlight	Yellow/Green
display mode	STN positive
Drive mode (Duty)	1/16 duty cycle
type	Character LCD
characteristic	Transflective polarizer
