IPS 1.3 inch round MIPI TFT LCD display ST7796DW

IPS 1.3 inch round MIPI TFT LCD display ST7796DW

▶ Model: TFT-H013A1HQIST3N16

▶ Type: TFT round
▶ Display pixels: 320x320 Px
▶ Overall dimensions (Mm): 36.12x39.16x1.5
▶ Display inches: 1.3"
▶ Effective size (Mm): 33.12x33.12
▶ Application: smart wear, instrumentation
▶ Viewing angle: IPS full viewing angle
▶ Brightness: 350cd/M2
▶ Pin: FPC-16PIN
▶ Interface: MIPI
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 2.8V
▶ Driver chip: ST7796DW

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

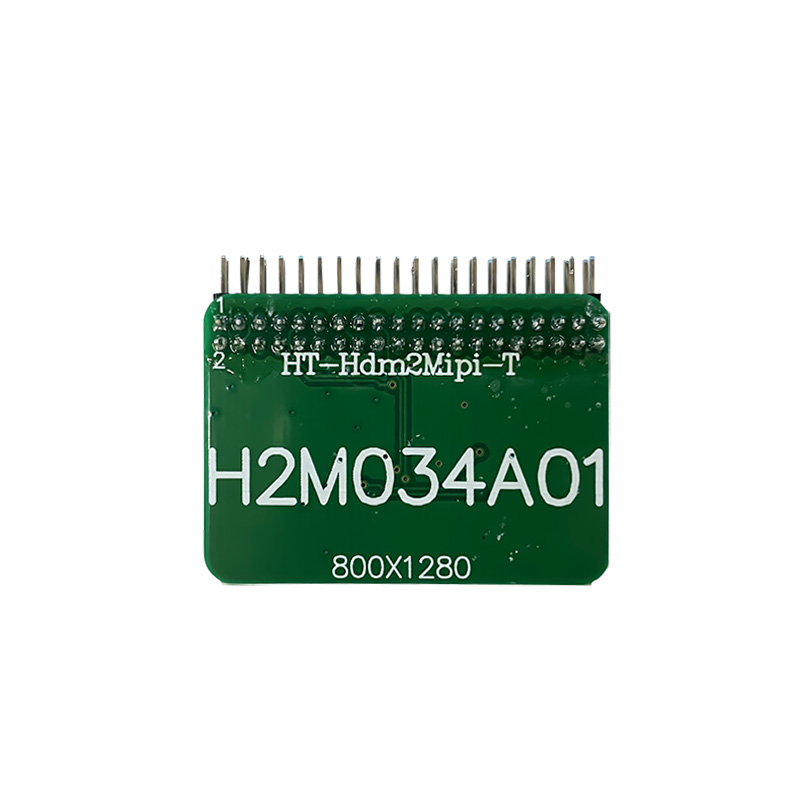

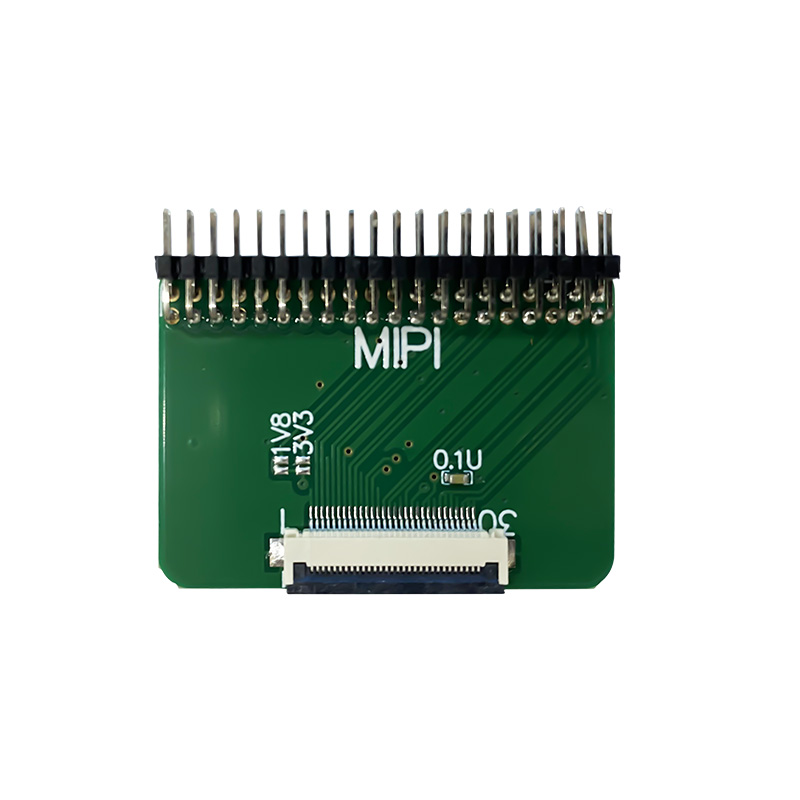

MIPI interface display to HI adapter board Raspberry Pi universal 20pin/30pin/40pin
EZUI-C driver board/MIPI/LVDS/RGB (800*480 or above)
typ-c data cable T-port charging data cable/COB adapter board/COG adapter board

Product Description
Specification
Attributes

TFT-H013A1HQIST3N16 | 1.3" TFT LCD | 320x320 pixels | MIPI interface | 16-pin FFC ZIF connection | Optional capacitive/resistive touch screen

The TFT-H013A1HQIST3N16 is a circular IPS TFT-LCD screen with a display diameter of 1.3 inches and a resolution of 320x320 pixels. This circular TFT display consists of an IPS TFT-LCD panel with a built-in ST7796DW driver IC that communicates through the MIPI interface.

TFT-H013A1HQIST3N16 adopts IPS panel with higher contrast, pure black background when display or pixel is off, left: 80 / right: 80 / top: 80 / bottom: 80 degrees (typical) wider viewing angle, contrast ratio 1,000 :1 (typ), brightness 350 nits (typ), anti-glare surface panel. If customers need capacitive touch screen, please choose model TFT-H013A1HQIST2C16.

The LCM's supply voltage is 1.8V to 2.8V, with a typical value of 2.8V. The operating temperature is -20℃ to +70℃, and the storage temperature is -20℃ to +80℃. Display modules are suitable for compact devices such as smart meters, Android/RK motherboard,wearables and meter applications. They are also ideal for home automation products, white goods and video systems.
