  • 3.5 inch 480x800 RGB interface capacitive touch display | capacitive touch color TFT

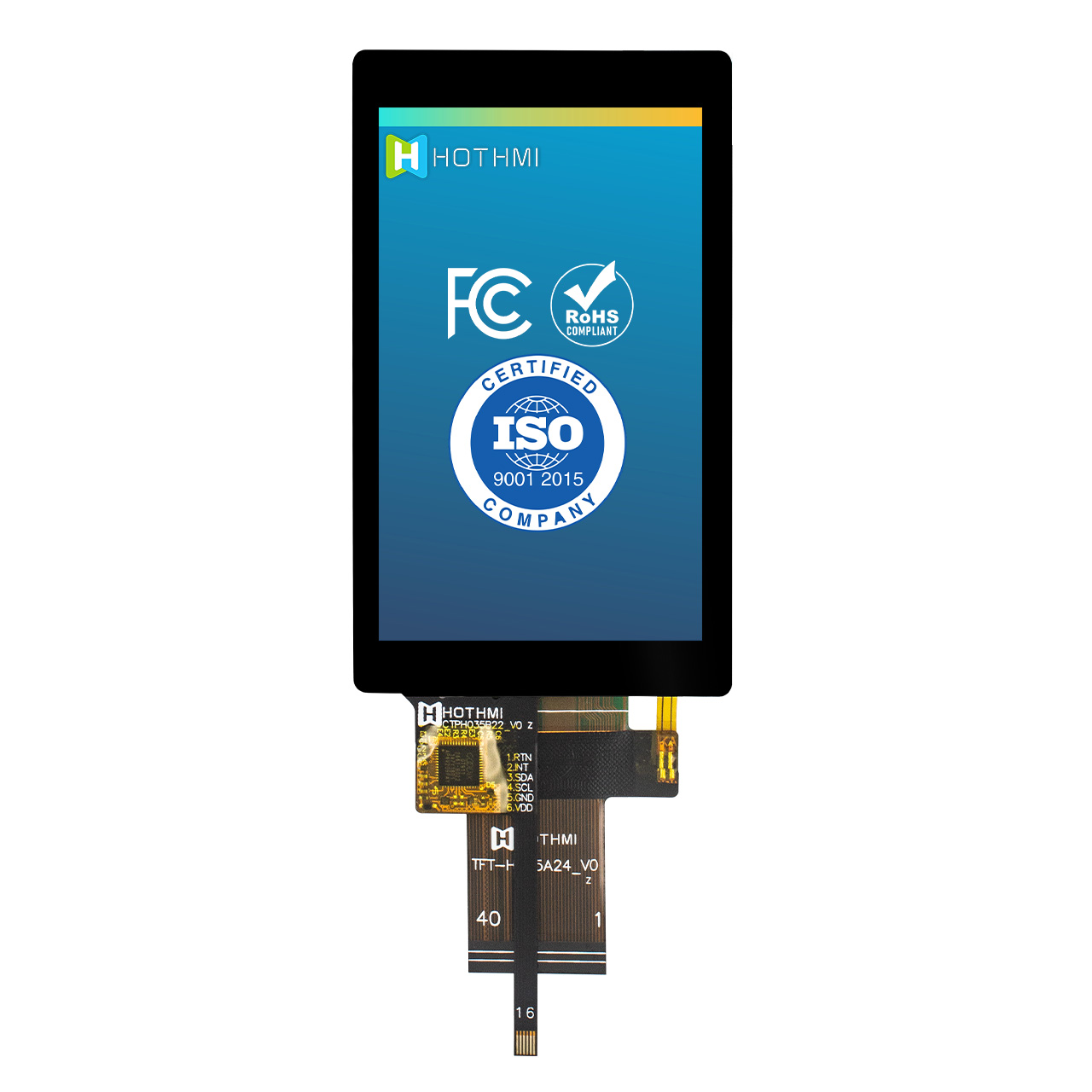

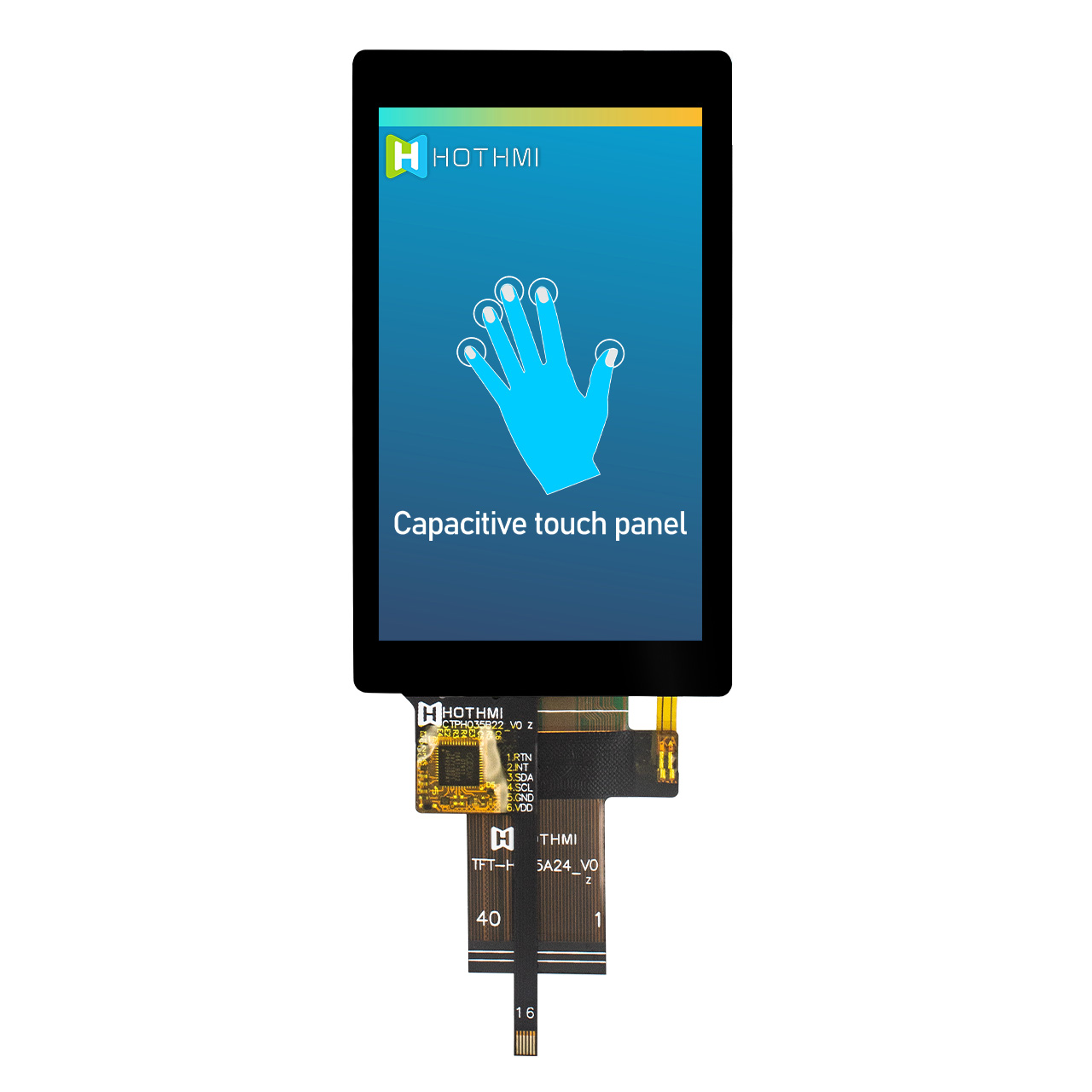

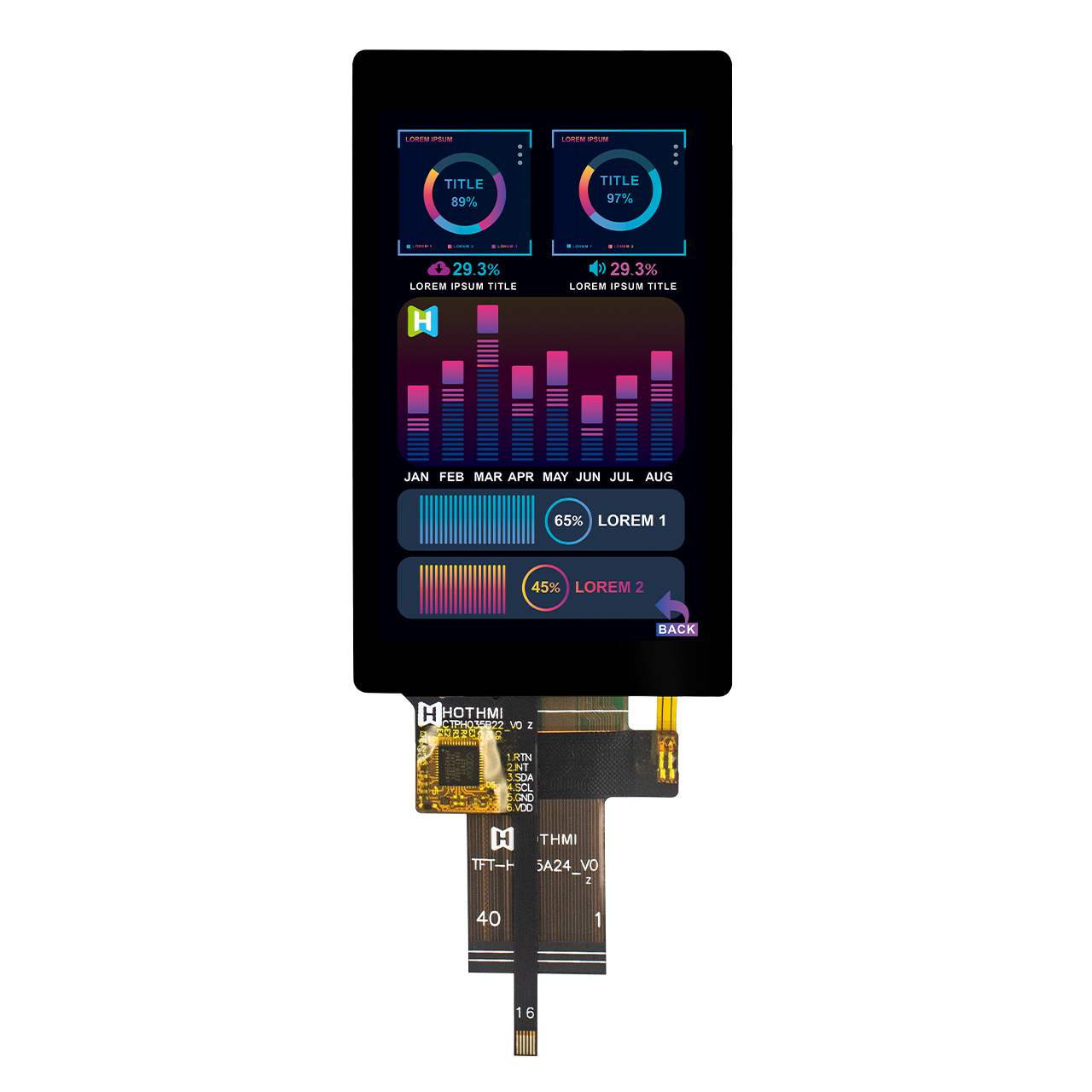

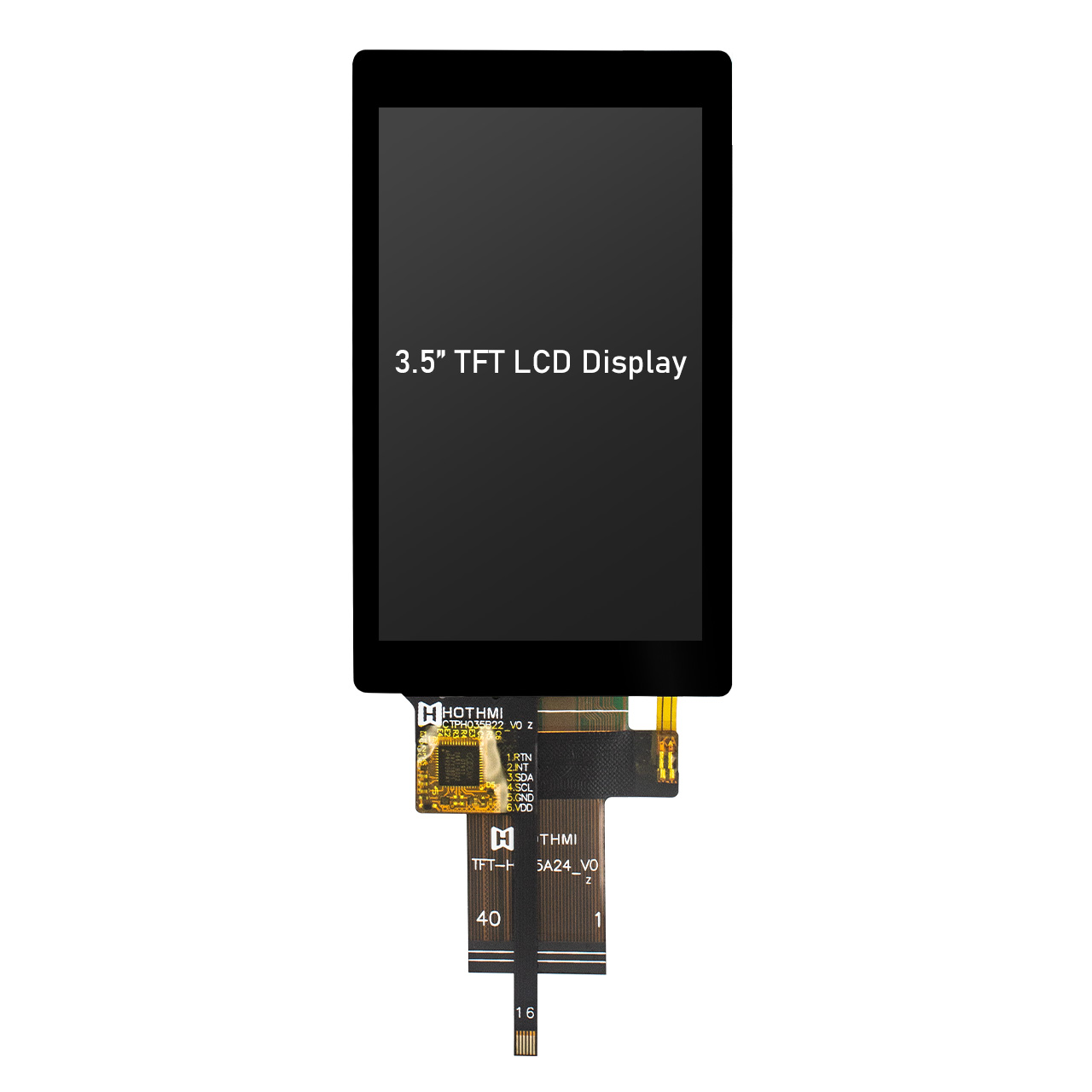

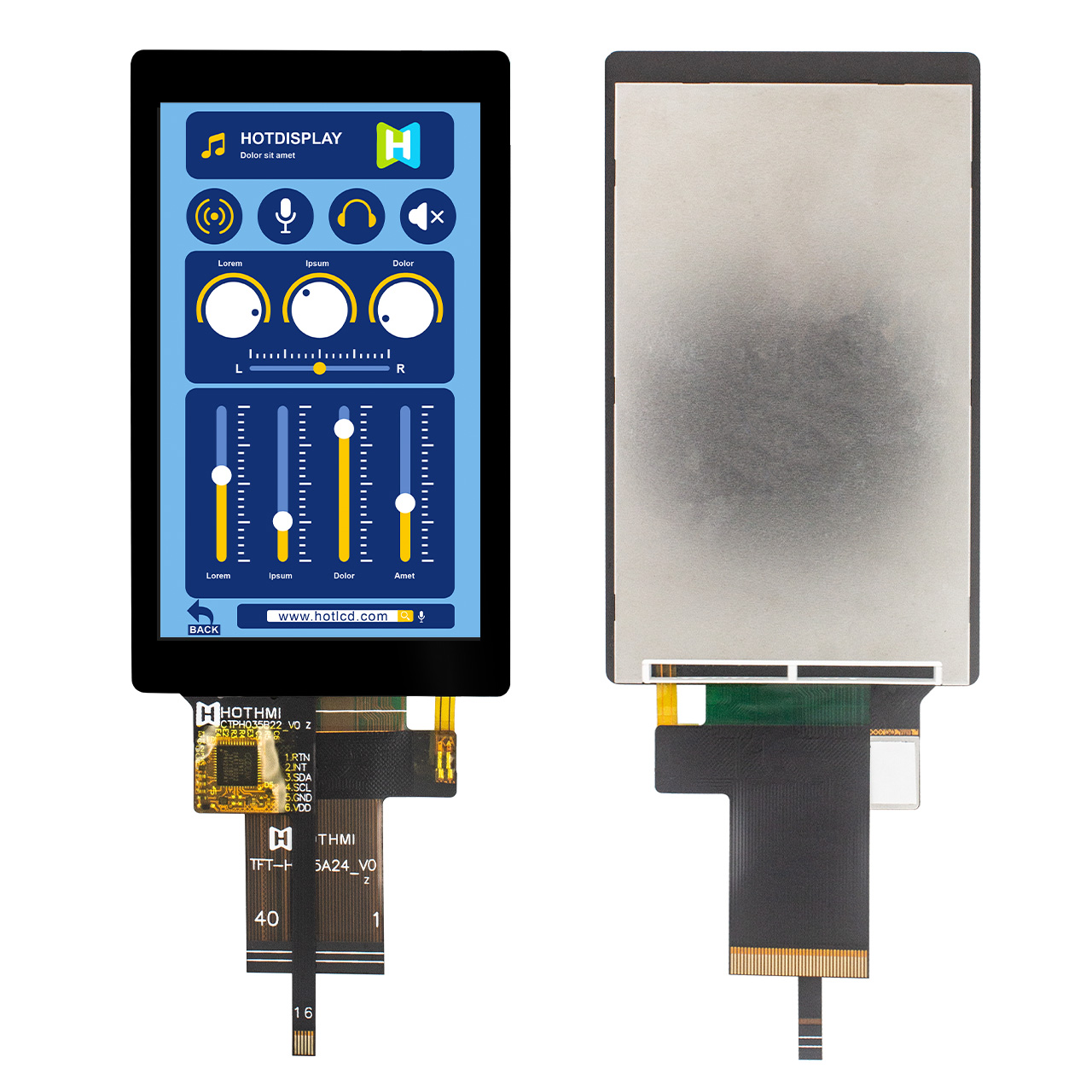

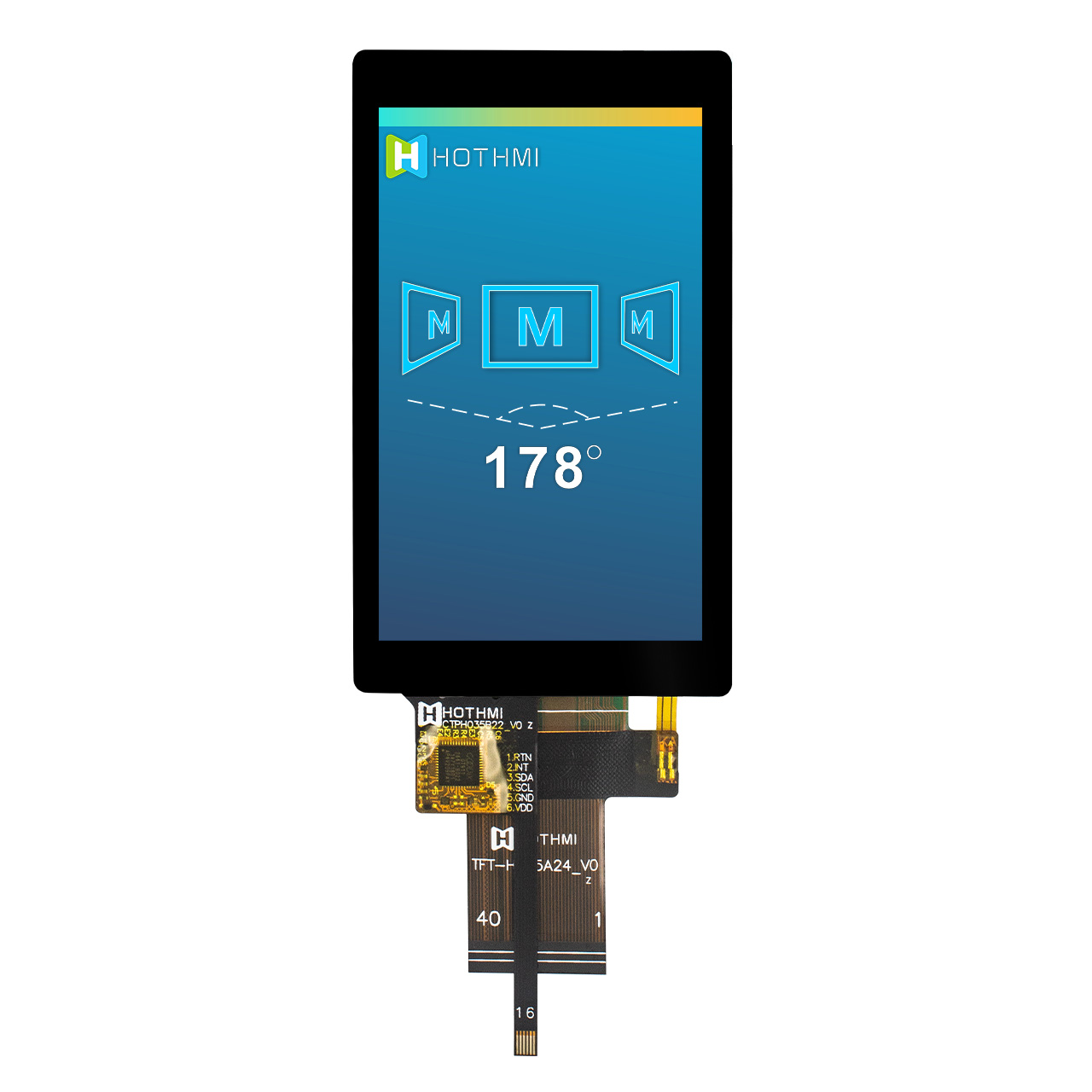

    TFT-H035A24WVIST6C40 is a 3.5-inch 480x800 TFT LCD module with a Normally Black display mode, a resolution of 480 (RGB) x 800 pixels, and a color expression of NTSC 69% color gamut coverage. This module is suitable for a variety of occasions that require high-brightness display, with a brightness of up to 600 cd/m², and is a display screen visible in sunlight. This is an IPS full-viewing display screen, and it has a high-quality picture no matter from which angle you watch it. This product has a capacitive touch function, and the 5-point touch mode brought by the GT911 touch chip makes the user feel smooth and silky during use. We provide Optical Bonding and air bonding selection modes for the touch of the display screen. The classic full-fit process makes the display screen better in picture quality, truly feedbacks the color to the reader, and transmits data with the RGB interface carried by the soft cable FPC, which is efficient and accurate, and often becomes the favor of developers.


    This 3.5-inch 480x800 model is a vertical display screen. At the same time, we also prepare horizontal displays of the same size for users, such as TFT-H035B16VGIST4G30, and TFT-H035A1QVIST6C54 with ST7272A controller, etc. For users who lack development experience, we also provide UART smart display module HTM-H035A12-A9-UART with main control board, EZUI smart display ATFLet035 V40. This 3.5-inch 480x800 RGB interface capacitive display can also be applied to different development solutions, providing developers with flexible and diverse options.


    This LCD module is suitable for display devices that require high brightness and high resolution, such as industrial control panels, portable devices, medical equipment, etc. In order to adapt to the needs of products in different industries, we support customized FPC, customized cover, customized touch sensor , customized display interface, functional development board, touch solution and other services.

  • Datasheet for Touch Panel,Controller↓

    Name Date Size
    TFT-H035A24WVIST6C40 March 03, 2025 83.11KB

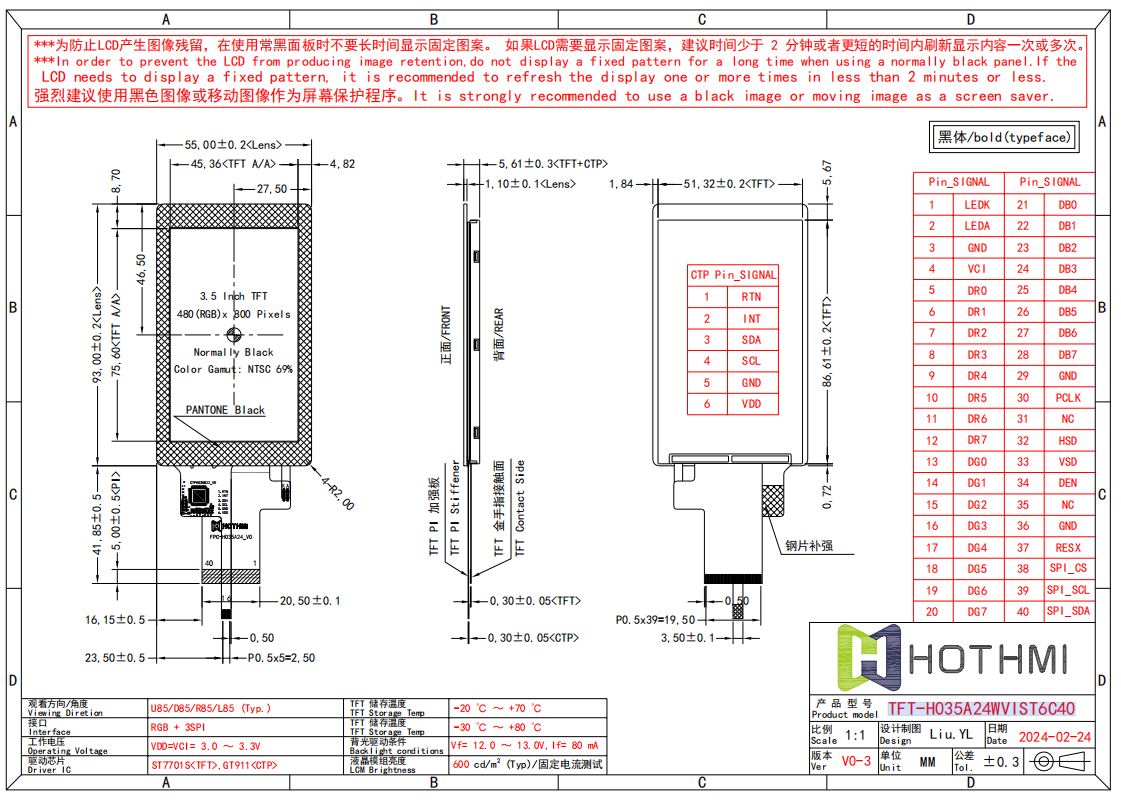

  • TFT-035A24.png

  • ITEM

    PARAMETER DESCRIPTION

    UNIT

    TFT series

    TFT-H035A24WVIST6C40

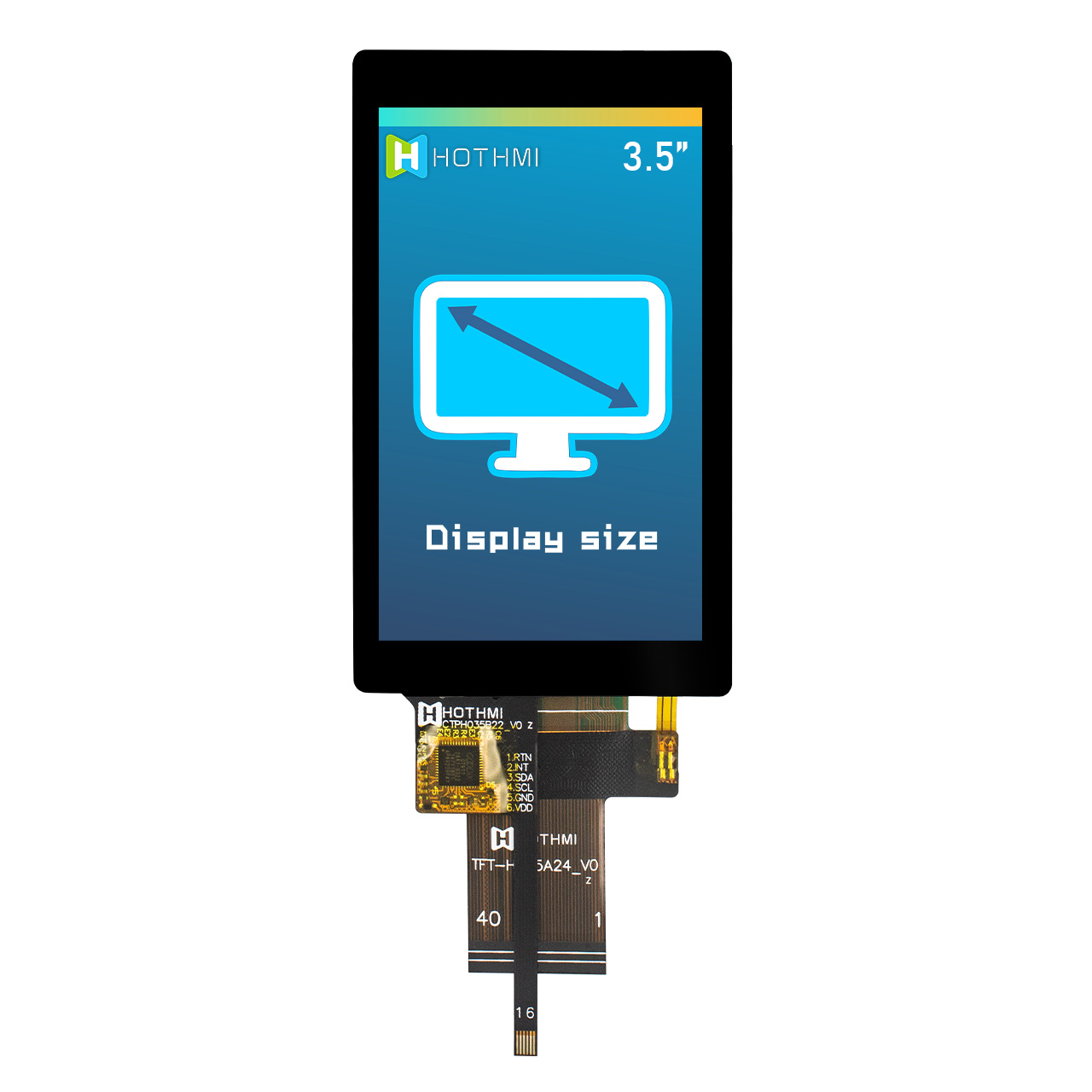

    Diagonal size

    3.5”

    Inch

    Resolution

    480x800

    Dot

    Dimensions

    55x93x5.61

    mm

    Active area (AA)

    45.36x75.6

    mm

    LCD type

    TFT LCD Display

    mm

    Display viewing angle

    Full View


    Aspect ratio

    2:3


    Backlight type

    LED white

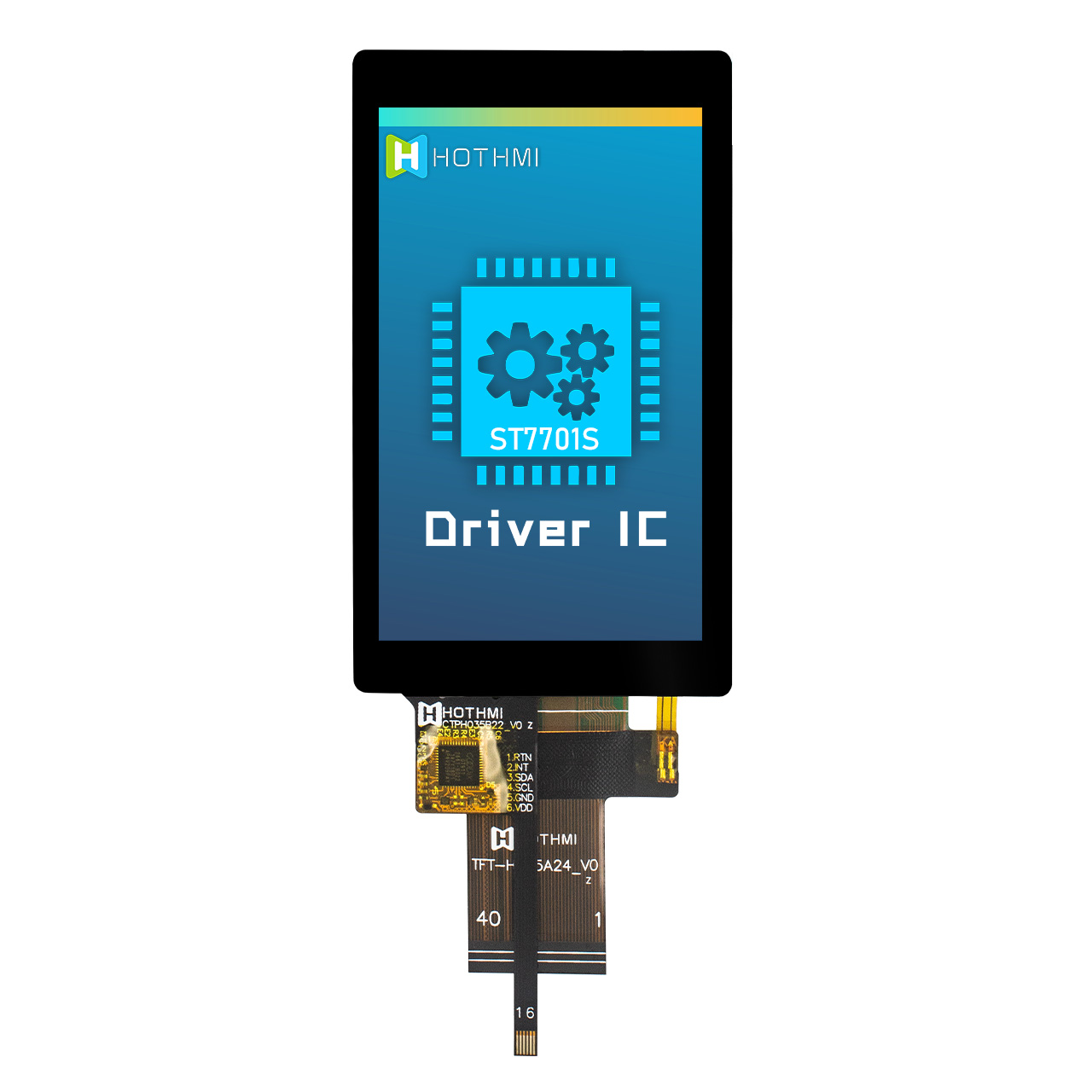

    TFT driver IC

    ST7701S

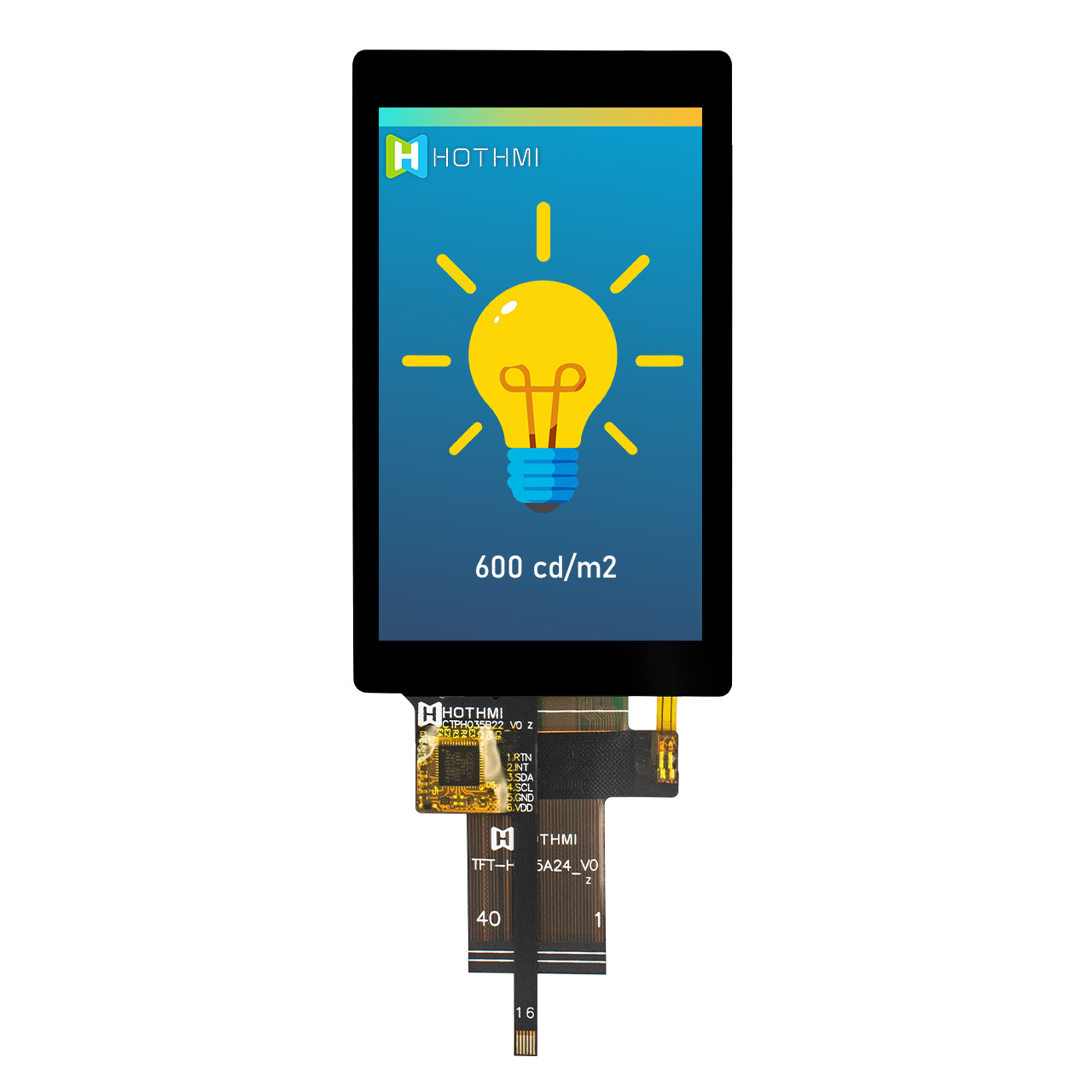

    Brightness

    600

    cd/m2

    Operating temperature

    -20~70℃

    Storage temperature

    -30~80℃
