  • HTM2004A-25W-A5P | 20x4 Character Display | Transmissive LCD | White Backlight | STN (-) Negative Blue Display | Arduino display

    The HOTDISPLAY 20x4 character LCD displays white pixels on a blue background. Transmissive mode on this high-quality LCD requires a built-in backlight to maintain visibility in low-light environments. It has a wide range of operating temperatures from -20 to 70 degrees Celsius. This HTM2004A - 25W - A5P monitor has an ideal viewing angle of 6:00 and comes with standard English and Japanese fonts. It is compatible with Arduino/C8051 and operates on a supply voltage of 5V.


    Connector Customization:

    Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

    PCB Modifications:

    Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

    Backlight color customization:

    The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

    Font library customization:

    Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

    Cable Customization:

    Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

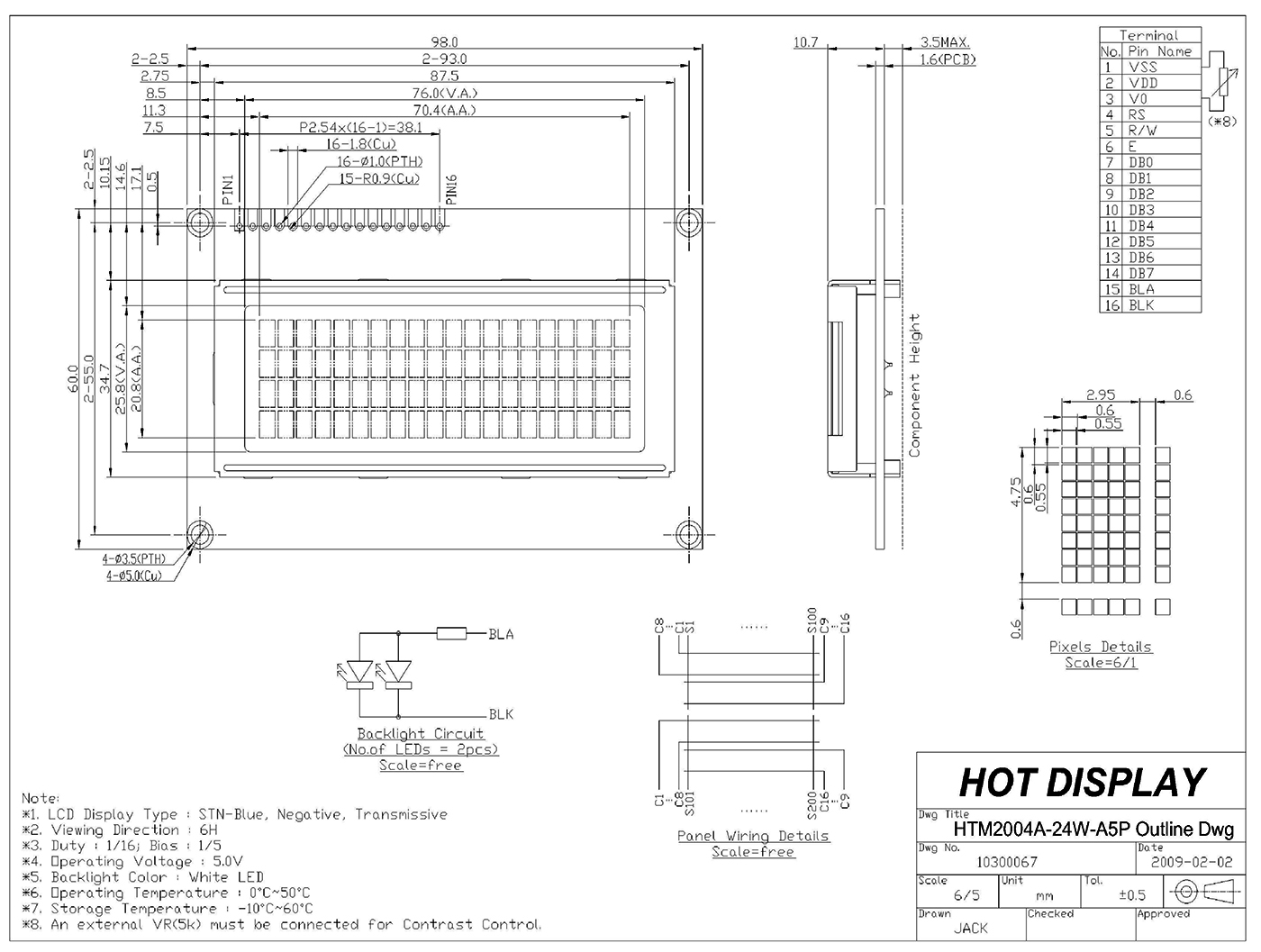

  • HTM2004A_04.jpg

  • Item

    Specification content

    Unit

    name

    HTM2004A-25W-A5P


    Number of dots

    20x 4

    dots

    Module size

    98.0（W） × 60.0（H） × 14.2 （T）

    mm

    Visual (VA) area

    76.0x25.8

    mm

    AA size

    70.4（W） × 20.8（H）

    mm

    Point (pixel) spacing

    0.60（W） × 0.60（H）mm

    mm

    IC

    ST7066U driver


    Application voltage

    5.00V

    V

    back light

    白


    model

    STN（-）


    Drive mode (Duty)

    1/16 duty cycle


    type

    Character LCD


    Polarizer type

    Totally transflective polarizer


    Search keyword：lcd 20x4, lcd 20 x 4, 20x4 lcd, 20 x 4 lcd
