  • 1.3 inch TFT LCD color display module | 240X240 SPI  square Display

    This 1.3 inch  TFT LCD Screen TFT-H013A2QQIST3N10 is a square display module with 240×240 pixel resolution (RGB vertical arrangement) and Normally Black transmissive design, with an effective display area of 23.40mm×23.40mm. The overall size of the module is 26.00mm (width) × 29.15mm (height) × 1.95mm (thickness), supports full viewing angle (free viewing direction, horizontal/vertical viewing angle is 80° and contrast>10), suitable for embedded devices with strict space requirements.


    This  1.3 inch  TFT LCD Screen module is equipped with ST7789H2 driver IC, uses a four-wire SPI interface (CS/SCK/SDA/D/CX), and has an operating voltage of VCI=2.8V (analog power supply) and IOVCC=1.8V (logic power supply). It supports an operating temperature range of -20℃ to 70℃ and a storage temperature range of -30℃ to 80℃. Its optical performance includes typical brightness of 350cd/m², contrast ratio of 800:1, 50% color gamut coverage, and 30ms response time (rise + fall), which meet the needs of clear dynamic display. Built-in white LED backlight (typical current of single LED 40mA, forward voltage 3.2V), controlled by LED_A/LED_K pins.


    This 1.3 inch  TFT LCD Screen provides detailed initialization code (including reset timing and register configuration) and supports sleep mode to reduce power consumption. In terms of reliability, it has passed a number of rigorous tests: high temperature operation (60℃/120h), wet heat operation (60℃/90%RH/120h), thermal shock (-30℃↔80℃/100 cycles) and ESD protection (contact ±4kV/air ±8kV). When using, be careful to avoid mechanical shock, electrostatic interference and long-term display of static images (it is recommended to fix the image for no more than 2 minutes) to prevent afterimage. This module is suitable for industrial control, portable devices and other scenarios.

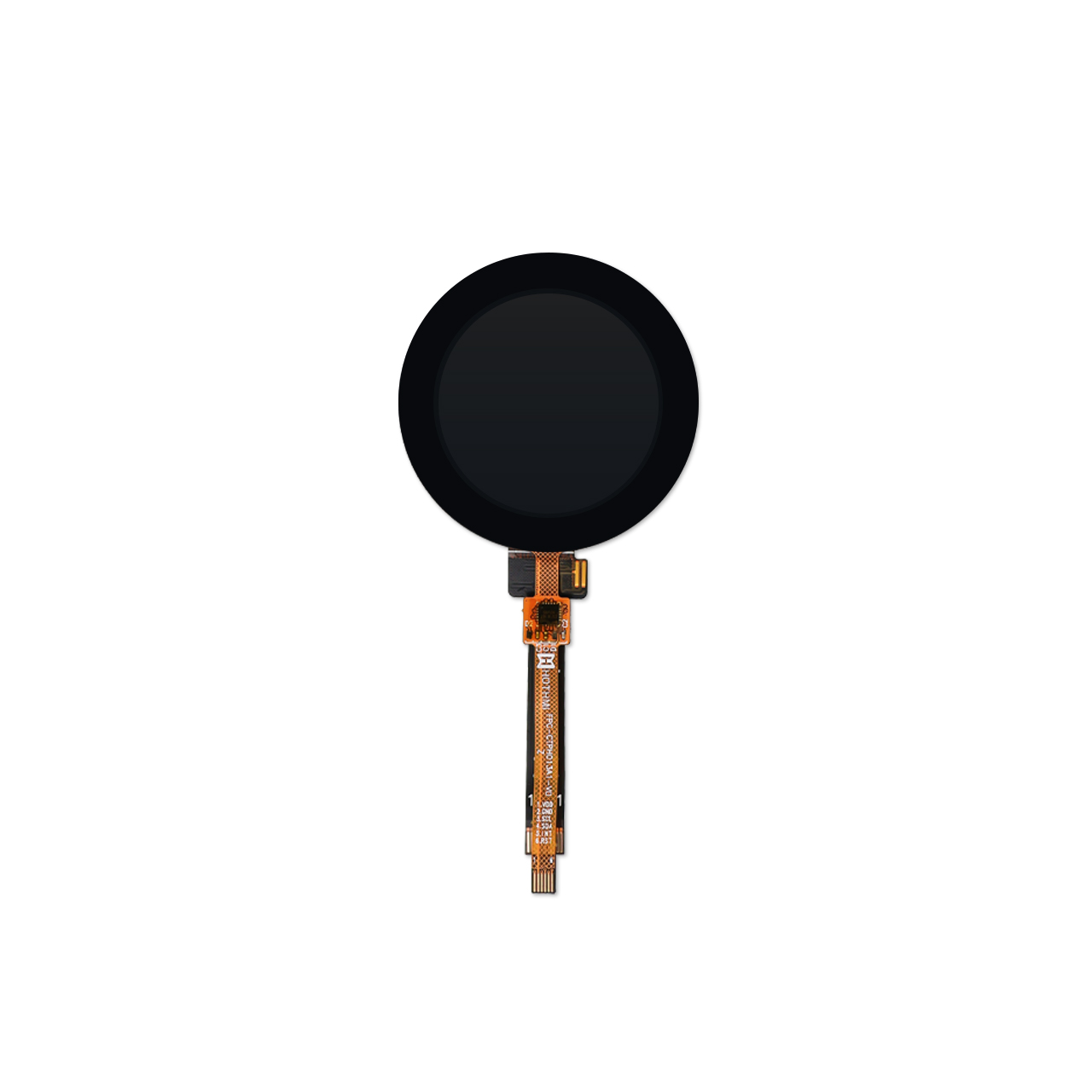

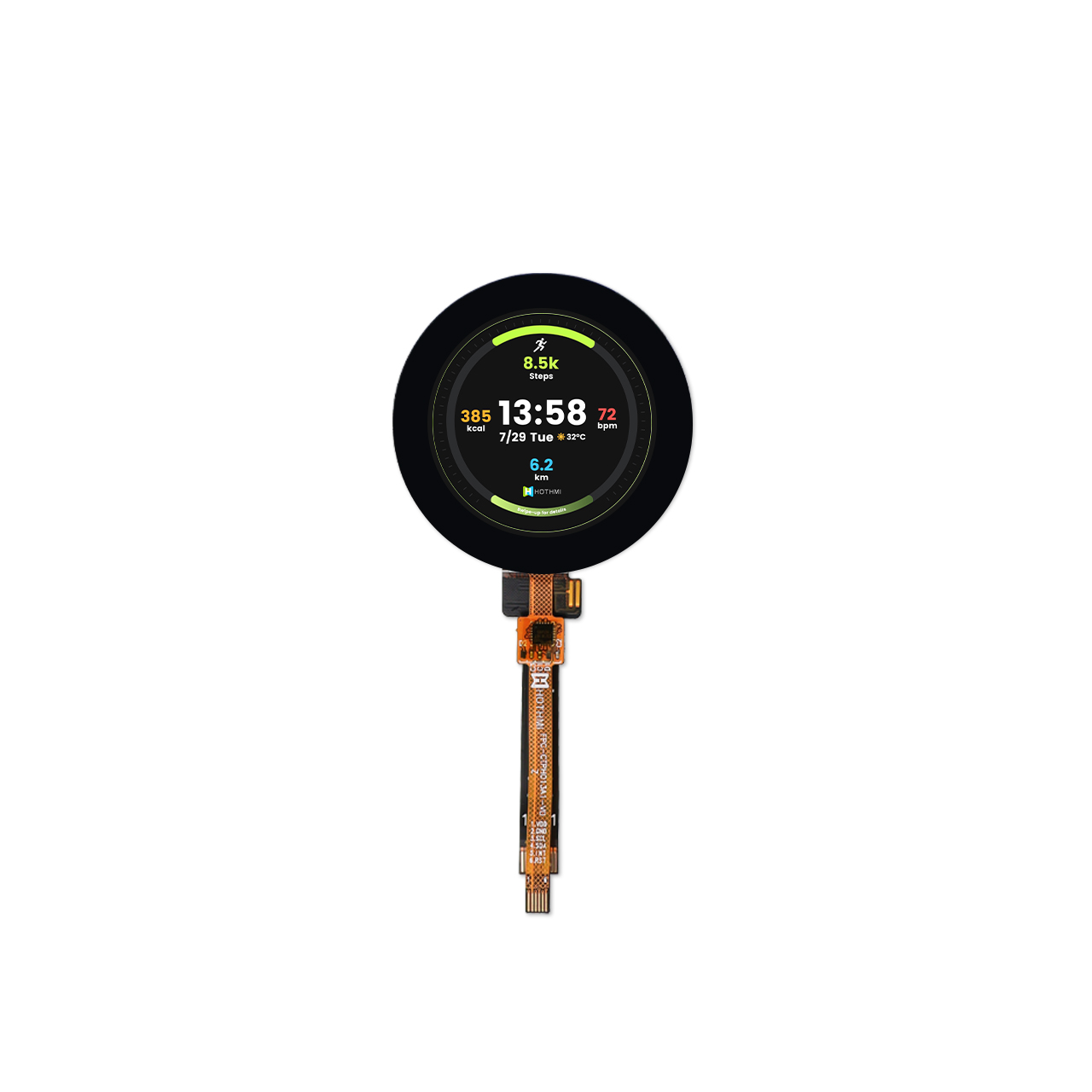

    We also provide this product with a driver board model HTM-H013A2-SPI-A01, the driving method is simple and easy to operate. Maybe the square is not your best choice, then you can also choose the same size of the circular TFT product series: 1.3 inch circular TFT display.



  • Datasheet for Touch Panel,Controller↓

    Name Date Size
    User Manual -TFT-H013A2QQIST3N10 March 03, 2025 659.77KB
    FPC Connectors March 03, 2025 2.02MB
    Schematic Prints March 03, 2025 25.54KB
    Specifications March 03, 2025 64.80KB
    CAD Drawings March 03, 2025 152.09KB
  • Tutorial, initialization code↓

    Name Date Size
    ST7789 March 03, 2025 622.47KB
    Initialization Code March 03, 2025 0.99KB
  • TFT-H013A2QQIST3N10_03.jpg

  • ITEM

    PARAMETER DESCRIPTION

    UNIT

    TFT series

    TFT-H013A2QQIST3N10


    Diagonal size

    1.3”

    Inch

    Resolution

    240x240

    Dot

    Dimensions

    26.00×29.15×1.95

    mm

    Active area (AA)

    23.4x23.4

    mm

    LCD type

    1.3” TFT Module

    mm

    Display viewing angle

    Full View


    Aspect ratio

    1:1


    Backlight type

    LED white


    TFT driver IC

    ST7789H2


    Brightness

    350cd/m2

    cd/m2

    Operating temperature

    -20~70℃

    Storage temperature

    -30~80℃
