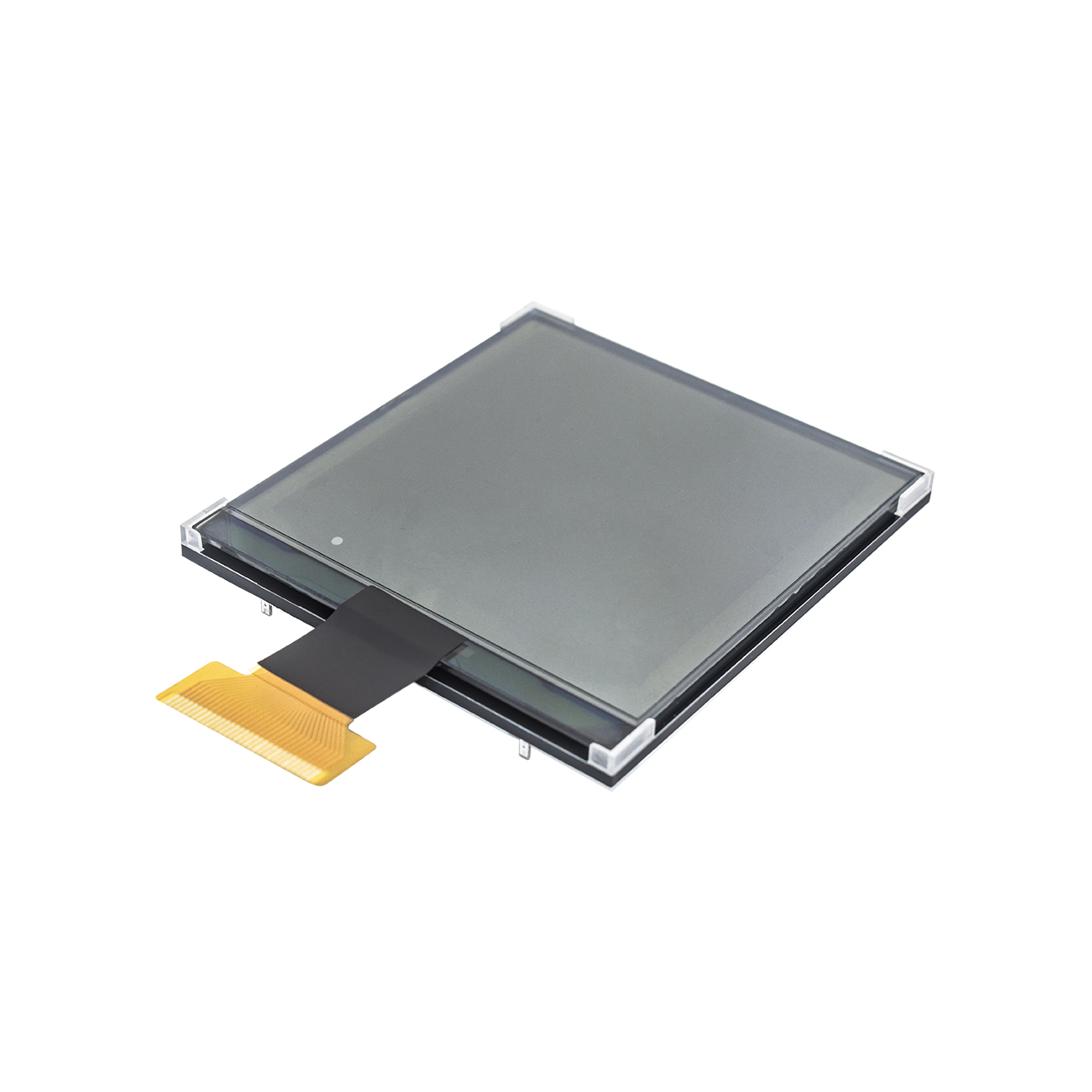

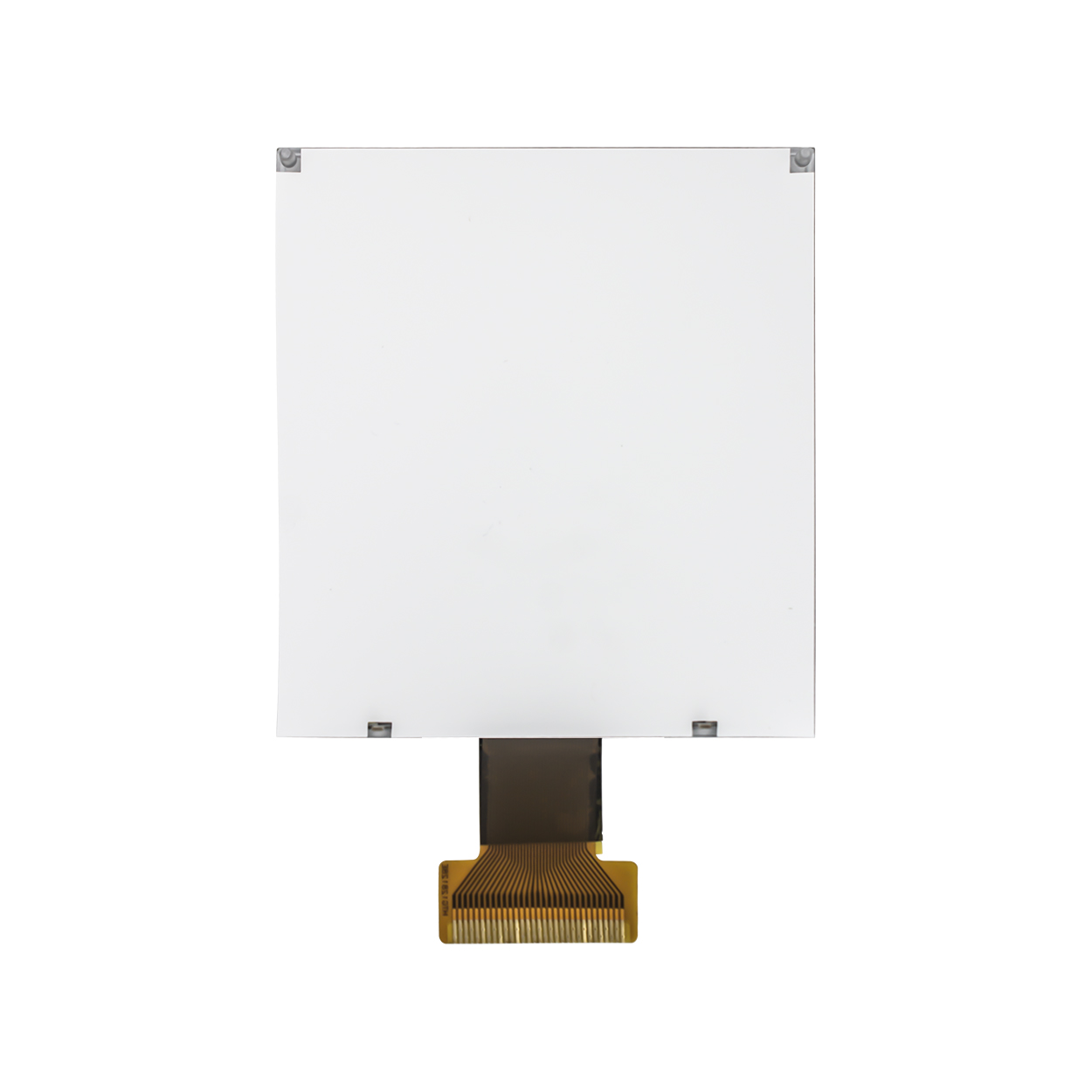

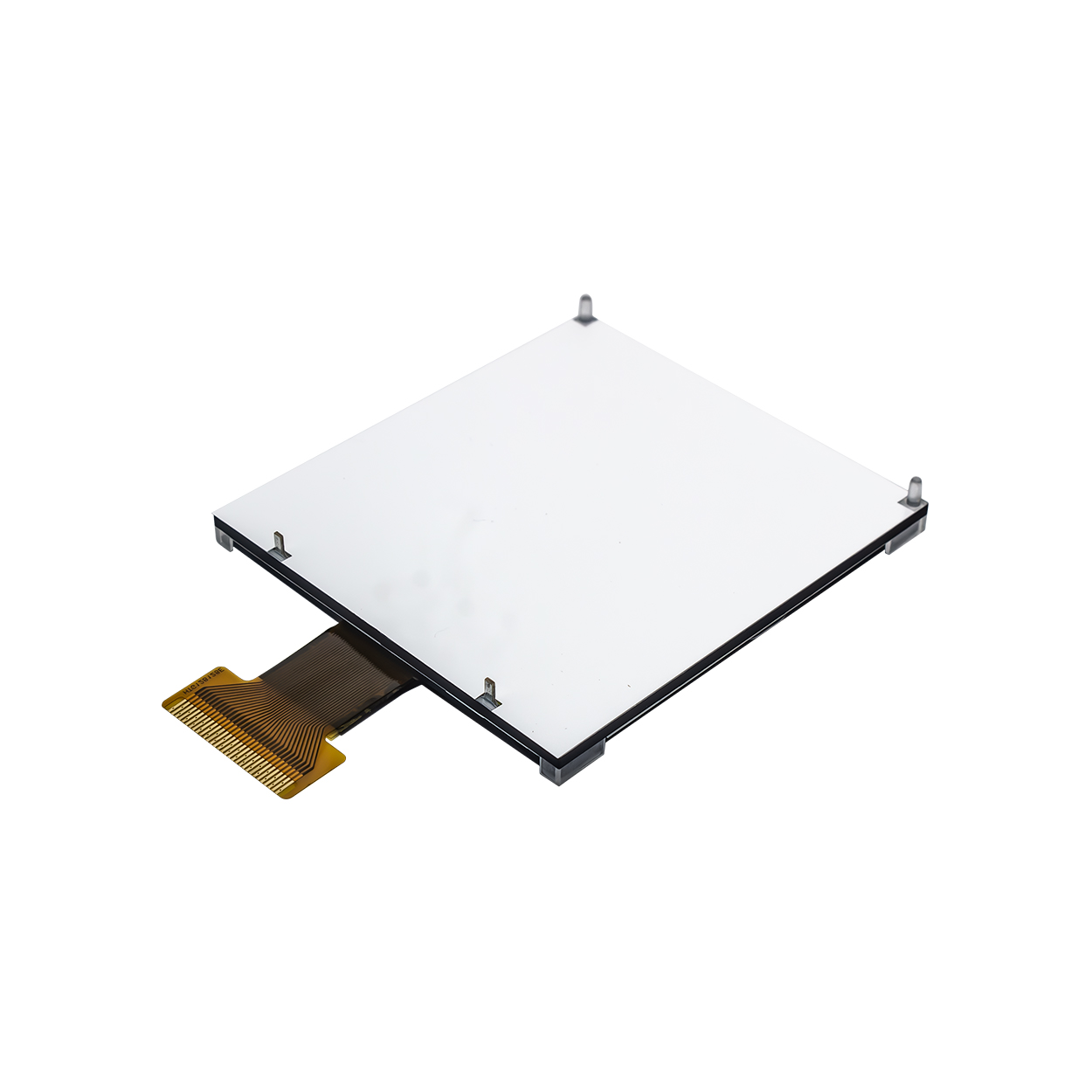

3.3-inch yellow-green 128x128 COG graphic LCD | STN+ dot matrix LCD

3.3-inch yellow-green 128x128 COG graphic LCD | STN+ dot matrix LCD | Arduino

▶ Model: HTG128128E-11Y-31H07-V0

▶ Type: COG graphic dot matrix
▶ Display pixel: 128x128

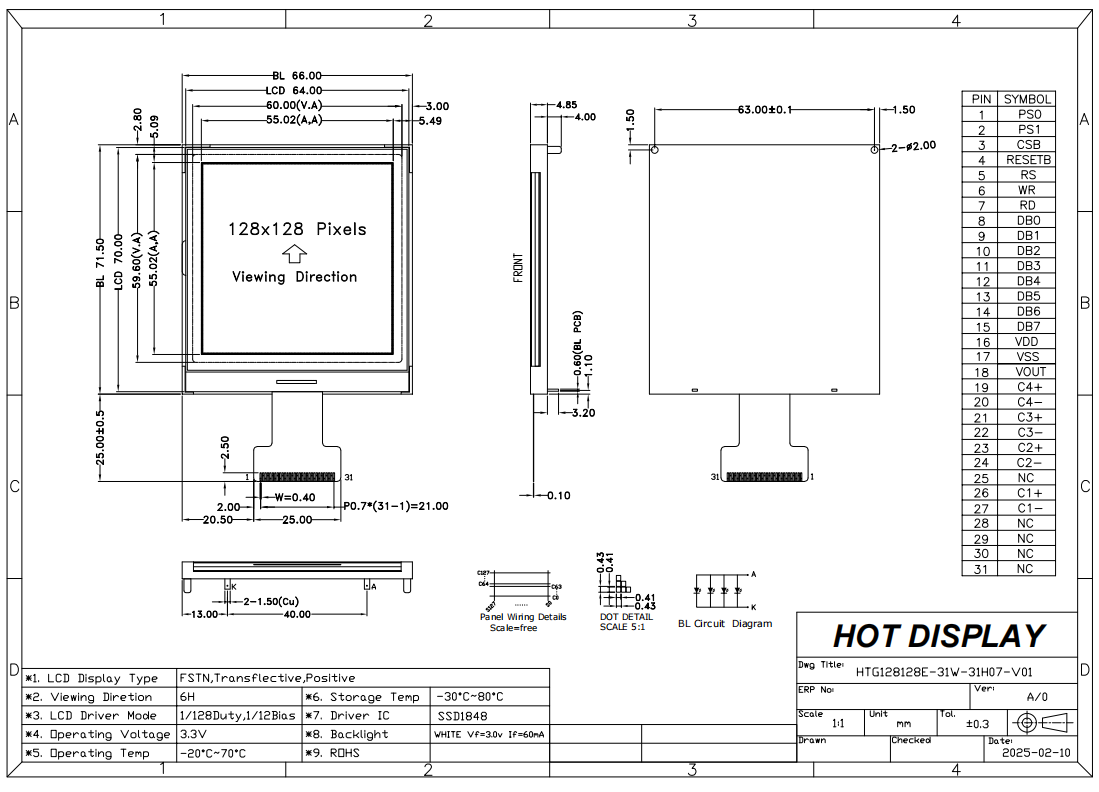

▶ Dimensions (Mm): 66x71.5x4.85
▶ Display inches: 3.3“
▶ VA size (mm): 60.0x59.6
▶ AA size (mm): 55.02x55.02
▶ Point spacing (mm): 0.43x0.43
▶ Application: Frequency converter
▶ Perspective: 6H
▶ Backlight/Brightness: Yellow Green Light
▶ Pin: FPC-31PIN
▶ Interface method: SPI
▶ Special note: Anti static ESD 8KV
▶ Working temperature:- 20~70℃
▶ Supply voltage: 3.3V
▶ Driver chip: SSD1848

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
COG Adapter Board

Product Description
Specification
Attributes

3.3-inch yellow-green 128x128 COG graphic LCD | STN+ dot matrix LCD | Arduino

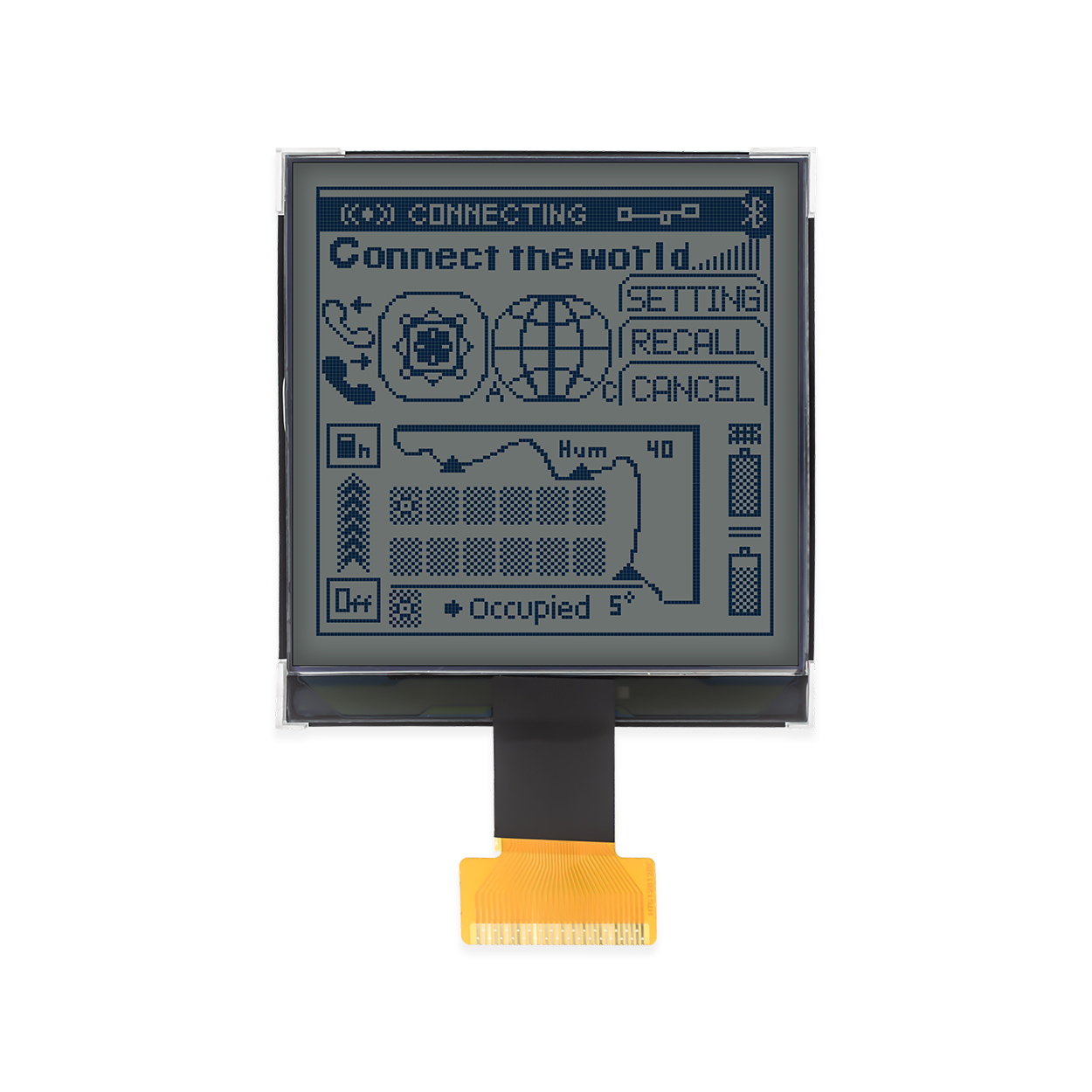

HTG128128E-11Y-31H07-V01 is a high-performance LCD (liquid crystal display) module designed for applications that require high clarity, reliability and durability. The display uses STN (thin film super twisted nematic) transflective positive display technology to provide clear, high-contrast image display under various lighting conditions. Its resolution is 128x128 pixels, suitable for displaying graphics, icons and text information.

Application areas:
HTG128128E-11Y-31H07-V01 LCD display is widely used in the following fields:
Industrial control: Display panels for industrial equipment, providing real-time status information and operation interfaces.
Medical equipment: Used in medical instruments to display the patient's physiological data or the working status of the equipment.
Portable instruments: Suitable for handheld devices or portable instruments, providing clear display effects.
Consumer electronics: can be used for smart home devices, electronic toys, etc., providing a user-friendly interactive interface.

Product advantages:
High reliability: using high-quality LCD panels and driver ICs to ensure long-term stable operation.
Wide environmental adaptability: able to work under extreme temperature conditions, suitable for industrial and outdoor applications.
Low power design: 3.3V operating voltage and low backlight current, suitable for battery-powered devices.
Easy to integrate: provides a standard pin interface for easy connection with various control systems.

Datasheet for Touch Panel,Controller↓

Name	Date	Size
HTG128128E-11Y-31H07-V01	March 03, 2025	62.83KB

Parameter	Specification content	Unit
Name	HTG128128E-11Y-31H07-V01
Graphic display	128 × 128	dots
Dimensions	66x71.5x4.85 (MAX)	mm
VA size	60.0x59.6	mm
AA size	55.02x55.02	mm
Pixel pitch	0.43x0.43	mm
Driver chip	SSD1848
Application voltage	3.3V	V
Backlight illumination	Y/G
Display mode	STN(+)
Drive mode	1/128 duty cycle
Product type	Graphic LCD COG
Polarizer type	Transflective
