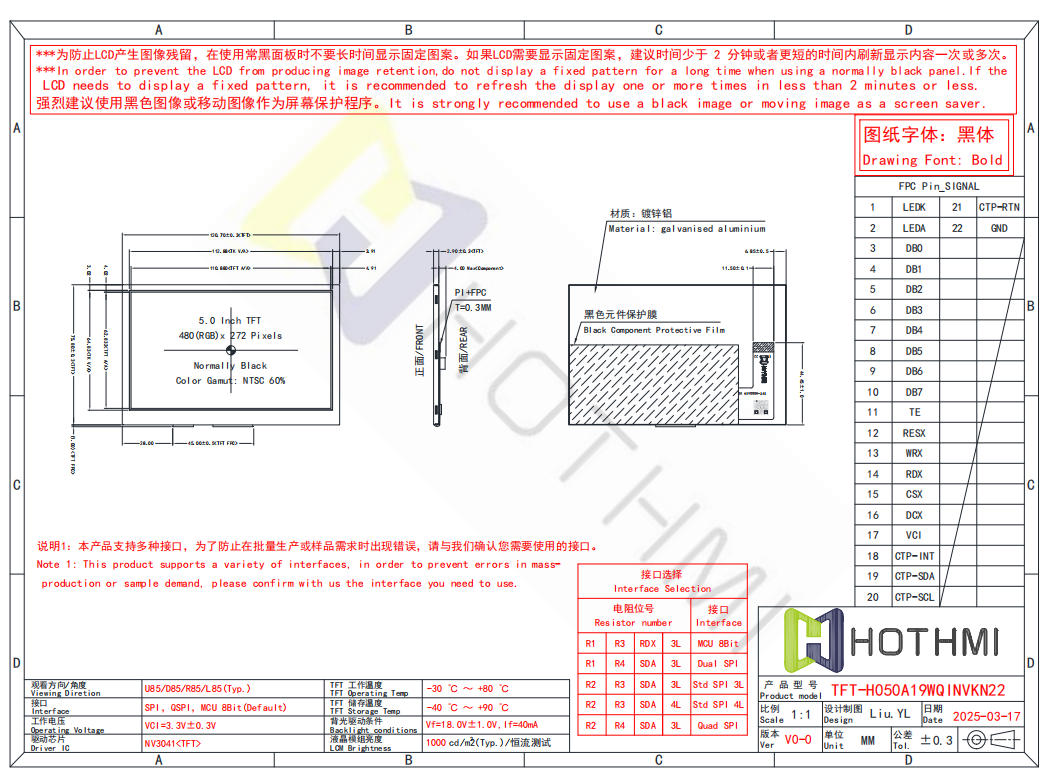

TFT-H050A19WQINVKN22 | 5 Inch TFT LCD Display Module | 480x272 Resolution Sunlight Readable LCD | NV3041 Controller
TFT-H050A19WQINVKN22 is a 5 inch TFT LCD display module with a normally black mode design, a resolution of 480×272 pixels, and a color gamut coverage of NTSC 60%. It can present high-contrast clear images and is suitable for industrial control, smart devices, medical instruments and other fields. The module has outstanding core features. In terms of display performance, the brightness can reach 800 cd/m² , and it supports a wide operating temperature environment of -30℃ to +80℃, ensuring stable operation under extreme temperatures; In terms of electrical parameters, it adopts a 3.3V ±0.3V low-power design and is equipped with an NV3041 TFT driver chip to achieve accurate display.
This 5.0-inch TFT display has flexible interface configuration, supports MCU 8Bit interface by default, and can also switch to SPI or QSPI mode by adjusting the resistor position number.
This 5.0-inch TFT display module has an ultra-high brightness of 1000cd/m2 and is readable in sunlight. In the same series of products, we also provide a version with content touch TFT-H050A19WQINV8C22. It is mainly used in industrial HMI interfaces, portable instruments, smart home control panels and other scenarios. Its high brightness and wide temperature, flexible configuration of multiple interfaces, lightweight corrosion-resistant structure and anti-residual image design can meet the reliable display needs in various scenarios.
