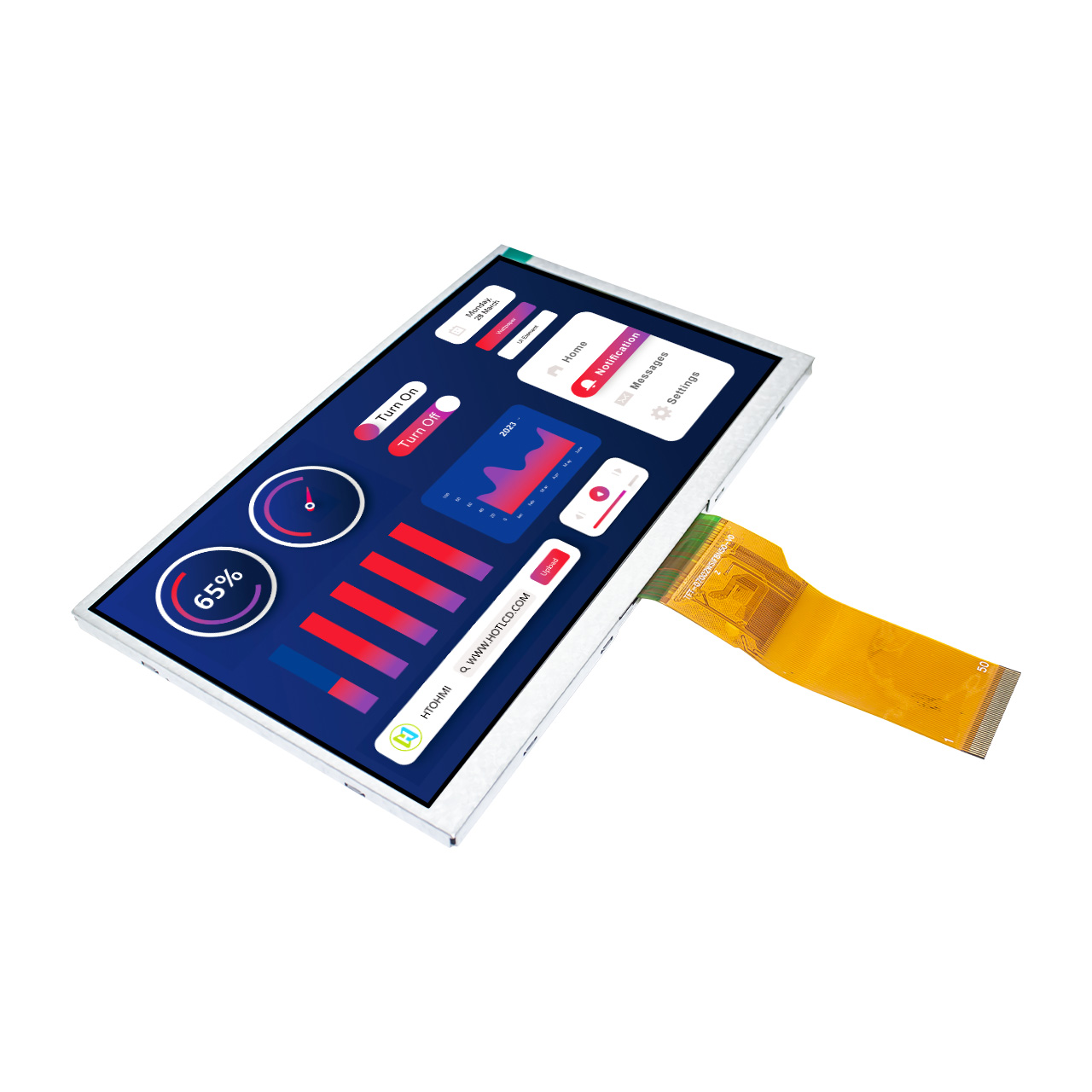

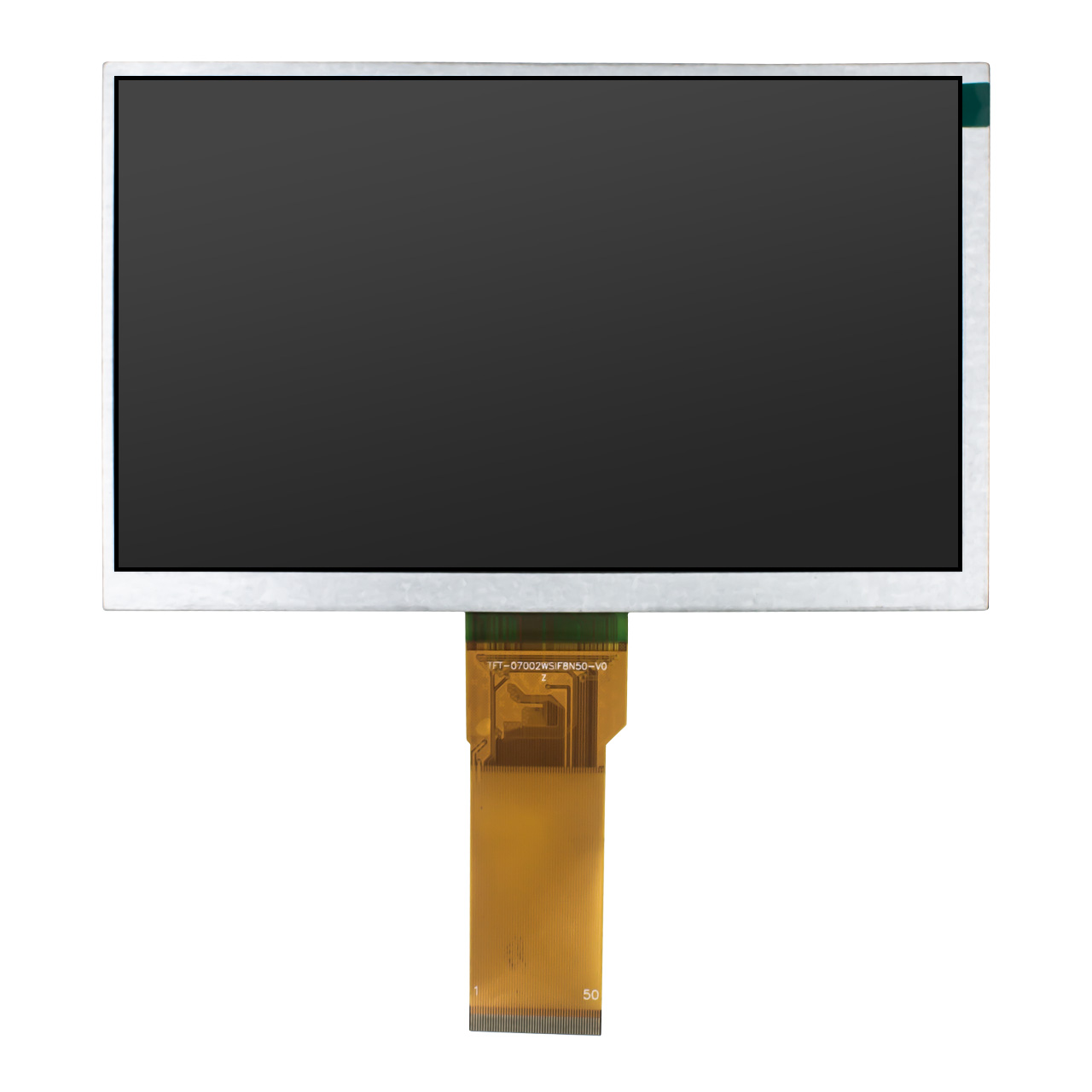

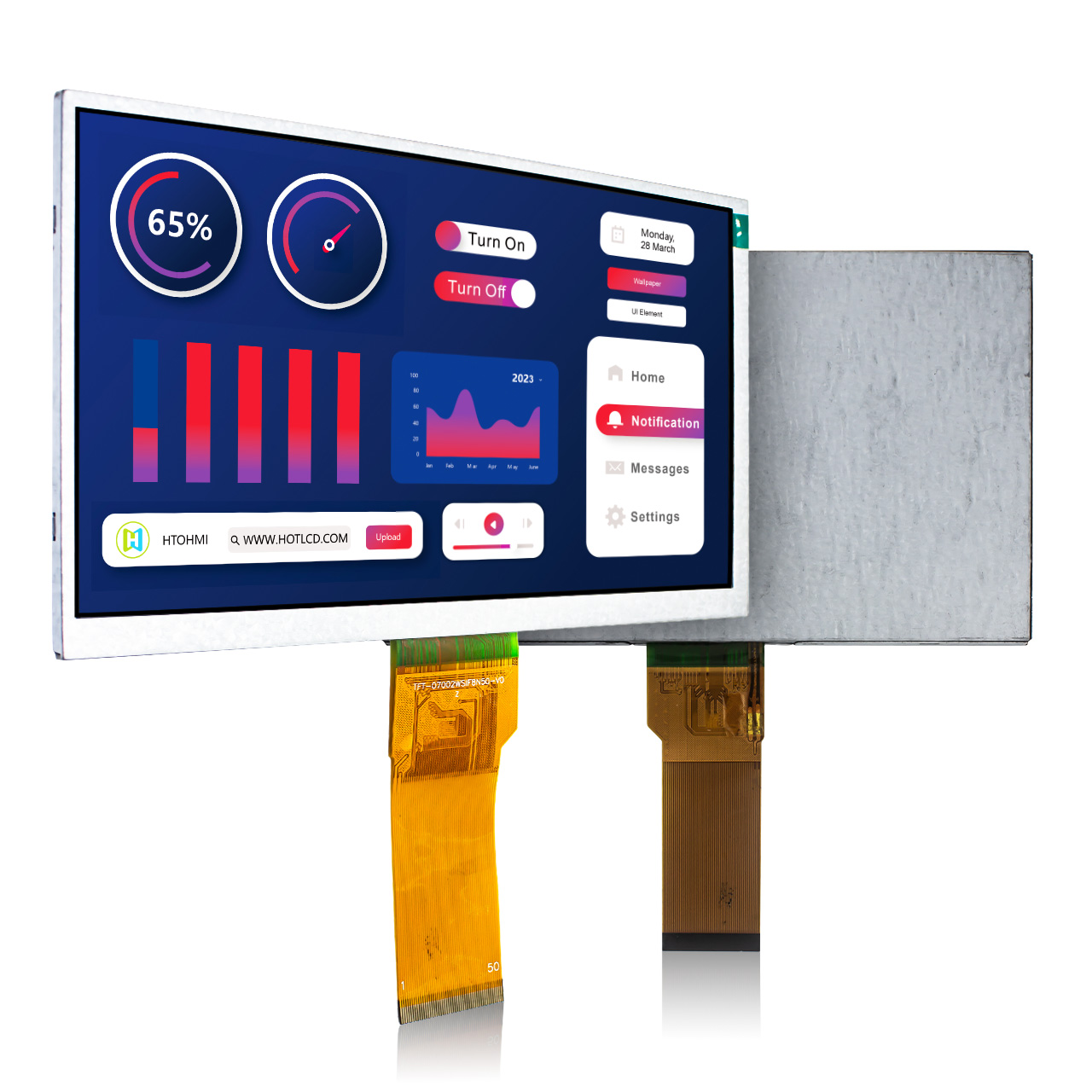

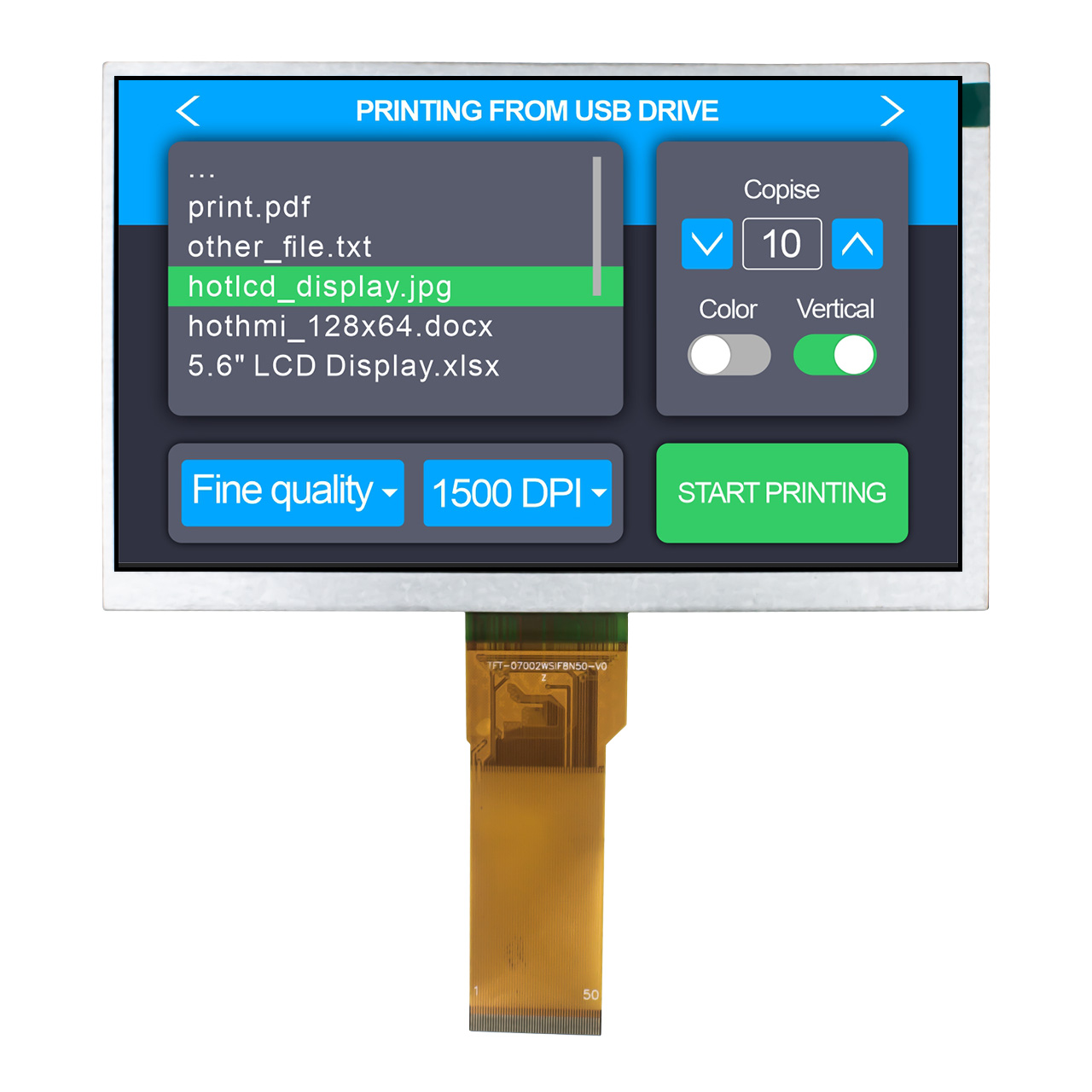

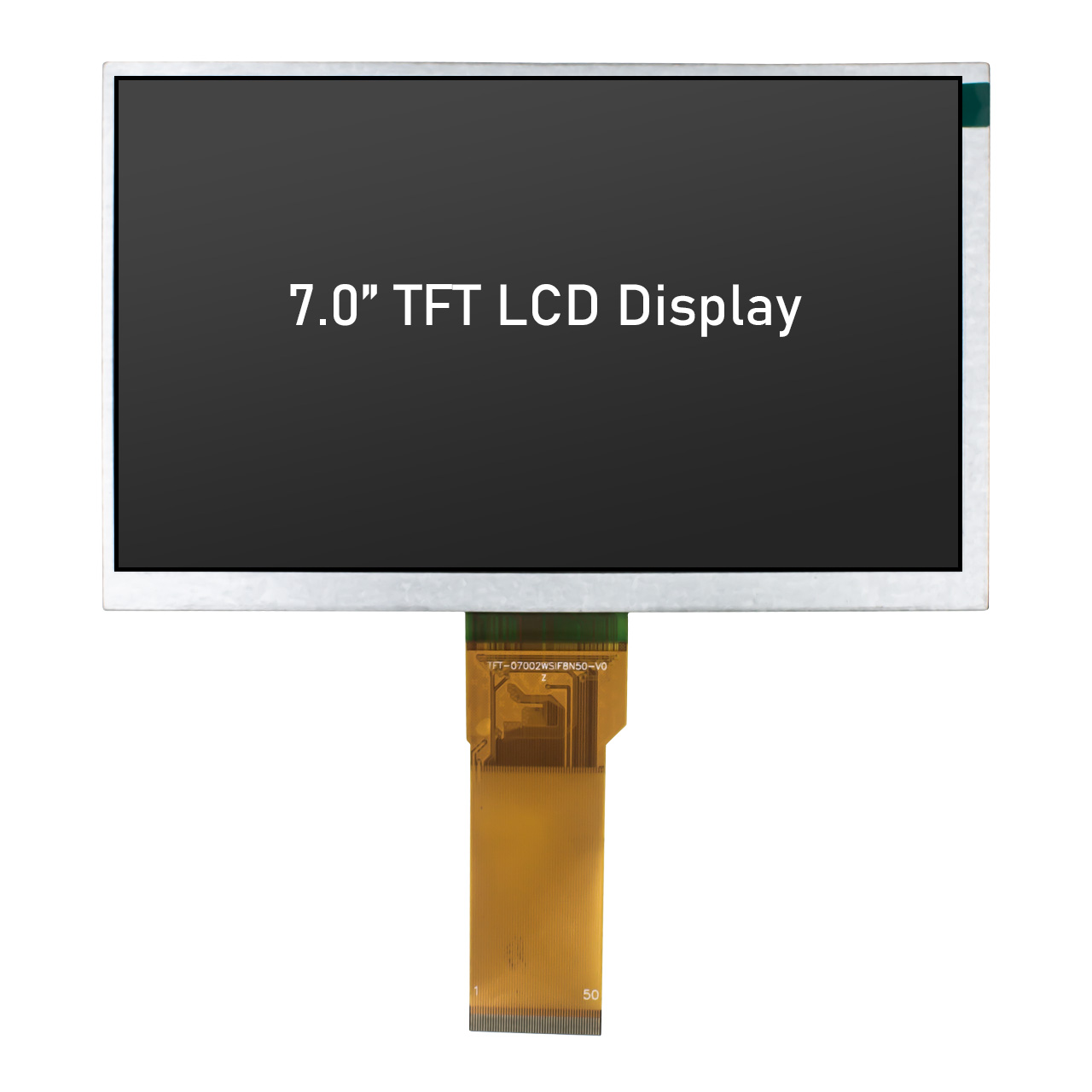

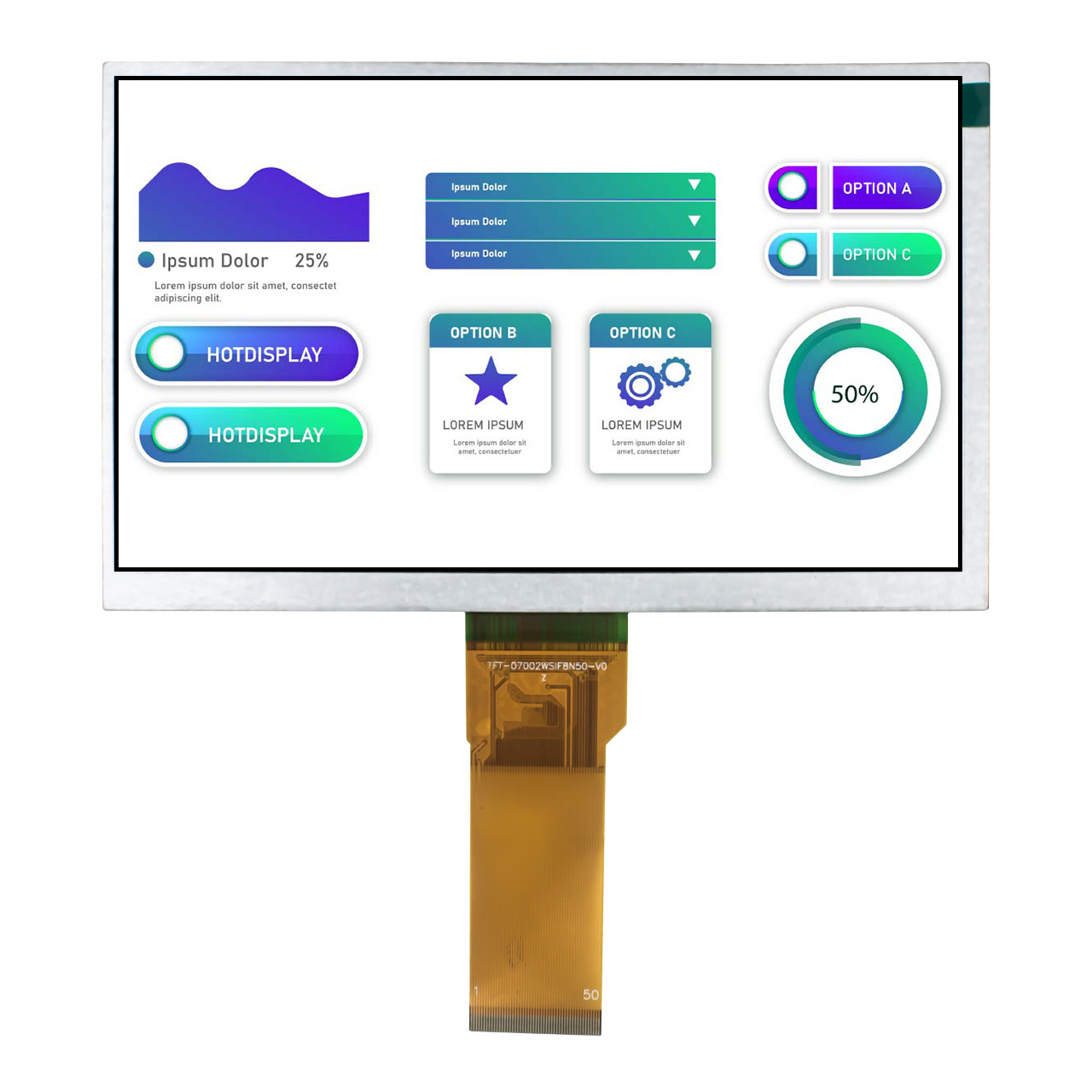

TFT-H070A2WSIFT8N50 | 7 Inch TFT LCD with EK79001 Controller Sunlight Readable

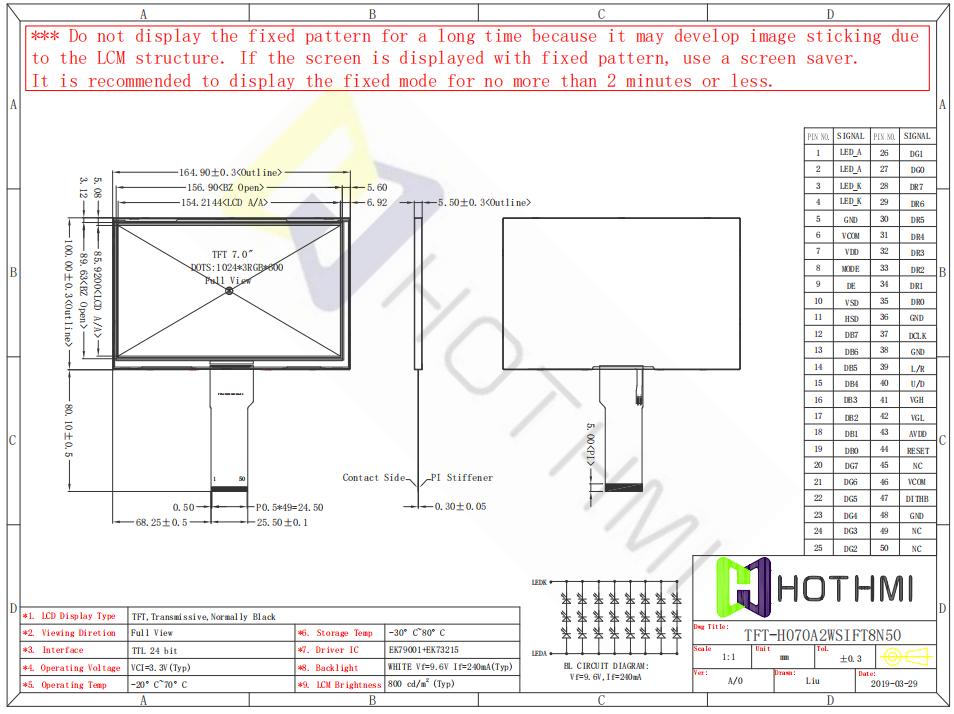

This 7.0 inch TFT Display Modules TFT-H070A2WSIFT8N50 is designed for high-stability industrial applications. Its core display performance is based on a resolution of 1024x600 pixels, using RGB vertical arrangement, which can present clear and delicate image effects. The 7.0 inch TFT Display Modules is connected to the main control device through a 24-bit TTL parallel interface, and can meet the dynamic picture requirements of a 60Hz refresh rate. The overall appearance is compact. The frame design takes into account both structural strength and installation adaptability.
The 7.0 inch TFT Display Modules adopts a white LED backlight solution with a typical brightness of 800 cd/m², combined with a high-transmittance LCD panel and wide viewing angle technology , ensuring visibility in complex lighting environments. Its optical characteristics include a typical contrast ratio of 800:1, a color gamut coverage of approximately 50% , and support for color temperature adjustment . The response time is 30-40ms, suitable for static or medium and low-speed dynamic picture scenes.
This 7.0 inch TFT Display Modules is suitable for industrial HMI, medical equipment, vehicle-mounted instruments, automation control terminals and other fields with strict reliability requirements. this 7.0 inch TFT Display Modules is especially suitable for application scenarios that require wide temperature operation, strong anti-interference ability and long life design.
In the same series, we also offer the display module HTM070A3-USART-ST V1.0 with STM32F767 controller, and the capacitive touch display TFT-H070A23WSIJDKC40 with optical bonding. All our products comply with ROHS standards.
