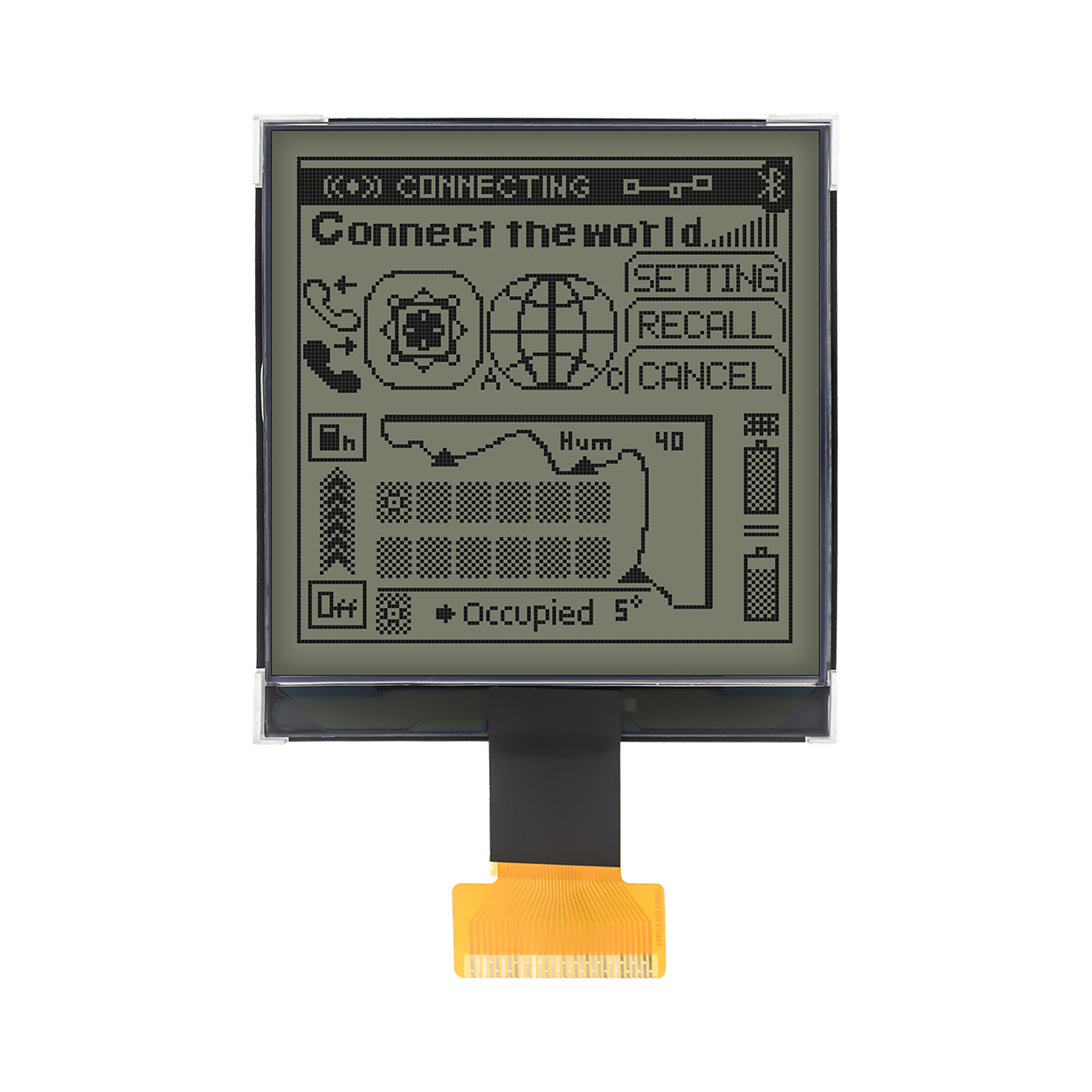

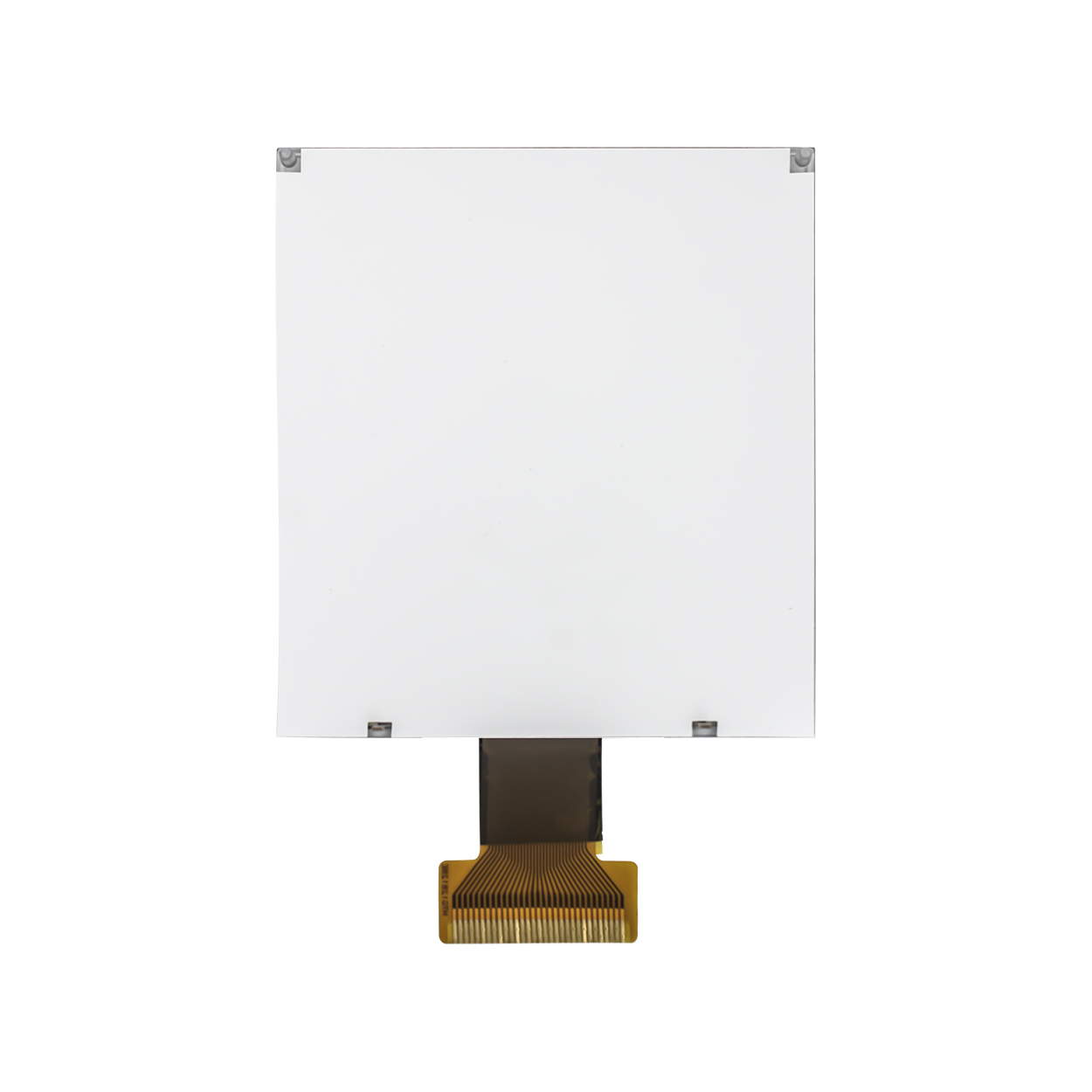

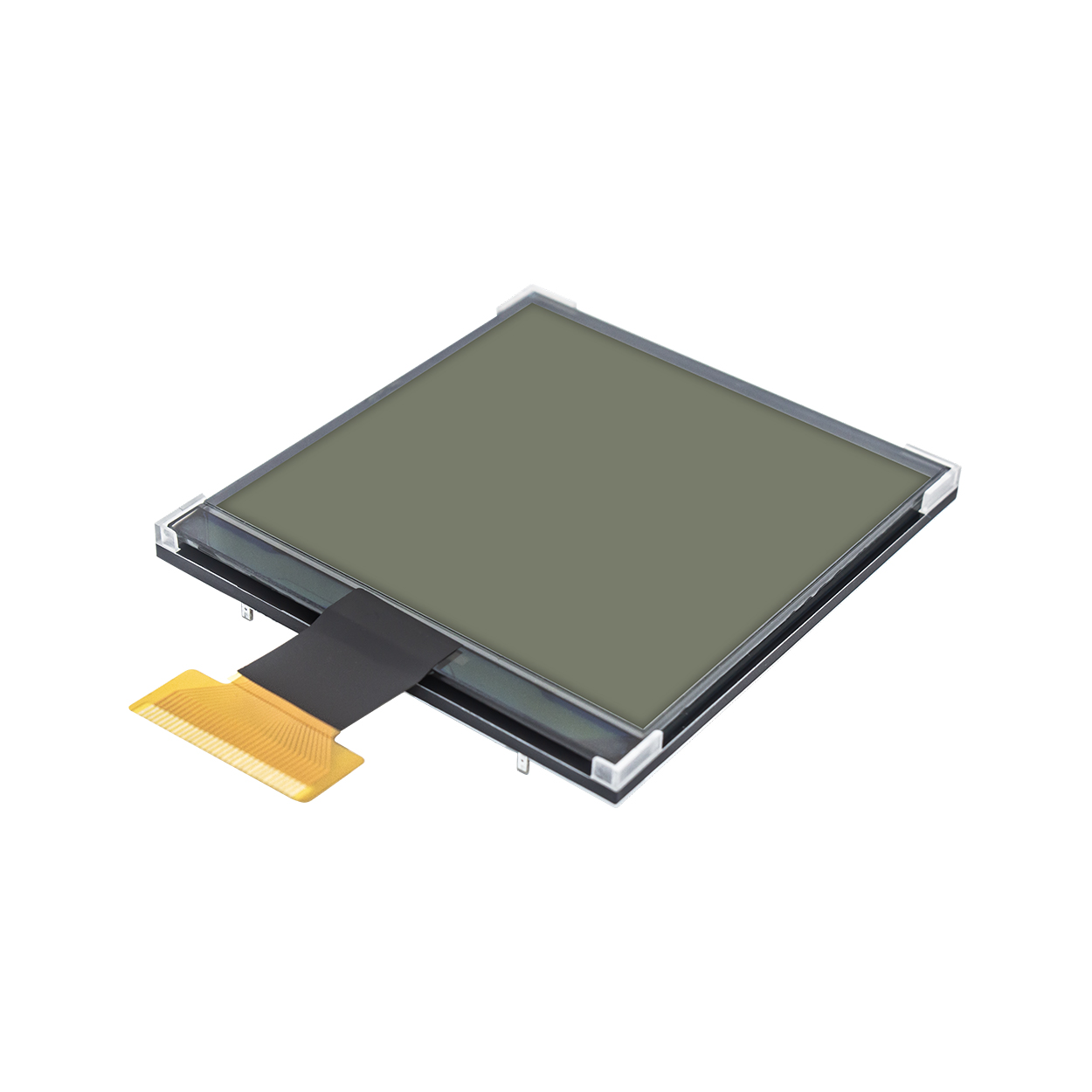

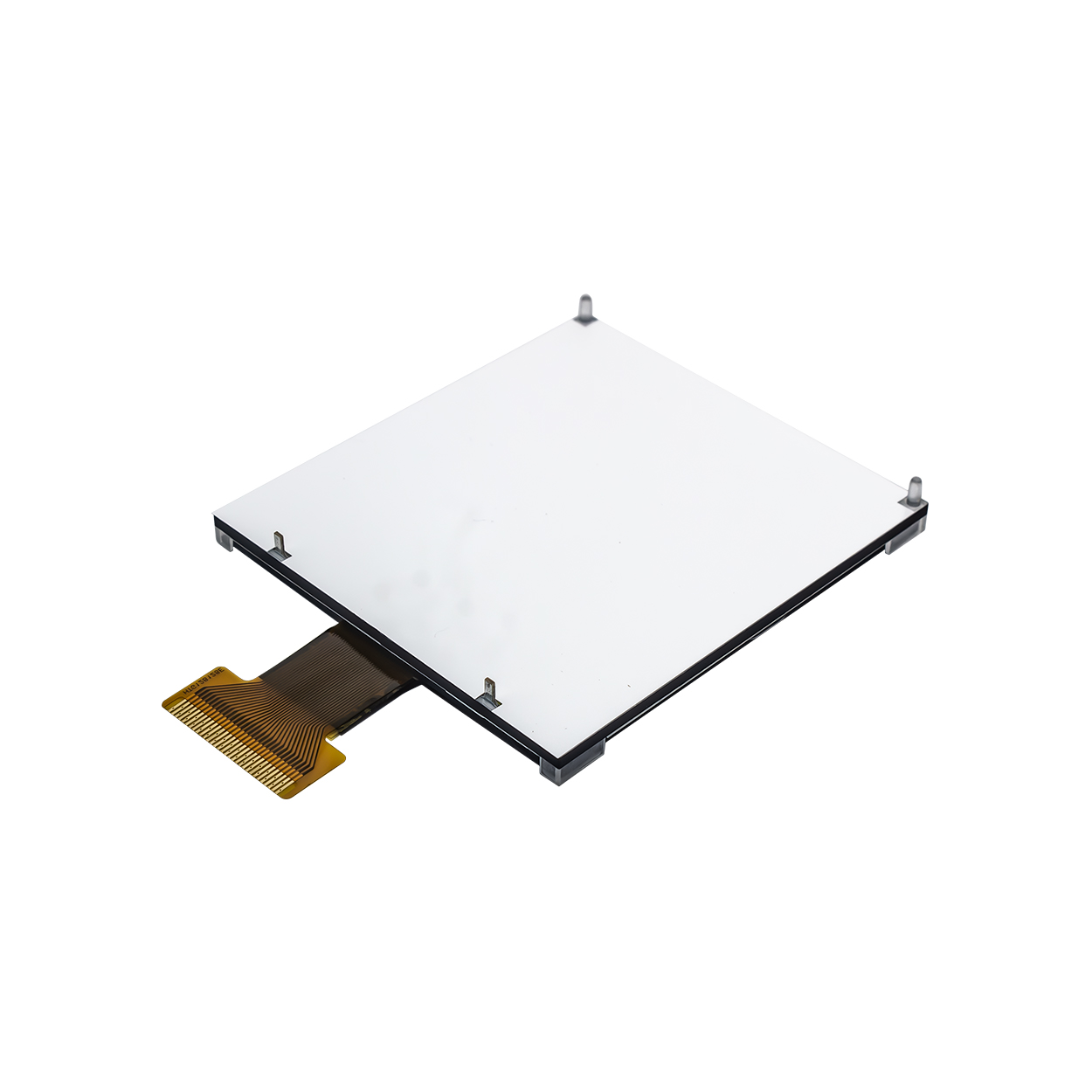

  • 3.3-inch 128x128 graphic COG LCD display | FSTN+white background gray COG | Arduino

    HTG128128E-01Y-31H07-V01 is a high-performance LCD display screen designed specifically for applications that require high clarity and reliability. This display screen adopts STN (Thin Film Super Twisted Nematic) technology, which has a transparent and reflective forward display characteristic, ensuring clear visual effects under various lighting conditions.

    Main features

    High resolution: 128x128 pixels, providing delicate display effects, suitable for applications that require fine image display.

    Wide viewing angle: 6 o'clock directional viewing angle, ensuring clear display effect when viewed from different angles.

    Wide temperature range: The working temperature range is -20 ° C to 70 ° C, and the storage temperature range is -30 ° C to 60 ° C, suitable for various environmental conditions.

    Low power design: The working voltage is 3.3V, the backlight uses white LED, the voltage is 3V, and the current is 60mA, which is energy-saving and efficient.

    High reliability: Adopting SSD1848 driver IC to ensure stable performance and long lifespan.

    Application area

    HTG128128E-01Y-31H07-V01 LCD display screen is widely used in industrial control, medical equipment, smart home, consumer electronics and other fields, especially suitable for devices that require high reliability and clear display.



  • Datasheet for Touch Panel,Controller↓

    Name Date Size
    HTG128128E-31W-31H07-V01 March 03, 2025 62.83KB

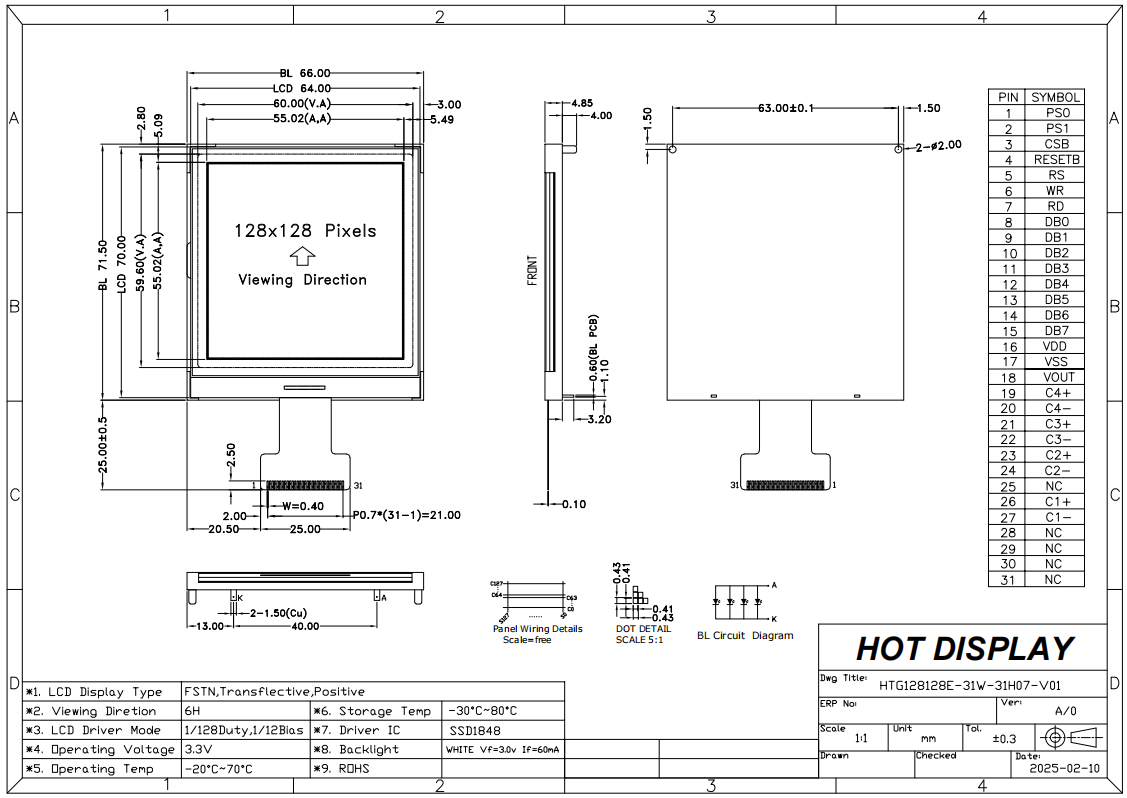

  • image.png

  • Parameter

    Specification content

    Unit

    name

    HTG128128E-31W-31H07-V01


    graphic display

    128 × 128

    dots

    External dimensions

    66x71.5x4.85  (MAX)

    mm

    VA size

    60.0x59.6

    mm

    AA size

    55.02x55.02

    mm

    Pixel pitch

    0.43x0.43

    mm

    Driver chip

    SSD1848


    applied voltage

    3.3V

    V

    Backlighting

                                                                                    White


    display mode

    FSTN(+)


    drive mode

    1/128 duty cycle


    product type

    Graphic COG


    Polarizer type

    Transflective
